COM Express

Portwell provides organizations with Computer-on-modules solutions for all their needs. Whether you require a low-power-computing, low-cost, or high-performance computing processor, we have you covered. Computer-on-modules, also known as COM express modules or COMe or COMe boards, are highly integrated computer boards that feature CPU, memory, – the common I/O of PCIe, SATA, USB, audio, graphics, and Ethernet. Portwell’s computer-on-module includes COM-Expres Extended, COM-Express Basic, COM-Express Compact, COM-Express Mini, QSeven, SMARC, and more. All the above requirements you’ll find here.
Please browse our selection of Computer-on-modules boards today, or contact us to identify the best option for your organization’s needs.

  • COM Express Type 10

The Type 10 COM-Express Module pin-out definition in the mini form factor (84 x 55mm) is defined for low-power platforms to match the feature and performance requirements while maintaining the support of graphic and optimized I/O for small form factor or portable devices.

  • COM Express Type 7

The Type 7 COM-Express module pin-out definition in the Compact(95 x 95mm) form factor is designed for server-grade applications which require high-speed data and network throughput. It does this by replacing all of the audio and graphics interfaces while reducing the number of SATA ports and USB 2.0 signals and replacing them with 8x PCIe lanes and 4x 10Gb Ethernet ports.

  • COM Express Type 6

The Type 6 COM-Express Basic(125 x 95mm) & Compact(95 x 95mm) form factor is defined by PCI Industrial Computer Manufacturers Group (PICMG). The Type 6 COM-Express provides standardized module interfaces including storage, graphic control, video Interfaces (LVDS, VGA & DDI), and USB 3.0 to meet different application requirements from the various vertical market.

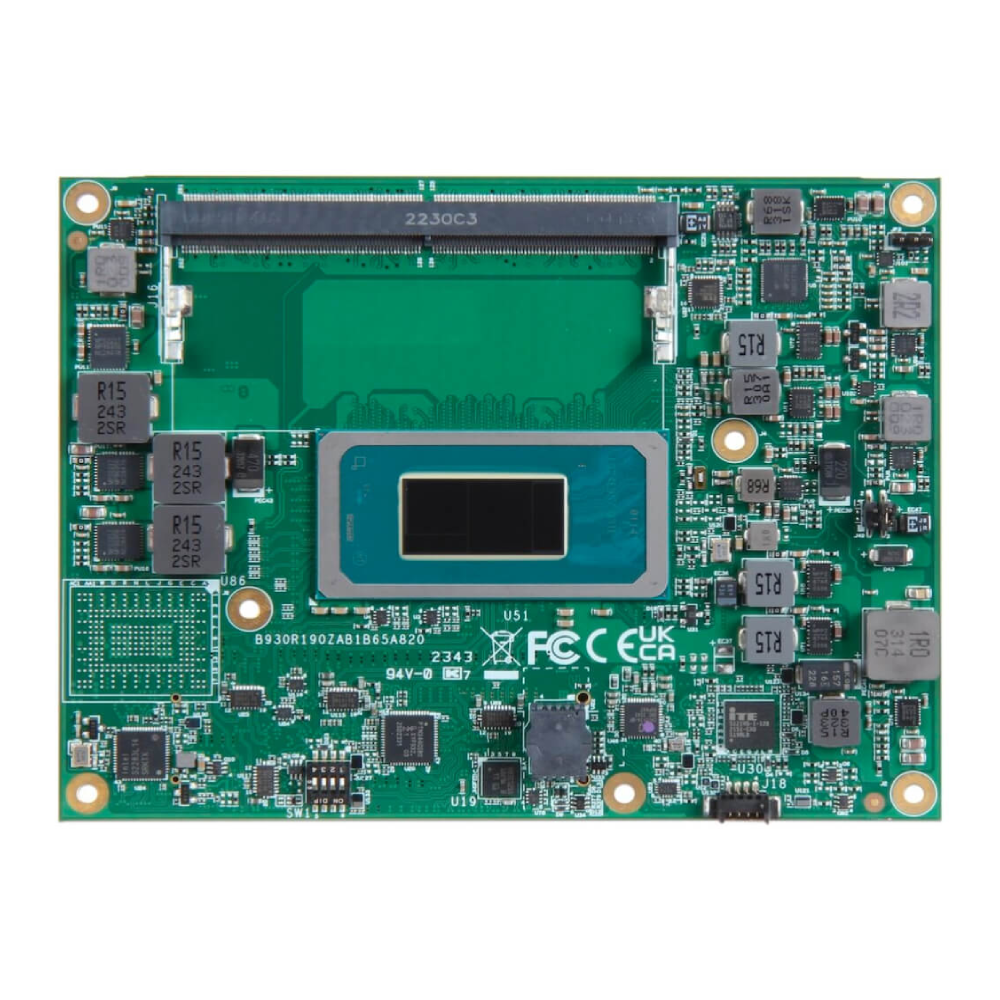

PCOM-B65A

COM Express Type 6 Basic size module with Intel New Gen Core Ultra Series Processor DDR5 SO-DIMM,

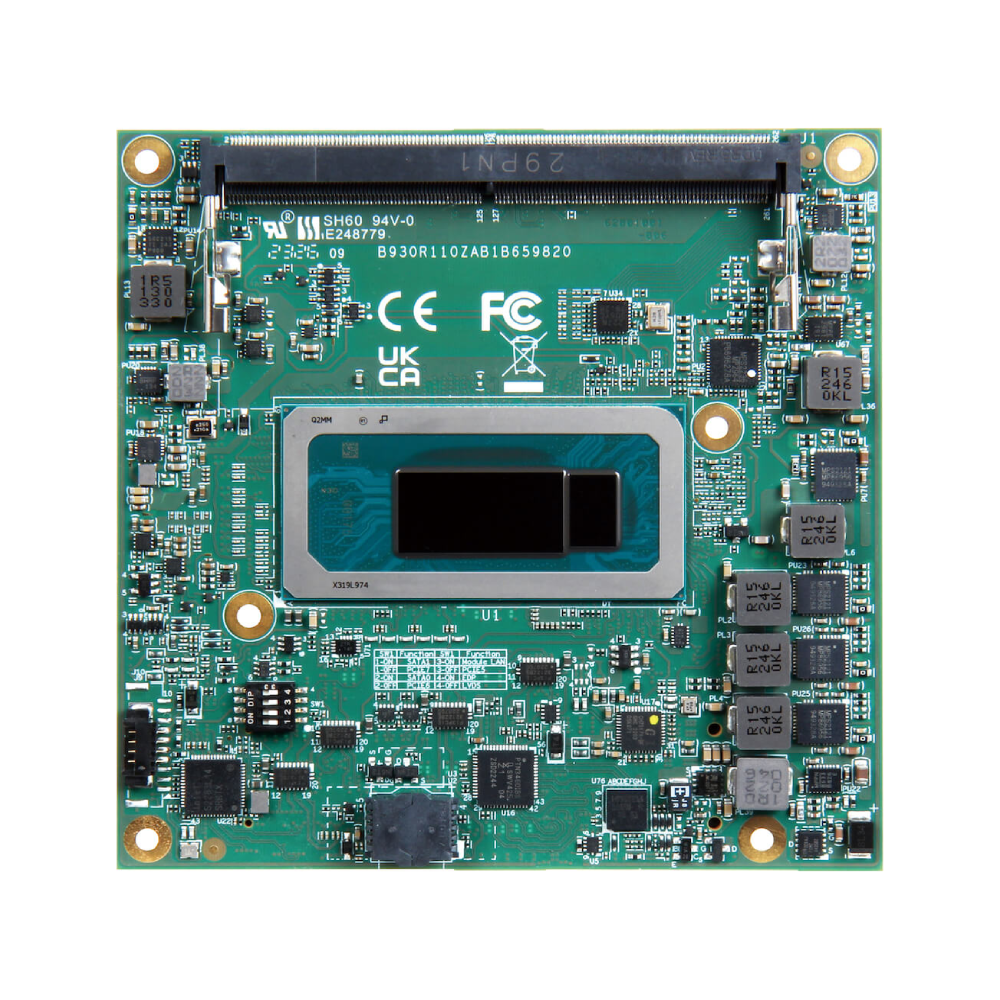

PCOM-B659

COM Express Type6 Compact size module with Intel® 13th Gen P/U Processor DDR5 SO-DIMM, DDI

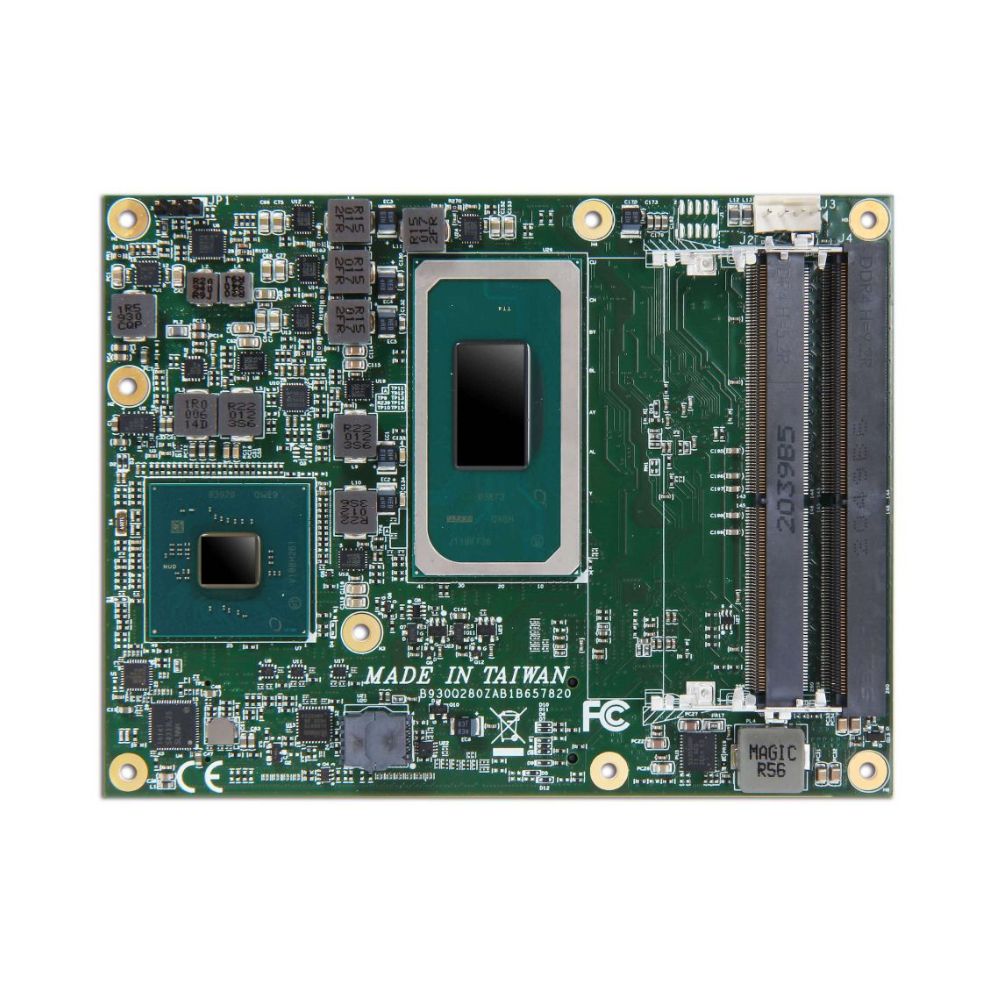

PCOM-B657VGL

COM Express Type-VI Basic module with Intel® 11th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Ge...

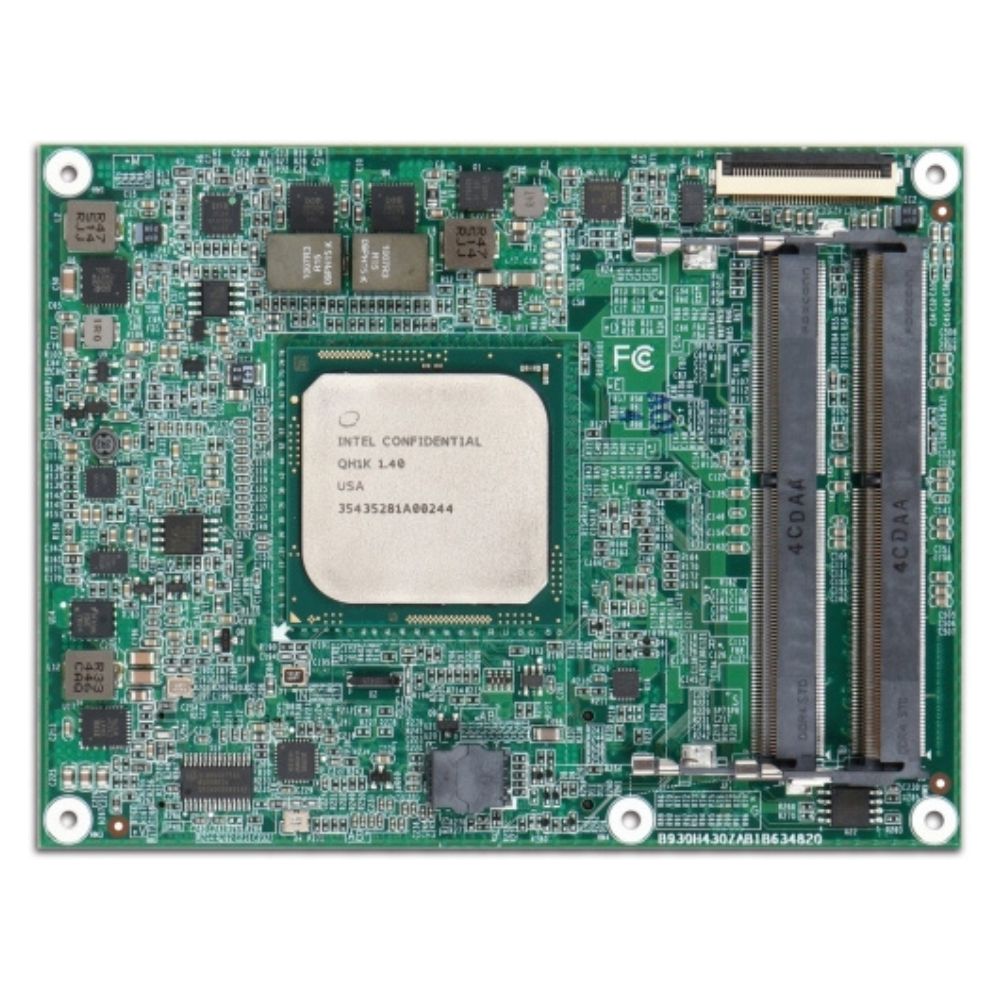

PCOM-B634VG

Intel® Pentium® / Xeon® D-1500 series Processor based on Type 6 COM Express® 2.0 module wit

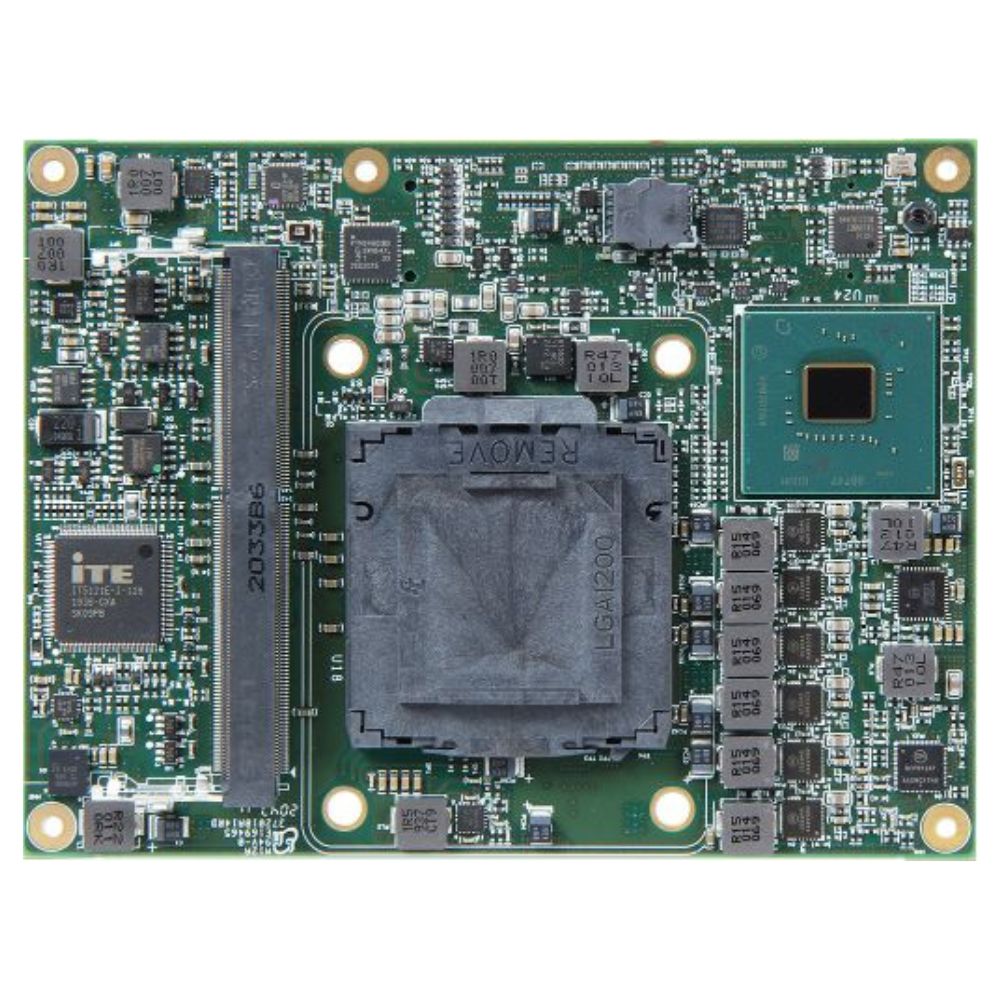

PCOM-B655VGL

Intel® Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM

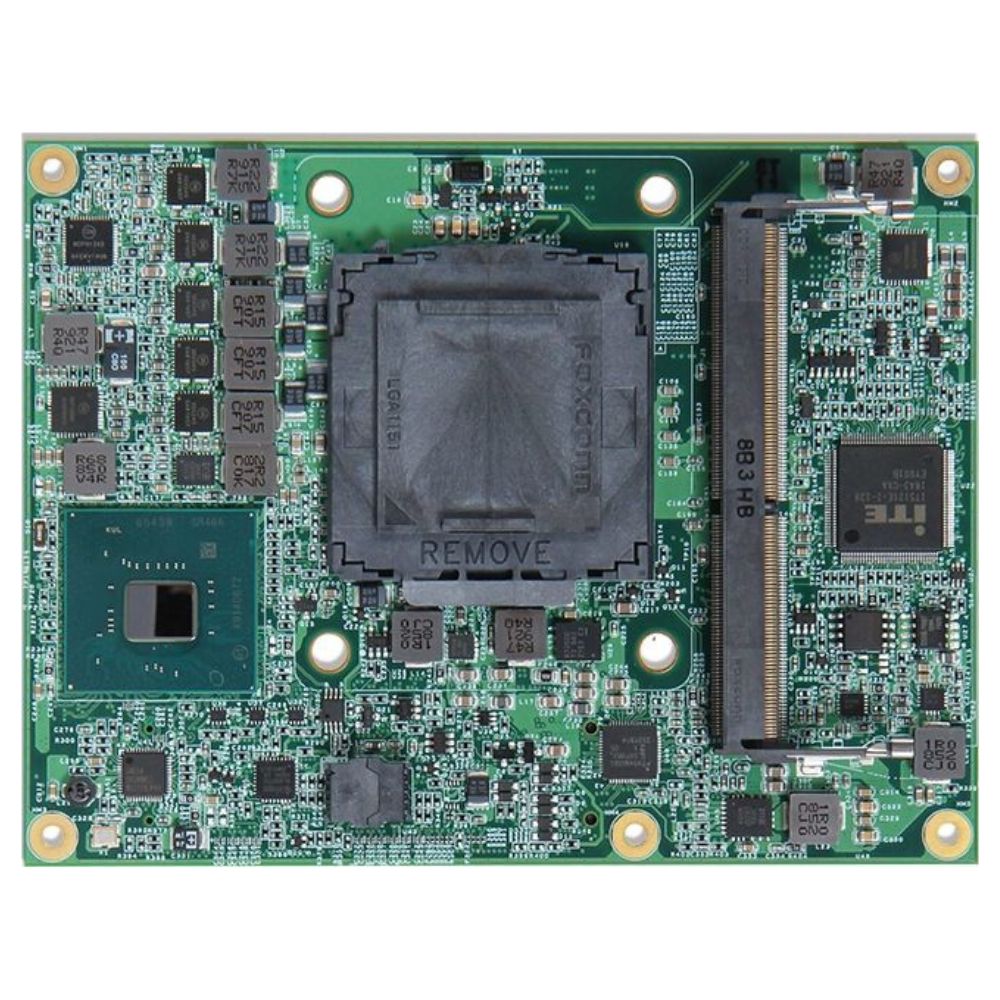

PCOM-B654GL

Intel® Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM

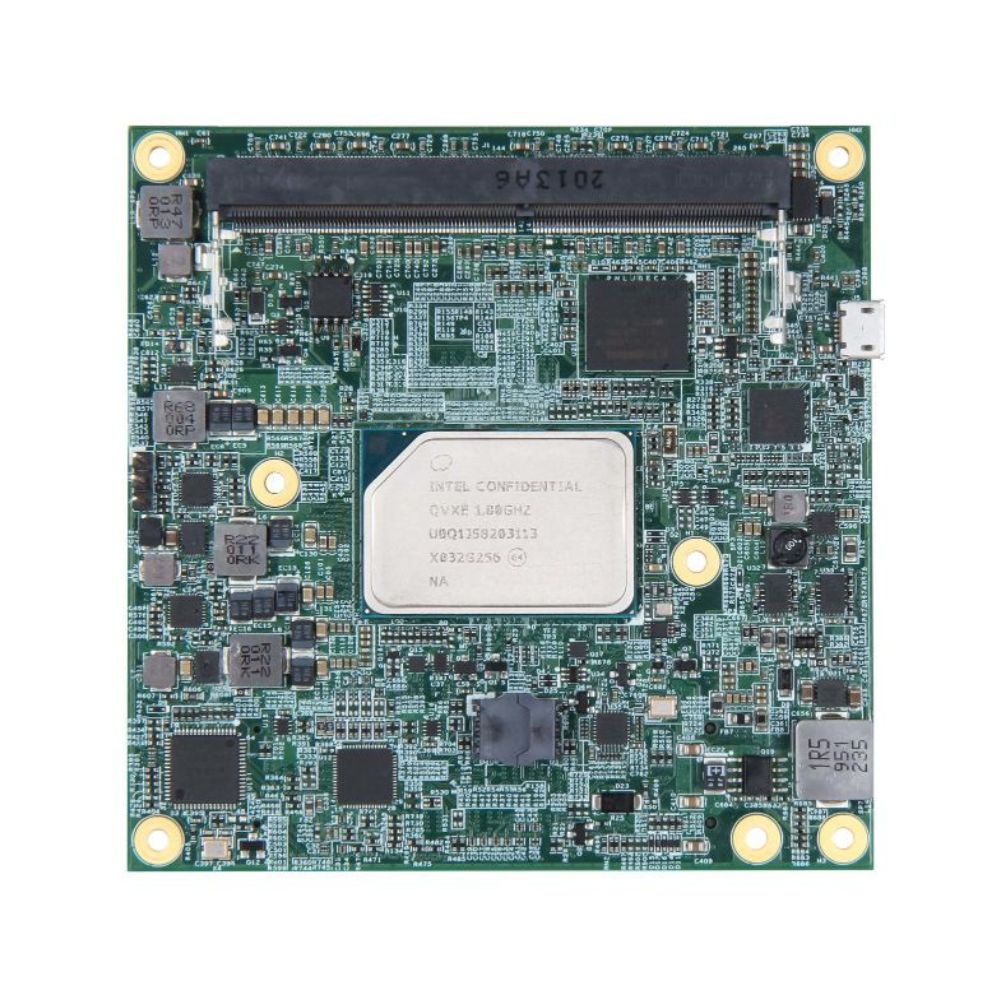

PCOM-B645VGL

Intel® Atom® Elkhart Lake series SoC based on Type 6 Compact COM-Express® module

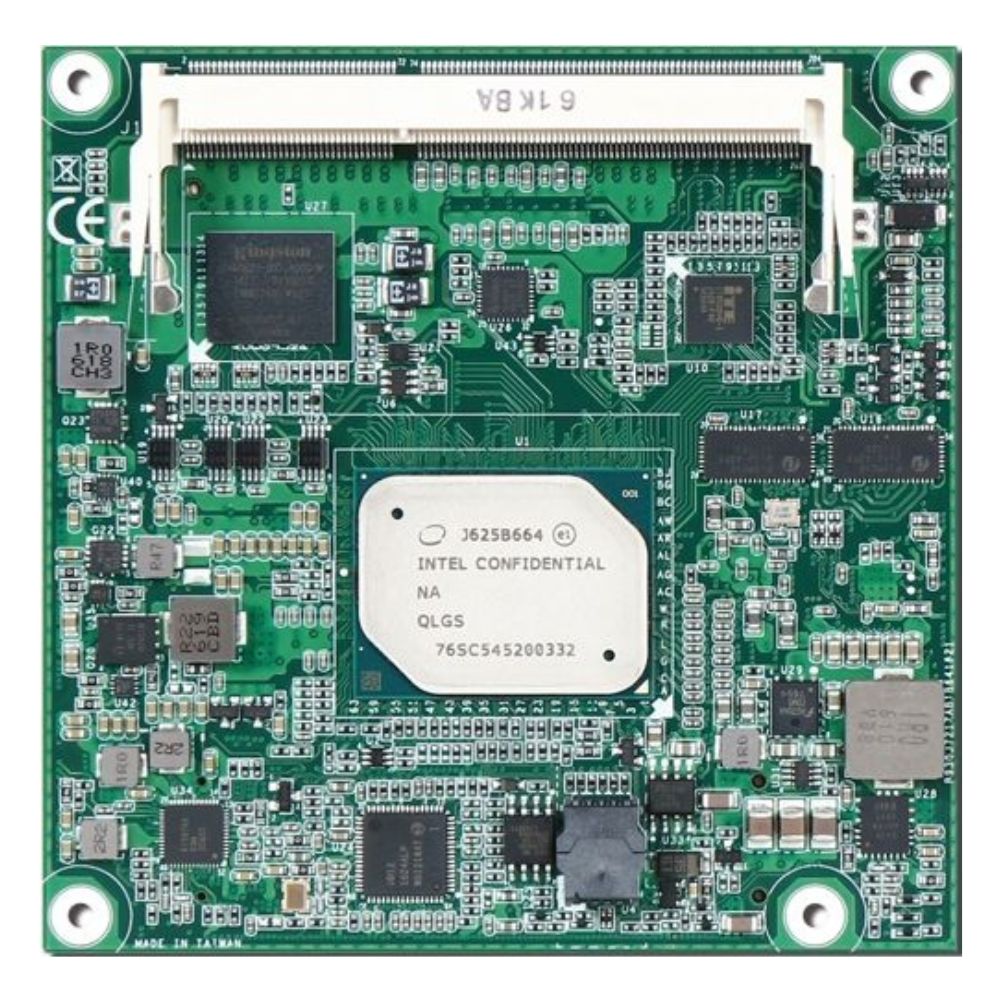

PCOM-B641VG

Intel® Atom® Apollo Lake series SoC based on Type 6 Compact COM-Express® module with

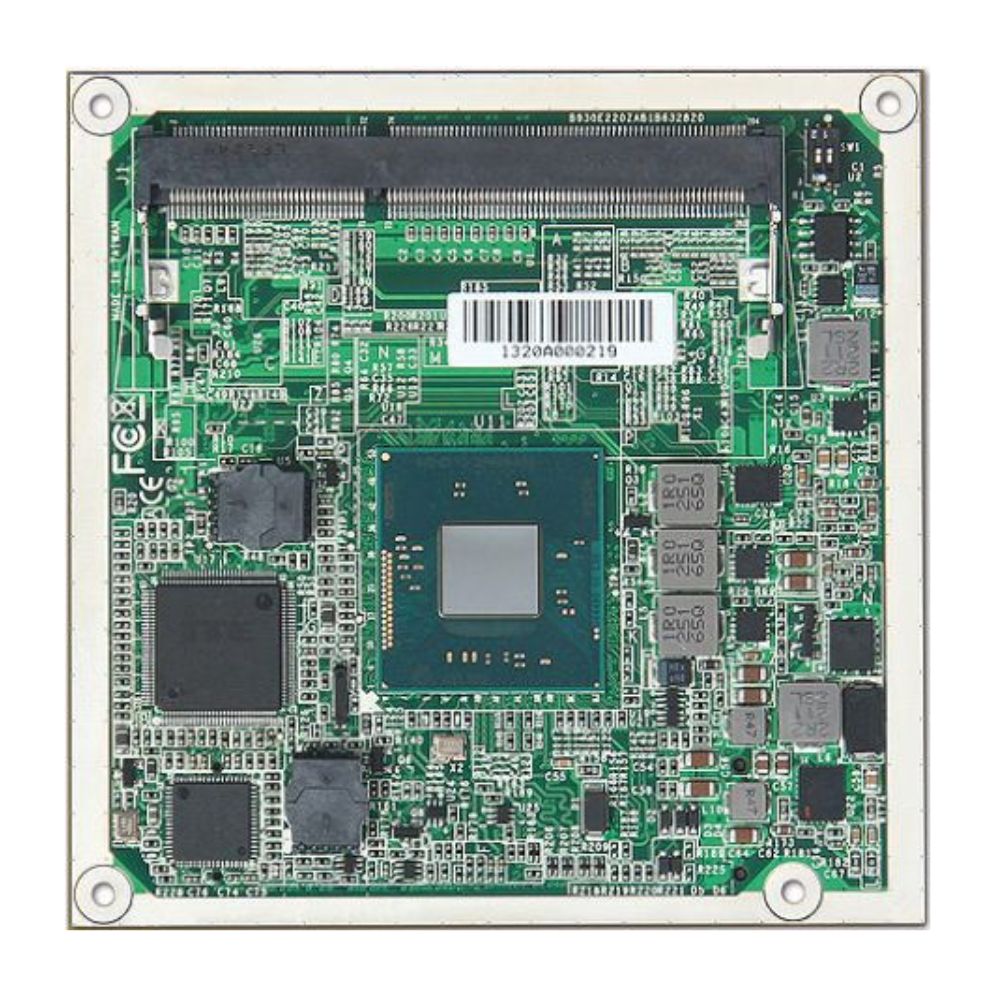

PCOM-B632VG

Intel® Atom® Bay trail series SoC based on Type 6 COMExpress® module with DDR3L

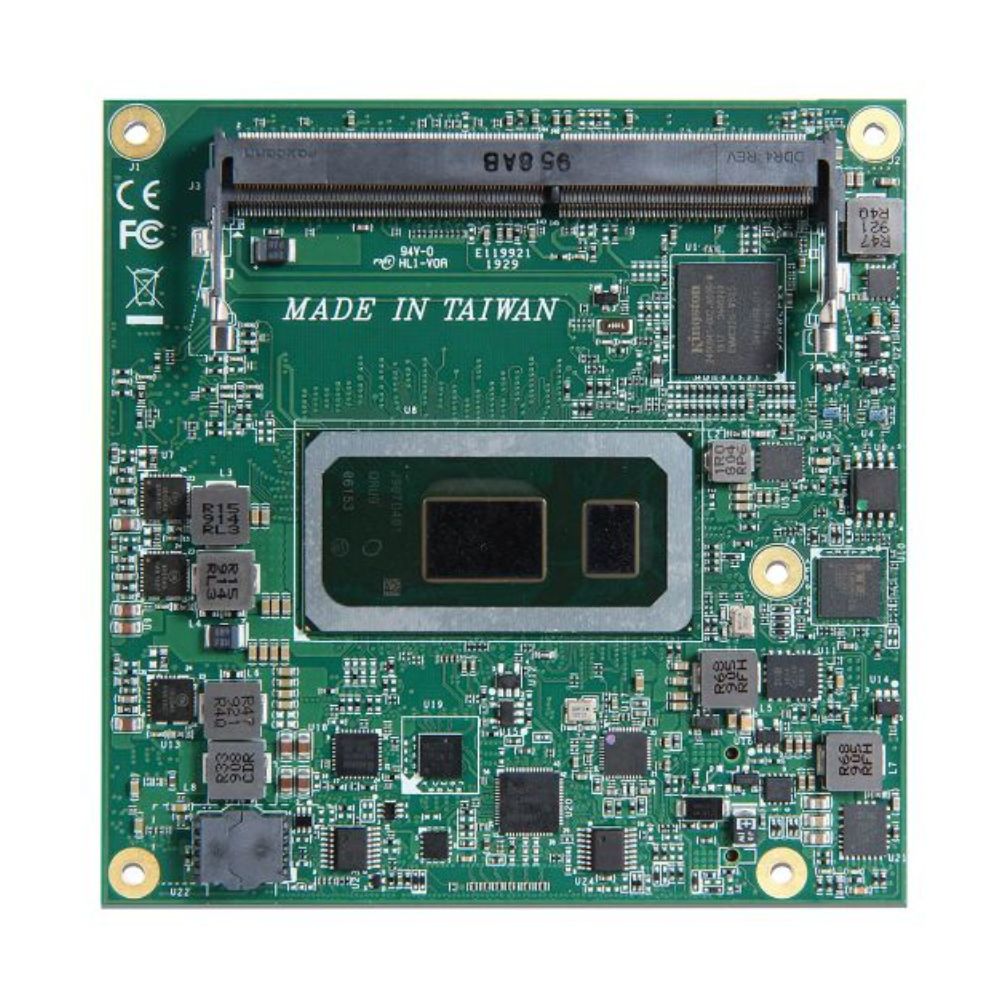

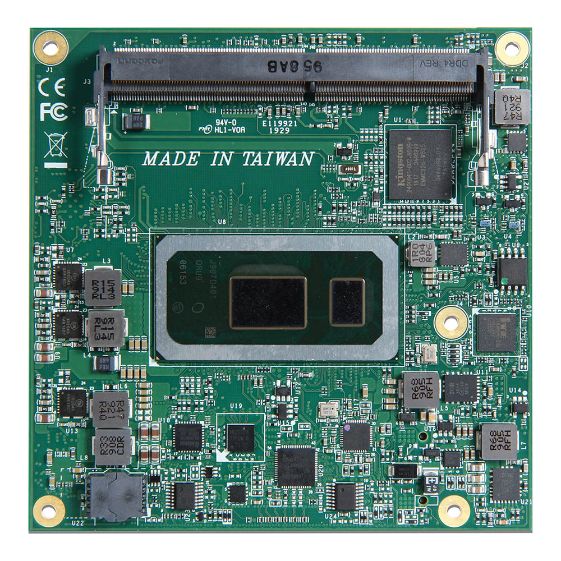

PCOM-B653VGL

Intel® Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact

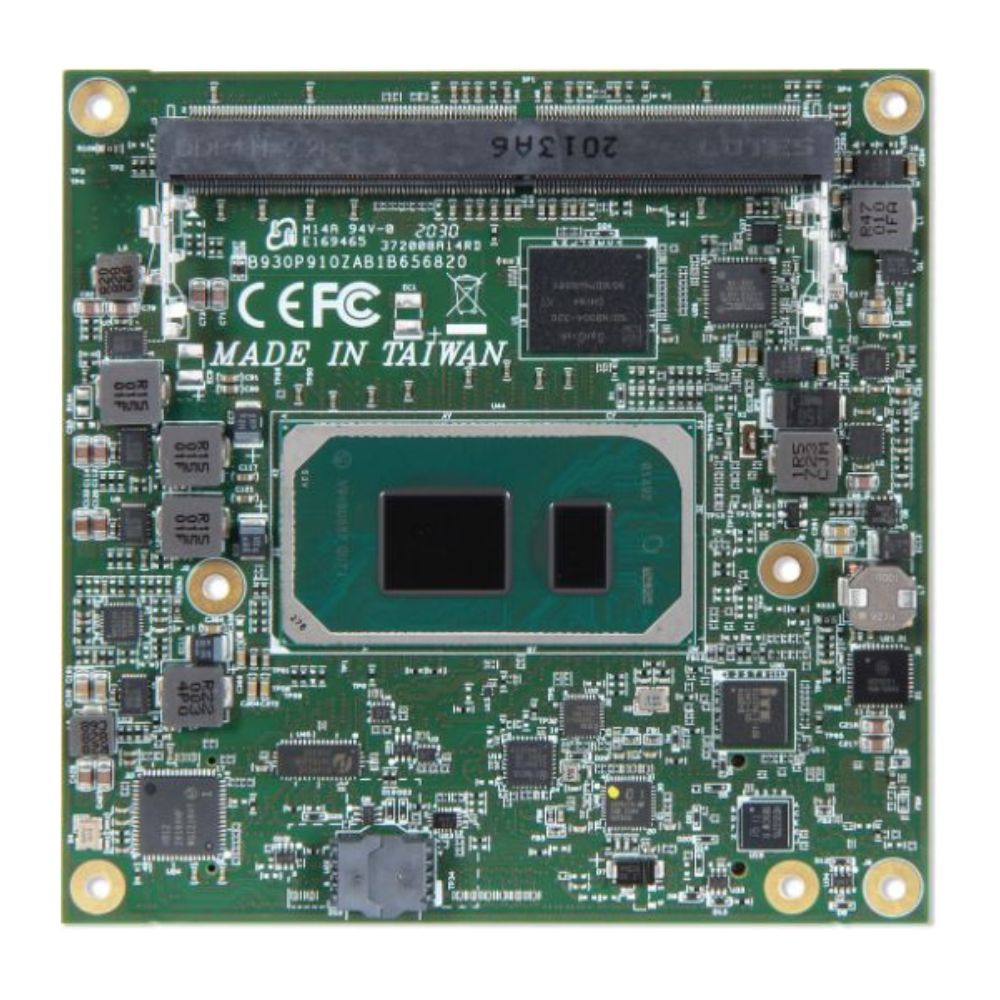

PCOM-B656VGL

Intel® Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4

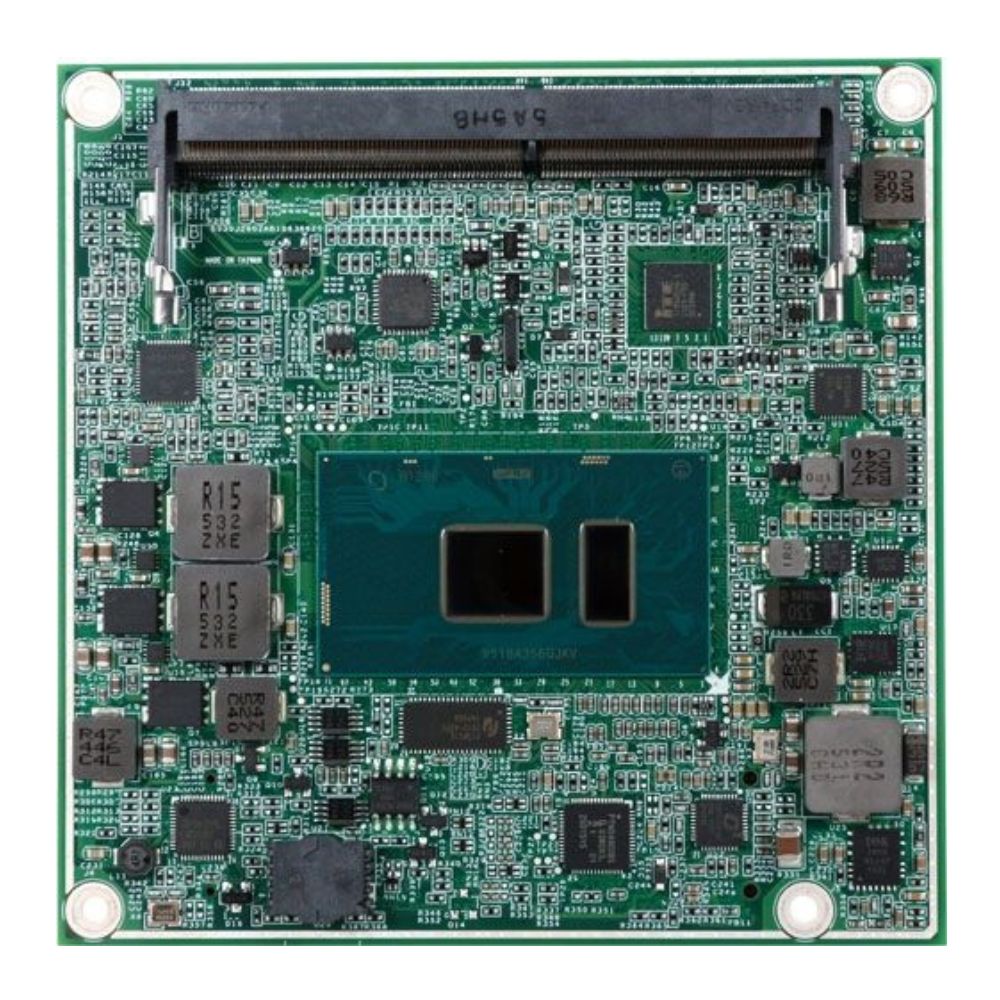

PCOM-B638VG

Intel® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact

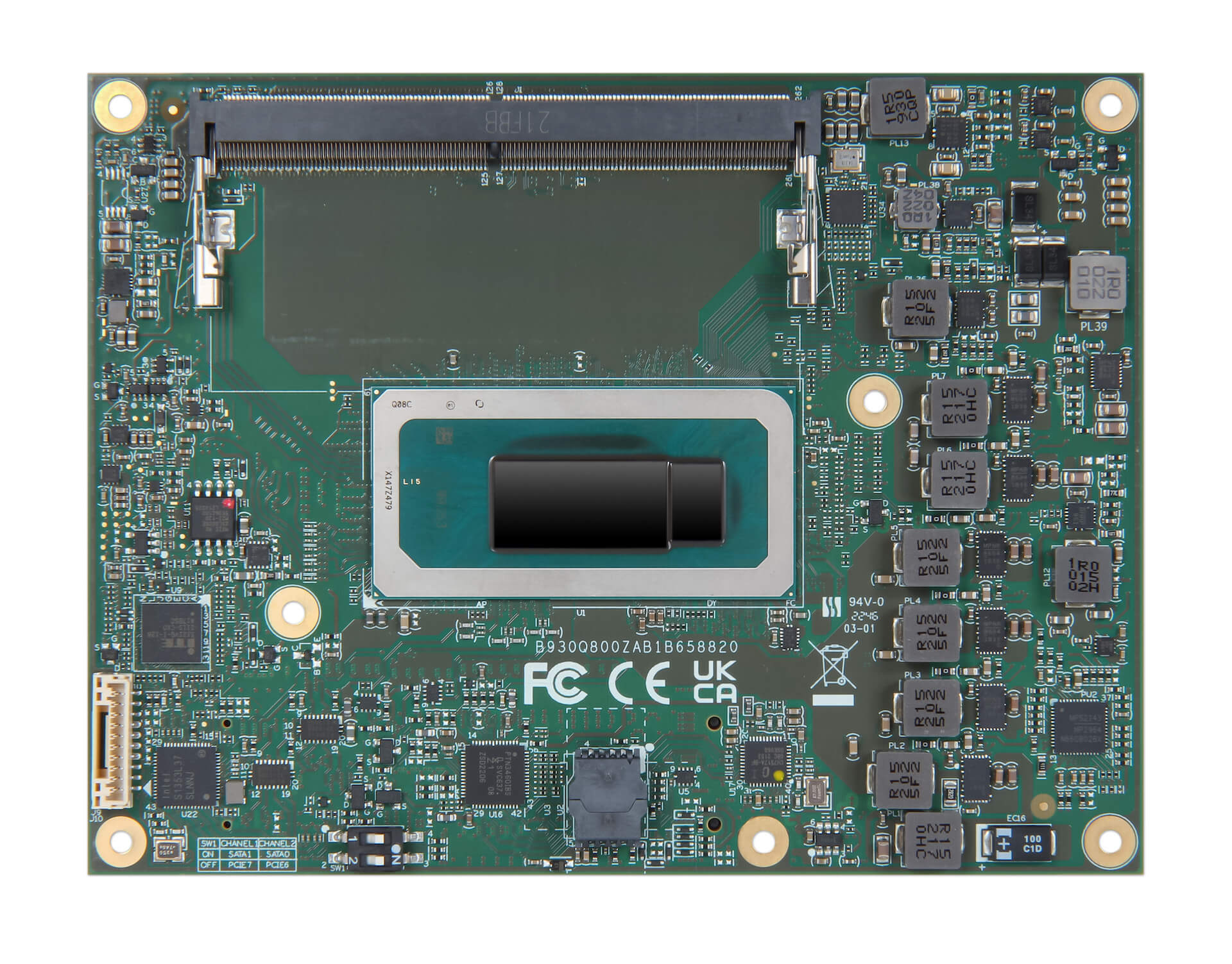

COM Express Module Type 6 PCOM-B658VGL

PCOM-B658VGL

COM Express Type6 Basic size module with Intel® 12th / 13th Gen H/P/U Processor

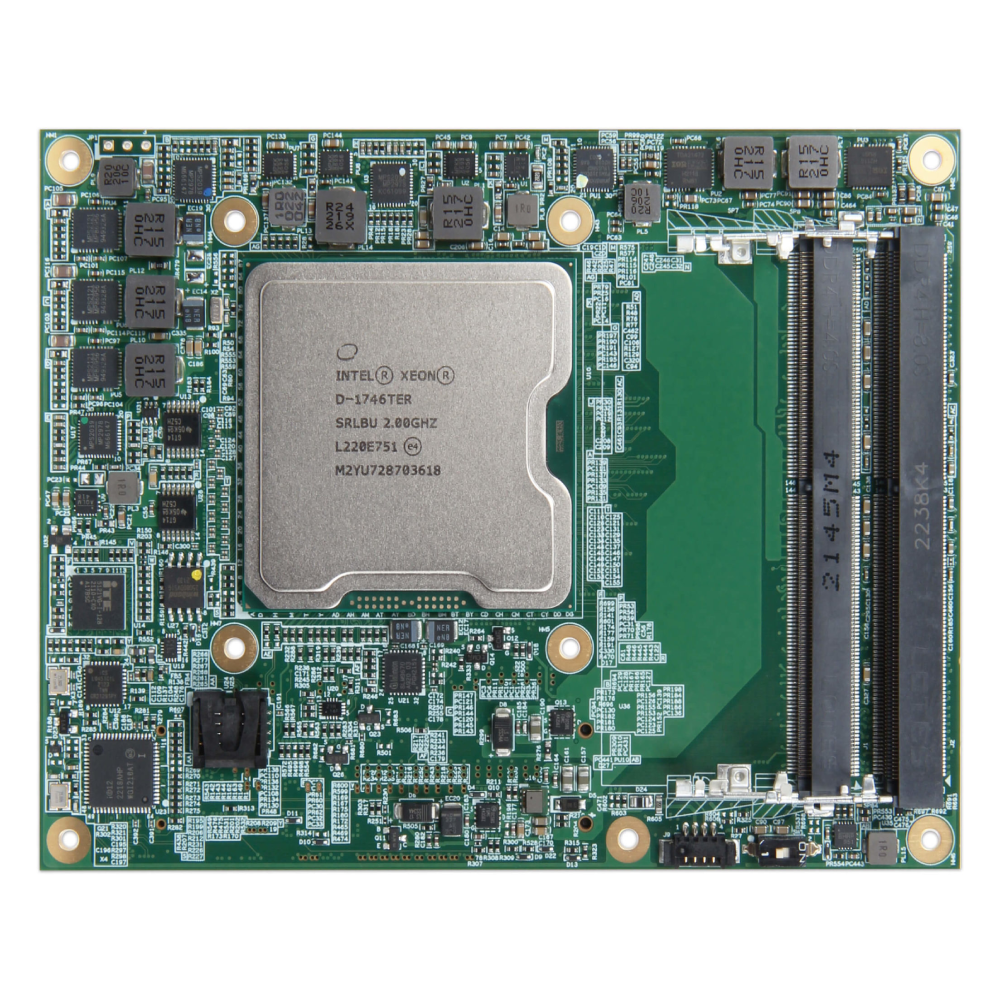

PCOM-B705GT

COM Express Type 7 Basic Module based on Intel® Xeon® D-1700 Processors

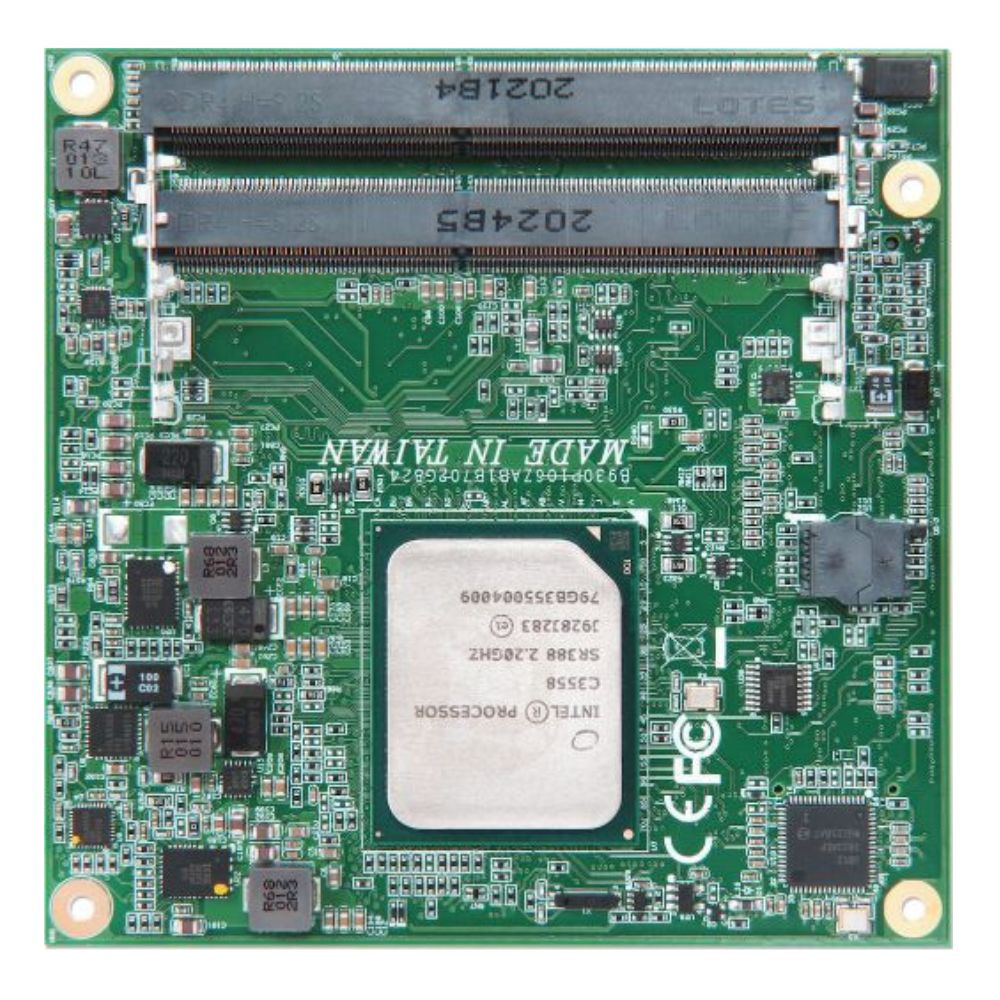

PCOM-B702G

Intel® Atom® processor C3000 Series with DDR4 ECC up to 64GB 2133 MT/s on

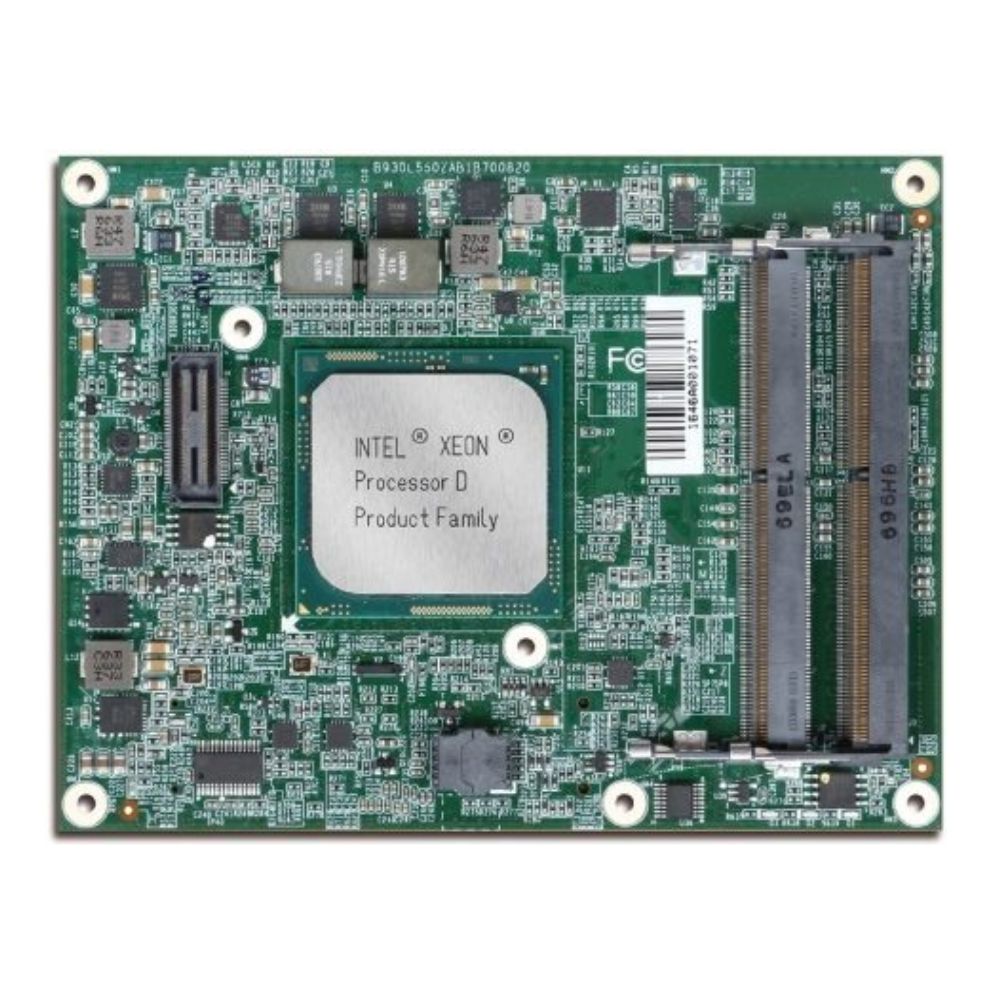

PCOM-B700G

Intel® Pentium® and Xeon® processor D-1500 Series with DDR4 ECC up to 96GB

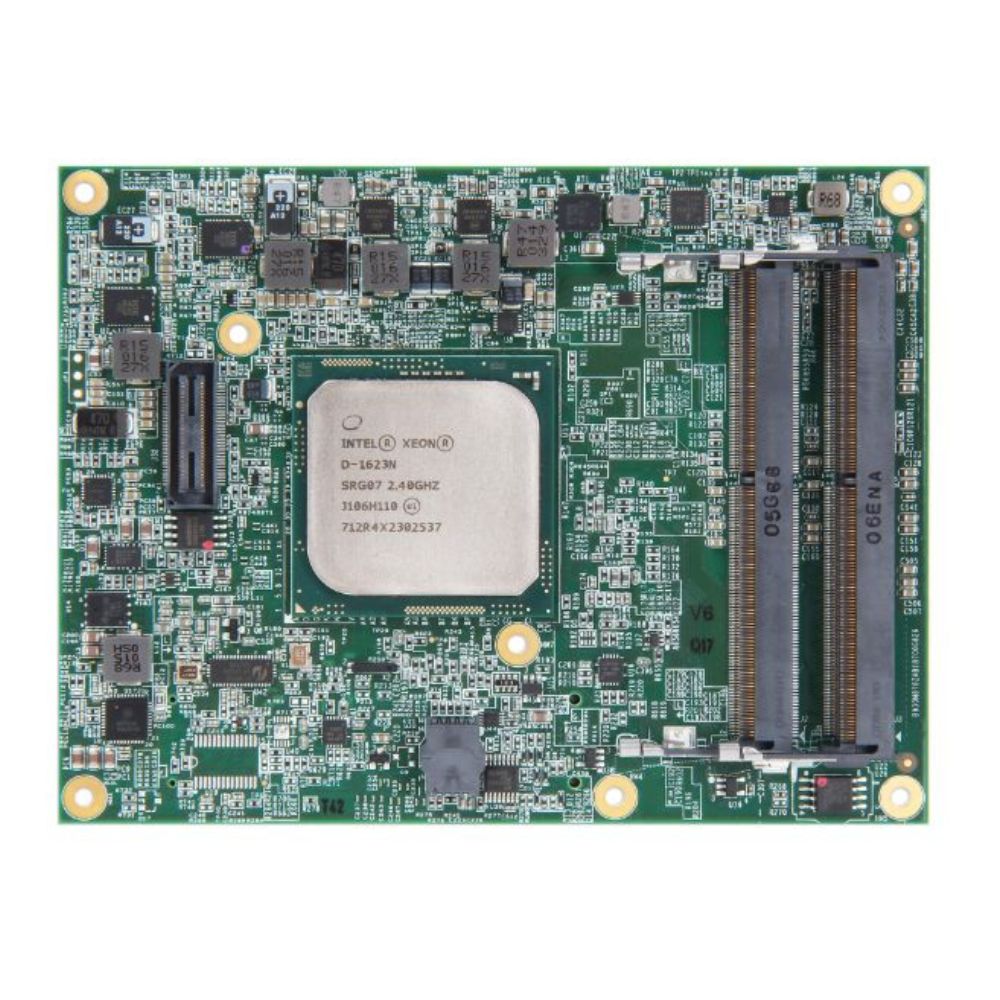

PCOM-B700G-NS

Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module

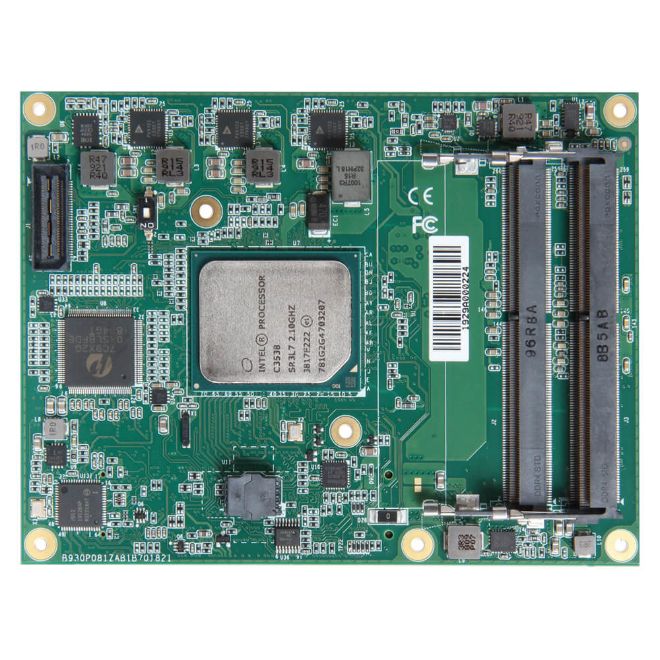

PCOM-B701GT

Intel® Atom® processor C3000 Series with DDR4 ECC up to 96GB 2400

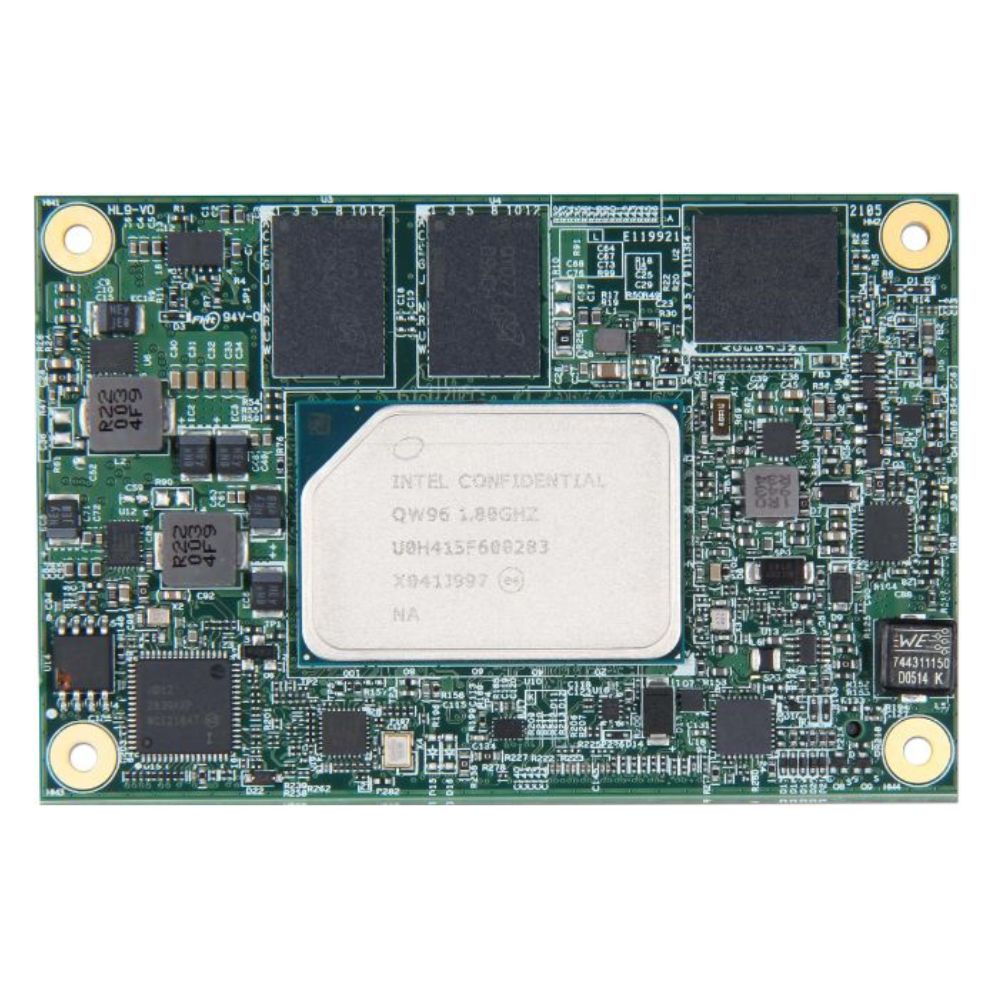

PCOM-BA02GL

Intel® Atom® x6000 series SoC based on Type 10 Mini COM-Express®

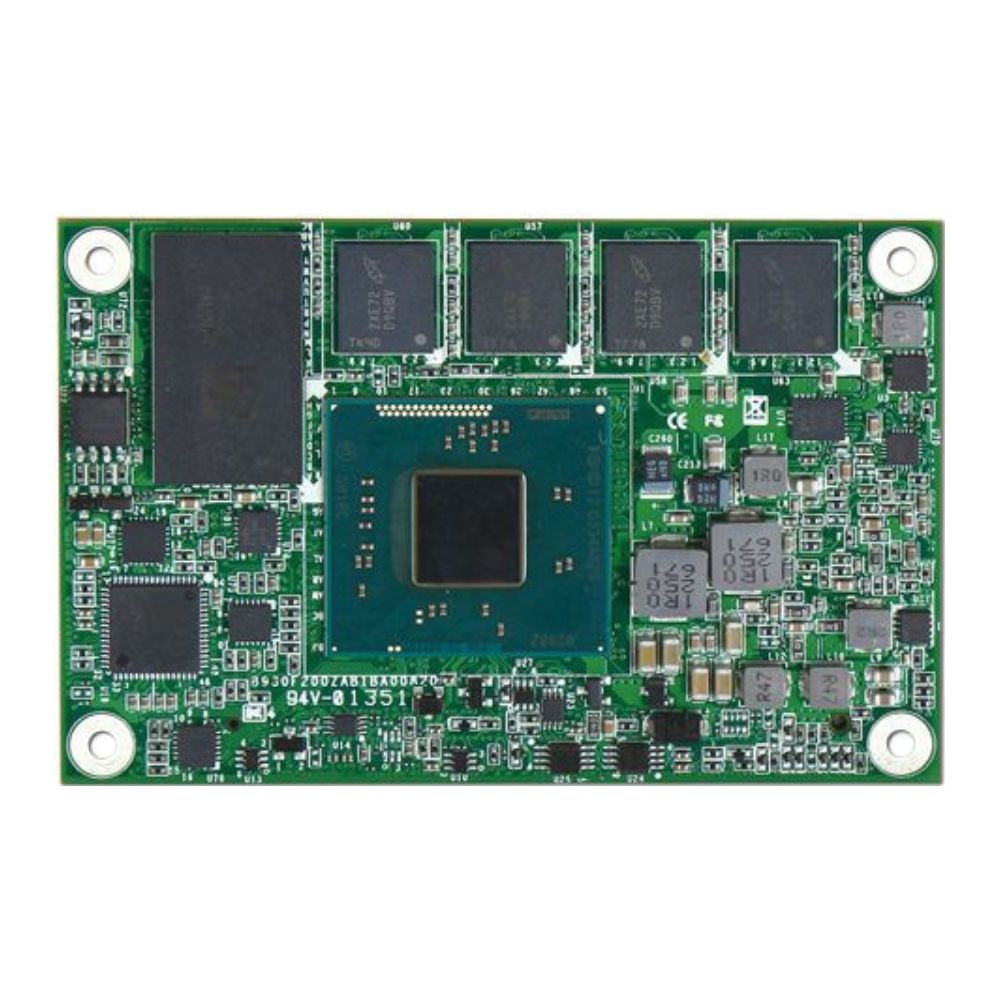

PCOM-BA00

Intel® Atom® E3800 series SoC based on Type 10 Mini COMExpress®

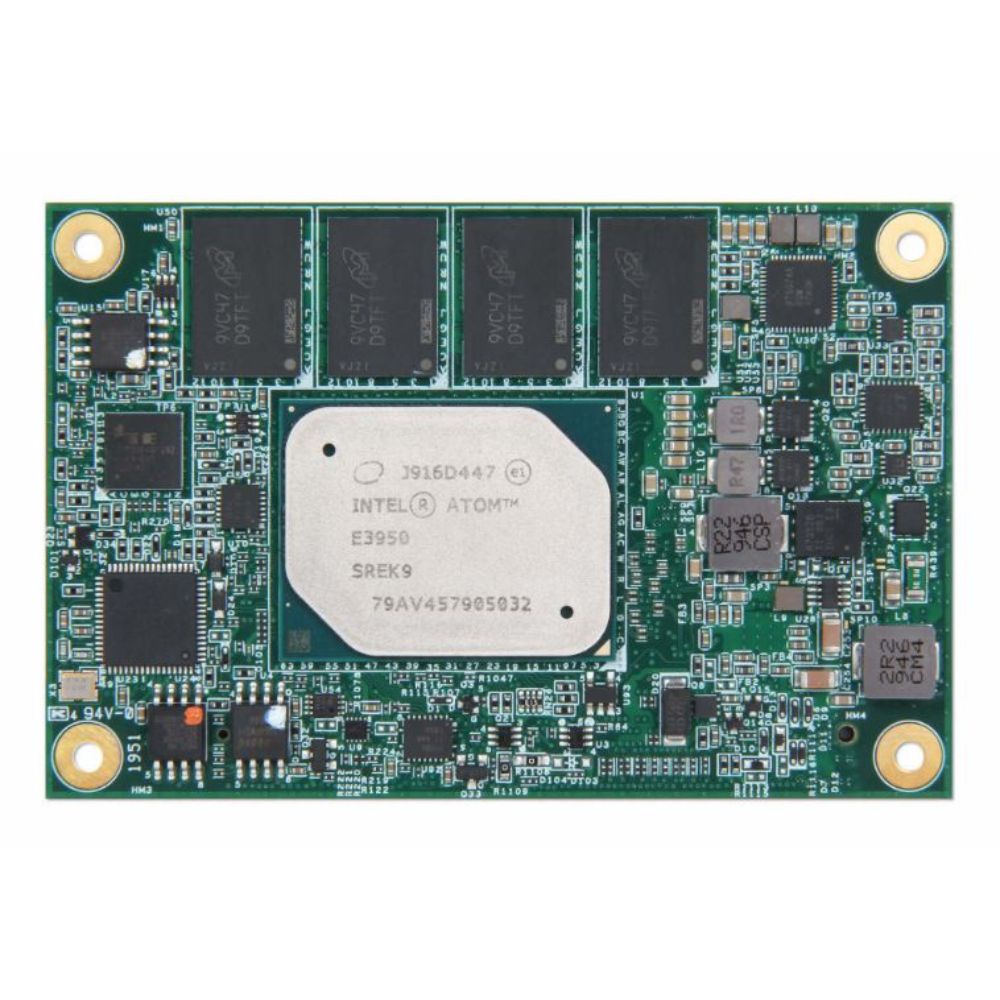

PCOM-BA01

Intel® Atom® E3900 series SoC based on Type 10 Mini COM-Express®

COM-HPC

Computer On Module – High-Performance Computing



COM-HPC is a high-performance expansion card for servers. It uses the same concept as COM Express but increases the connectors from 440 pins to 800 pins to support more expansions and improves the speed of the I/O interface with PCIe Gen 4 or Gen 5 (32GT/s), USB 3.2 Gen 2×2 (20Gbps) or USB 4 (40Gbps), and 25G KR signals. COM-HPC has two module types: Server and Client.

COM-HPC Server: Provide superior computing performance and enhanced network throughput.

COM-HPC Client: Support comprehensive high-speed I/O interface.

COM-HPC is the perfect choice for server applications. It provides up to 65 PCIe and 8 KR Ethernet lanes, making it ideal for connecting servers and other devices. And it also features a CPU with a TDP of up to 150W, so you can get the performance you need.

COM-HPC® Server

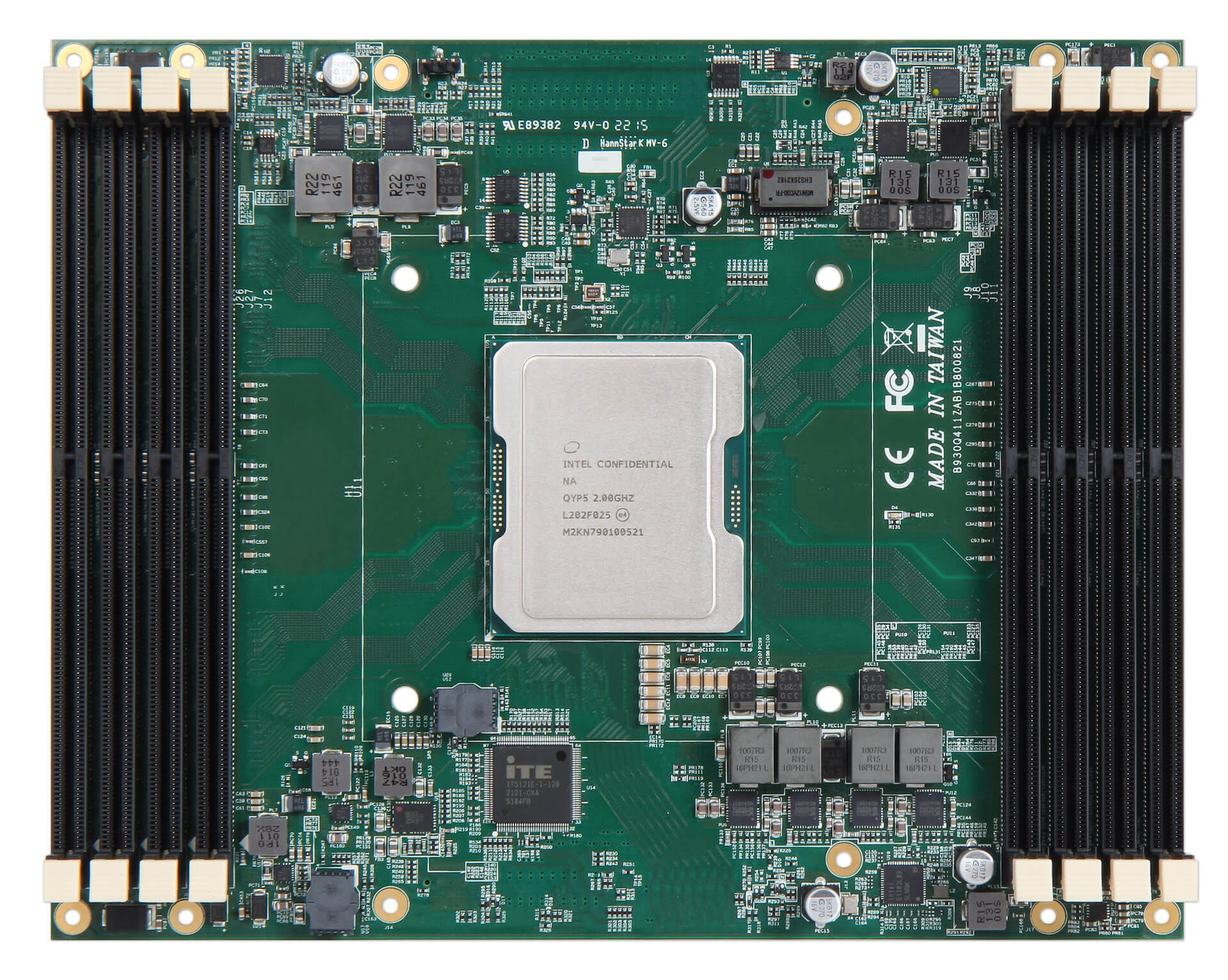

PCOM-B800GT-2

PCOM-B800GT

COM-HPC Server, Size E module with Intel® Xeon® D-2700 Processor

COM-HPC® Client

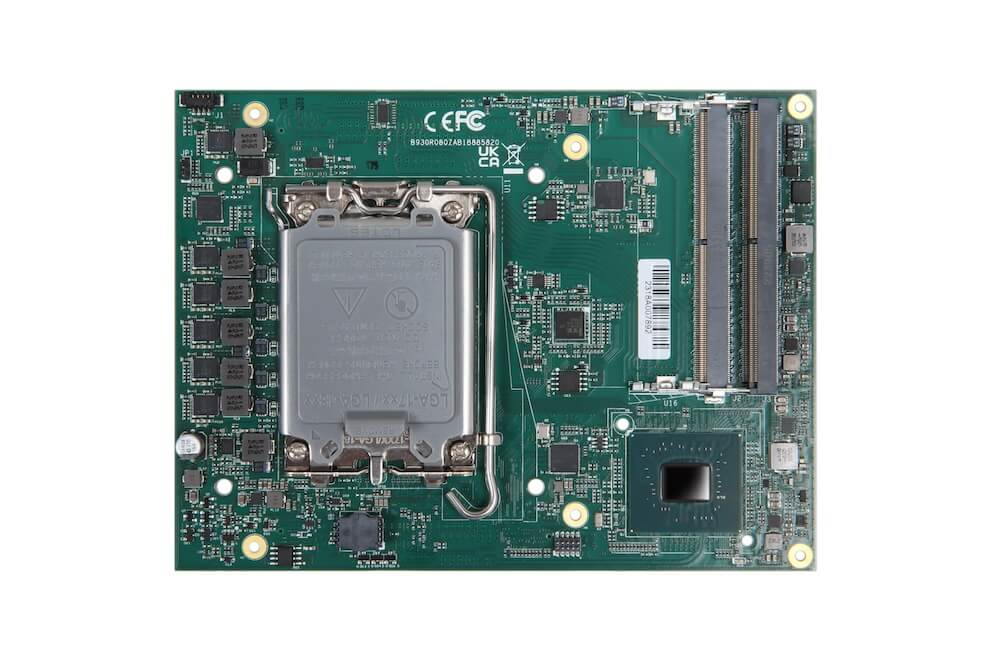

PCOM-B885

COM-HPC® Client module Size C module with Intel® 13th/14th Gen socket type processor (Code Name: Raptor Lake-S Refresh) DDR5 SO-DIMM, DDI, PCIe Gen 5, USB 3.2 Gen2, 2.5G Ethernet, discrete TPM 2.0, eDP, SATA

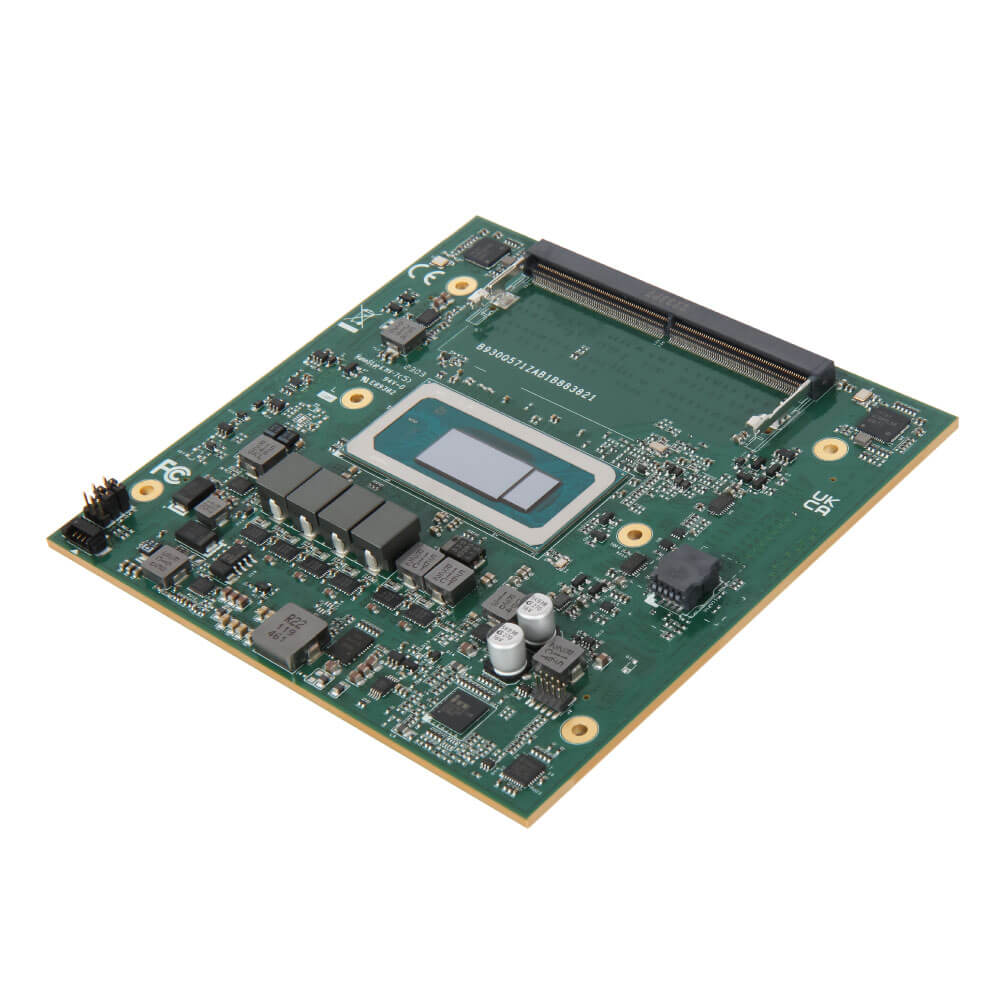

COM Express PCOM-B883VG2

PCOM-B883VG2

COM-HPC® Client module Size B module with Intel® 12th / 13th Gen H/P/U Series Processor

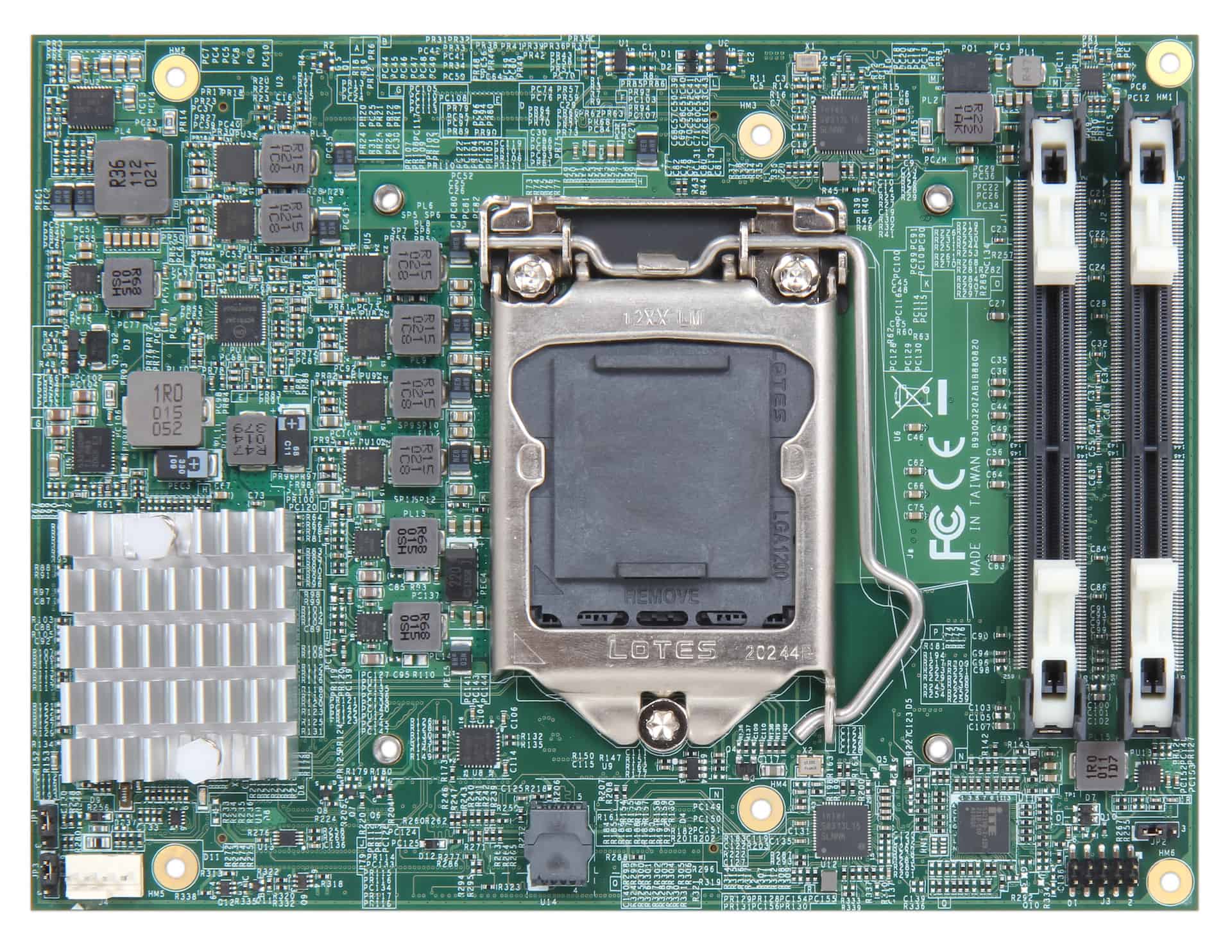

PCOM-B880VG2

PCOM-B880VG2

Intel® Comet Lake-S Core™ Processor based on COM-HPC® Client module

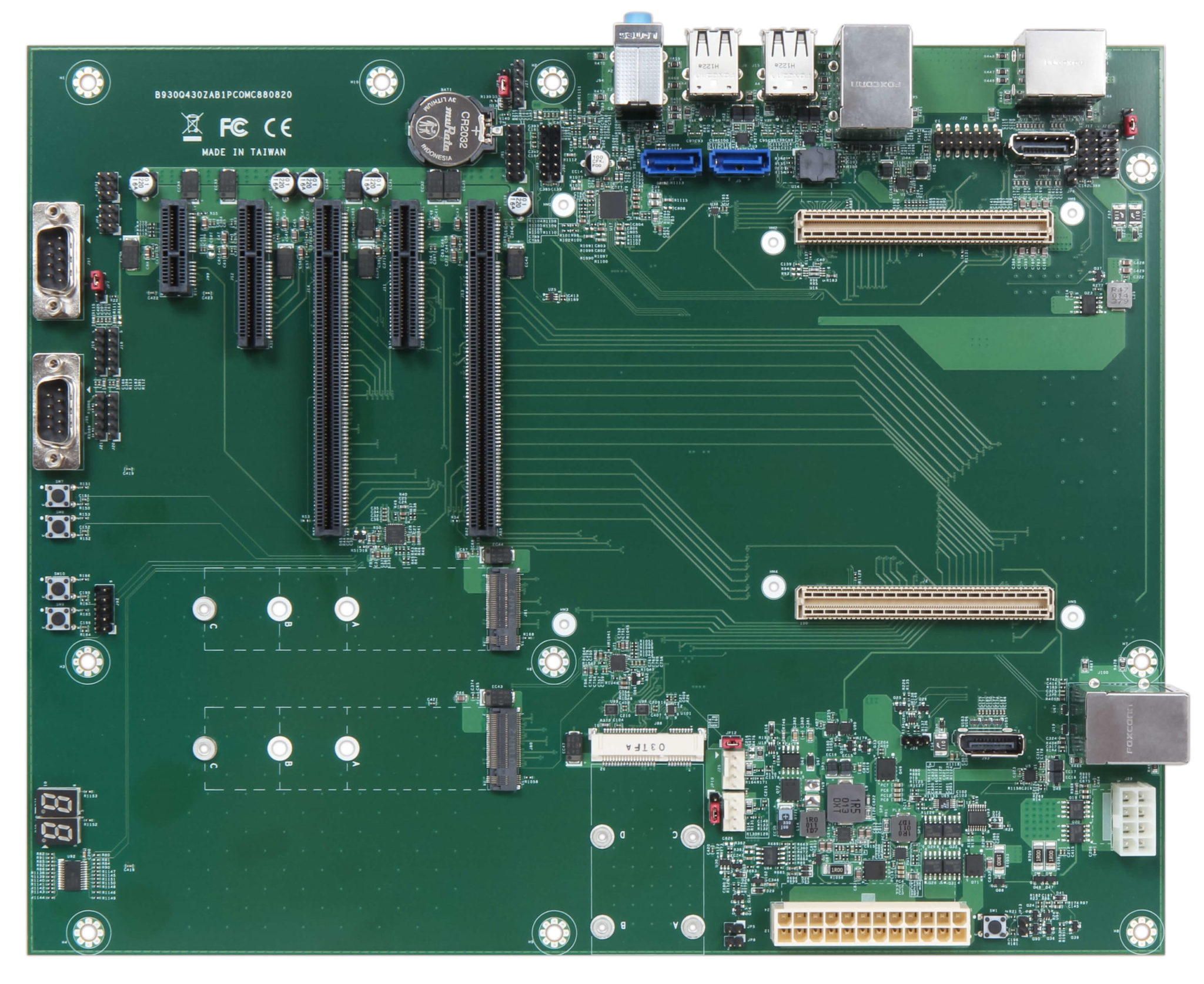

PCOM-C880

ATX size form factor evaluation carrier board for COM-HPC client module

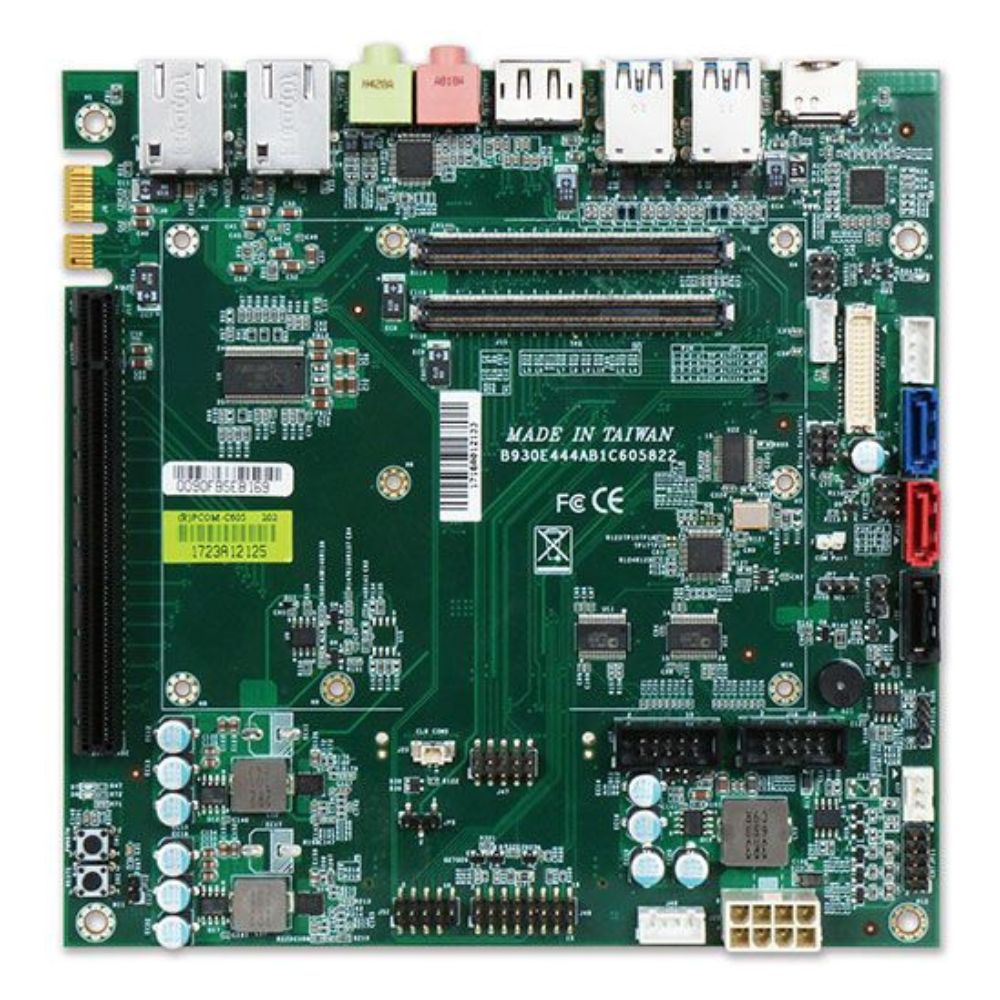

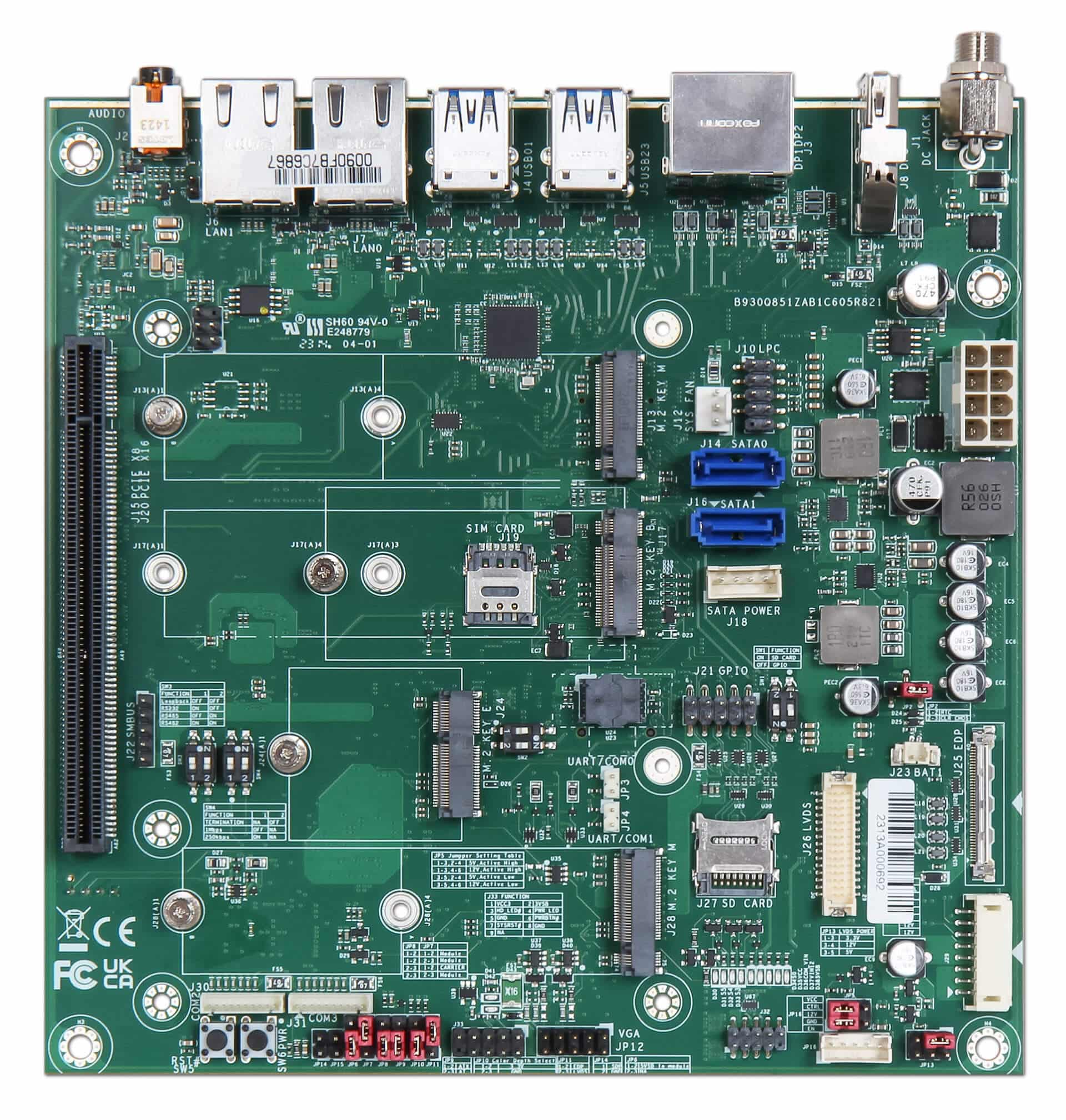

PCOM-C605

Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 2.1 Module

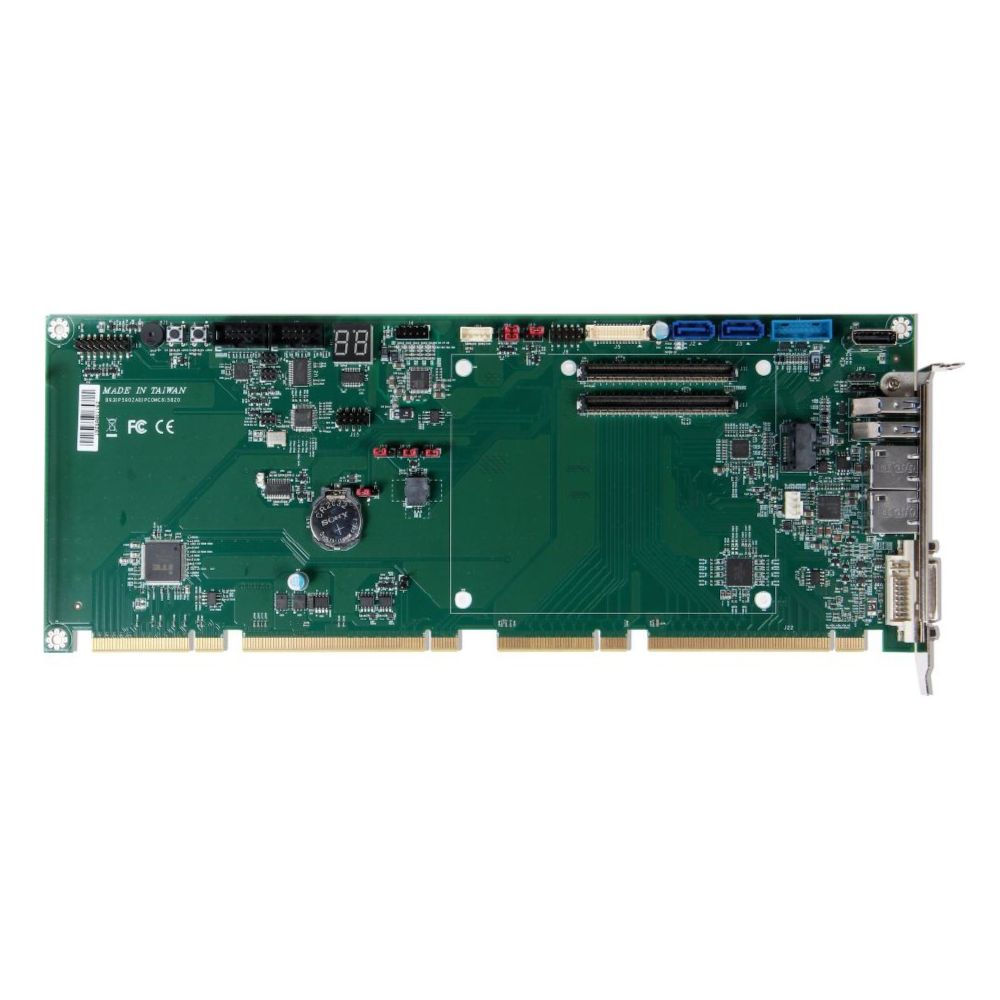

PCOM-C615

PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express®

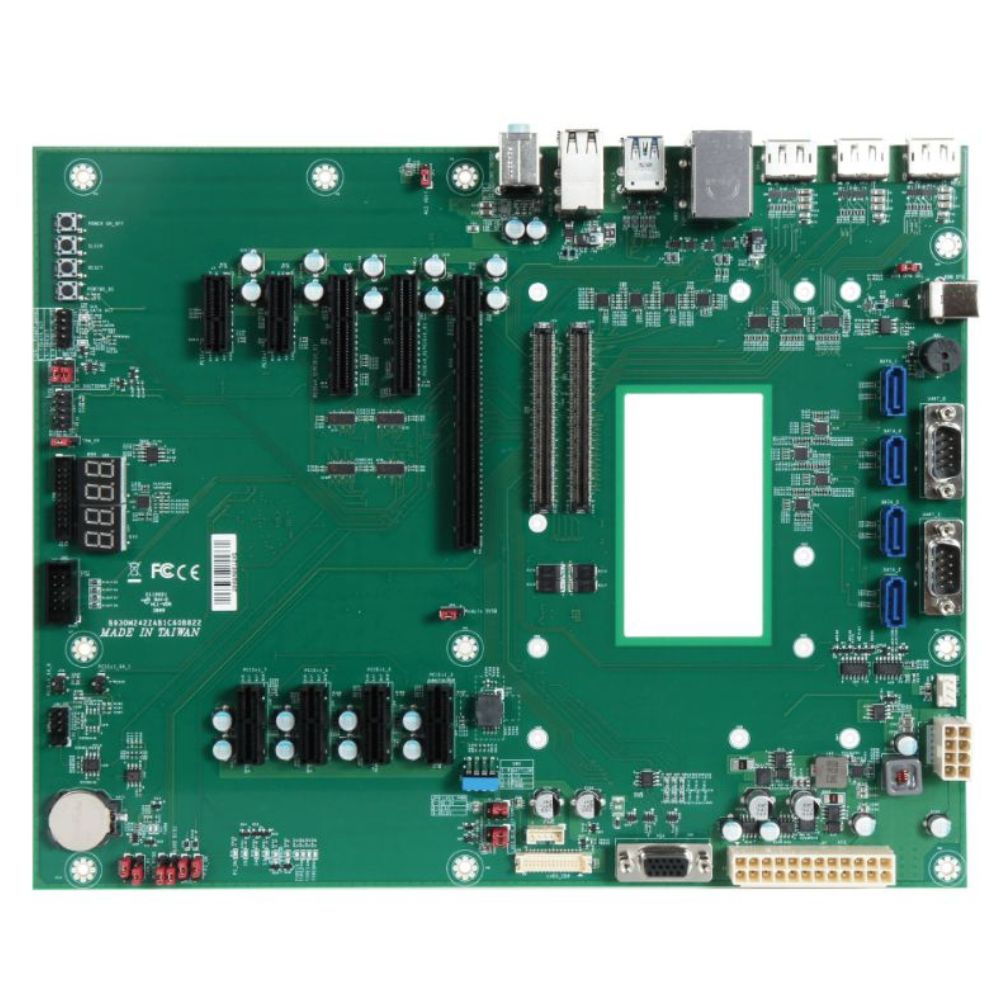

PCOM-C60B

ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 3.0 Module

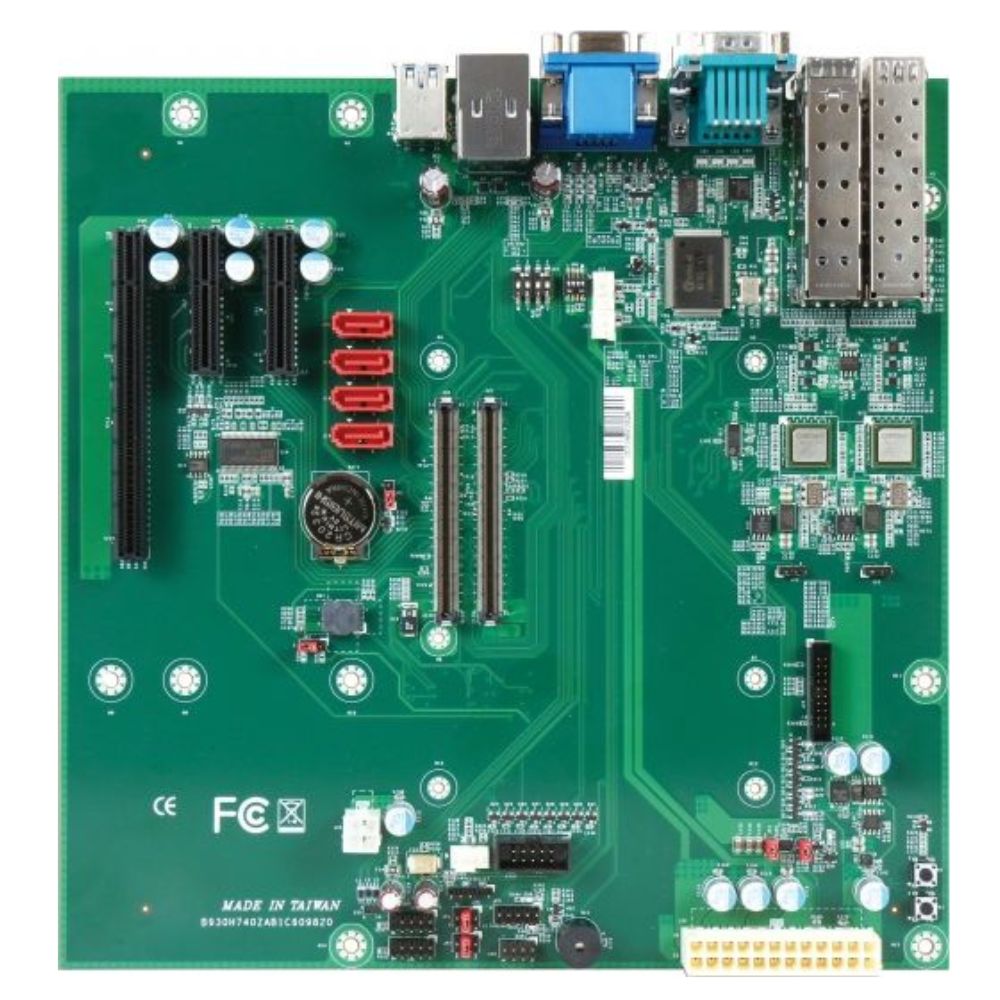

PCOM-C609

PCOM-C609 carrier offers powerful and reliable solution to customer who has demand

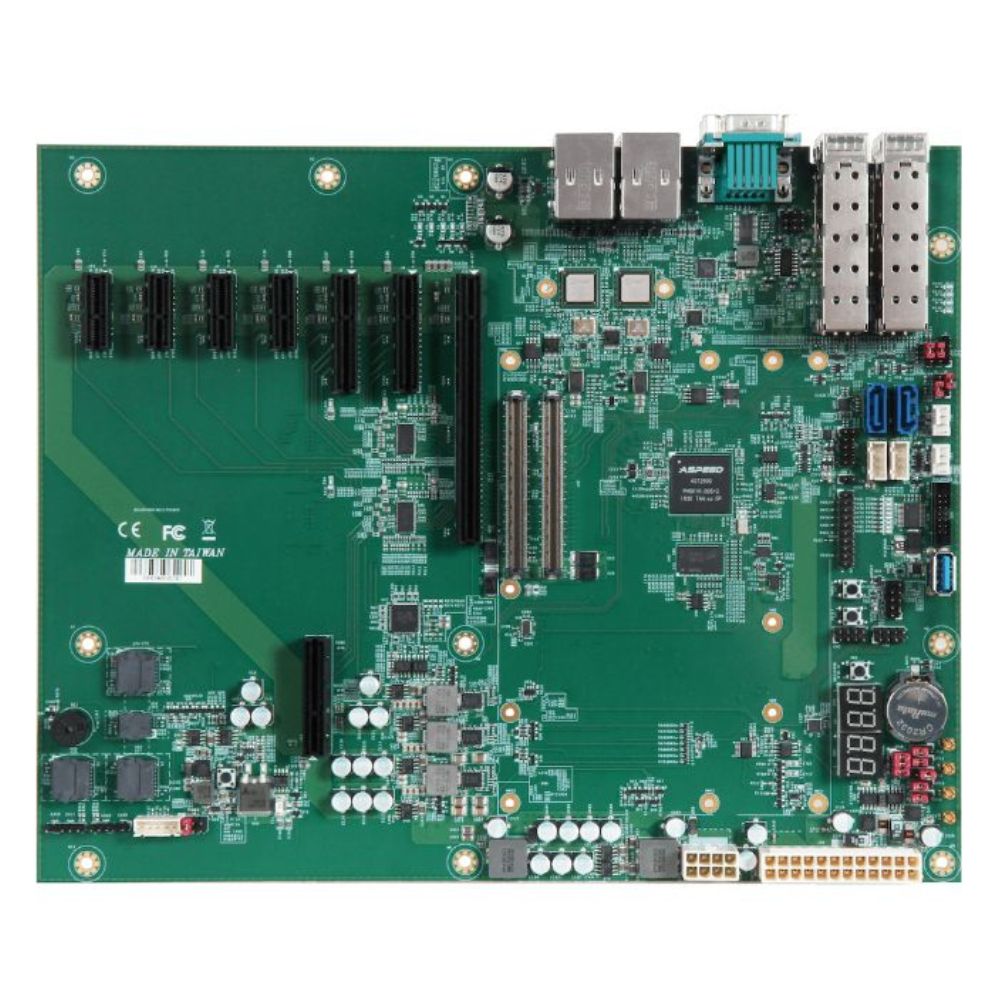

PCOM-C701

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module with 4x 10GbE

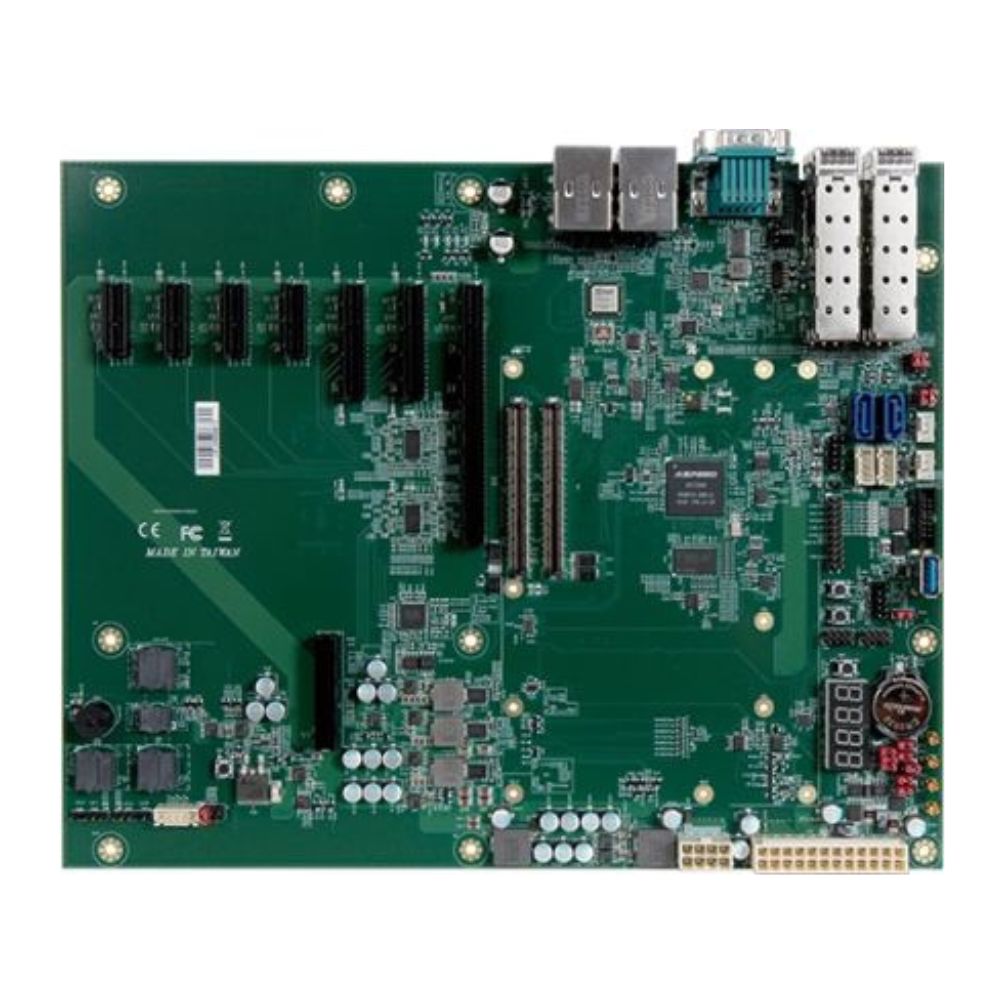

PCOM-C702

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module with 4x 10Gb

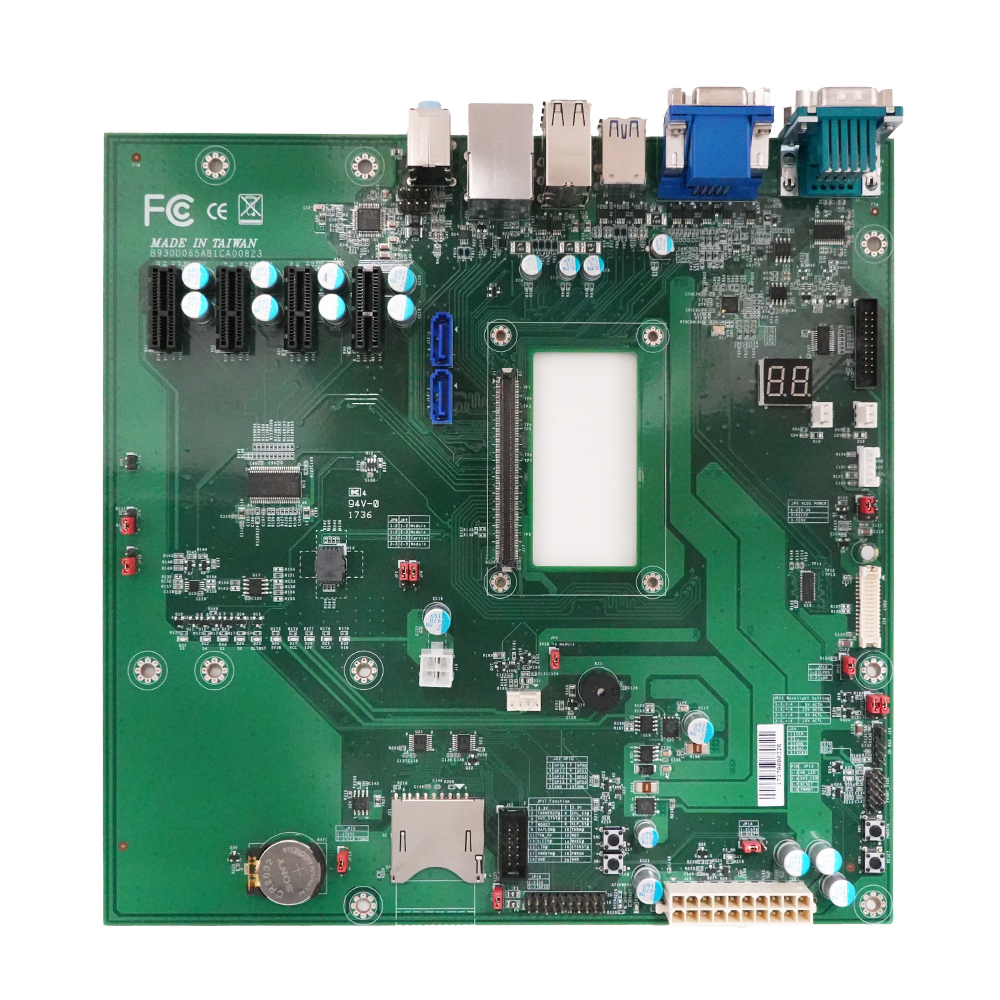

PCOM-CA00

Micro-ATX Form Factor Carrier Board For COM Express Type 10 Module
