PCOM-CA00

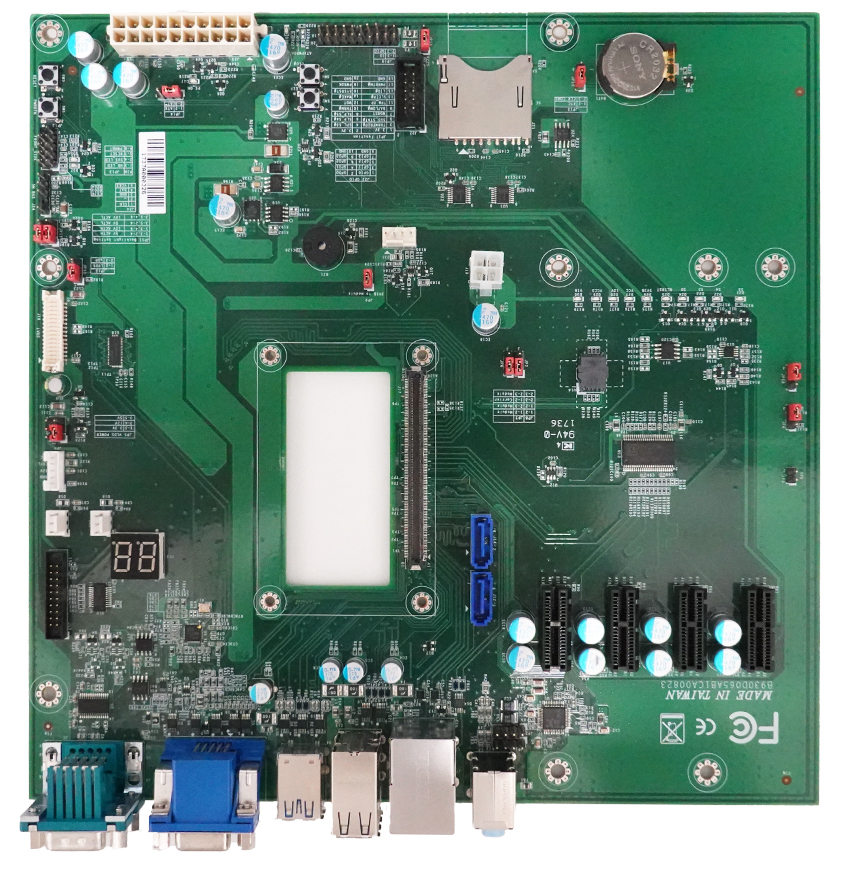

Micro-ATX COM Express Carrier Board for Type 10 module
Features :
- COM Express carrier board accepts Portwell Type 10 BGA COM Express modules
- Micro-ATX form factor to meet most standard mounting space and provide more expansions
- On-board power and reset switches benefits engineering testing or evaluate without a chassis
- One DP and one LVDS interface, four PCI-E x 1
- Allow user to select master BIOS on board or from CPU module
Description

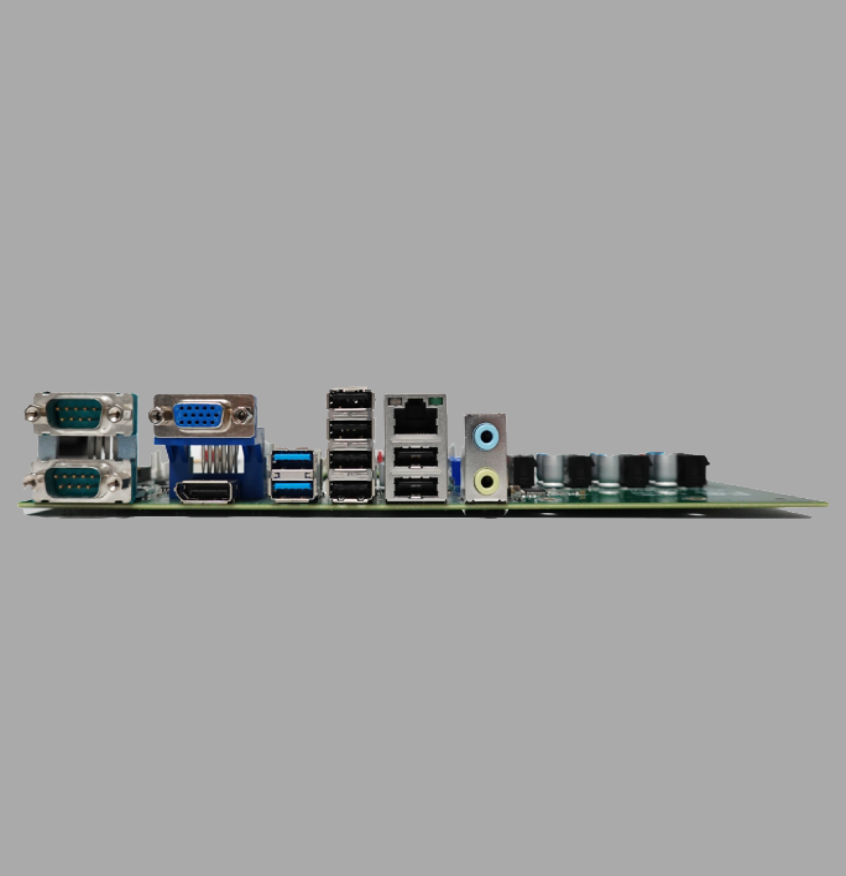

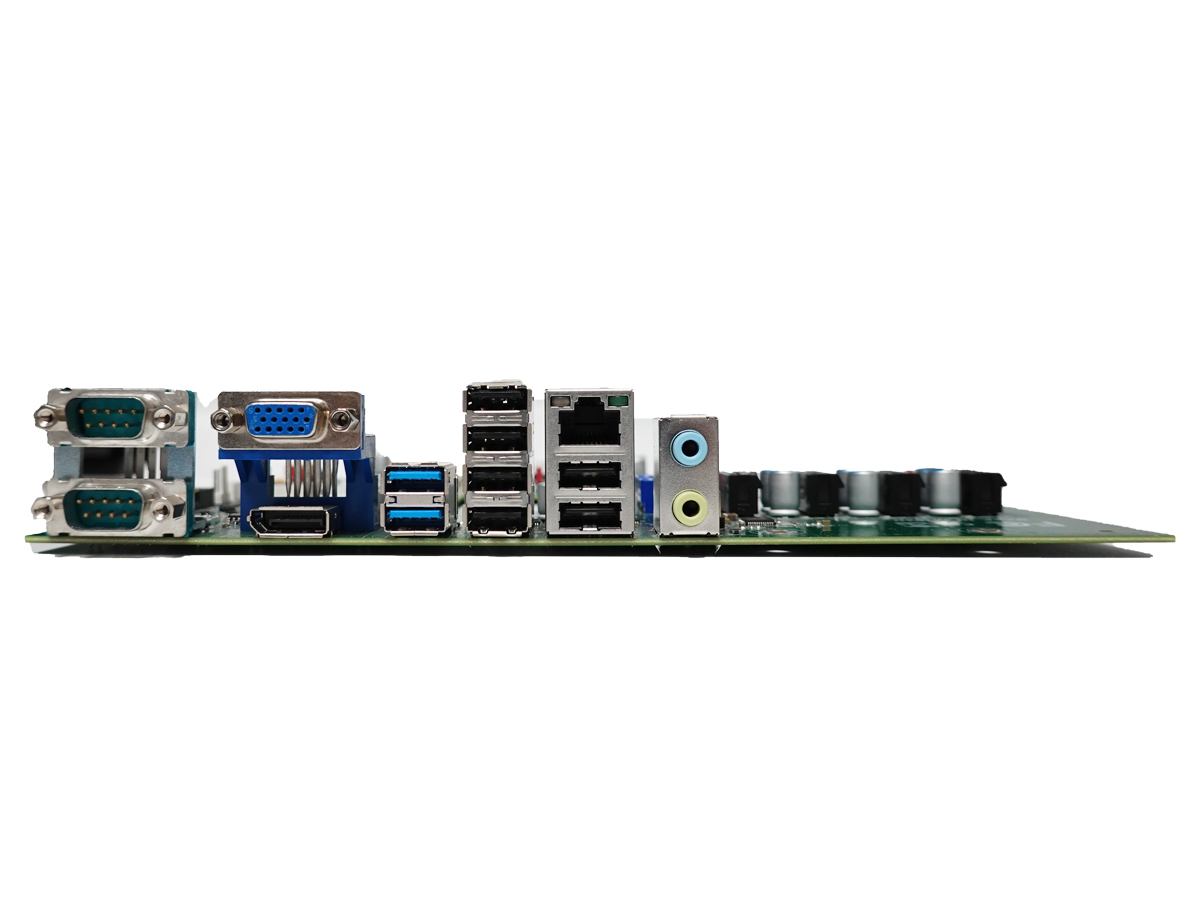

Portwell PCOM-CA00 is designed with Micro-ATX form factor with COM Express Type 10. It’s suitable for evaluation testing of Portwell’s Type 10 COM Express modules. This carrier board passed all of Portwell evaluation testing. And it supports VGA, LVDS and DP display, and multiple I/O interfaces, including 4 x PCIe x 1, 2 x USB 3.0, 8 x USB 2.0, 2 serial ports, and 2 x SATA III devices.
| Specification | |
|---|---|
|
Model Name |
PCOM-CA00
|
|
Form Factor (mm) |
Micro-ATX (244 x 244 mm)
|
|
COM Type |
Type 10 |
|
CPU/ Clock/ Cache |
Depends on Module
|
|
PCI Express |
4- PCIe x 1 |
|
Ethernet |
1- GbE
|
|
Storage |
2- SATA III |
|
USB |
2- USB 3.0
8- USB 2.0 |
|
Display |
LVDS/VGA/DP
|
|
Security |
TPM
|
