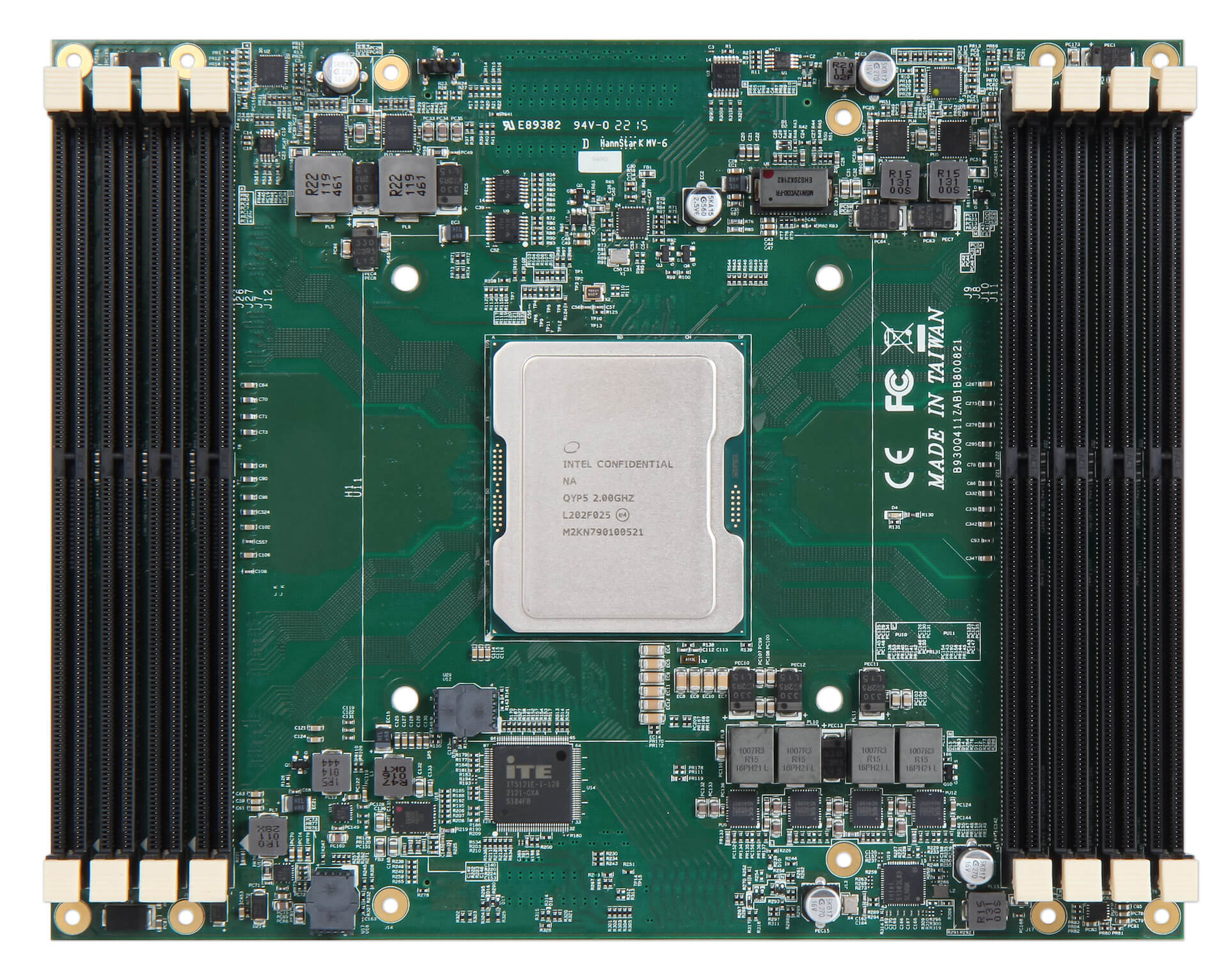

PCOM-B800GT
COM-HPC Server, Size E module with Intel® Xeon® D-2700 Processor
Features :
- Intel® Xeon® D-2700 Processors for Edge IoT Computing
- AI/Deep Learning Accelerate Data Analytics with Intel® AVX-512 and VNNI
- 8x 10G KR, 4x USB2.0/3.2 Gen 2×1, 2x SATAIII, 2x UART
- Eight DIMM Slots Design and Maximum 1024GB Memory Support
- Selected SKUs Supported -40 ~ 80 °C for Extended Temperature Application
Description
PCOM-B800GT, a COM-HPC Server, size E module (200mm x 160mm) based on Intel® Xeon® D-2700 processors.The platform includes Intel® Deep Learning Boost (Intel® DL Boost), to speed processing of int8 workloads with options from four cores up to 20 cores. Multi-OS support including real-time operating systems, and hypervisor support , make you consolidate workloads onto a single device.PCOM-B800GT, provide up to 8x 10G KR interface, 32x lanes PCIe 4.0, 16x lanes PCIe 3.0, TPM 2.0, and 8x DDR4 DIMM slots supporting maximum 1024GB memory size to fulfill virtualization work consolidated edge environment.
| Specification | |
|---|---|
|
Model Name |
PCOM-B800GT
|
|
Form Factor (mm) |
COM-HPC Server, Size E (200mm x 160mm)
|
|
Processor |
Intel® Xeon® D-2700 Family |
|
BIOS |
AMI BIOS |
|
PCI Express |
32x PCIe 4.0 from IIO 16x PCIe 3.0 from HSIO |
|
Ethernet |
Intel® I226LM / I226IT
|
|
Memory |
8x DDR4 DIMMs up to 1024GB at 2933 MT/s with RDIMM
|
|
USB |
4 x USB 3.2 Gen1/USB 2.0 |
|
Display |
N/A |
|
Security |
TPM 2.0, Intel®AES |
