System On Modules

For all of an organization’s requirements, Portwell offers Computer-on-modules solutions. We have the processors you need, whether you need a high-performance, low-cost, or low-power processor. Computer-on-modules, sometimes referred to as COM express modules, COMe, or COMe boards, are highly integrated computer boards that include a CPU, memory, and common I/O including SATA, USB, Ethernet, audio, and graphics. The computer-on-module from Portwell supports QSeven, SMARC, COM-Express Extended, COM-Express Basic, COM-Express Compact, Type 6, Type 7 & Type 10. You’ll find here all the aforementioned prerequisites. To find the ideal choice for the requirements of your company, browse through our collection of computer-on-modules boards right away or get in touch with us.

Various off-the-shelf core module with additional functionality that is required for specific applications

COM-Express ─

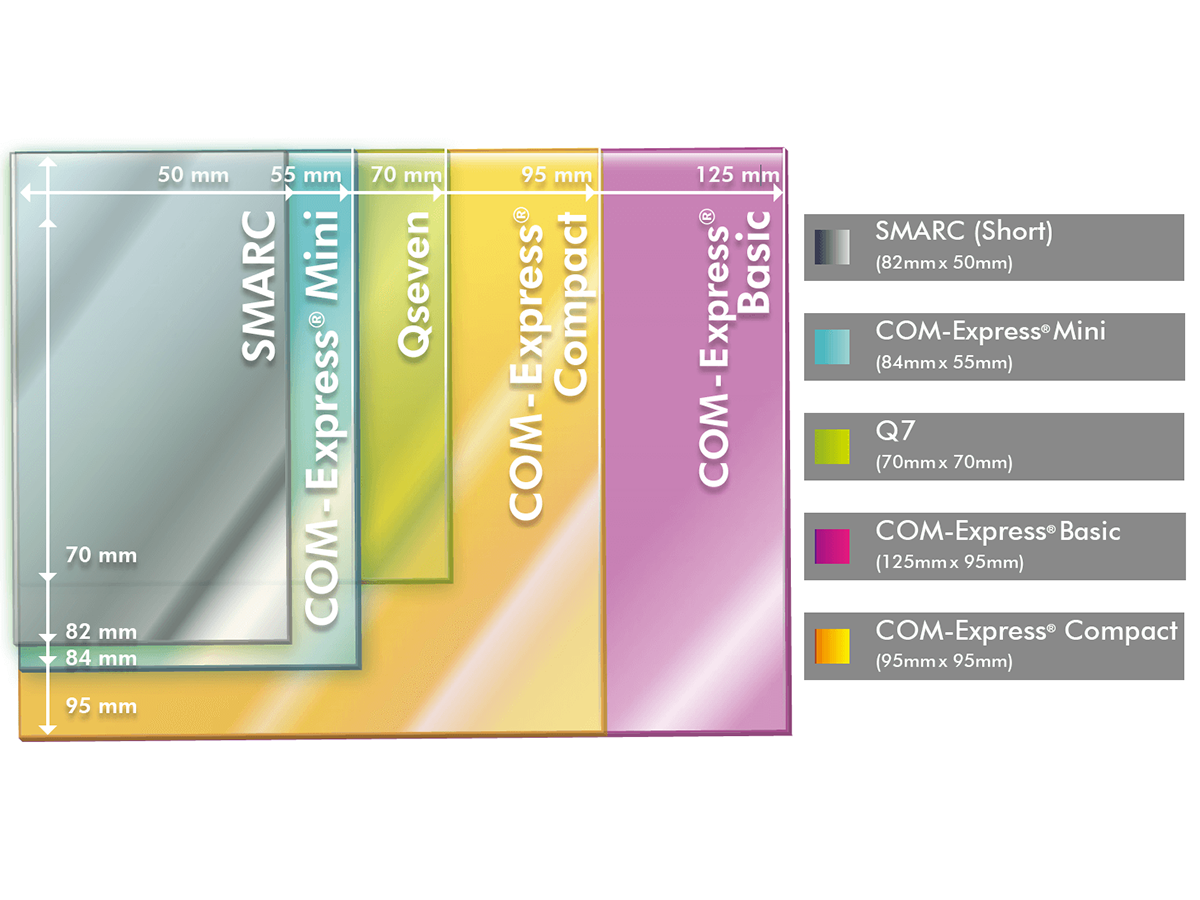

COM Express® defines standardized form factors and pin-outs for Computer-on-Modules. The standard includes the mini form factor (84 x 55mm), the compact form factor (95 x 95mm) and the basic form factor (125 x 95mm). To serve industry requirements, the Digital Display Interfaces (DisplayPort, HDMI) and super-fast USB 3.0 were recently added to the pin-out definitions for COM Express ® modules.

SMARC─

The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer Module definition targeting applications that require low power, low costs, and high performance. Module sizes are defined: 82mm x 50mm and 82mm x 80mm with 314 edge fingers that mate with a low profile 314 pin 0.5mm pitch right angle connector.

Qseven ─

This standard platform has been developed with performance and flexibility in mind, allowing various processor configurations to maximize passive cooling technology. With a maximum power consumption of around 12W specified in the standard, the new form factor is expected to appeal to manufacturers of applications that require fanless operation.
