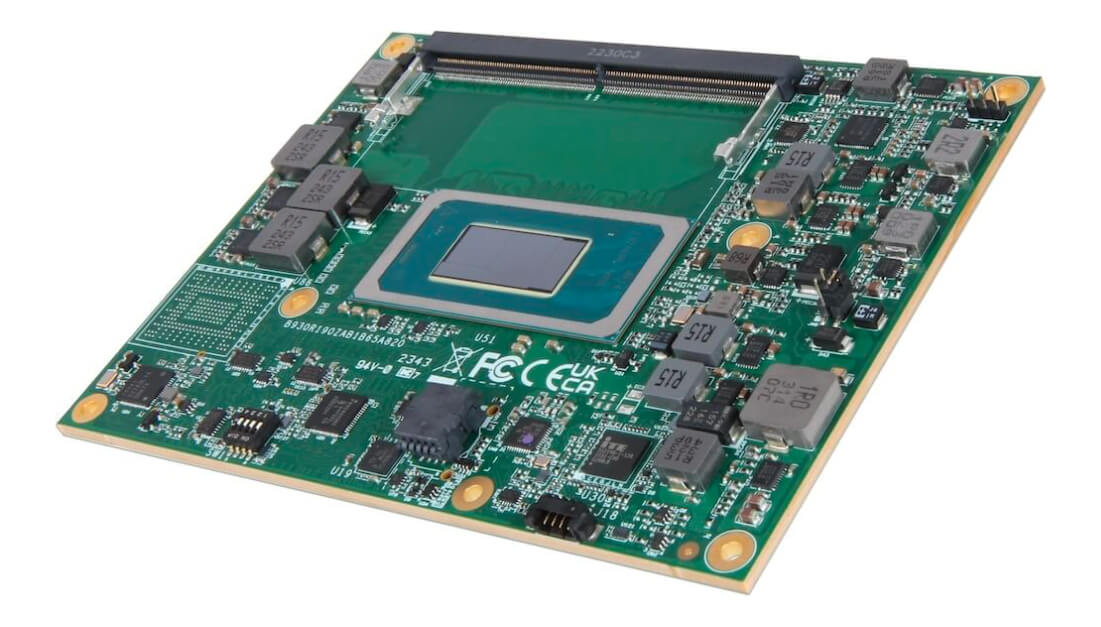

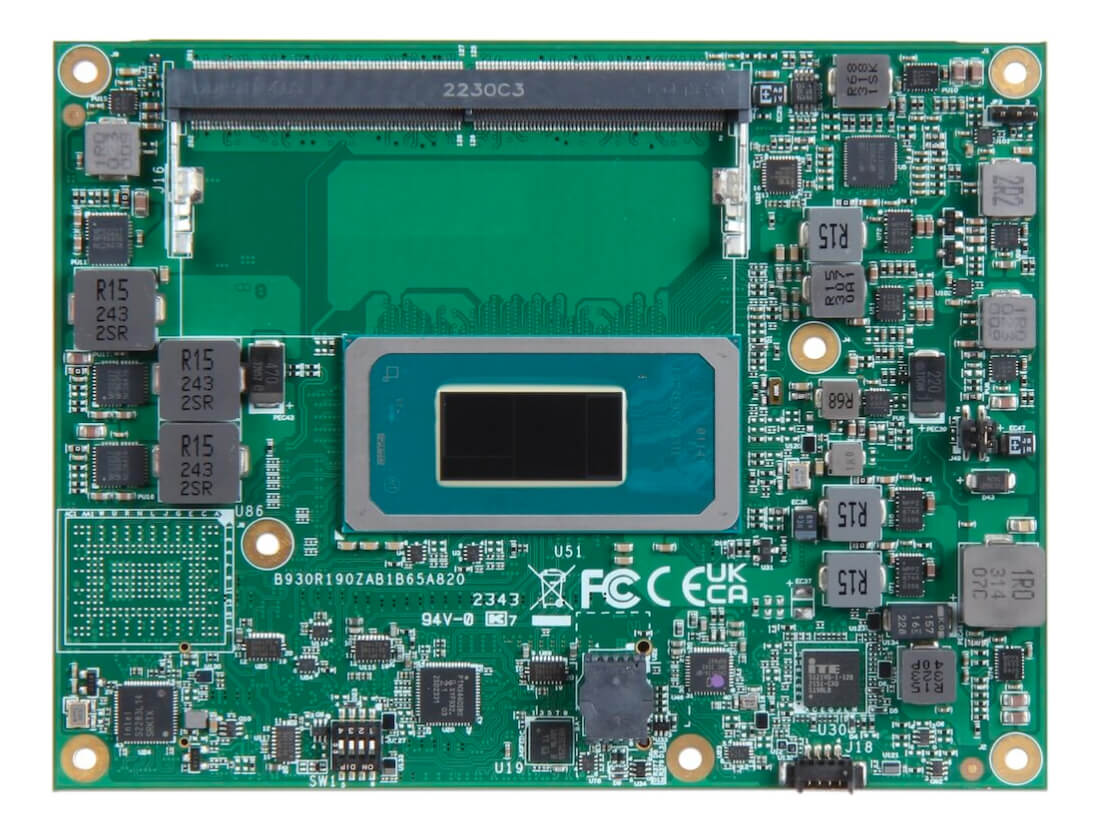

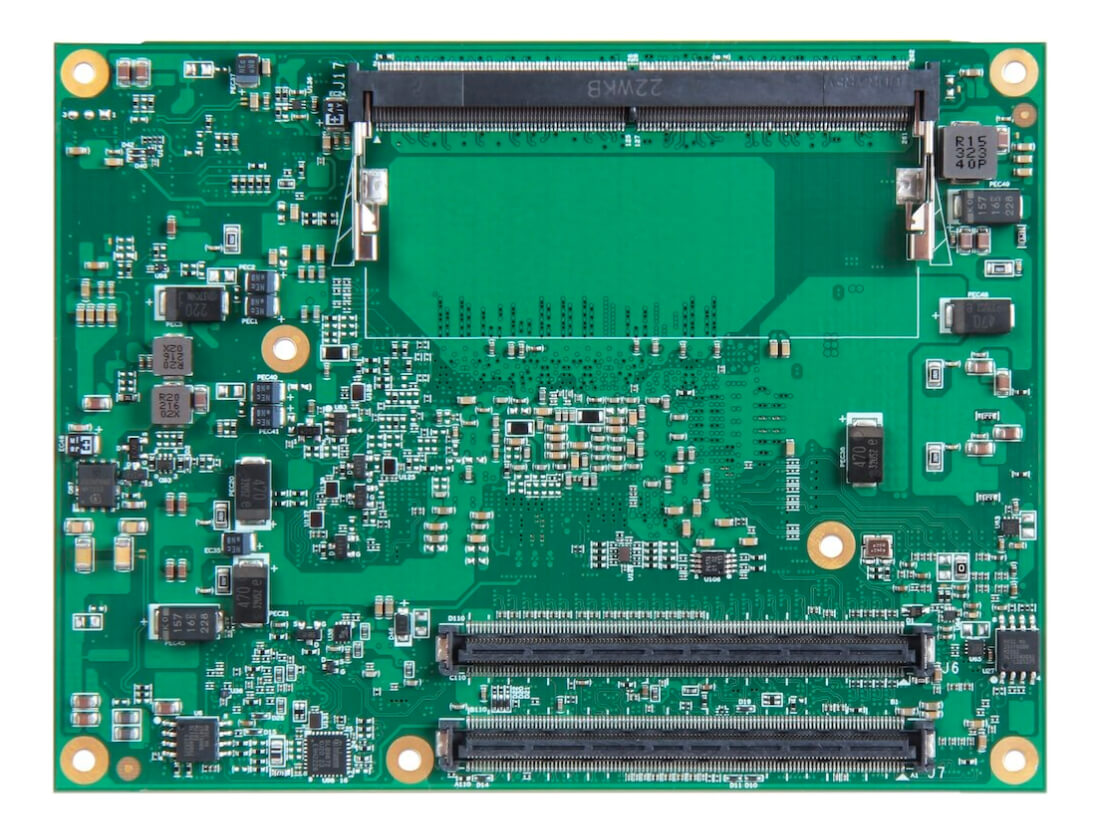

COM Express Type 6 Basic size module with Intel New Gen Core Ultra Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

Features :


PCOM-B65A is COM Express module based on new Intel® Core Ultra platform(code name: Meteor Lake). It is compatible with COM Express Rev3.1 standard. The platform adopt the new gen Intel 4 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. It also support new integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement. This platform features the integration of Arc Graphics for up to 50% AI performance compared to previous generations. This module provides (up to) 24x PCIe Gen4 lanes, 4x USB 3.2 Gen 2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications, which is suit for mission critical use conditions and AI edge computing.


CPU and General
Model NamePCOM-B65A
Form FactorCOM Express Type6 Basic Size (125 X 95mm)
CPU SeriesUltra 7 165HUltra 7 155HUltra 5 135HUltra 5 125HUltra 7 165UUltra 7 155UUltra 5 135UUltra 5 125U
Cores / Threads6P+8E
Frequency1.4 GHz1.4 GHz1.7 GHz1.2 GHz1.7 GHz1.7 GHz1.6 GHz1.3 GHz
Turbo Frequency5.0 GHz4.8 GHz4.6 GHz4.5 GHz4.9 GHz4.8 GHz4.4 GHz4.3 GHz
Intel® Smart Cache24 MB24 MB18 MB18 MB12 MB12 MB12 MB12 MB
Intel® Gfx EU128 EU128 EU128 EU112 EU64 EU64 EU64 EU64 EU
Graphics Max Freq.2.3 GHz2.25 GHz2.2 GHz2.2 GHz2.0 GHz1.95 GHz1.9 GHz1.85 GHz
Processor TDP
(Up / Nominal / Down)
65W / 28W / 20W28W / 15W / 12W
Memory Type/SpeedDDR5 SO-DIMM up to 96GB 5600MT/s
ECC Memory SupportNon-ECC SO-DIMM
I/O Interface
SATA2x SATA (share with PCIe lane)
USB2x USB4 (option)
4x USB 3.2 Gen2
8x USB 2.0
EthernetIntel I226 series
Serial I/OGPIO8 bit GPIO (default 4 input/4 output)
I2CBaud Rate : 400KHz
SMBusBaud Rate : 100KHz
UARTTX/RX signal only
PCIe Express1x Gen4 x8 (only H series), 2x Gen4 x4 (all series)
Up to 8x Gen4 x1 (2 lanes share with SATA)
DisplayModule display interfaceOutput optionsResolution
eDP / LVDS (default eDP)eDP eDP up to HBR33840 x 2160@120Hz
LVDS (24bit, dual channel)1920 x 1200@60Hz
DDI 1/2/3DP up to HBR33840 x 2160@120Hz
HDMI 2.13840 x 2160@120Hz
VGAVGA1920 x 1200@60Hz
SecurityTPM 2.0
Dimension125 x 95mm
Power DC INNormal: +12V DC
AT/ATX mode
Storage Temperature-40°C to 85°C
Operating Temperature0°C to 60°C
CertificationContact us
OSWindows 10/11

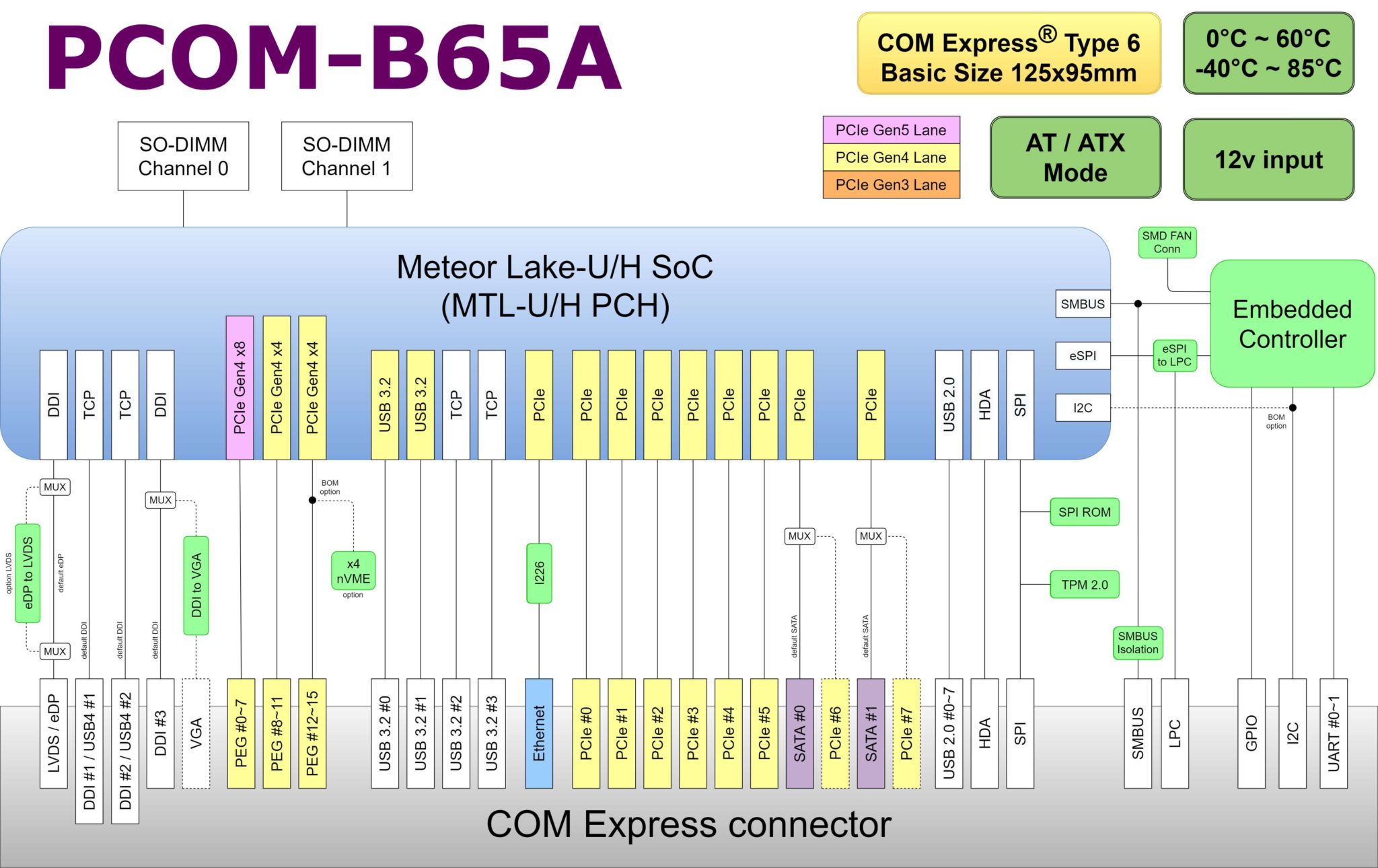

Block Diagram

ProductOrdering P/NStatus
PCOM-B65A-165HTBDIn Development
PCOM-B65A-155HTBDIn Development
PCOM-B65A-135HTBDIn Development
PCOM-B65A-125HTBDIn Development
PCOM-B65A-165UTBDIn Development
PCOM-B65A-155UTBDIn Development
PCOM-B65A-135UTBDIn Development
PCOM-B65A-125UTBDIn Development
