The Intel® PICMG backplanes in this section are Single Board Computers (SBCs) and Single Host Board (SHB) companions that feature expansion slots such as ISA, PCI, PCI-X or PCI Express interface. Some LEDs are designed on board to indicate status of each power rail. PICMG 1.0 backplanes support both ISA and PCI; PICMG 1.2 supports dual PCI or PCI-X; and PICMG 1.3 industrial backplanes support PCI Express and PCI expansion. Industrial single board computers are ideal for rapidly building industrial grade PCs with minimal customization requirements. As a result, single board-computers are extremely convenient for organizations of all kinds. Incorporating Intel® processors, these single-circuit boards are suitable for medical, digital signage, and even industrial automation applications. We have Intel® SBCs with varying degrees of operational memory and display ports for VGA, DVI-D, and HDMI as well as variety of backplanes for multiple functional expansions.

Browse our selection of industrial SBCs and backplanes today, or contact us if you require custom SBC fabrication

PBP-19P4

19-slot (4x PCI) PICMG Backplane

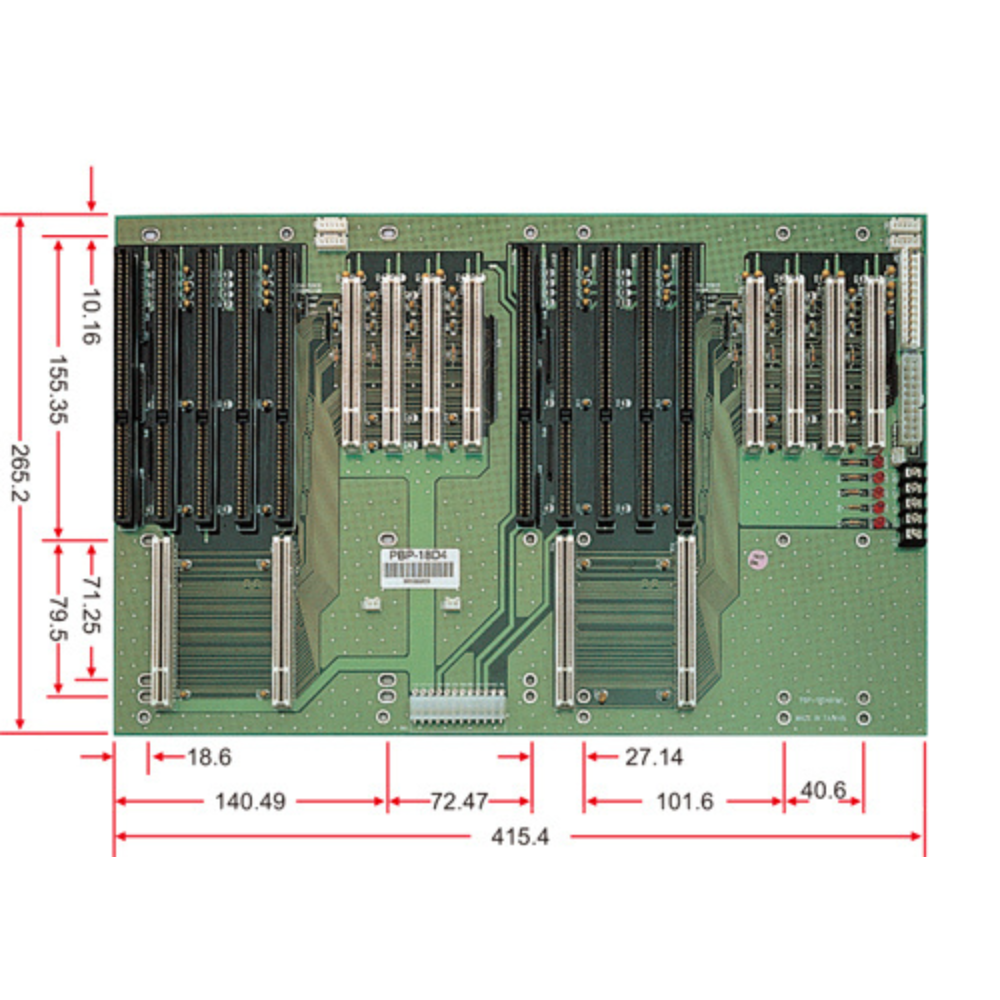

PBP-18D4

19-slot (4x PCI) PICMG Backplane

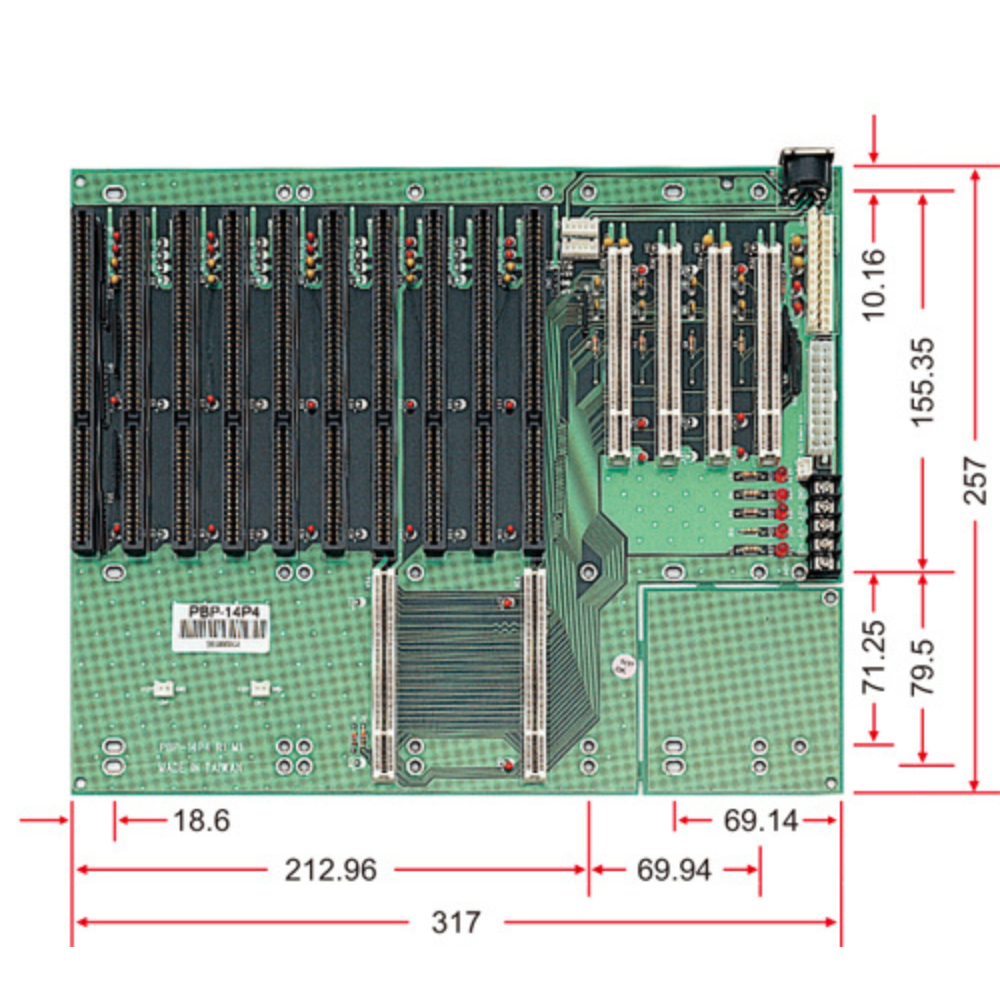

PBP-14P4

14-slot (4x PCI) PICMG Backplane

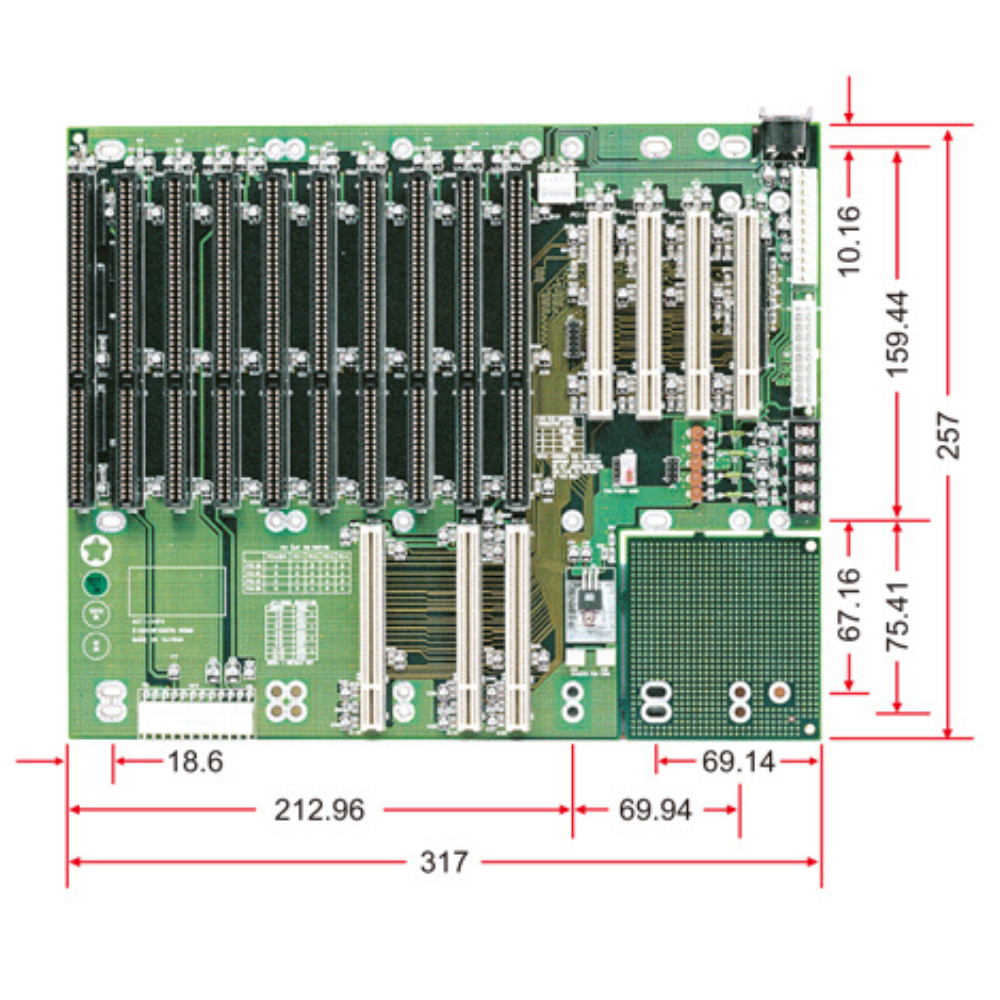

ACTI-14P4

14-slot (4x PCI) Active PICMG Backplane

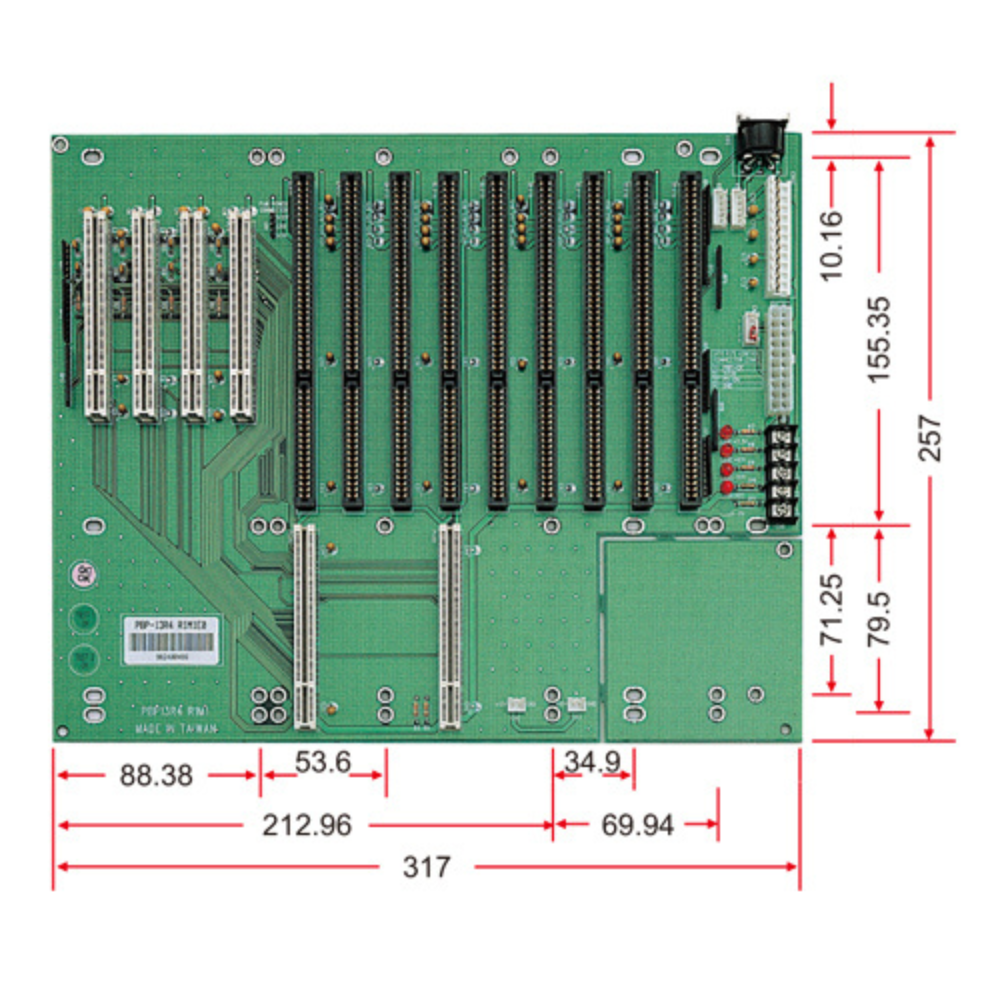

PBP-13R4

13-slot (4x PCI) PICMG Backplane

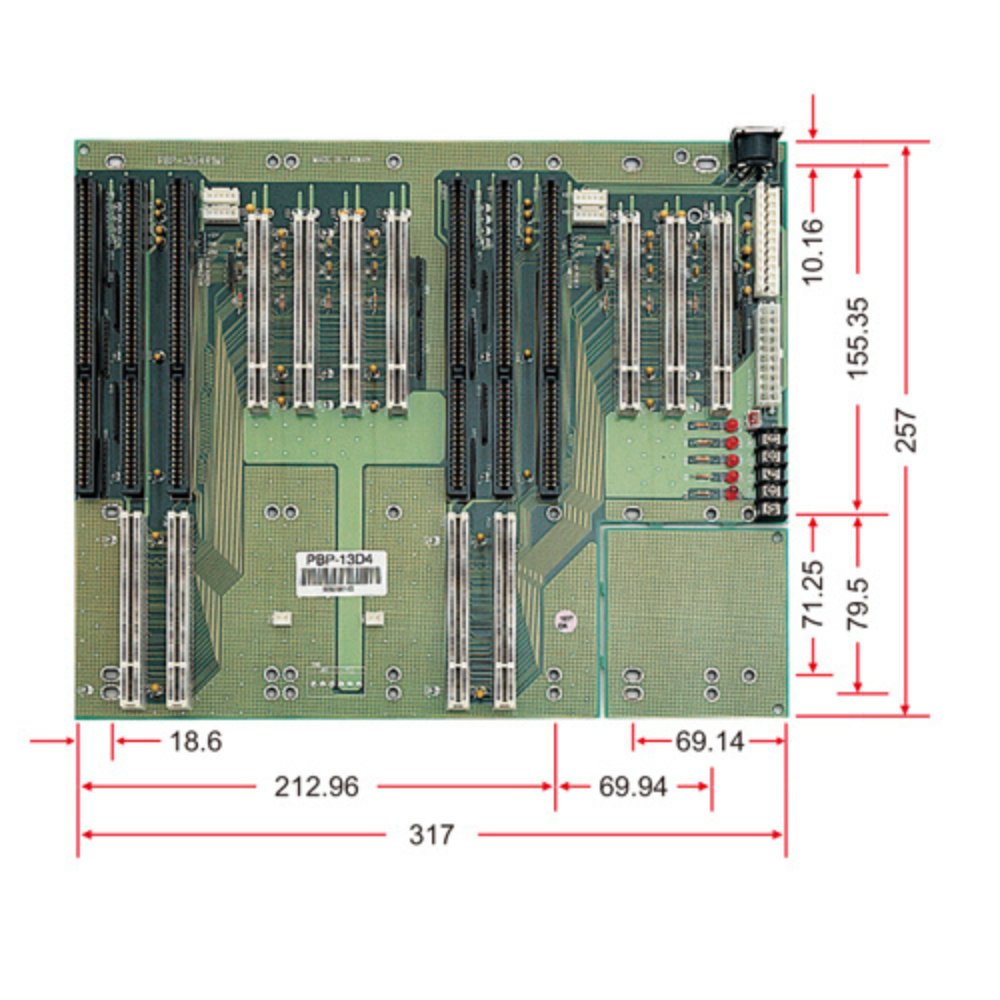

PBP-13D4

13-slot Dual-system PICMG Backplane

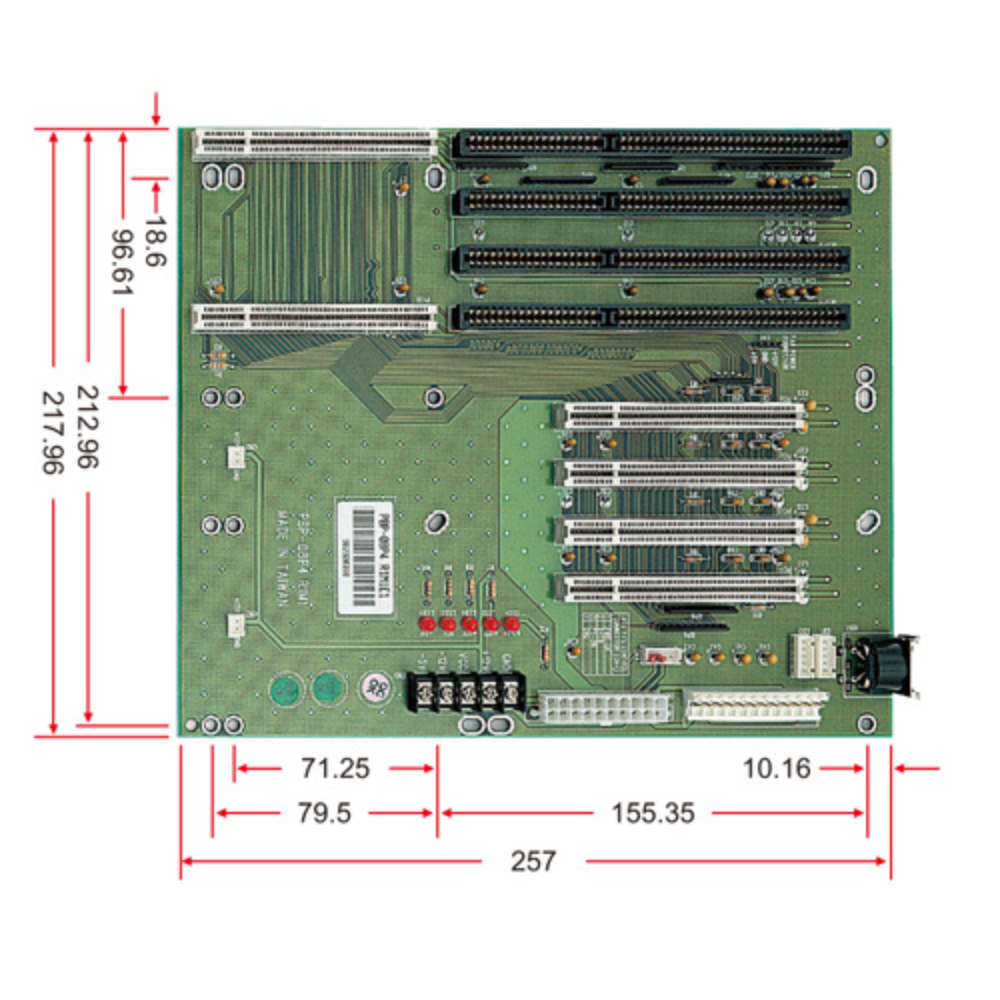

PBP-08P4

8-slot (4x PCI) PICMG Backplane

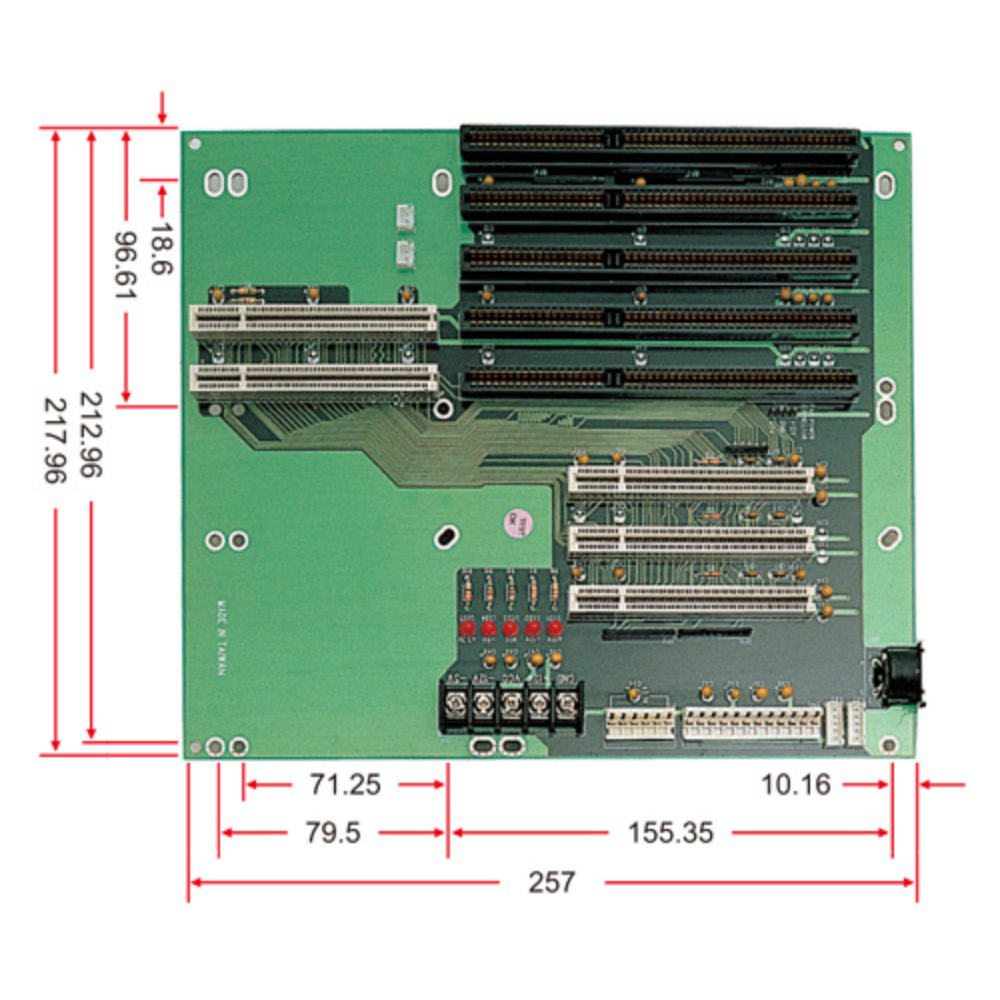

PBP-08P3

8-slot (3x PCI) PICMG Backplane

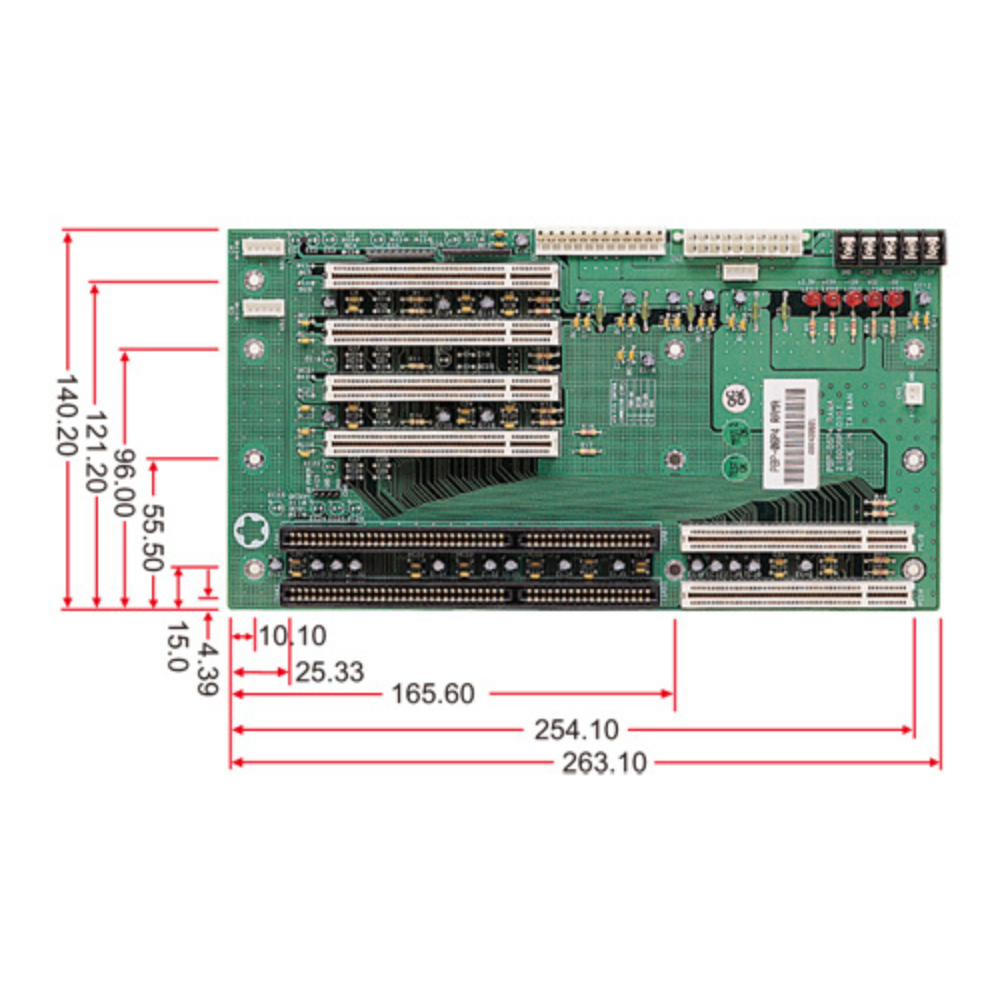

PBP-06P4

6-slot (4x PCI) PICMG Backplane

PBP-06P3

6-slot (3x PCI) PICMG Backplane

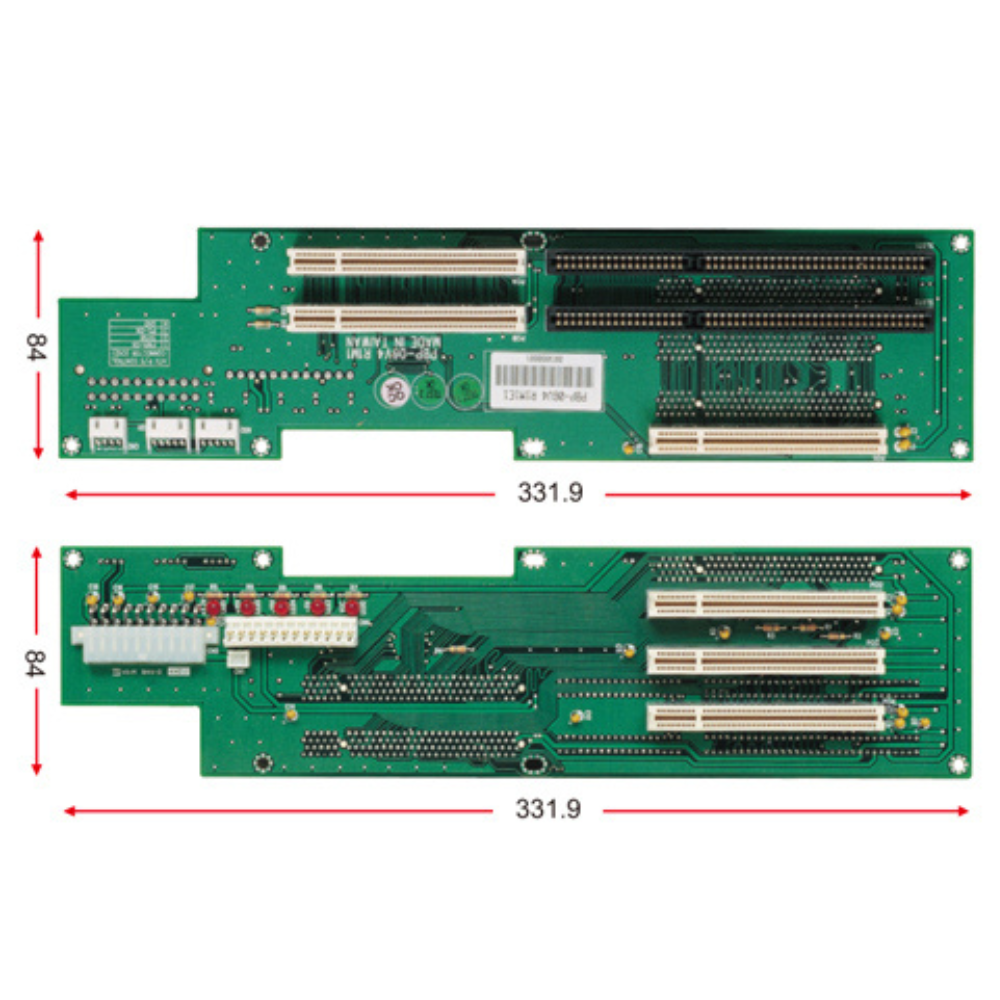

PBP-06V4

Vertical 6-slot (4x PCI) PICMG Backplane

PBP-02V1X

Vertical 2-slot (1x PCI) PICMG Backplane

PBP-03P2X

Vertical 3-slot (2x PCI) PICMG Backplane

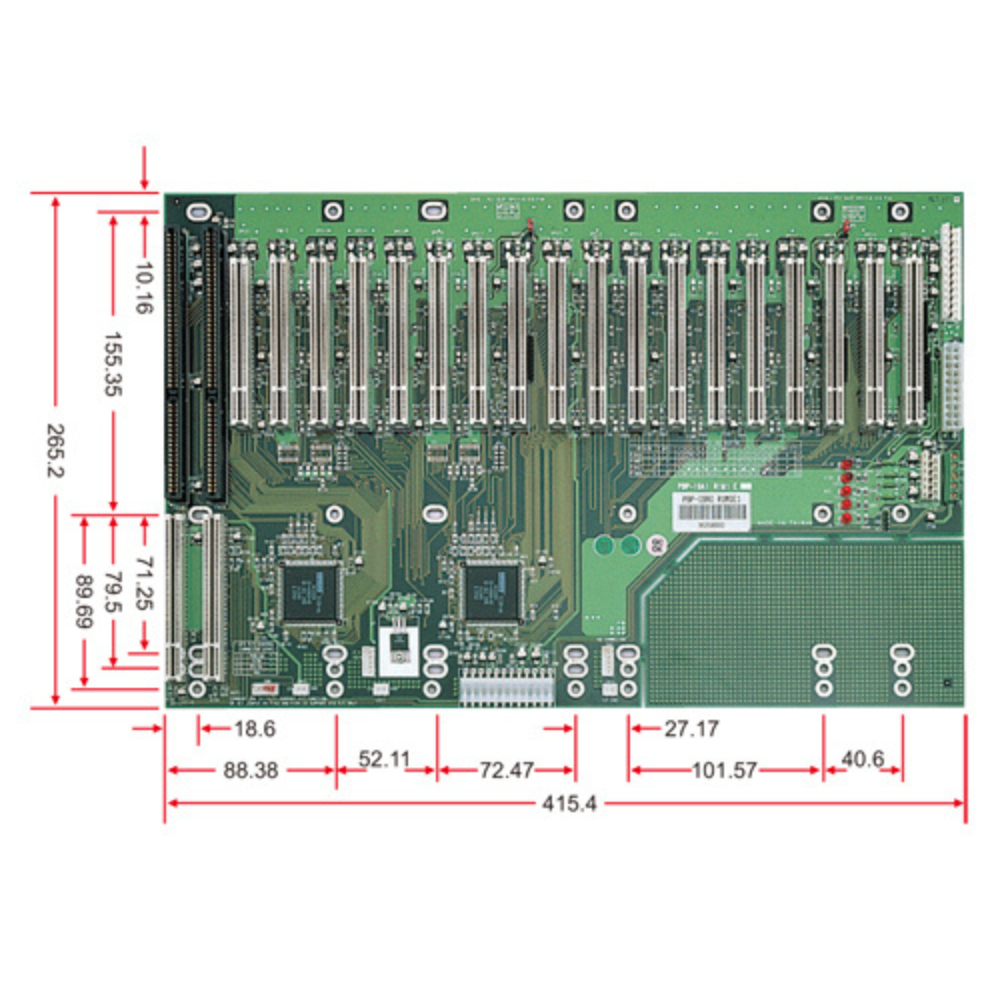

PBP-19AI

19-slot (18x PCI) Active PICMG Backplane

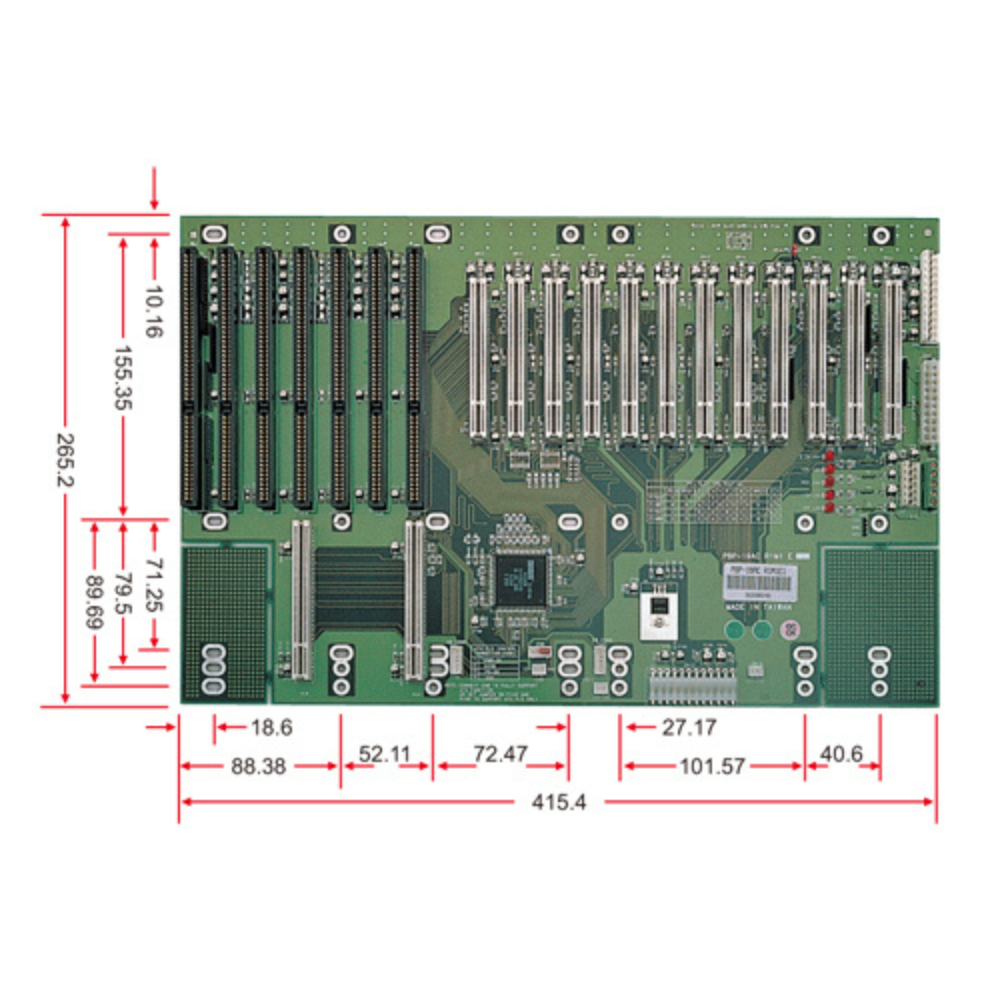

PBP-19AC

19-slot (12x PCI) Active PICMG Backplane

PBP-14AC-B

14-slot (12x PCI) Active PICMG Backplane

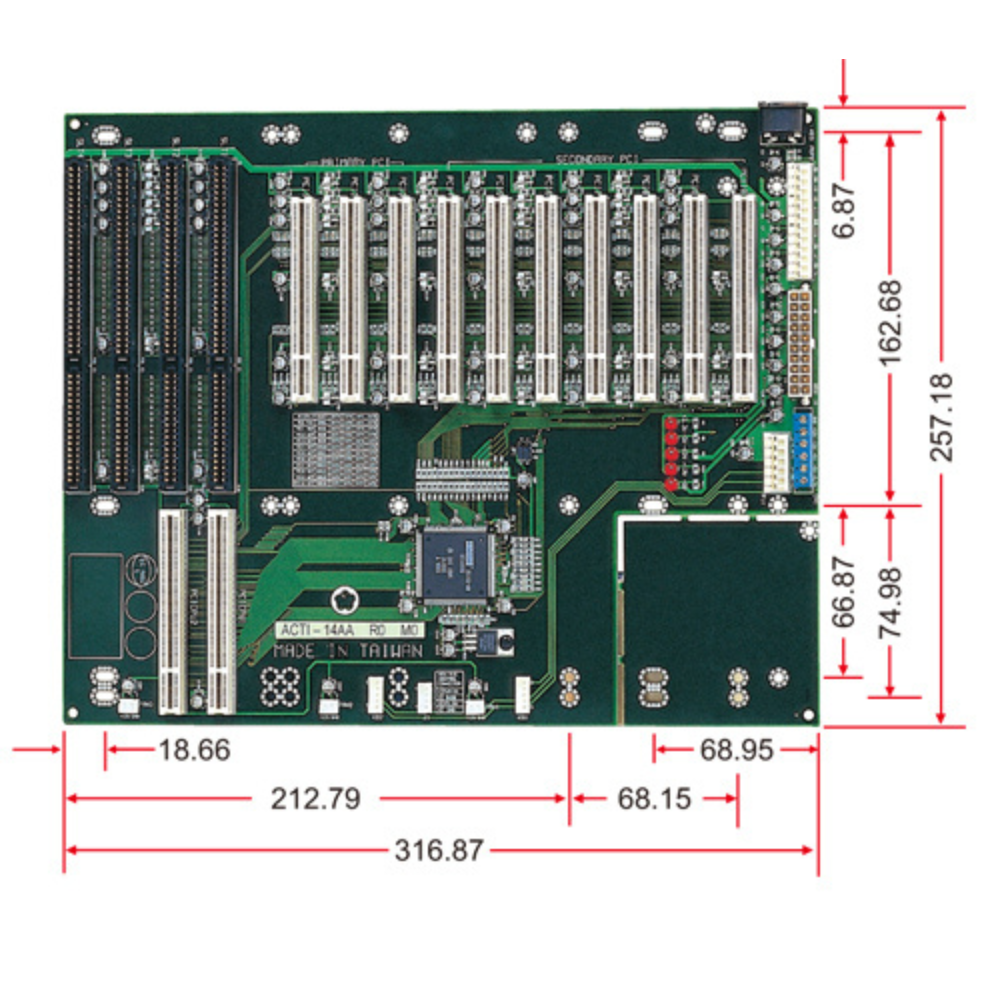

ACTI-14AA

14-slot (10x PCI) Active PICMG Backplane

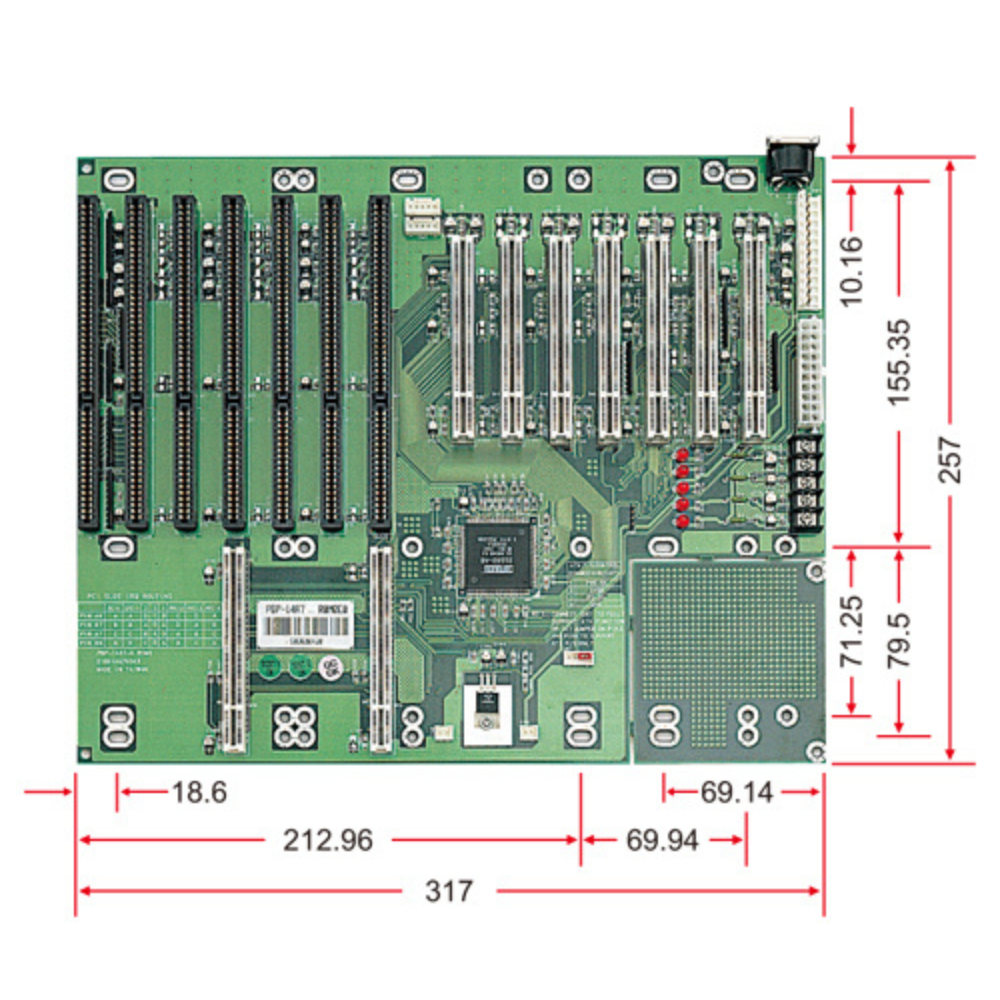

PBP-14A7

14-slot (7x PCI) Active PICMG Backplane

PBP-14AC

14-slot (12x PCI) Active PICMG Backplane

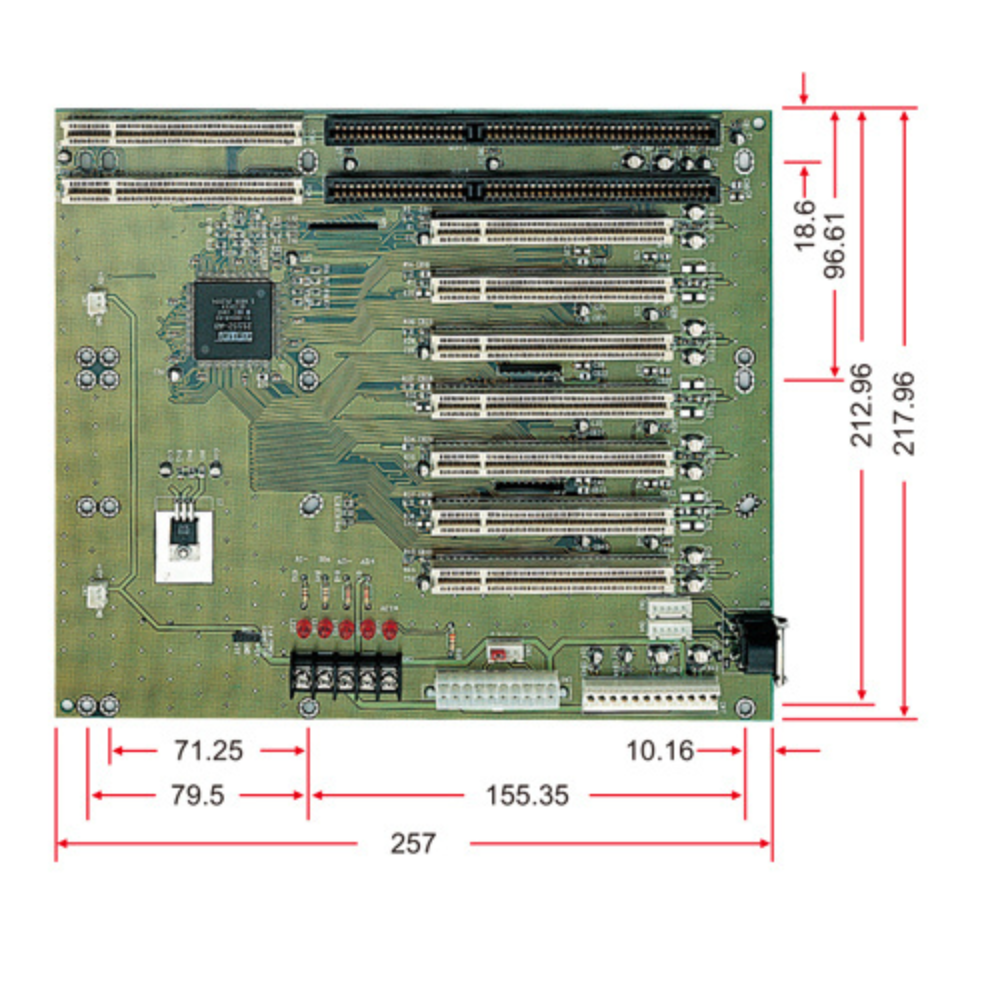

PBP-08A7

8-slot (7x PCI) Active PICMG Backplane

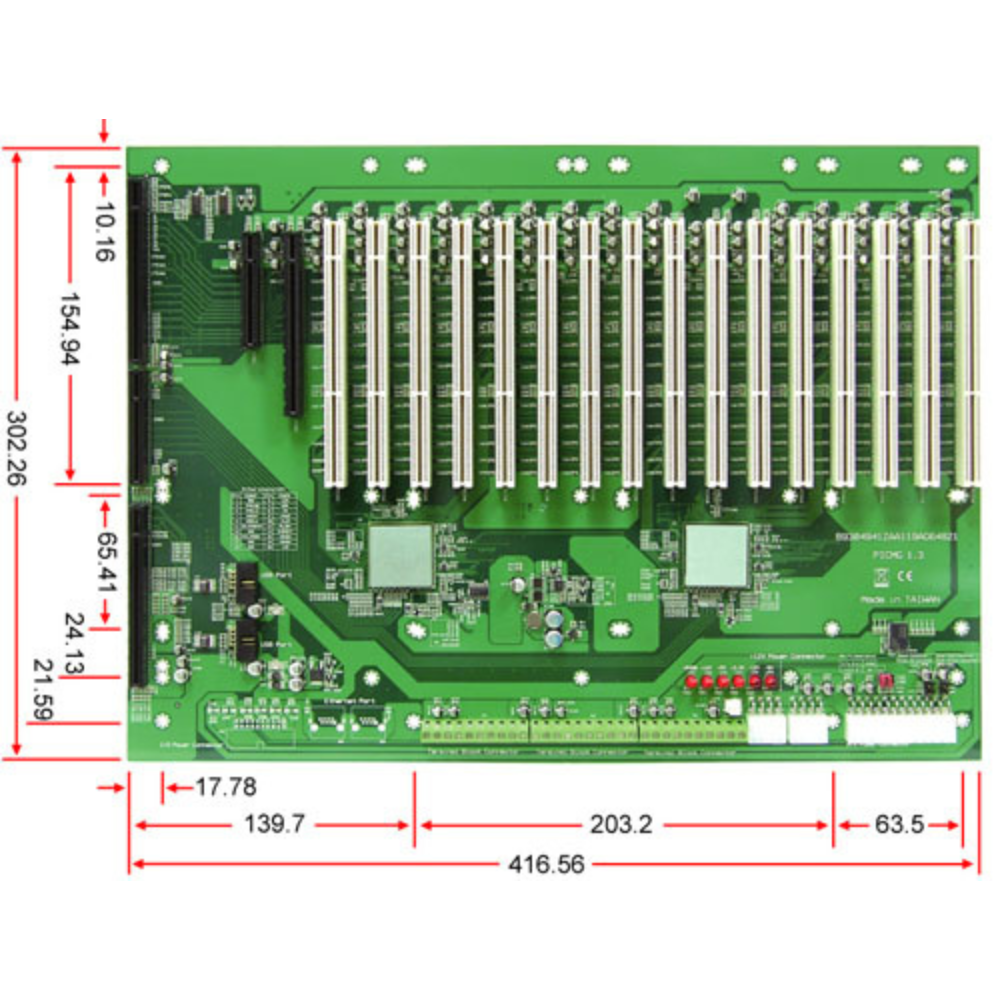

PBPE-19AG64

19-slot [PCIe x16 (1, x8 signal), PCIe x8 (1, x4 signal), PCI-X (16)]

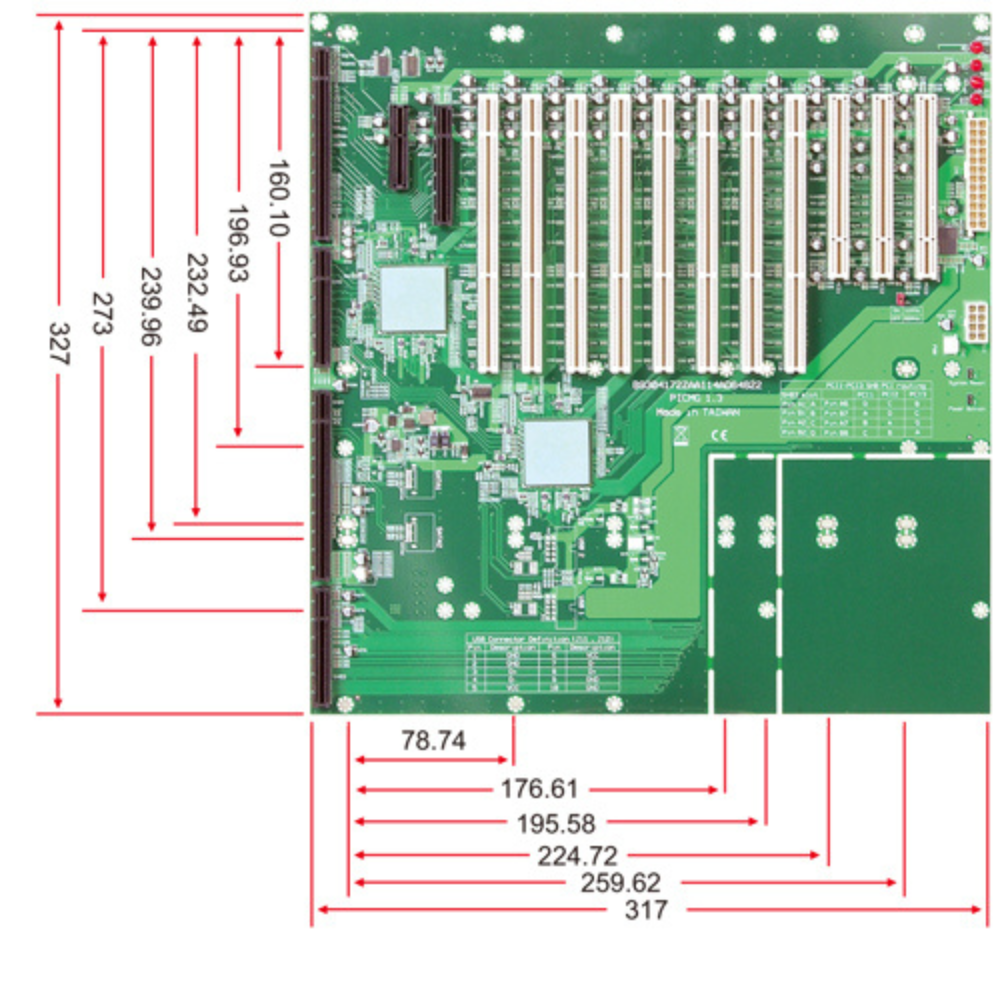

PBPE-14AD64

14-slot [PCIe x8 (1,x4 signal), PCIe x8 (1), PCI-X (8), PCI (3)]

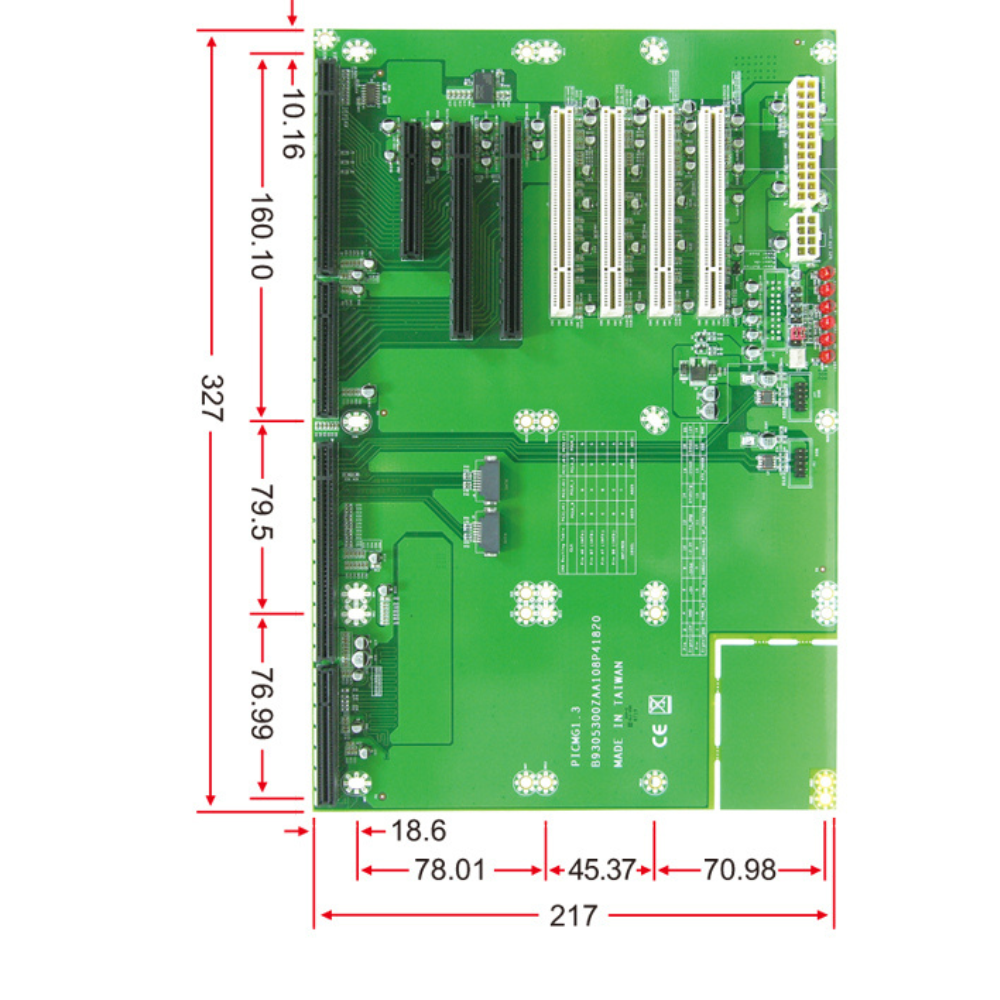

PBPE-08P41

8-slot [PCIe x8 (1, x4 signal), PCIe x16 (2, x8 signal), PCI (4)]

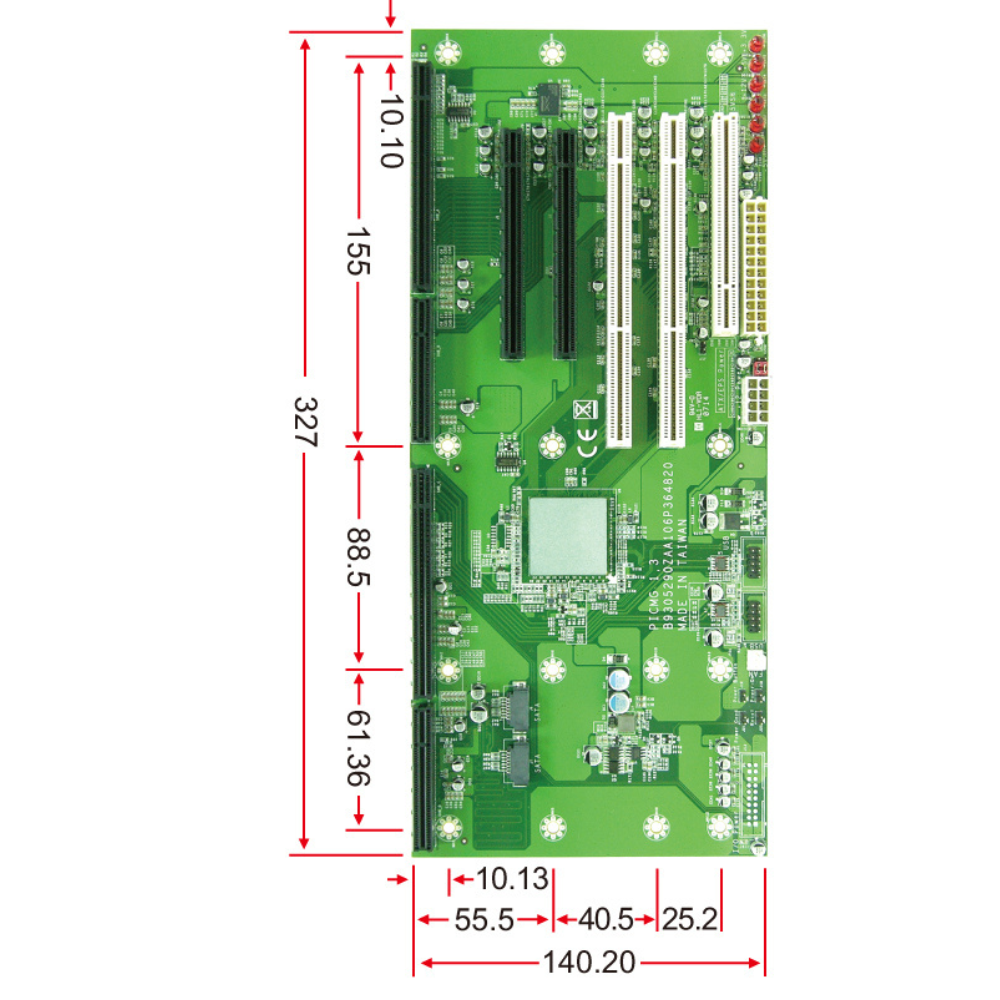

PBPE-06A364

6-slot [PCIe x16 (2, x8 signal), PCI-X (2), PCI (1)]

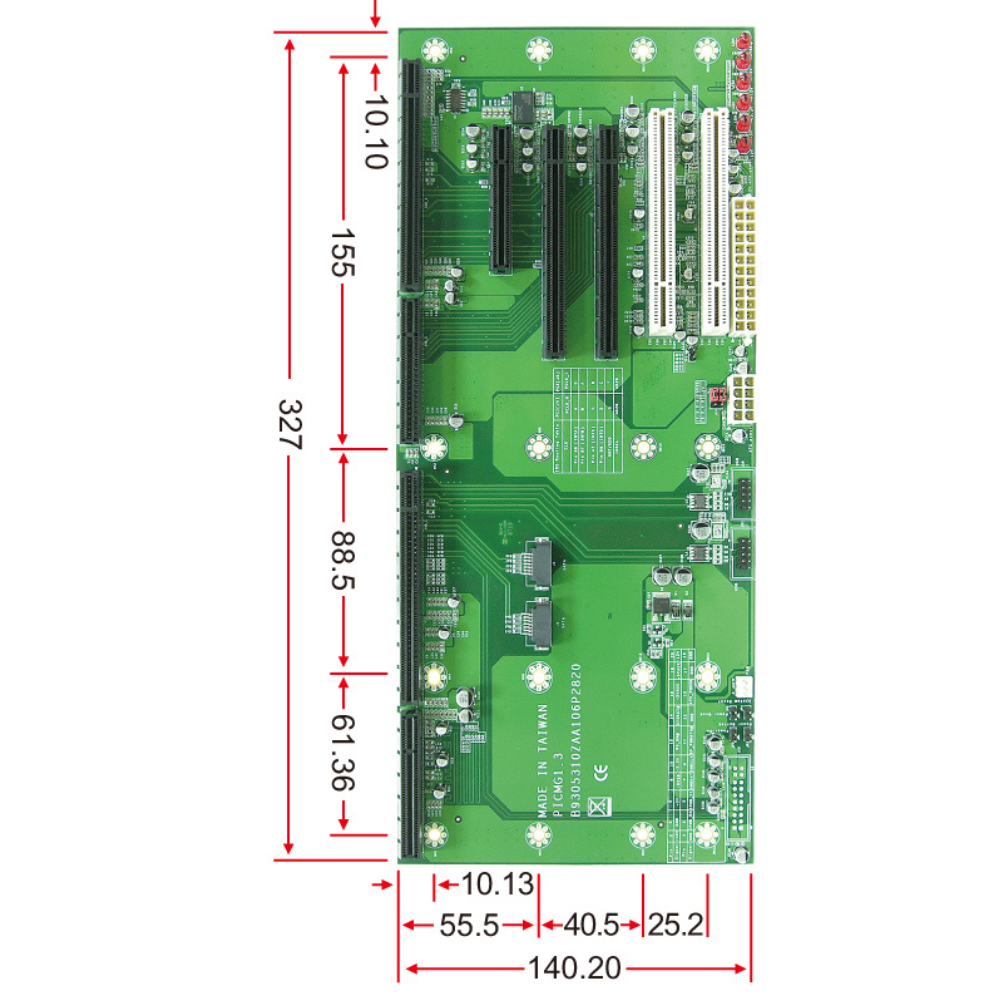

PBPE-06P2

6-slot [PCIe x8 (1, x4 signal), PCIe x16 (2, x8 signal), PCI (2)]

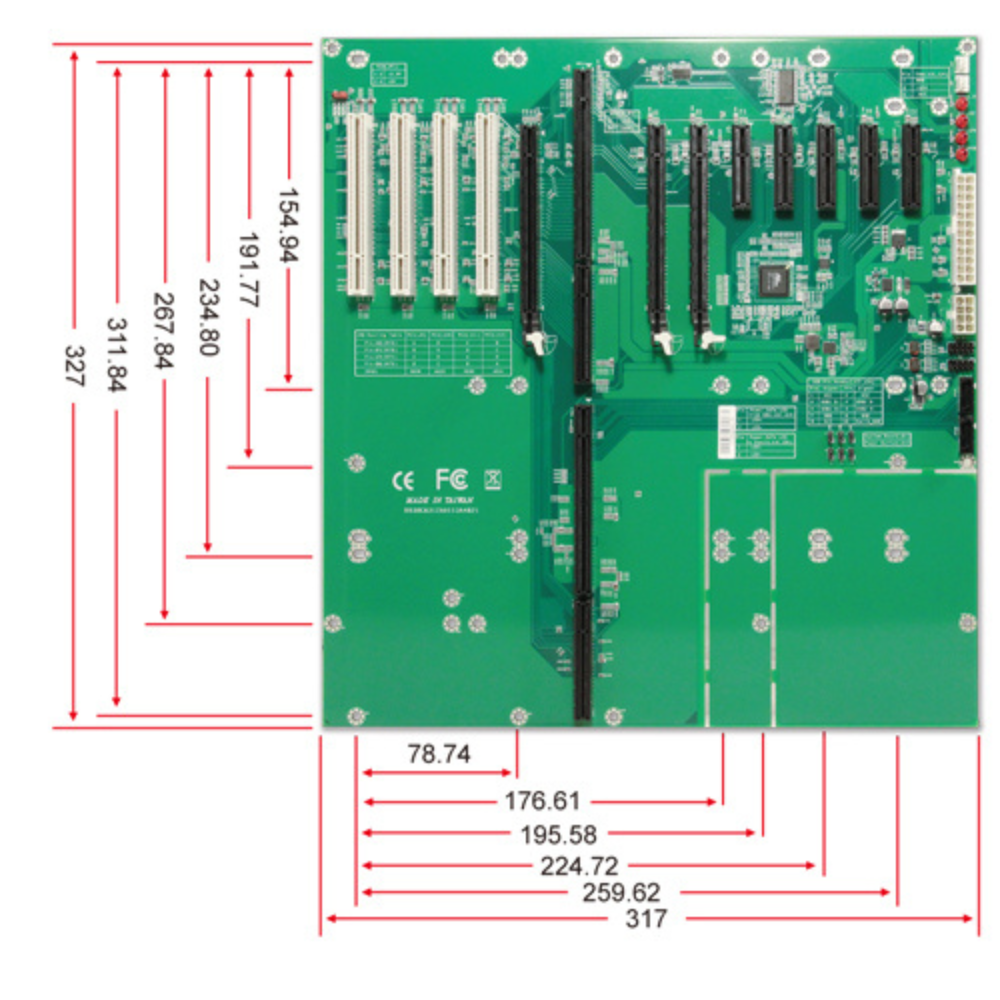

PBPE-13A4

13-slot [PCIe x16(1), PCIe x16(2, x1 signal), PCIe x4(5, x1 signal), PCI(4)]

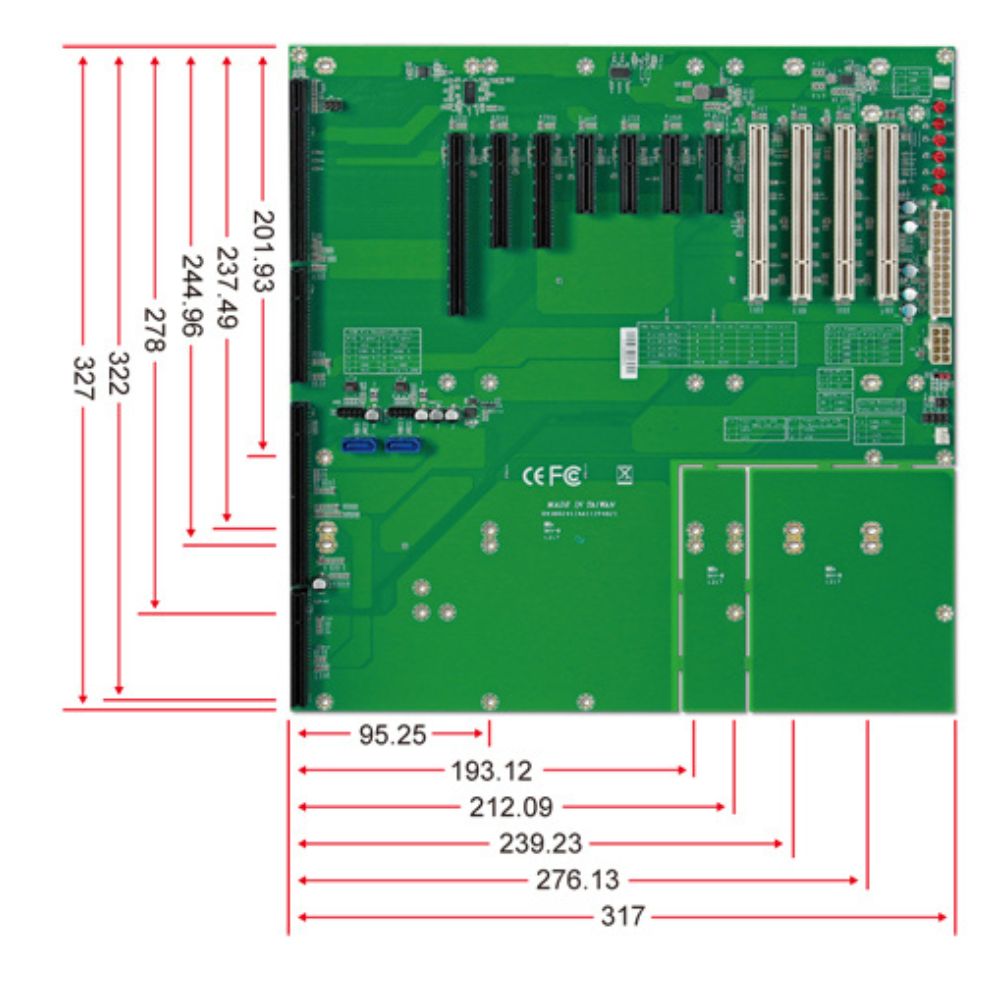

PBPE-12P4

12-Slot [PCIe x16 (1, x8 signal), PCIe x8 (2, x4 signal), PCIe x4 (4, x1 signal), PCI (4)]

PBPE-11A3

11-Slot [PCIe x16(1), PCIe x16 (2, x8 signal), PCIe x8 (4, x1 signal), PCI (3)]

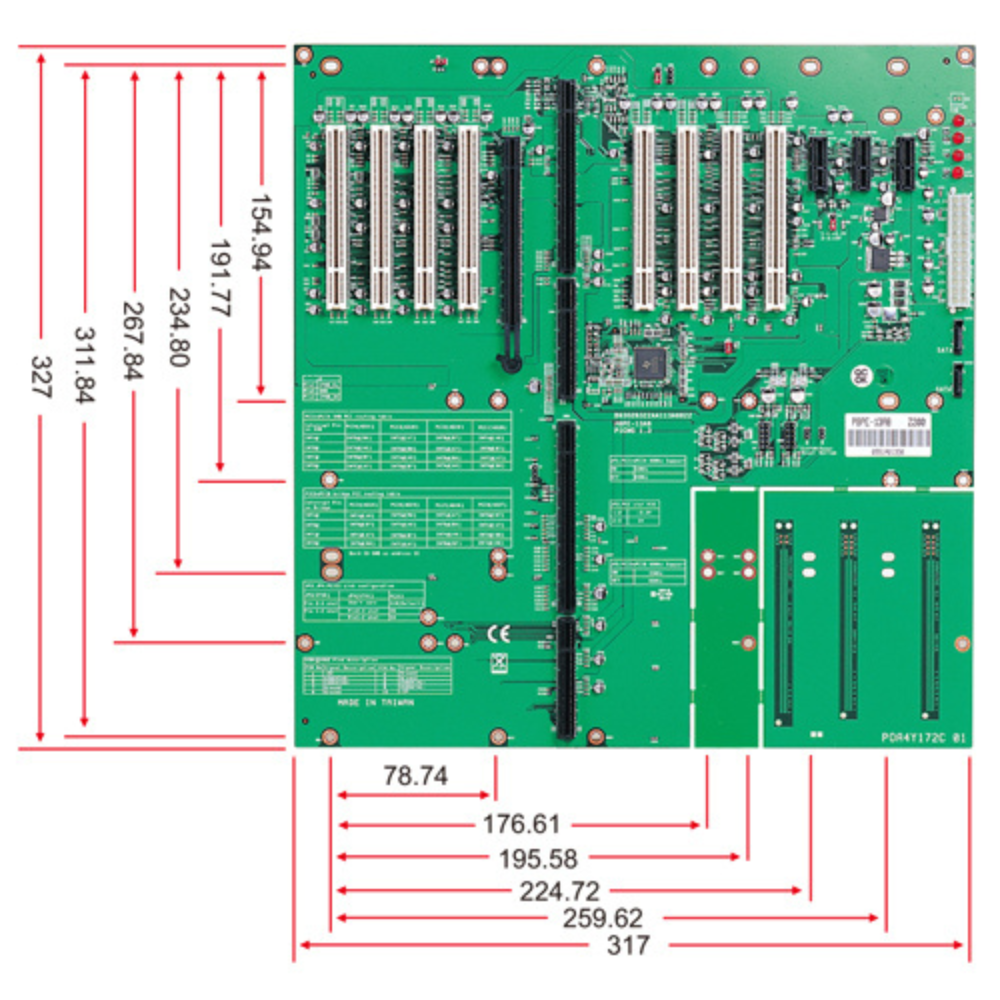

PBPE-13A8

13-slot [PCIe x1 (3), PCIe x16 (1), PCI (8)]

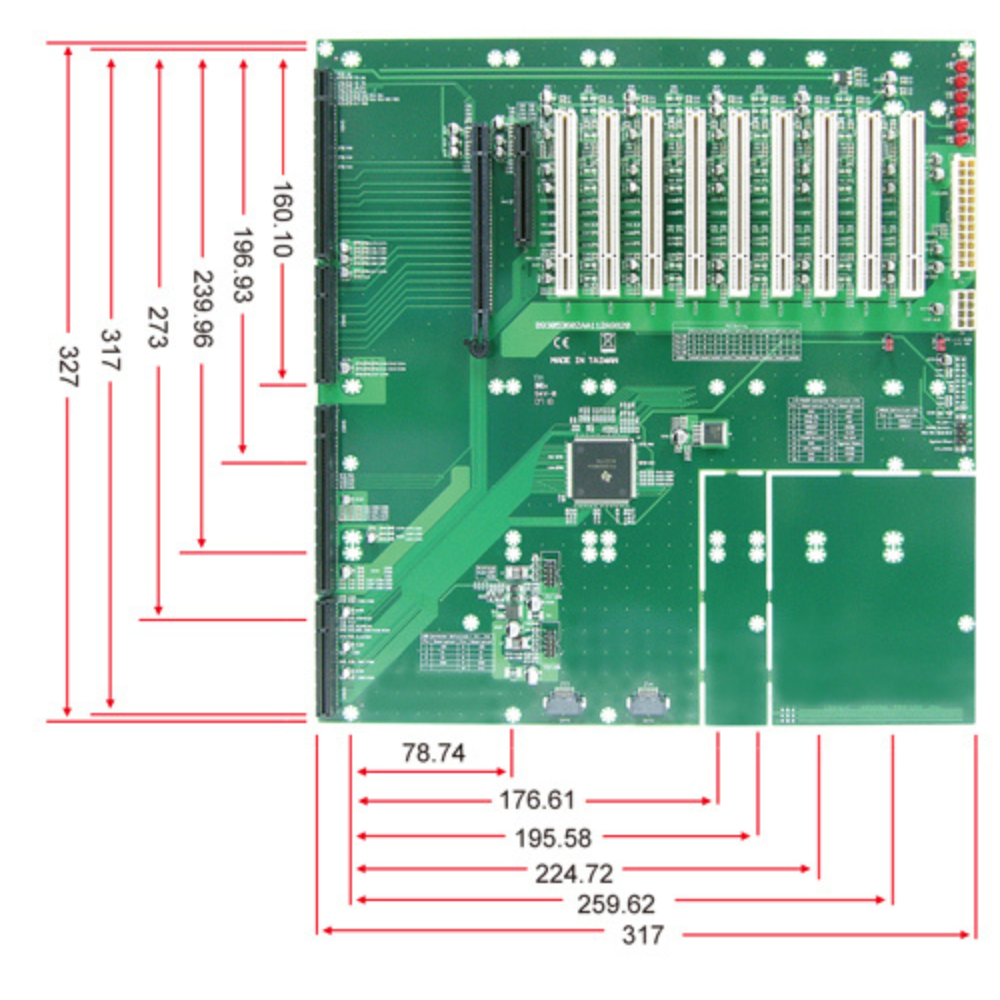

PBPE-12A9

12-slot [PCIe x16 (1), PCIe x8 (1, x4 signal), PCI (9)]

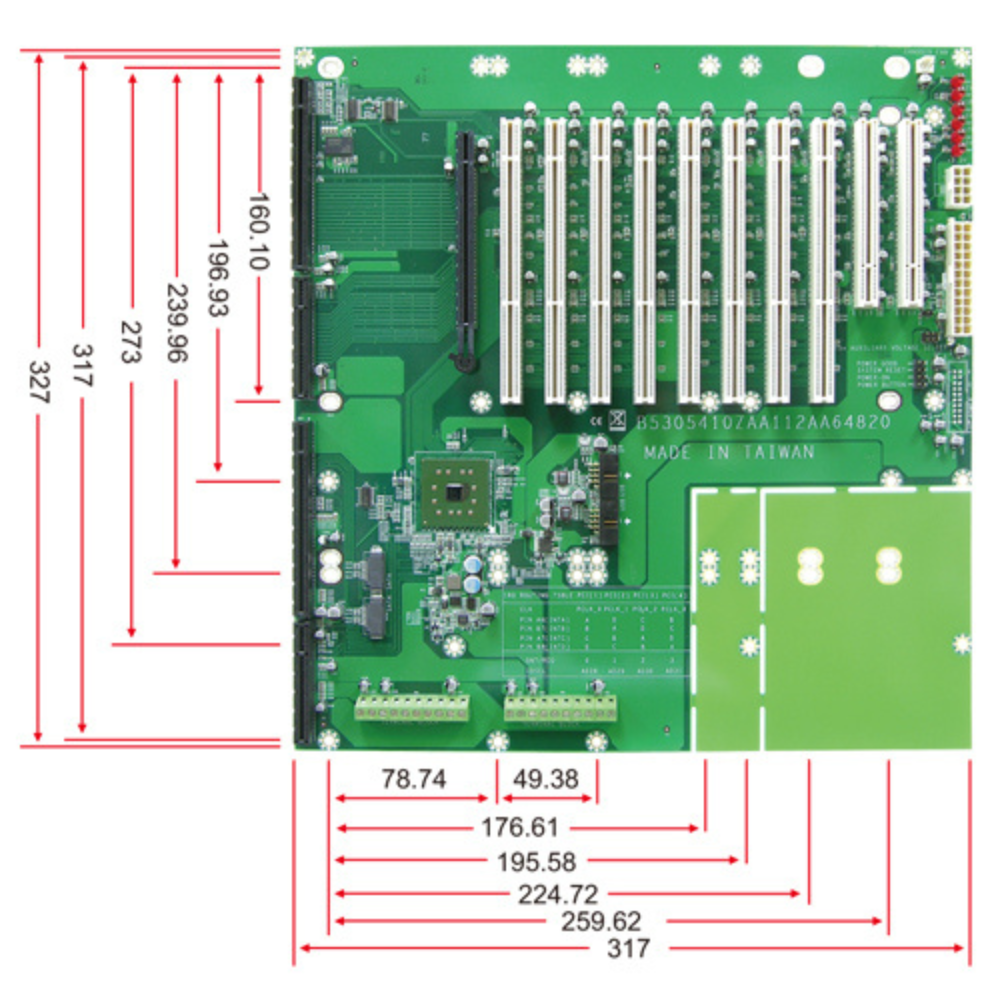

PBPE-12AA64

12-slot [PCI-X (8), PCIe x16 (1), PCI (2)]

PBPE-06V3

Vertical 6-slot [PCIe x8 (1, x4 signal), PCIe x16 (1), PCI (3)]

PBPE-06V

Vertical 6-slot [PCIe x1 (4), PCIe x16 (1)]

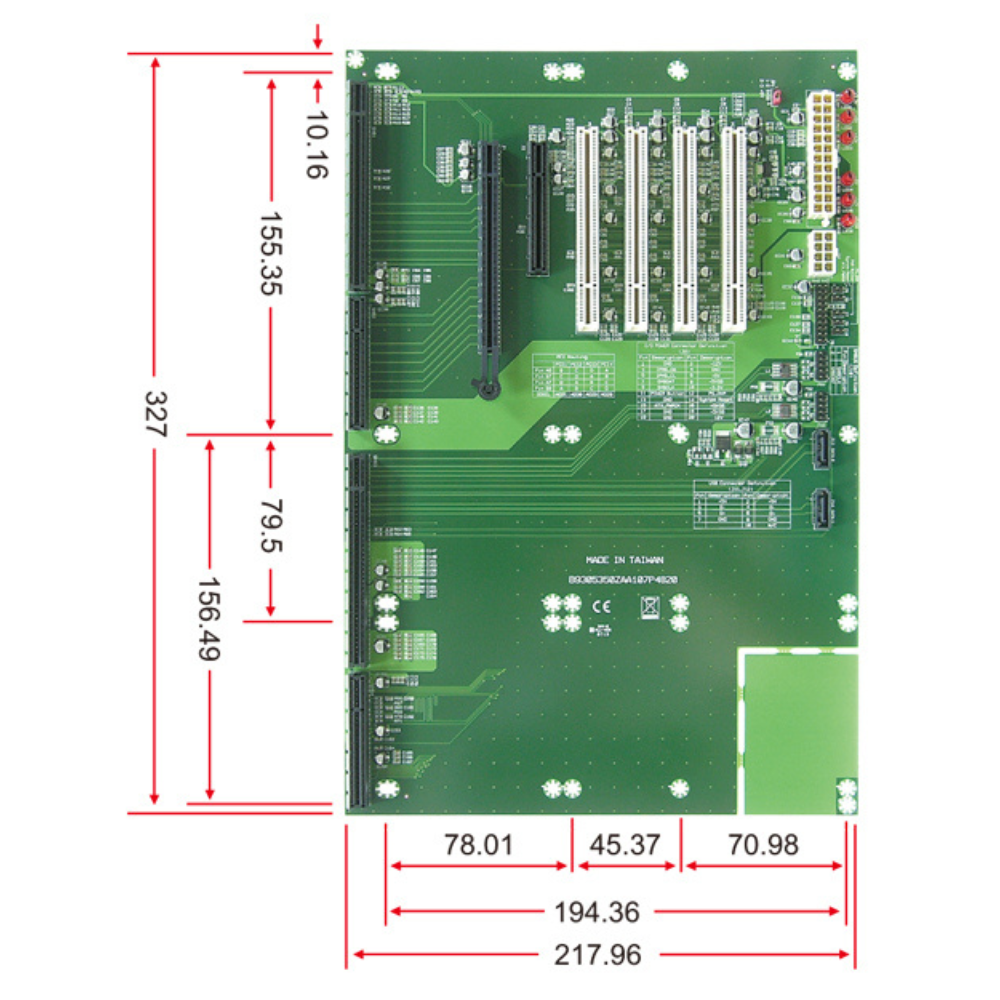

PBPE-07P4

7-slot [PCIe x8 (1, x4 signal), PCIe x16 (1), PCI (4)]

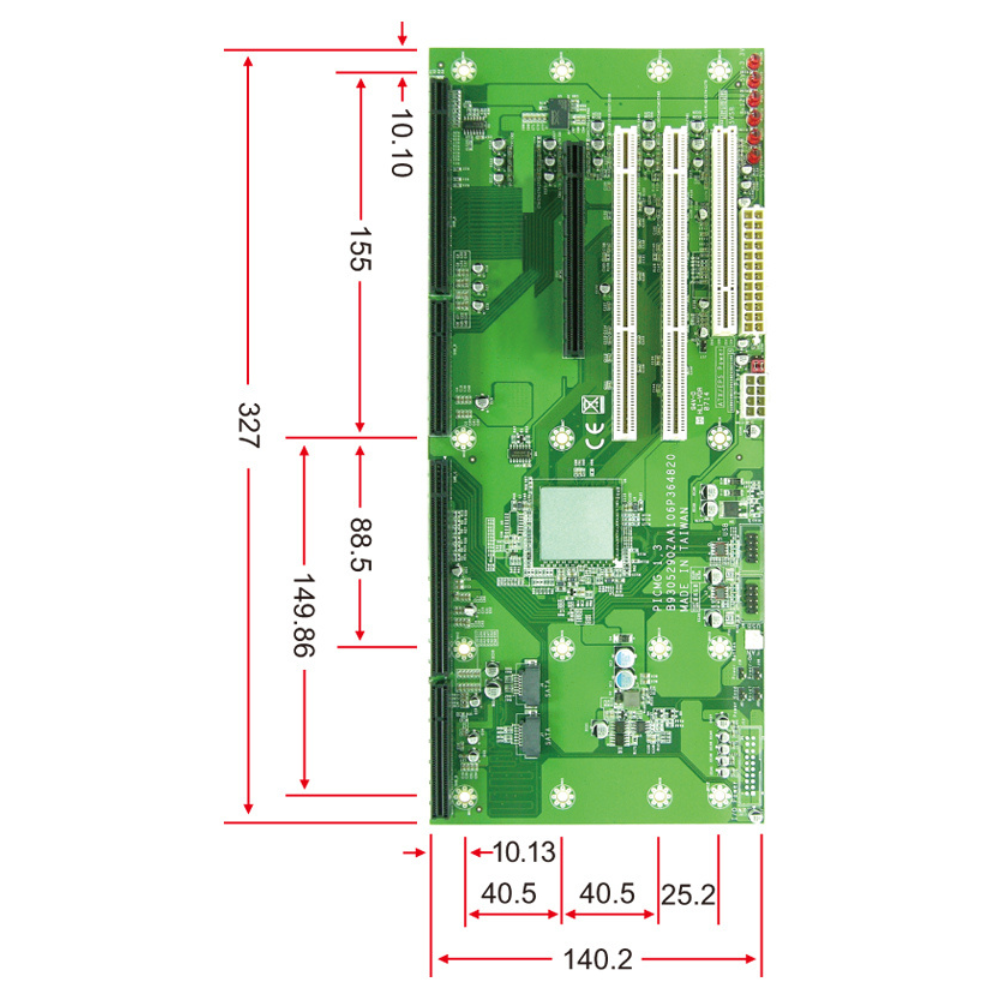

PBPE-05A364

5-slot [PCIe x16 (1), PCI-X (2), PCI (1)]

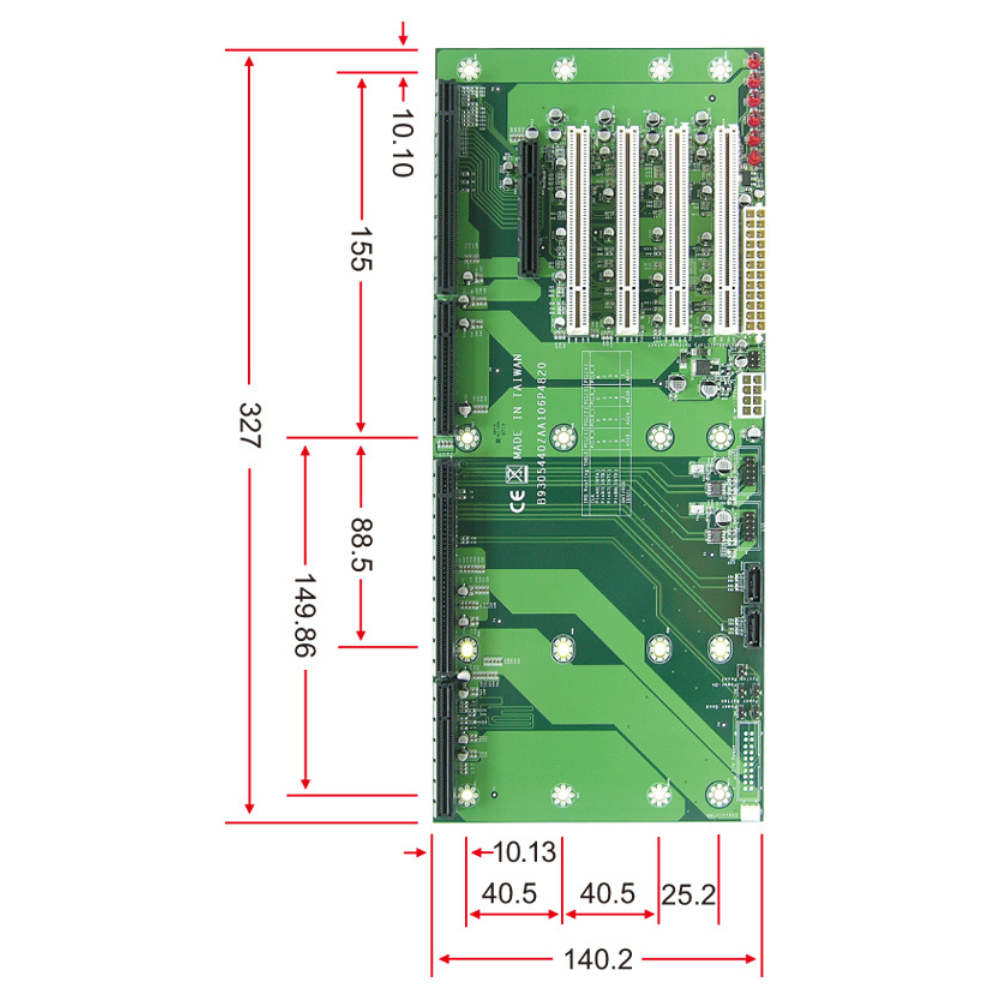

PBPE-06P4

6-slot [PCIe x8 (1, x4 signal), PCI (4)]

PBPE-06P3

6-slot [PCIe x16 (1), PCIe x4 (1), PCI (3)]

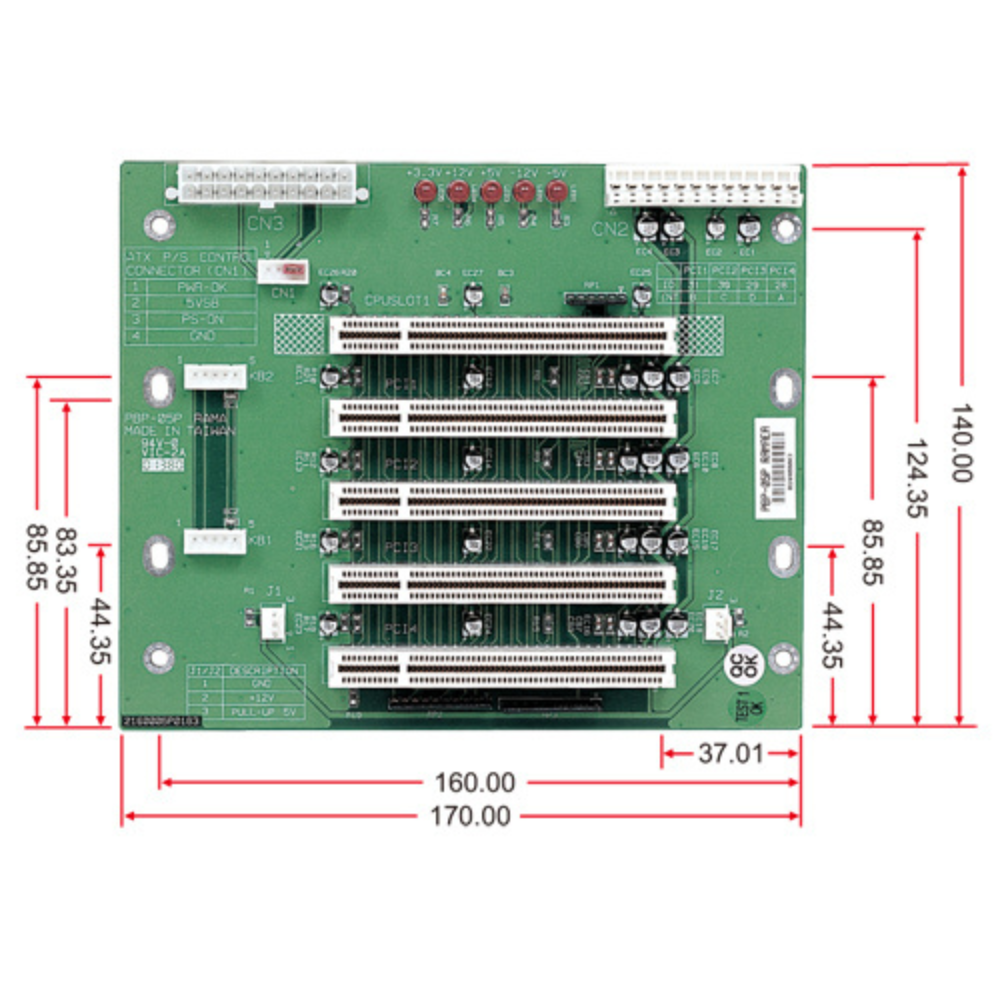

PBP-05P

5-slot Passive PCI Backplane

PBP-04P

4-slot Passive PCI Backplane

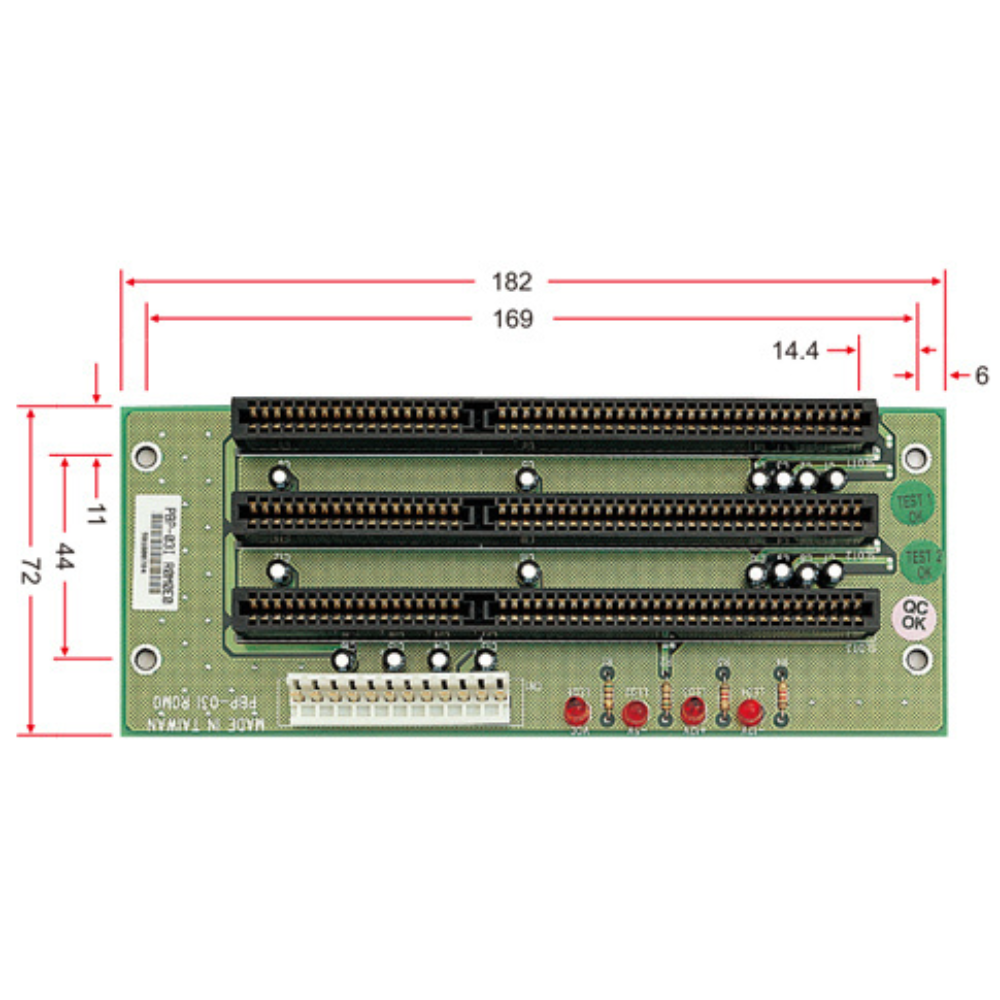

PBP-03I

3-slot Passive ISA Backplane

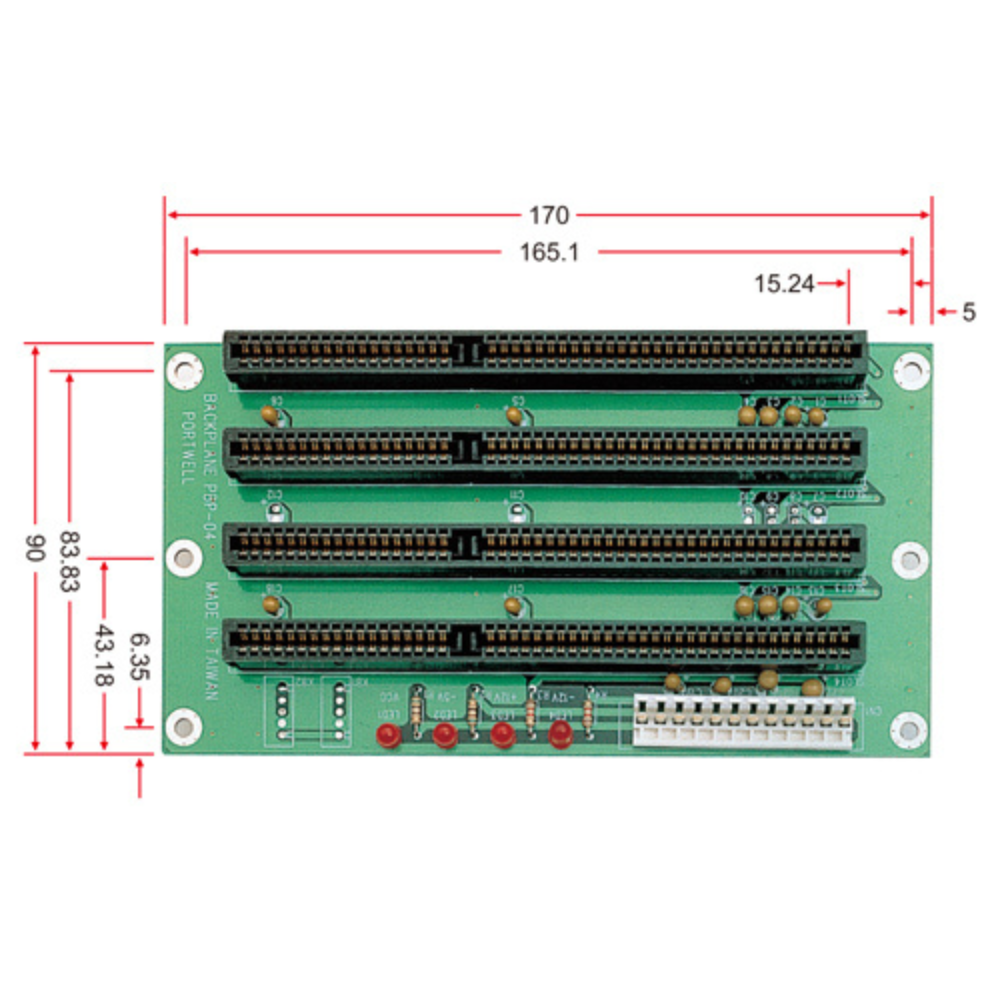

PBP-04I

4-slot Passive ISA Backplane

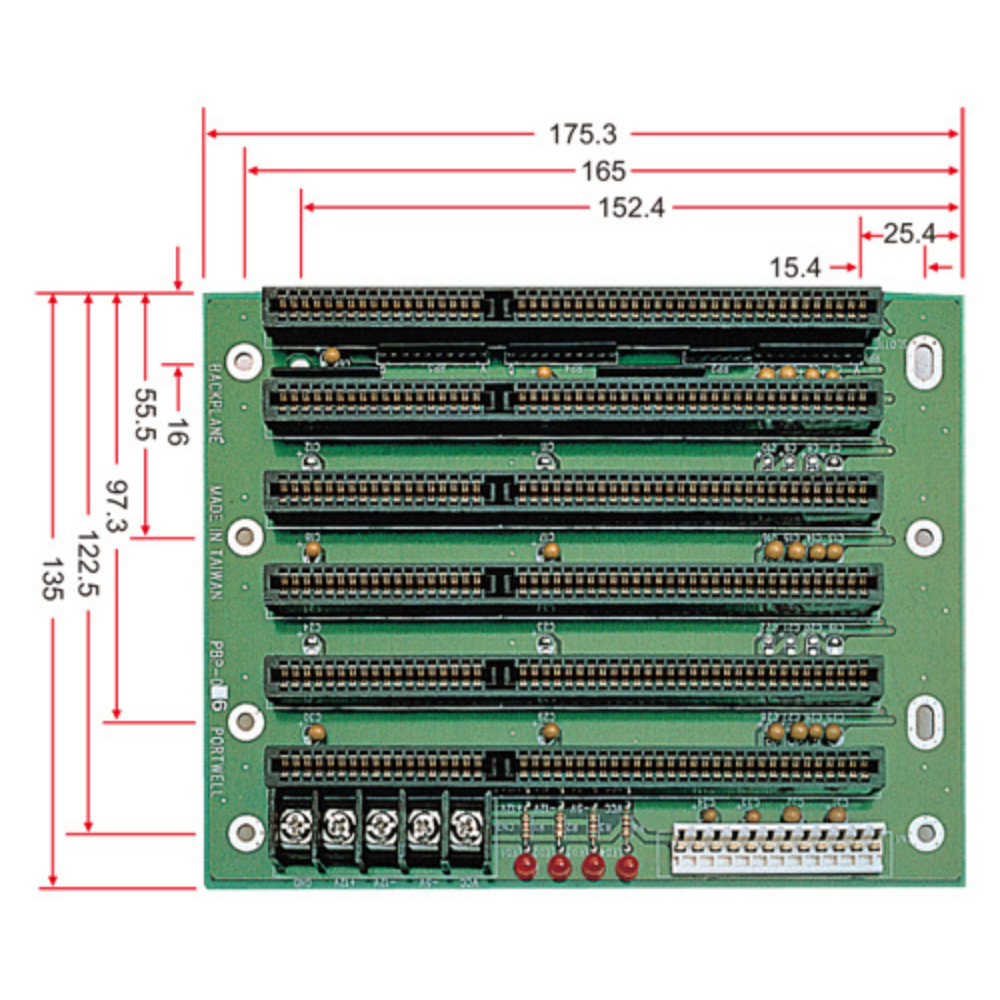

PBP-06I

6-slot Passive ISA Backplane

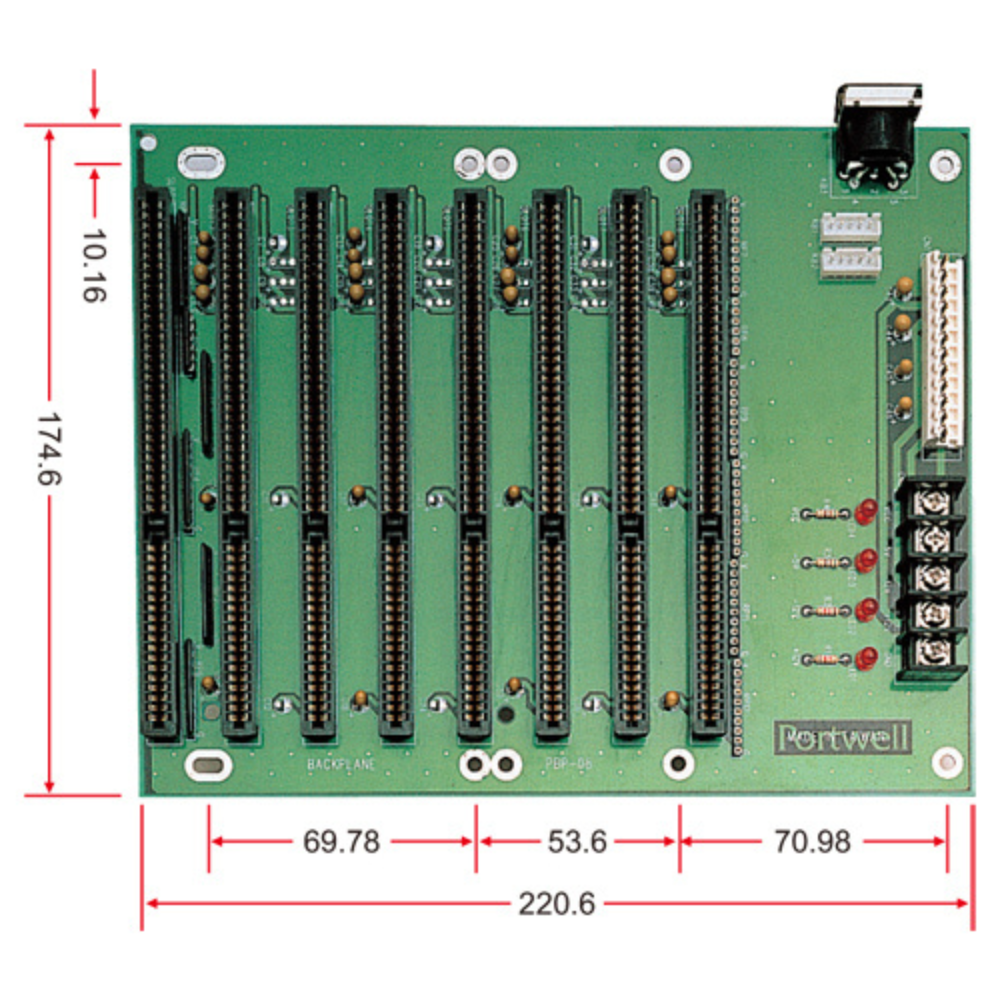

PBP-08I

8-slot Passive ISA Backplane

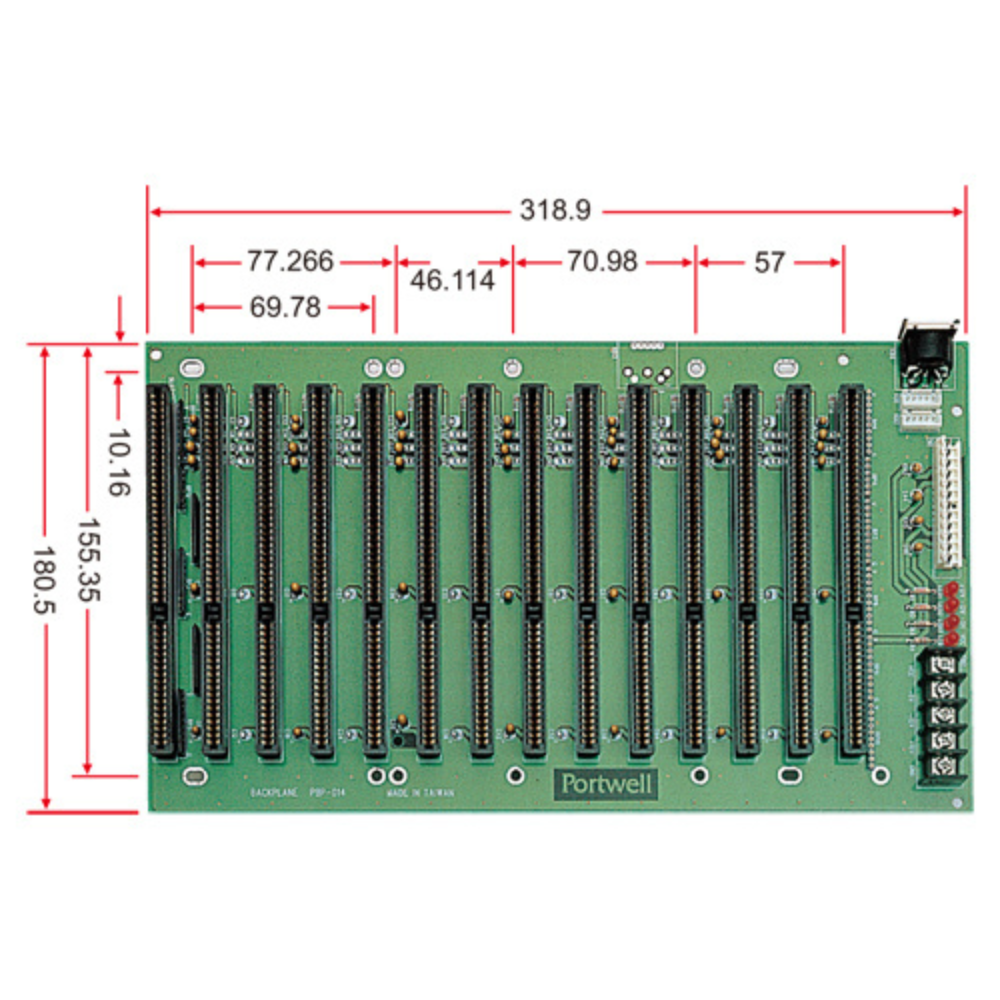

PBP-14I

14-slot Passive ISA Backplane

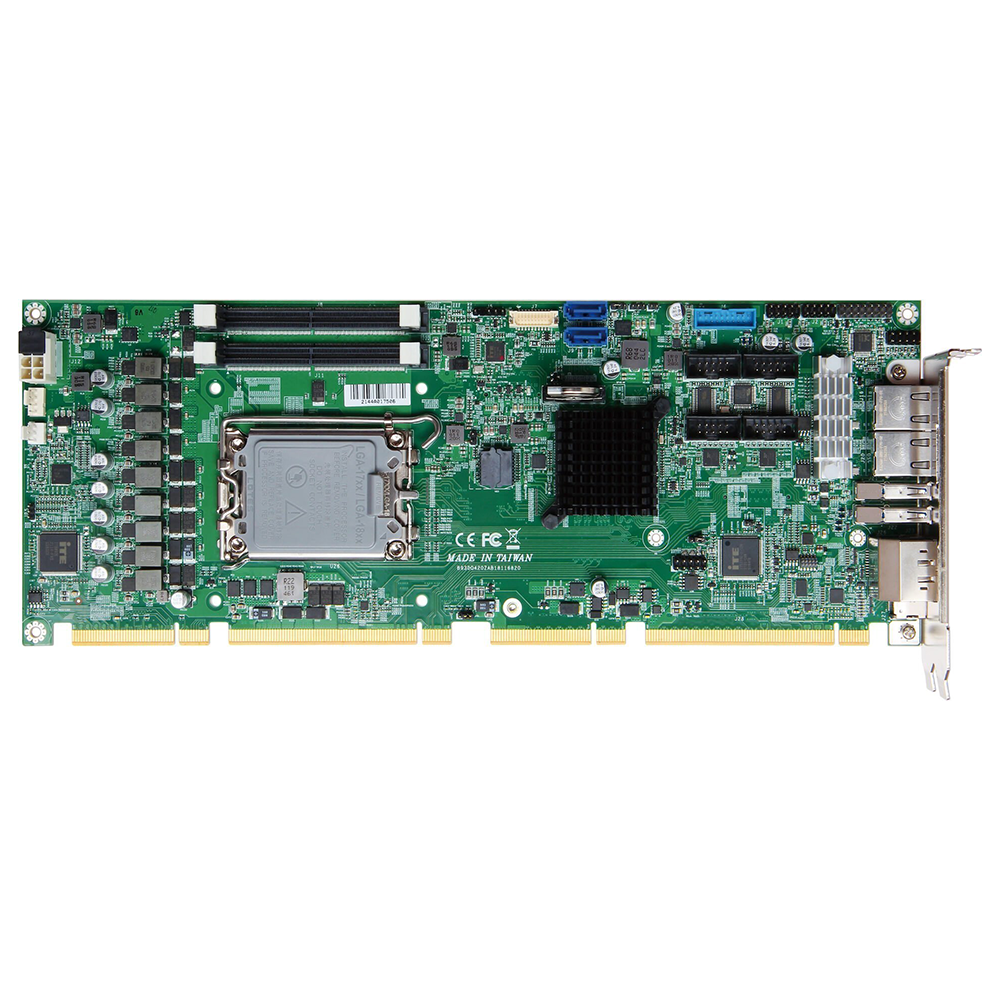

ROBO-8116G2AR

Intel® R680E / Q670E chipset based 12th Generation Core™ processor based on PICMG 1.3 SHB with DDR5 SDRAM,HDMI, DVI-D, DP, Dual Gigabit Ethernet, Audio and USB

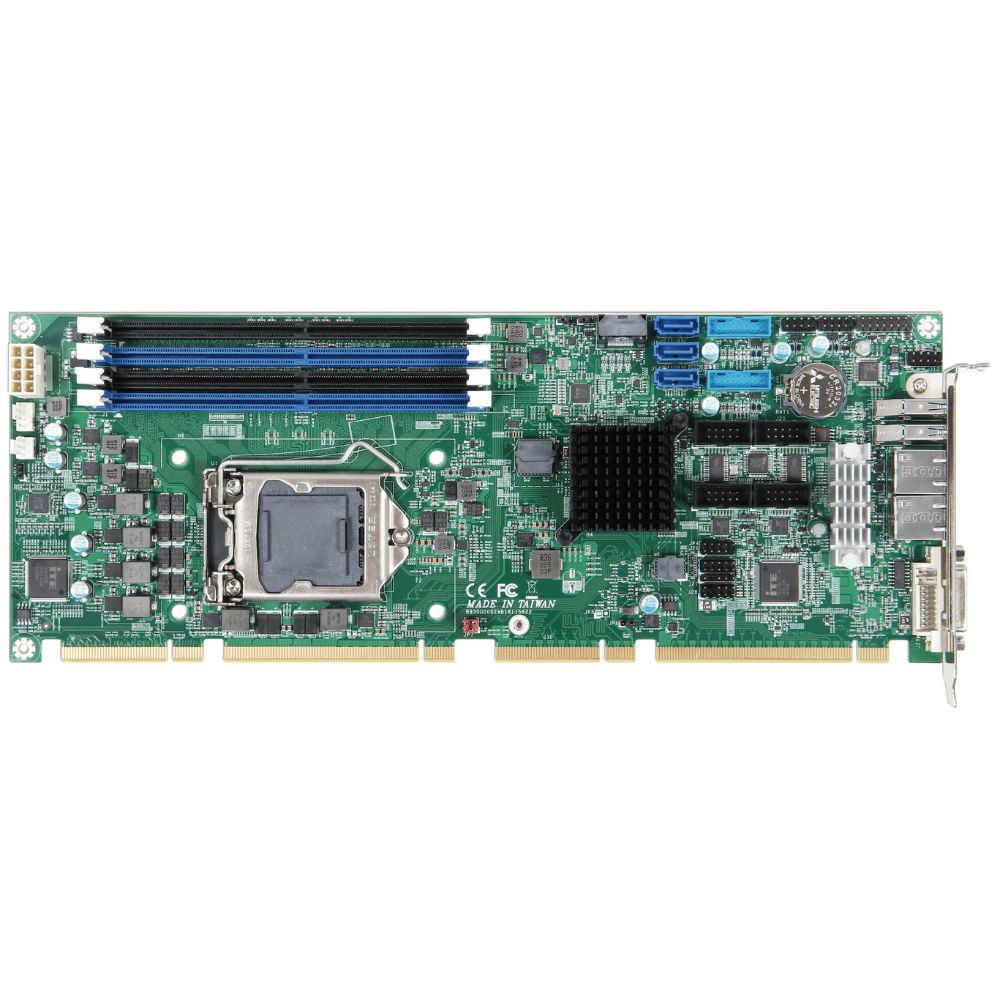

ROBO-8115VG2AR

Intel® W480E based, Xeon® W/ Core TM i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

ROBO-8115VG2AR-Q470E

Intel® Core™ i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

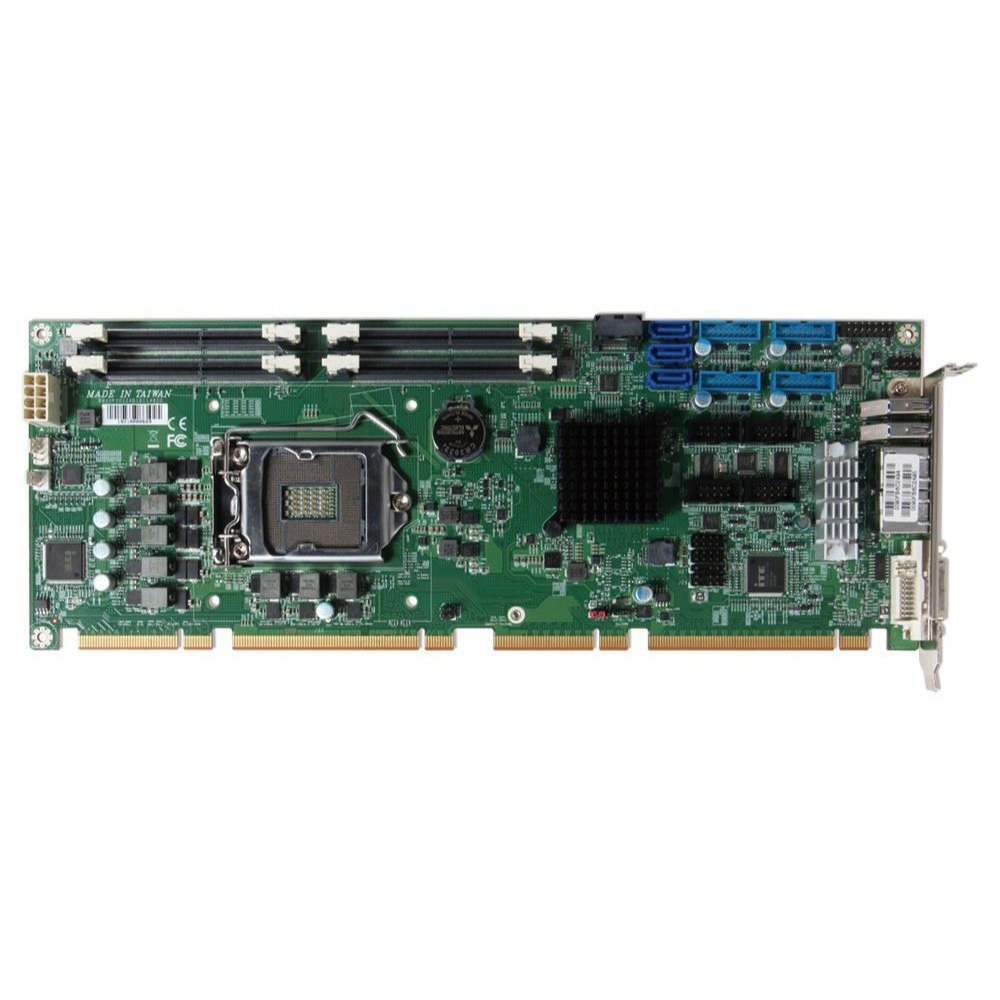

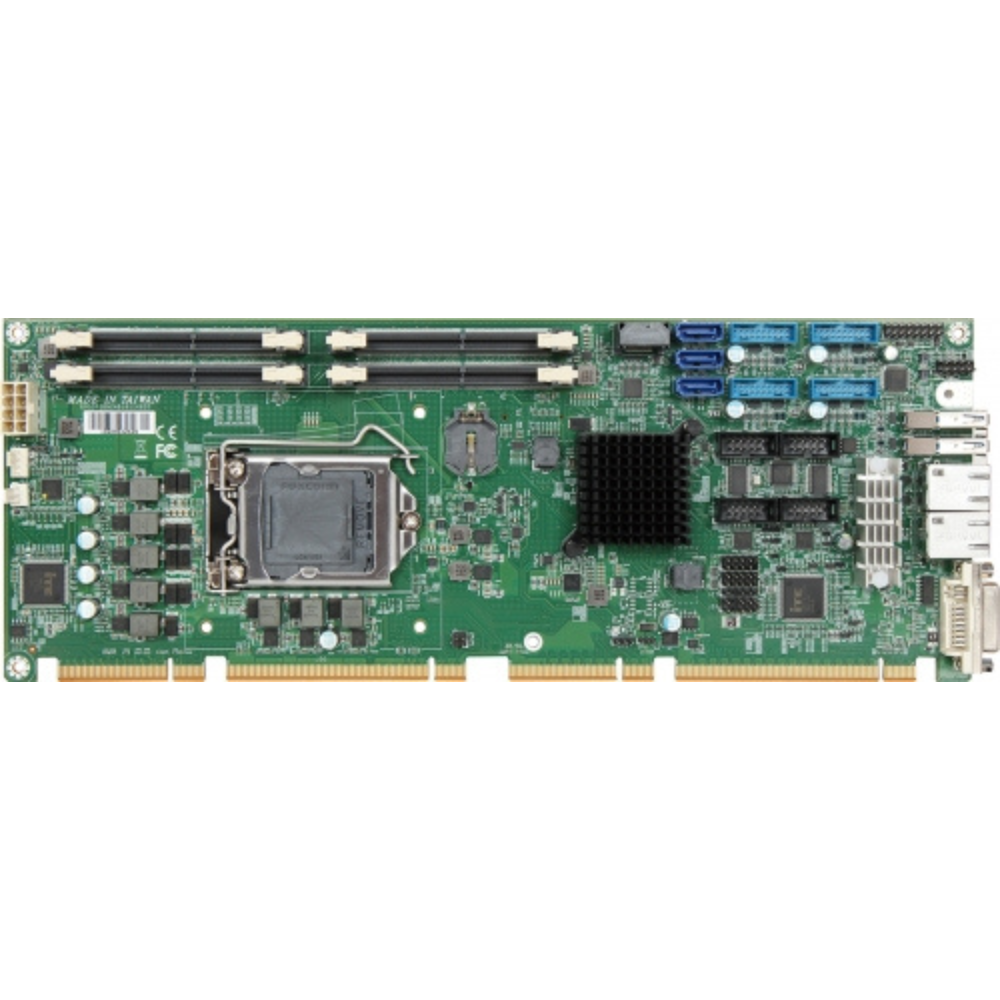

ROBO-8114VG2AR

Intel®Xeon® E/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

ROBO-8114VG2AR-Q370

Intel® Core™ i3/i5/i7 Pentium /Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet,Audio and USB

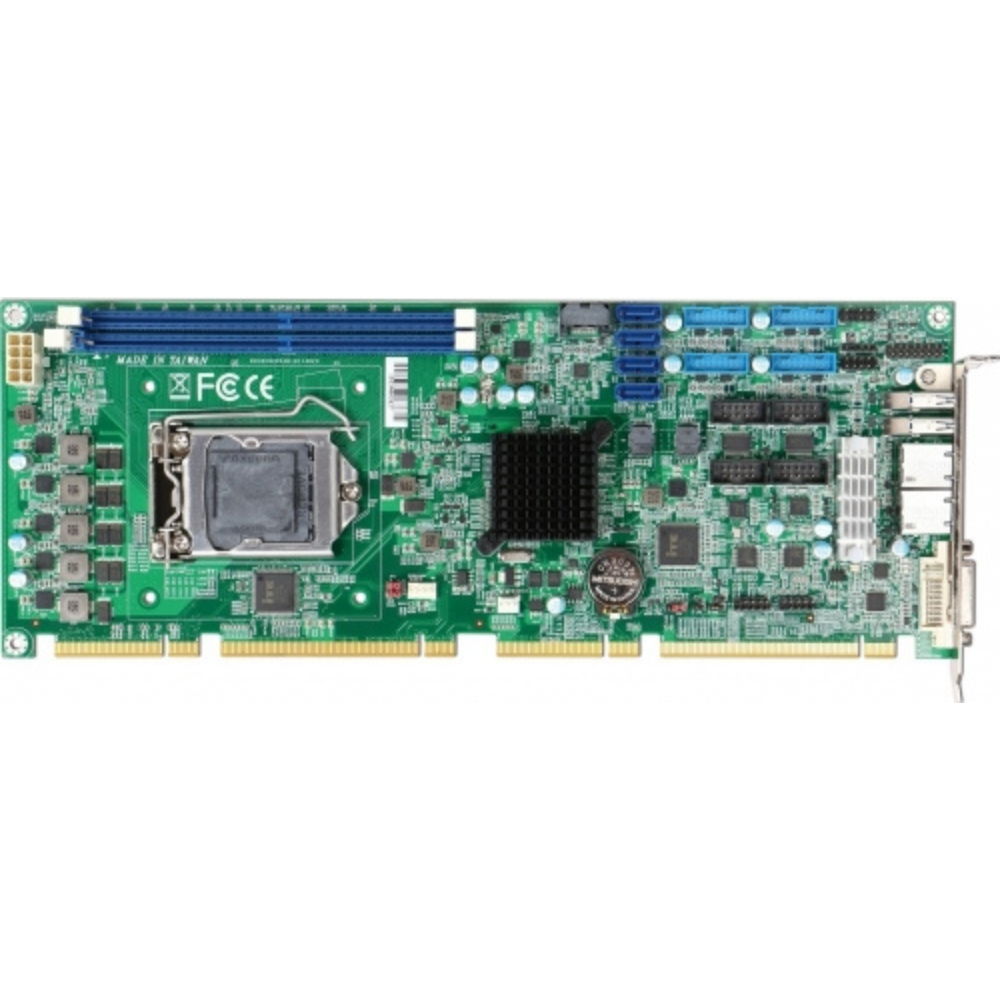

ROBO-8113VG2AR

Intel® Xeon® E3/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

ROBO-8113VG2AR-Q170

Intel® Core™ i3/i5/i7 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

ROBO-6912VG2AR

Intel® Core™ i3/i5/i7/Pentium® Celeron®/Xeon® E Family processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, mini DP,DVI-D, Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB.

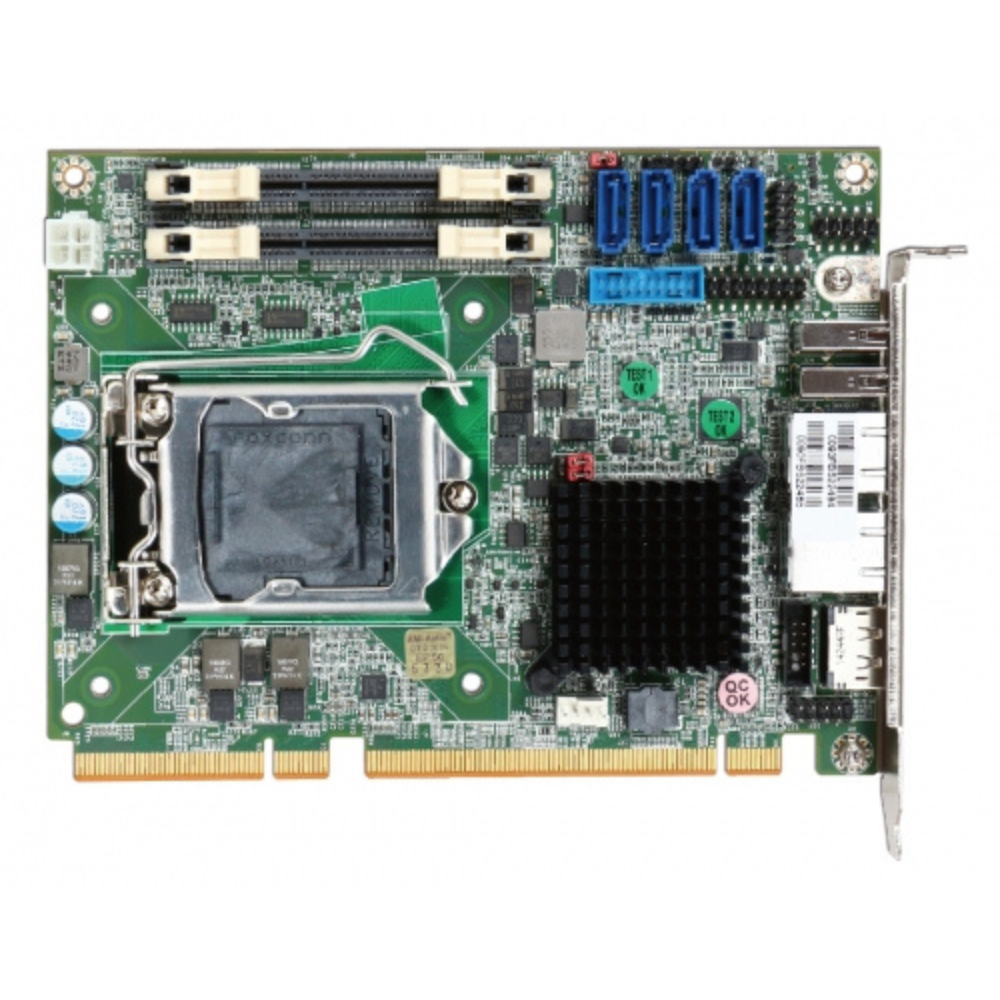

ROBO-6911VG2AR-Q170

Intel® Core™ i3/i5/i7/Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB

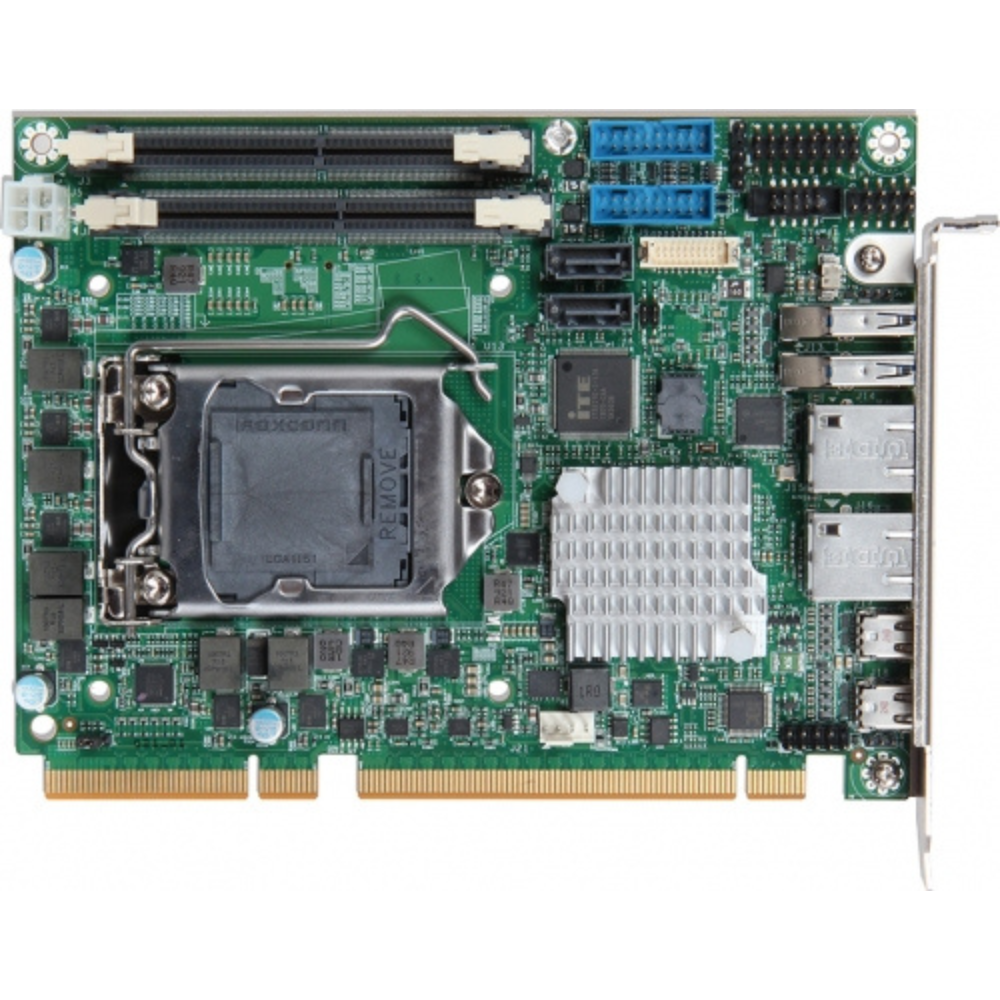

ROBO-6911VG2AR

Intel® Xeon® E3/Core™ i3/i5/i7/ Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB

ROBO-6912VG2AR-Q370

Intel® Core™ i3/i5/i7/Pentium® Celeron® processor based on PICMG 1.3 halfsize SHB with DDR4 SO-DIMM, mini DP, DVI-D,Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB
