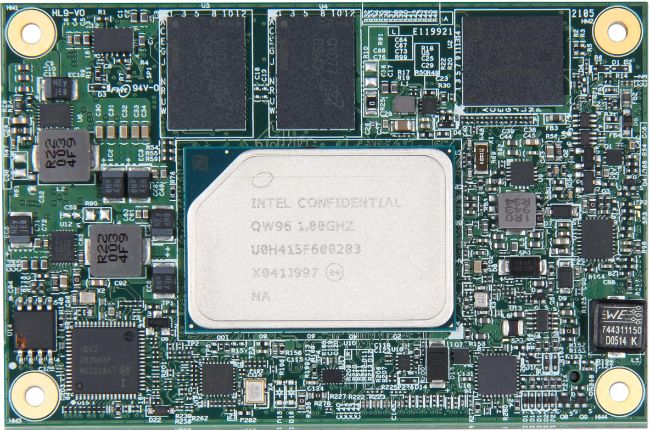

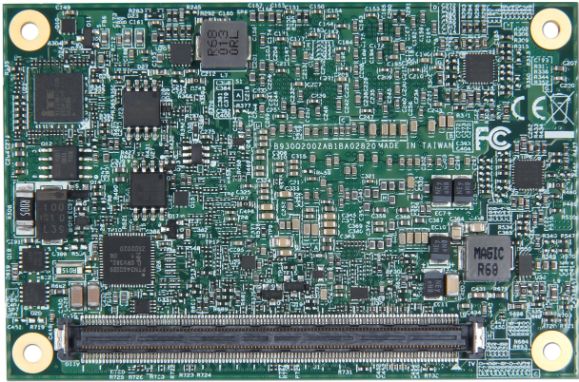

PCOM-BA02GL
Intel® Atom® x6000 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM
Features :
- Intel® Atom® Processor x6000 Series (Elkhart Lake)
- On Board LPDDR4 SDRAM up to 8GB
- Low Power Consumption (4.5 to 12W), 4K Resolution
- Support wide temperature -40°C ~ 85°C
- Support Intel® TCC/TSN with 2.5GbE
Video
Description
PCOM-BA02GL, a Type 10 Mini COM Express® (84 x 55 mm) module which based on Intel® Elkhart Lake Atom® x6000 and Pentium® N and J Series Processors. In this architecture, it could provide LVDS, and high quantity HDMI, eDP, DP with 4K resolution. And it also provides turbo mode up to 3.0GHz, with extending 4x PCIe 3.0 x1, 2x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III devices. With ultra low power consumption(6W to 12W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA02GL as vertical solution to aim in the different versatile applications, such as automation, military, hospitality, transportation and so on.
| Specification | |
|---|---|
|
Model Name |
PCOM-BA02GL
|
|
Form Factor (mm) |
COM Express® Mini (84 x 55mm)
|
|
COM Type |
Type 10
|
|
CPU/ Clock/ Cache |
Intel® J6426* Intel® Celeron® N6211 Intel® x6211E Intel® x6413E Intel® x6425E Intel® x6425RE Up to 3.00 GHz turbo frequency 1.5MB cache* |
|
Chipset |
SoC |
|
Memory |
Dual Channel LPDDR4 3200 MT/s Support In Band ECC |
|
USB |
2x USB 3.2 Gan2, 8x USB 2.0 |
|
PCI Express |
4 x PCIe 3.0 x 1
|
|
Ethernet |
2.5 GbE with GPY215
(x6425RE SKU additional support TSN/TCC) |
|
Sound |
Intel® High Definition Audio
|
|
Graphic Controller |
Intel® HD Graphics
|
|
Carrier Board |
PCOM-CA00 (Type 10)
|
