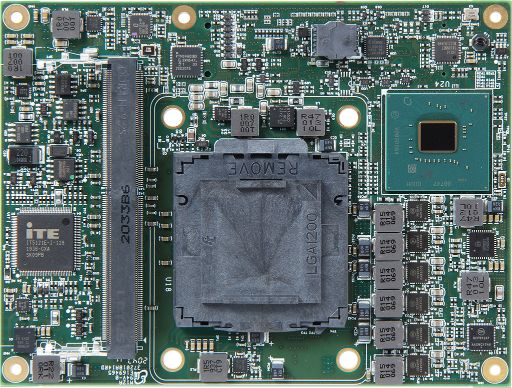

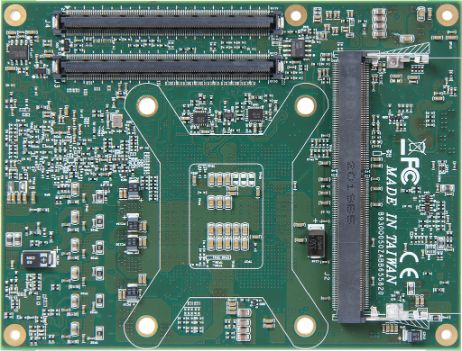

PCOM-B655VGL
Intel® Comet Lake-S Core™ Processor based on Type-6 COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2
Features :
- Intel® Core™ i9/i7/i5/i3 14nm process(Comet Lake-S)
- Support 2x DDR4-2933 Non-ECC/ECC SO-DIMMs, up to 2x 32GB
- Support USB2.0/3.2 Gen2, 4x SATAIII, 1x PCIe 3.0 x16, and 8x PCIe 3.0 x1
- Support LVDS, VGA, and 3x Display port/HDMI
Description
PCOM-B655VGL is Intel® Comet Lake-S platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions. PCOM-B655VGL supports both ECC and Non-ECC DDR4 by different PCH SKUs(Q470E/W480E), which can be adapted to different applications. This module provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.2 Gen2, and four SATA III.
| Specification | |
|---|---|
|
Model Name |
PCOM-B655VGL
|
|
Form Factor (mm) |
COM Express® Basic (125 x 95mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Intel® 10th Generation Core™ 35W Desktop processor* Intel® i9-10900TE Intel® i7-10700TE Intel® i5-10500TE Intel® i3-10100TE Up to 10 CPU cores* 6MB to 20MB cache* |
|
Chipset |
Q470E/W480E
|
|
Memory |
DDR4 2933MT/s* Non-ECC/ECC* Dual Channel* |
|
Display |
4x USB 3.2 Gen2 8x USB 2.0 |
|
PCI Express |
1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
|
Ethernet |
Intel® I219LM
|
|
Sound |
Intel® High Definition Audio
|
|
Graphic Controller |
Intel® UHD Graphics 630*
|
|
Carrier Board |
PCOM-C60B (Type 6)
|
