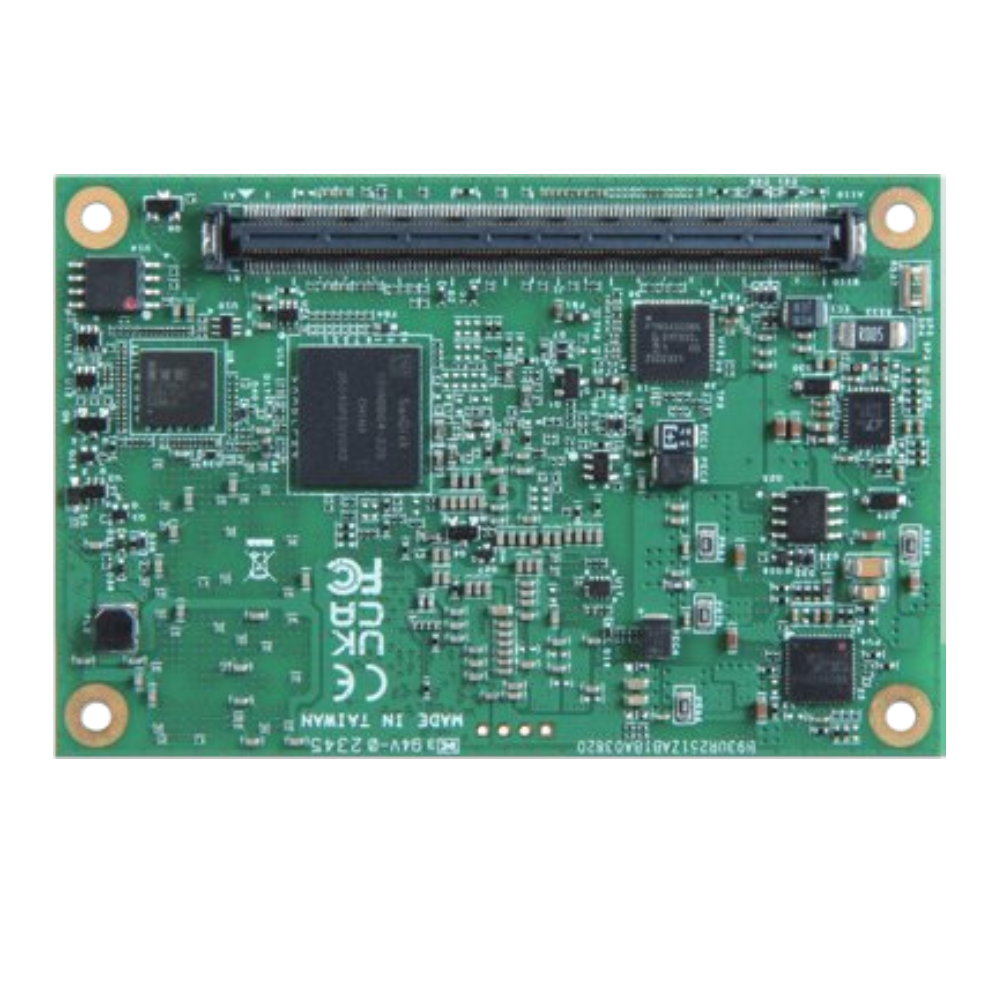

PCOM-BA03GL
Intel® Atom® x7000 series SoC based on Type 10 mini
COM-Express® module with LPDDR5 SDRAM
PCOM-BA03GL, a Type 10 Mini COM Express® (84 x 55 mm) module which based on Intel® Atom® x7000 Series Processors. In this architecture, it could provide LVDS, and high quantity HDMI, eDP, DP with 4K resolution. And it also provides turbo mode up to 3.6GHz, with extending 4x PCIe 3.0 x1, 2x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III devices. With ultra low power consumption(6W to 12W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA03GL as vertical solution to aim in the different versatile applications, such as automation, military, hospitality, transportation and so on.
Features :
- Intel® Atom® Processor x7000 Series
- On board LPDDR5 SDRAM up to 16GB
- On board eMMC 32GB
- Low Power Consumption (6W to 12W), 4K Display resolution
- Support wide temperature -40°C ~ 85°C (Selected SKU)
- Support Intel® TCC/TSN with 2.5GbE (Selected SKU)
Specification
| CPU and General | |||||
|---|---|---|---|---|---|
| Product | PCOM-BA03GL | ||||
| Form Factor | Type 10, Mini Form Factor COM-Express® ( 84 x 55 mm) | ||||
| Processor | Intel® Atom | ||||
| x7425E | x7211RE | x7213RE | x7433RE | x7835RE | |
| Core | 4 | 2 | 2 | 4 | 8 |
| Freq. | 1.5 GHz | 1.0 GHz | 2.0 GHz | 1.5 GHz | 1.3 GHz |
| Cache | 6MB | 6MB | 6MB | TBC | TBC |
| Turbo | 3.4 GHz | 3.2 GHz | 3.4 GHz | 3.4 GHz | 3.6 GHz |
| Cache | 6MB | 6MB | 6MB | TBC | TBC |
| Processor Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors | ||||
| Graphics Base Frequency | 800 MHz | 400 MHz | 600 MHz | 600 MHz | 800 MHz |
| Graphics Max Dynamic Frequency | 1.0 GHz | 800 MHz | 800 MHz | 800 MHz | 1.0 GHz |
| HW Encoding | TBC | ||||
| HW Decoding | TBC | ||||
| HW Acceleration | Gen 11 LP, DirectX 12, OpenGL4.6, Vulkan | ||||
| Processor TDP | 12W | 6W | 9W | 9W | 12W |
| BIOS | AMI BIOS | ||||
| In-Band ECC | Yes | Yes | Yes | Yes | Yes |
| Memory (on board LPDDR5) | 16GB 4800 MT/s | 16GB 4800 MT/s | 16GB 4800 MT/s | 16GB 4800 MT/s | 16GB 4800 MT/s |
| Storage (on board eMMC) | TBC | TBC | TBC | TBC | TBC |
| Temperature Range | 0 ~ 60 °C | -40 ~ 85 °C | -40 ~ 85 °C | -40 ~ 85 °C | -40 ~ 85 °C |
| I/O Interface | |||||
| SATA | 2 x SATA III | ||||
| USB | 2 x USB 3.2 Gen2 8 x USB 2.0 | ||||
| Ethernet | 2.5 GbE | ||||
| Serial I/O | GPIO | 8 GPIO | |||
| I2C | Baud Rate: 3.2MHz | ||||
| SMBus | Baud Rate: 1MHz | ||||
| UART | 2 Serial Port (Tx/Rx) | ||||
| PEG | N/A | ||||
| PCI Express | 4x PCIe 3.0 x1 | ||||
| Display | Default | Options | Resolution | ||
| DDI | DP | up to 4096x 2160 @ 60Hz | |||
| HDMI | up to 4096x 2160 @ 60Hz | ||||
| LVDS / eDP | LVDS(24bit, dual channel) | up to 2560x 1600 @ 60Hz | |||
| eDP | up to 4096x 2160 @ 60Hz | ||||
| Security | TPM 2.0, Intel®AES |
