The Mini-ITX form factor, defined by the chipset manufacturers in Taiwan, is a highly integrated all-in-one x86-based embedded computer board that measures a mere 170mm x 170mm. Its compact size and all-in-one design simplifies and accelerates the implementation of an embedded PC system. Portwell’s Mini-ITX computer boards and barebones systems offer a wide selection of microprocessors, power efficient technologies, peripheral I/Os, expansions and mechanical form factors. Whether you’re working on medical instruments, thin network devices or digital media systems, Portwell’s Mini-ITX boards and barebone systems are the perfect solutions to help you to deliver your products on time and stay one step ahead of the competition. With 20+ years of experience in the design and manufacture of single board computers, Portwell provides not only one-stop shopping for off-the shelf products, but also custom-built solutions tailor-made to suit your needs.

Form Factor L (inch) W (inch) L (mm) W (mm) Expansion Board Size (inch2)
PC/104
3.55
3.78
90.17
95.89
Module
13.42
PC/104+
3.55
3.78
90.17
95.89
Module
13.42
STX
3.78
3.55
95.89
90.17
Carrier Board
13.42
ETX
4.49
3.74
114.00
95.00
Carrier Board
16.79
COM-Express
4.92
3.74
125.00
95.00
Carrier Board
18.40
NANO-ITX
4.72
4.72
120.00
120.00
On Board
22.28
3.5'' Embedded
5.75
4.02
146.00
102.00
Cables
23.12
3.5'' ECX
5.75
4.13
146.00
105.00
Module
23.75
EPIC
6.50
4.53
165.00
115.00
Module
29.45
PICMG 1.3 Half-size
6.60
4.98
167.64
126.39
Backplane
32.87
PCI Half-size
7.28
4.80
185.00
122.00
Backplane
34.94
ISA Half-size
7.28
4.80
185.00
122.00
Backplane
34.94
PICMG 1.2 Half-size
7.52
4.80
191.03
121.92
Backplane
36.10
Mini-ITX 6.69
6.69
6.69
170.00
170.00
On Board
44.76
5.25''Embedded
5.75
8.00
146.05
203.20
Cables
46.00
EBX
5.75
8.00
146.05
203.20
Module
46.00
PICMG 1.0 Full-size
13.33
4.80
338.58
121.92
Backplane
63.98
PICMG 1.2 Full-size
13.33
4.80
338.58
121.92
Backplane
63.98
PICMG 1.3 Full-size
13.33
4.98
338.58
126.39
Backplane
66.38
Flex ATX
9.00
7.50
228.60
190.50
On Board
67.50
Micro-ATX
9.00
9.60
243.84
243.84
On Board
92.16
Embedded ATX
9.00
9.60
243.84
243.84
On Board
92.16
ATX
12.00
9.60
304.80
243.84
On Board
115.20

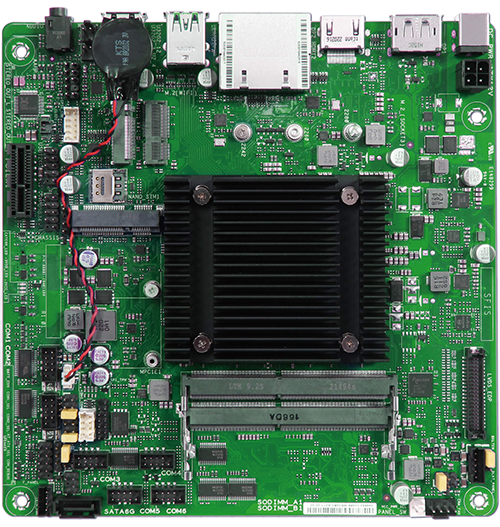

WADE-8173-J6412

Intel® Elkhart Lake Celeron J6412 Processor, Mini-ITX Board with DDR4 Max. 32GB HDMI, DP

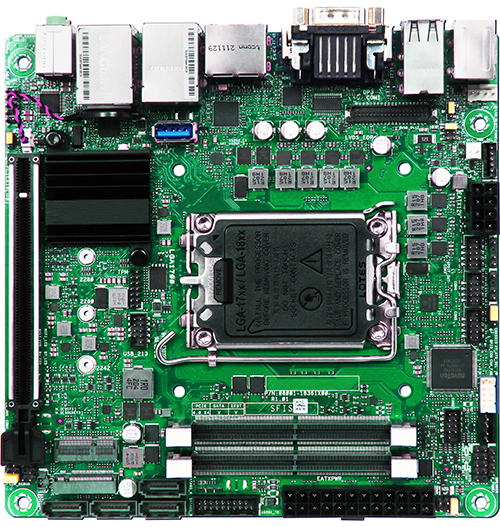

WADE-8213-Q670E

Intel® 12th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM Max 64GB, eDP/LVDS

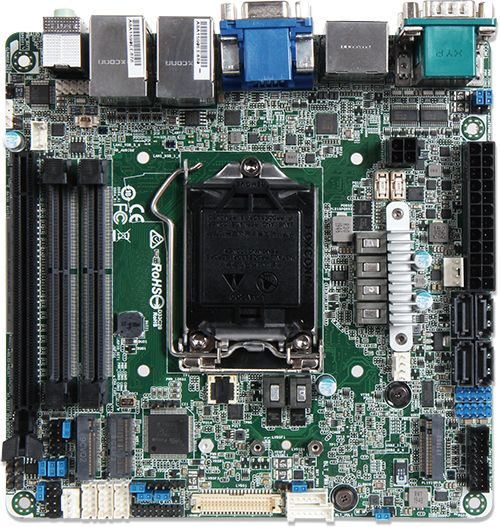

WADE-8212-Q470E

Intel® 10th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM Max 64GB, VGA, Dual LAN

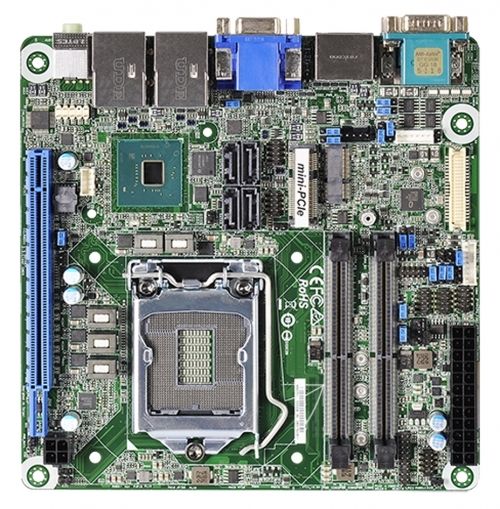

WADE-8211-Q370

Intel® 8th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM Max 64GB, VGA, Dual LAN

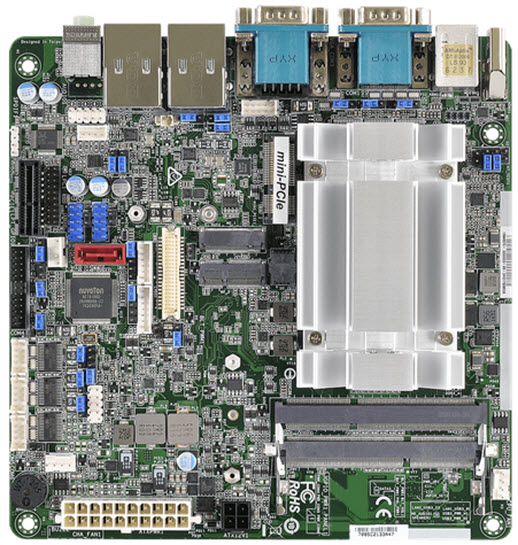

WADE-8172

Intel® Celeron® Processor N3350 Based Mini-ITX Board with VGA, HDMI, LVDS, Dual GbE, USB 3.0

WADE-8171

Intel® Celeron® Processor N3150/N3160 Based Mini-ITX Board with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, mini-PCIe, and mSATA

WADE-8078

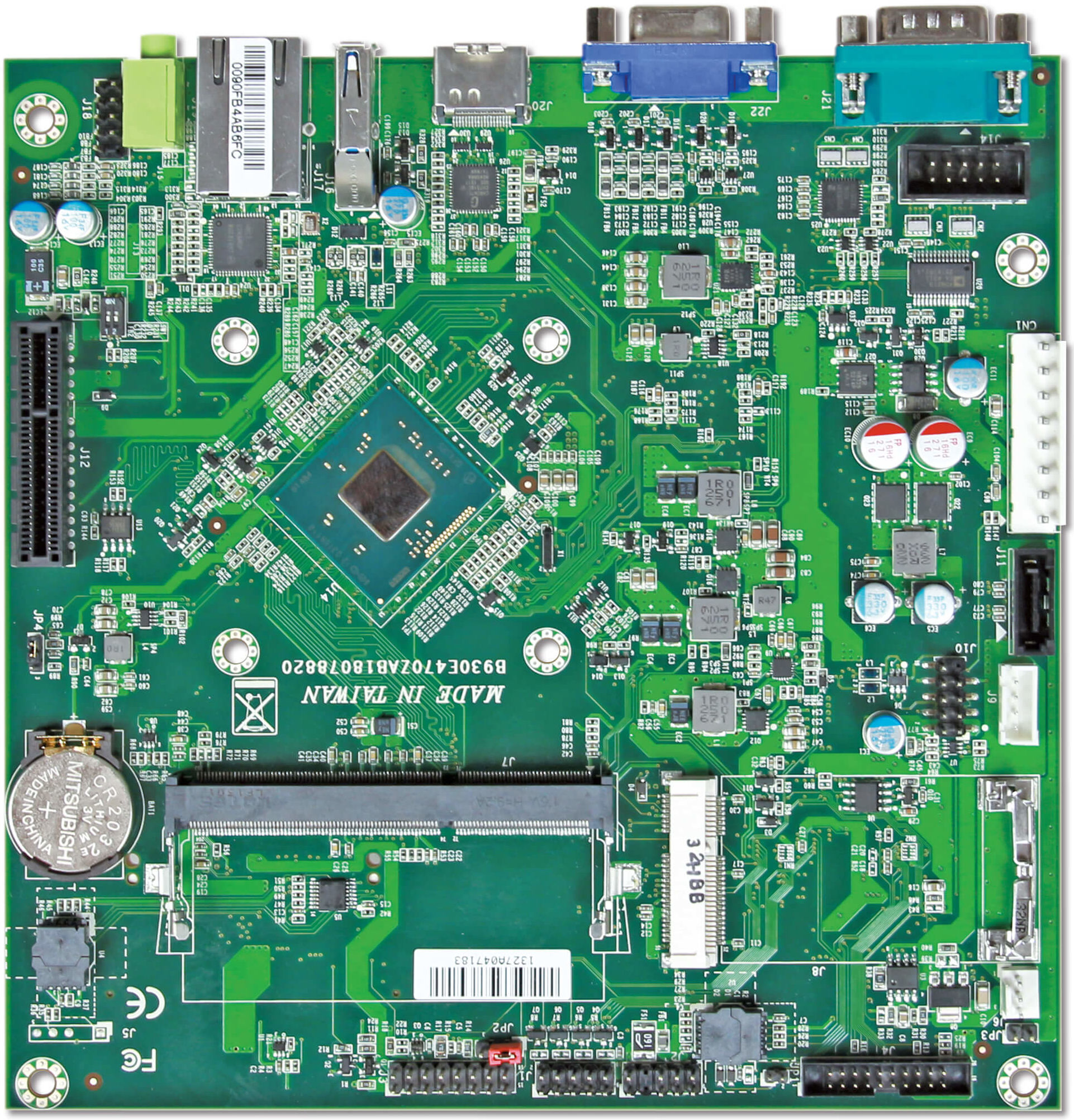

Intel® Atom® E3800 SoC based Mini-ITX. Board with VGA, HDMI, Gigabit Ethernet, Audio, USB 3.0

WADE-8079

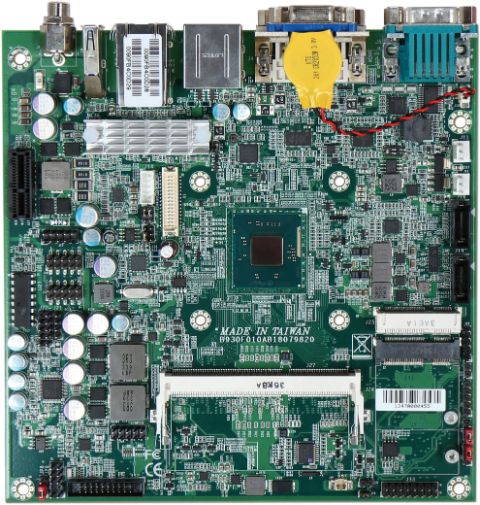

Intel® Atom® E3800 SoC based Mini-ITX Board with VGA, DP, DVI, LVDS, Gigabit Etherne

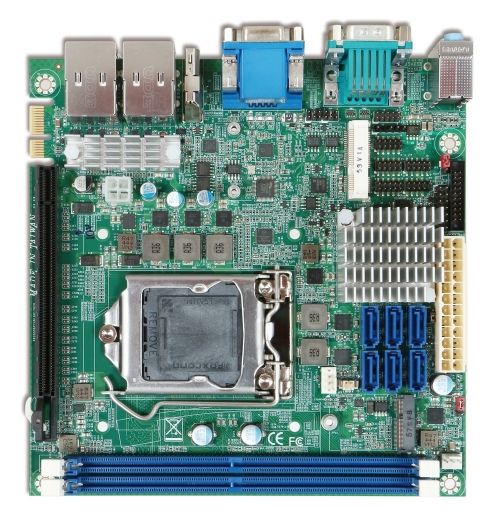

WADE-8017

Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Skylake)

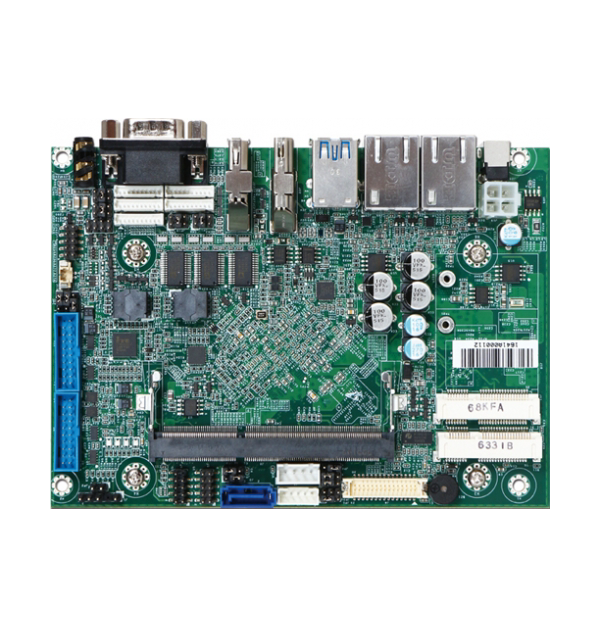

PEB-2773

Apollo Lake Atom® Processor, DDR3L SDRAM up to 8GB, Dual LAN, 2-mini-PCIe sockets, 6-COM ports and 12~24V DC input

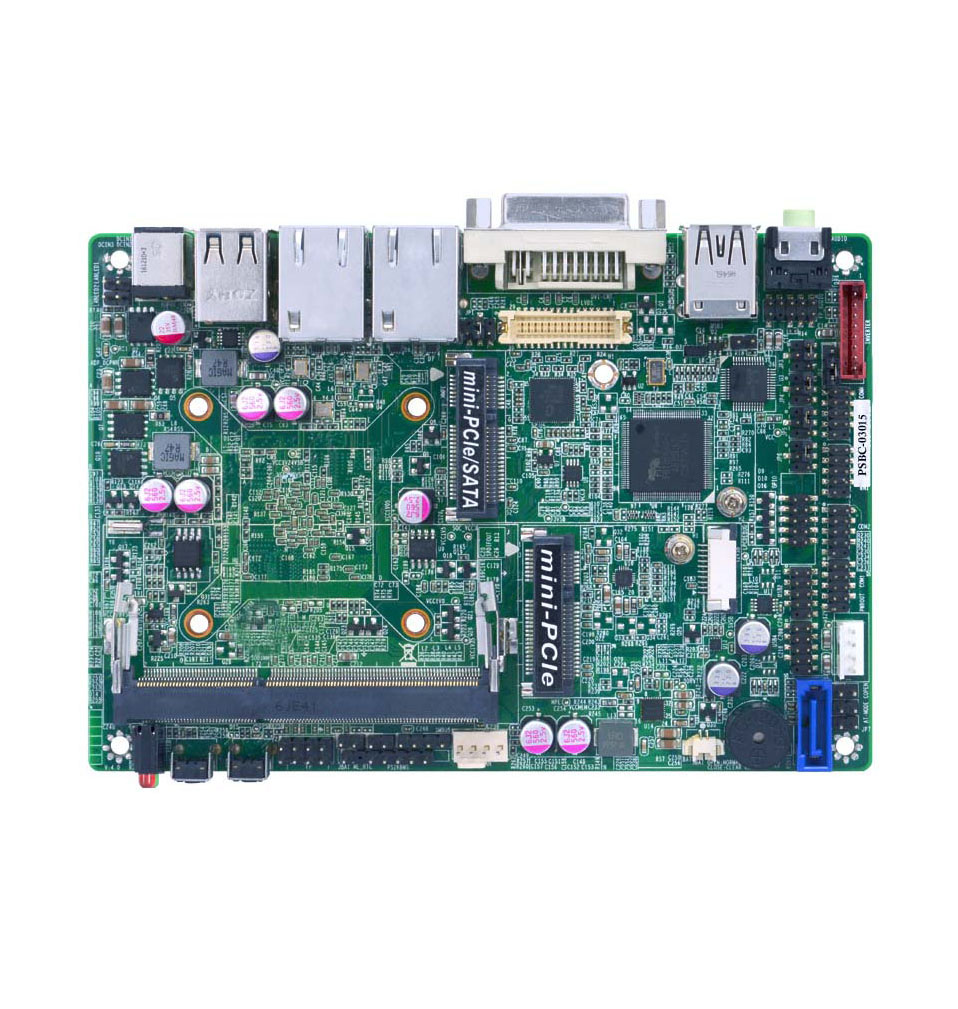

PSBC-03015

Intel® Bay trial SoC processor, DDR3L up to 4GB / 8GB, Dual LAN, DVI-I output, SATA 2.0, 8-USB, 4-Serial, 1-Audio 9~24V DC-In

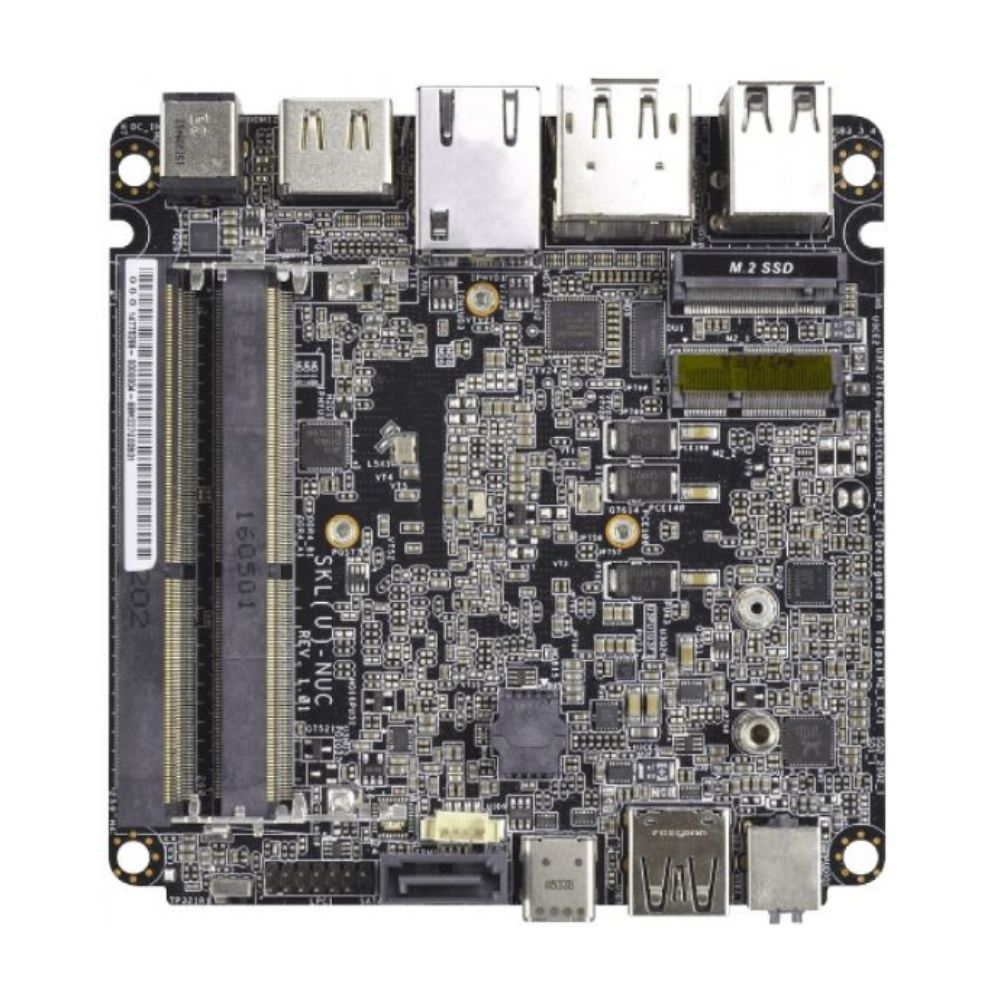

WUX-7300U

Intel 7th Kaby Lake-U Core-i5 processor based 4x4-inch mini PC board (Intel NUC board form factor

WUX-7100U

Intel 7th Kaby Lake-U Core-i processor based 4x4-inch mini PC board (Intel? NUC board form factor

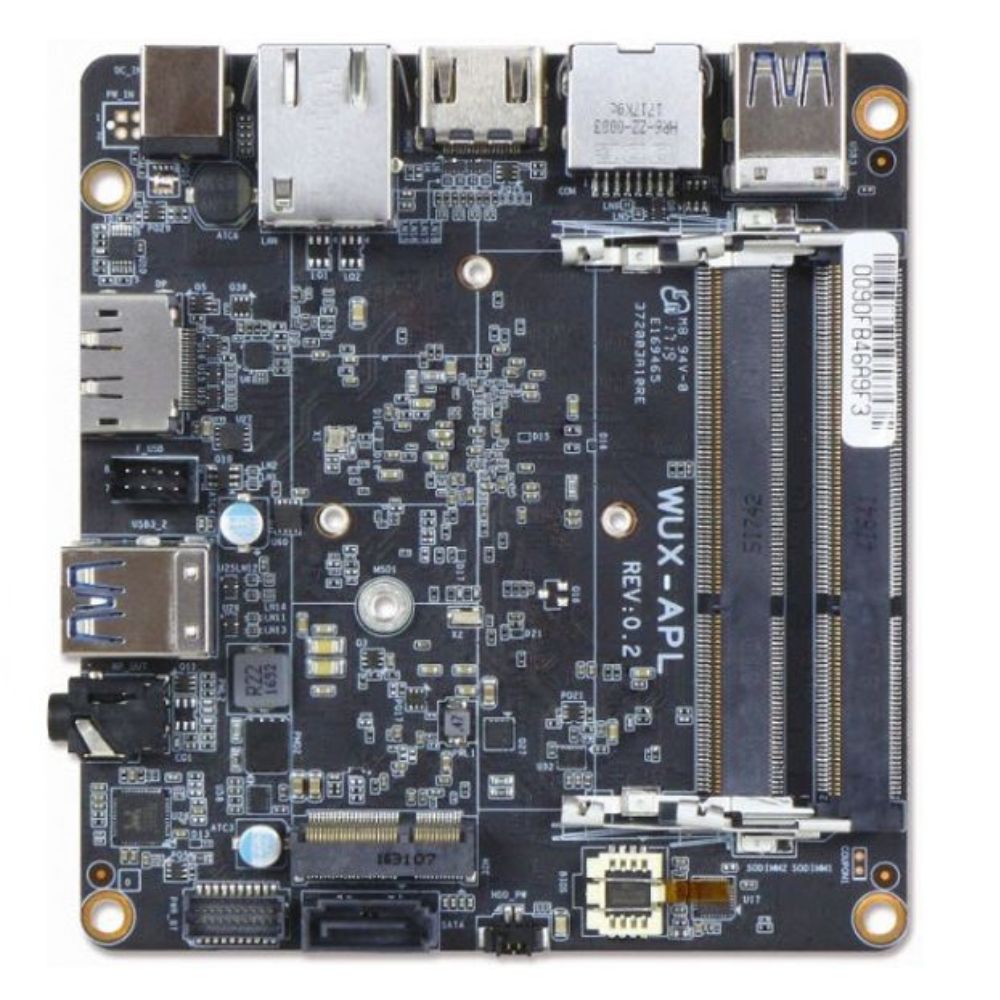

WUX-3350

4x4-inch Mini PC Board based on Intel Pentium and Celeron Processors (Apollo Lake)

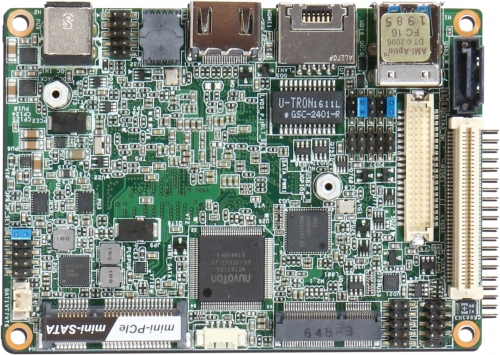

PICO-6260

Intel® Apollo Lake Atom® Processor based PICO-ITX embedded Board with DDR3L SDRAM, Gigabit Ethernet, HDMI, LVDS, mini-PCIe socket and 12V

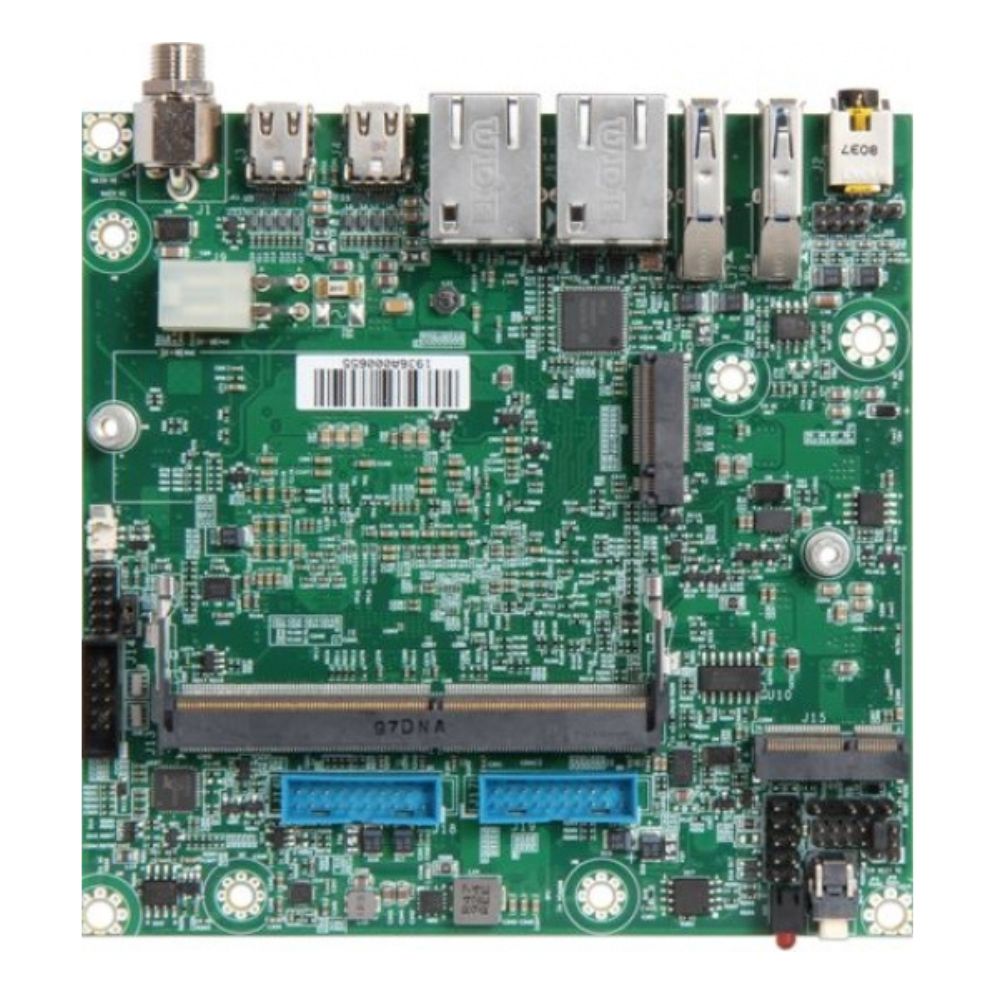

NANO-6051

Intel® 8th Generation Core™ i5/i3 Processors based on NANO-ITX Board with mini DP, GbE LAN, USB 3.2, M.2 and Combo Audio jack

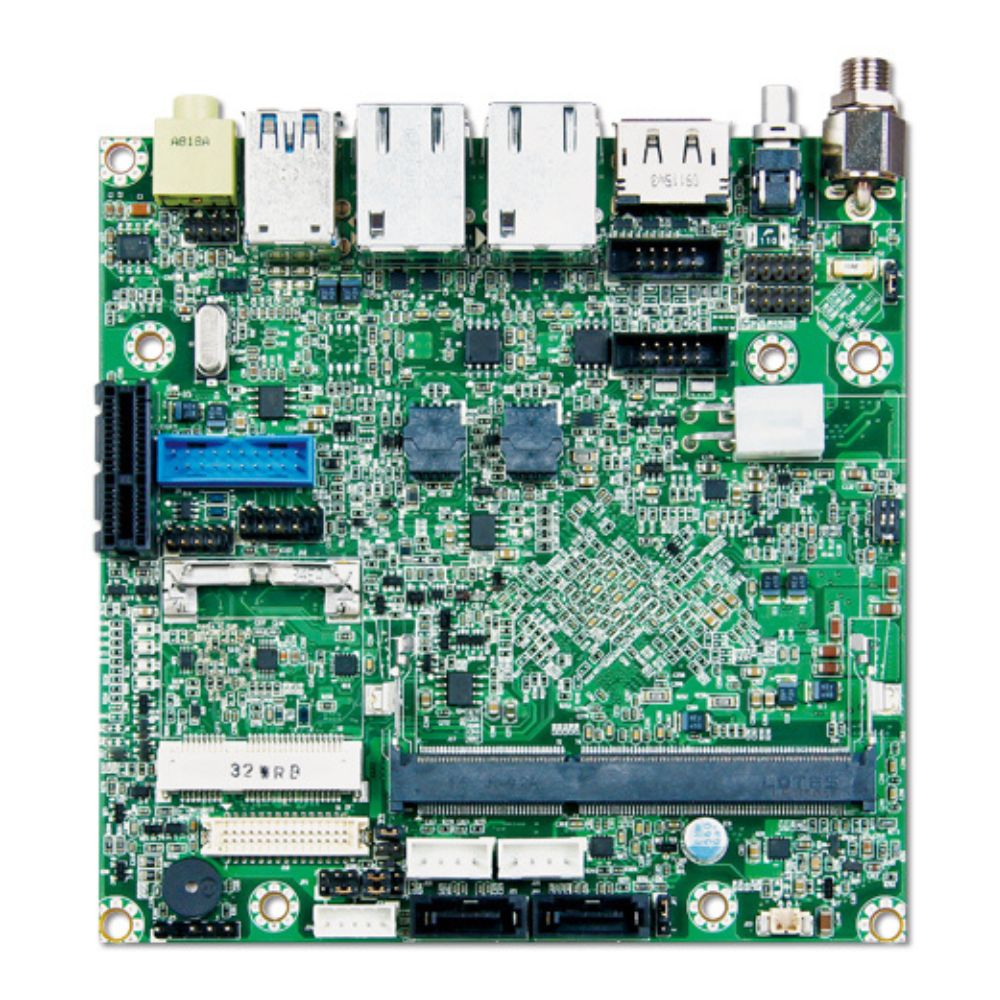

NANO-6060

Intel® Atom® E3800 family SoC based NANO-ITX. Board with Dual displays, Gigabit Ethernet, Audio, USB 3.0, micro SD and SATA

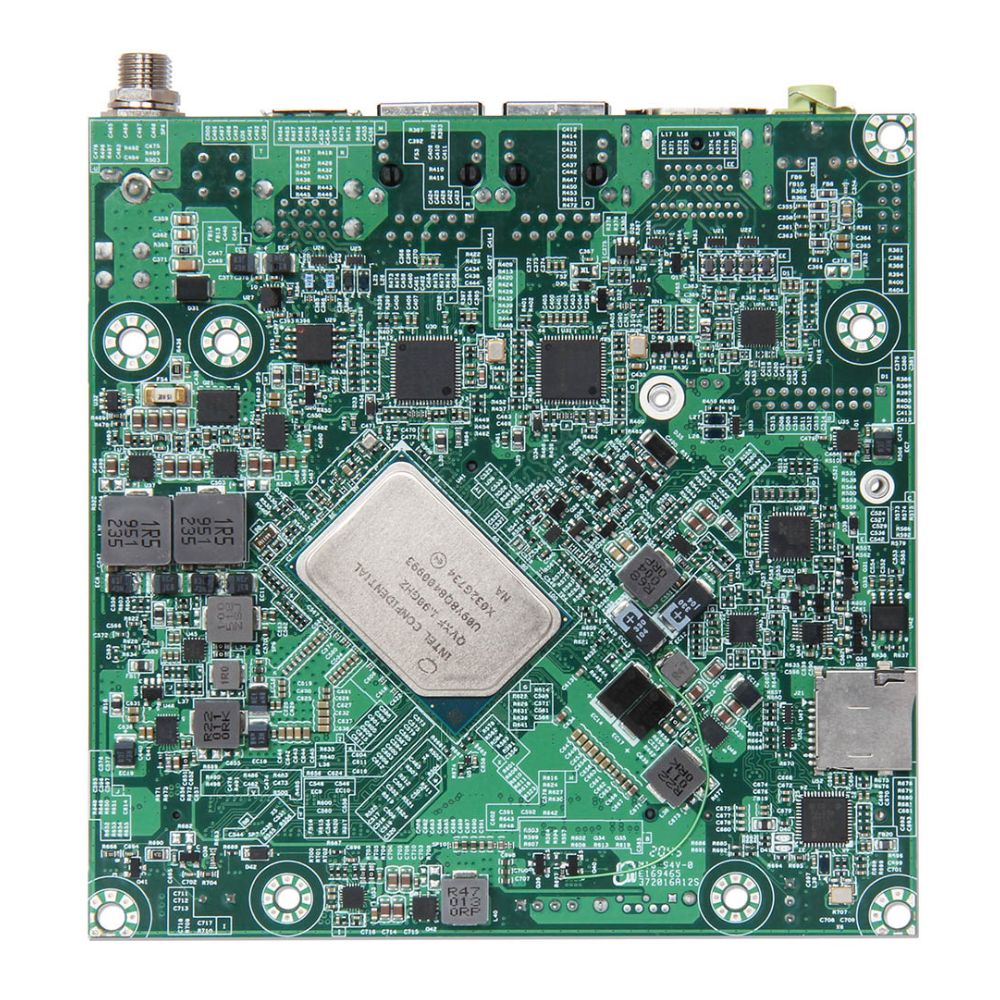

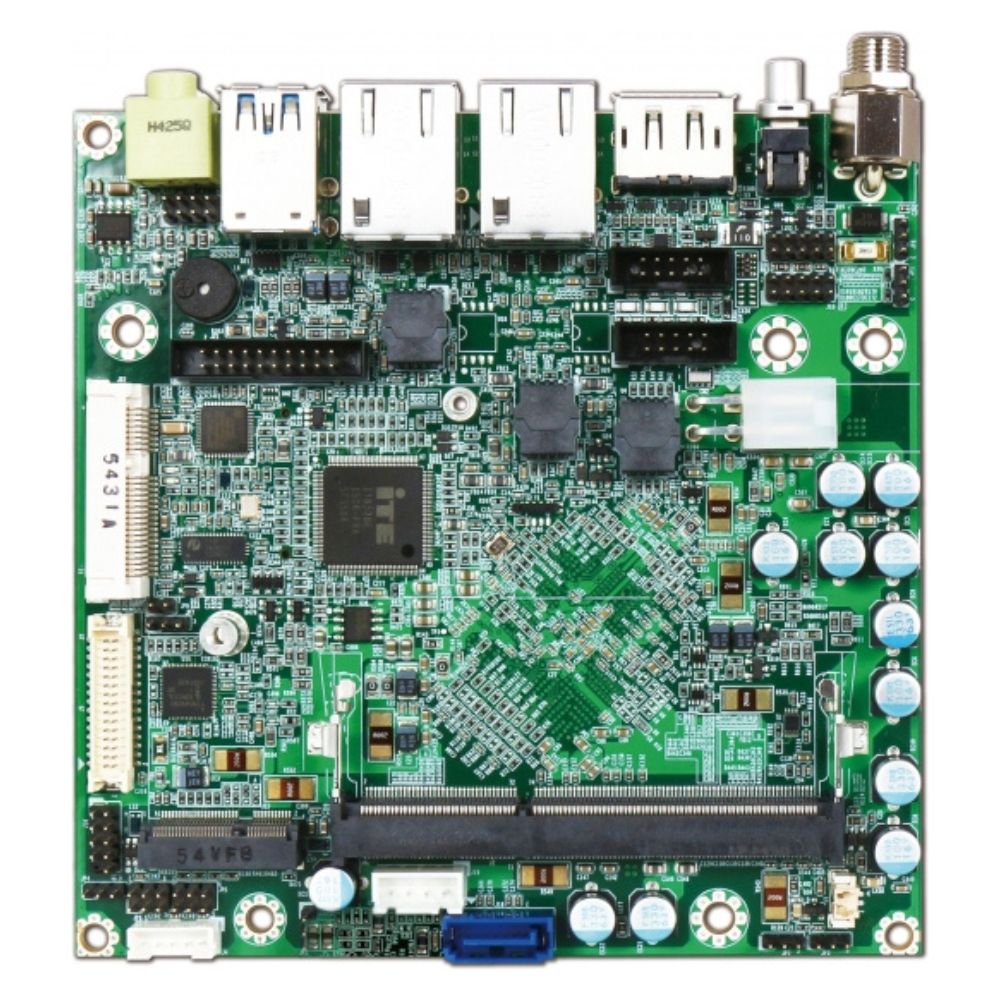

NANO-6061

Intel® Braswell Pentium®/Celeron® Dual/Quad Core N3000 series SoC based on NANO-ITX. Board with Triple Displays, GbE LAN, USB 3.0, M.2, SD,SATA III, and mSATA

NANO-6062

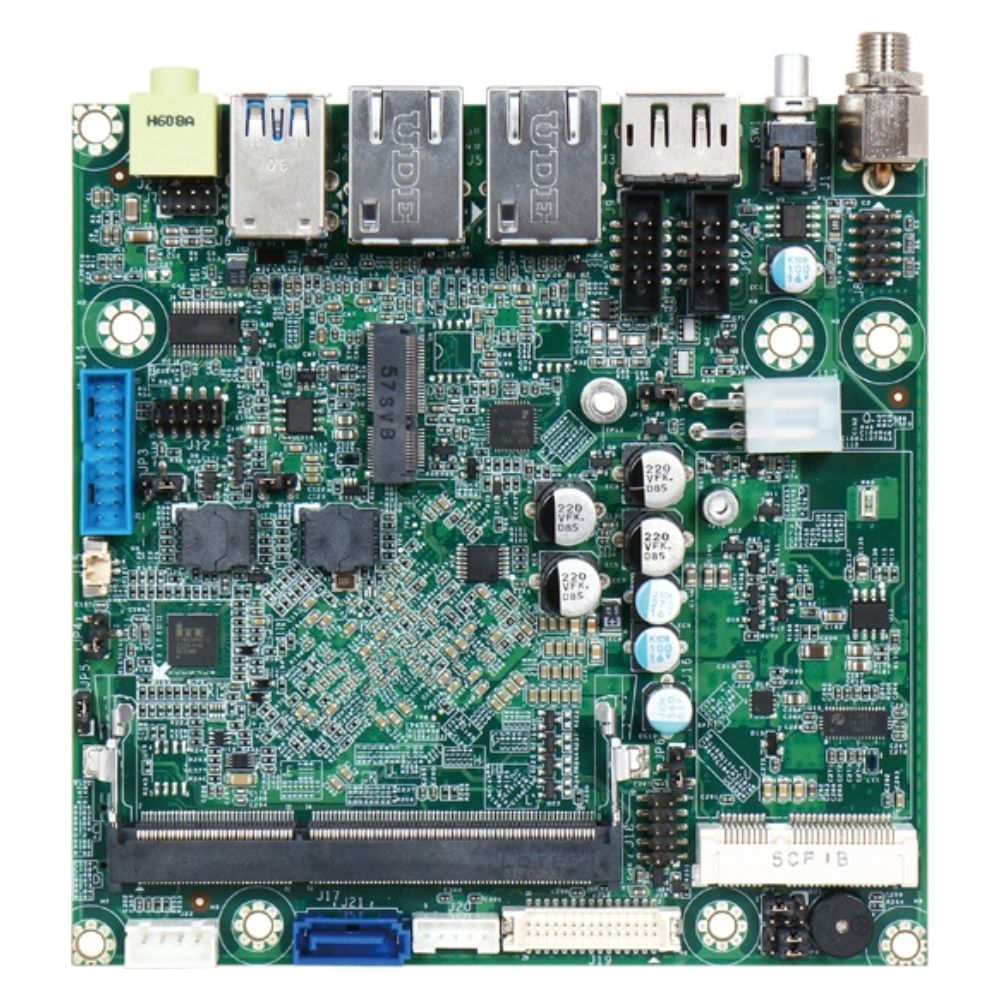

Intel® Apollo Lake Atom® Dual/Quad Core E3900 series SoC based on NANO-ITX. Board with Triple Displays, GbE LAN, USB 3.0, M.2, SATA III, Mini- PCIe, and mSATA

NANO-6063

Intel Atom® x6000E Series SoC based NANO-ITX Board with Triple Display, GbE LAN, USB 3.2 Gen 2, M.2, SATA III, Mini-PCIe, and mSATA
