PCOM-B885
PCOM-B885

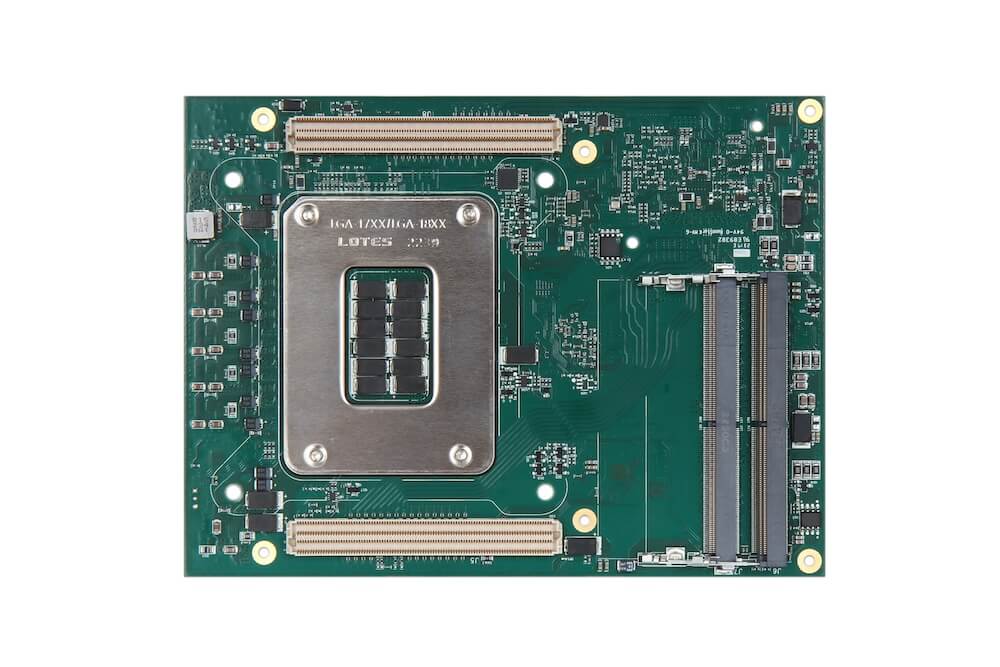

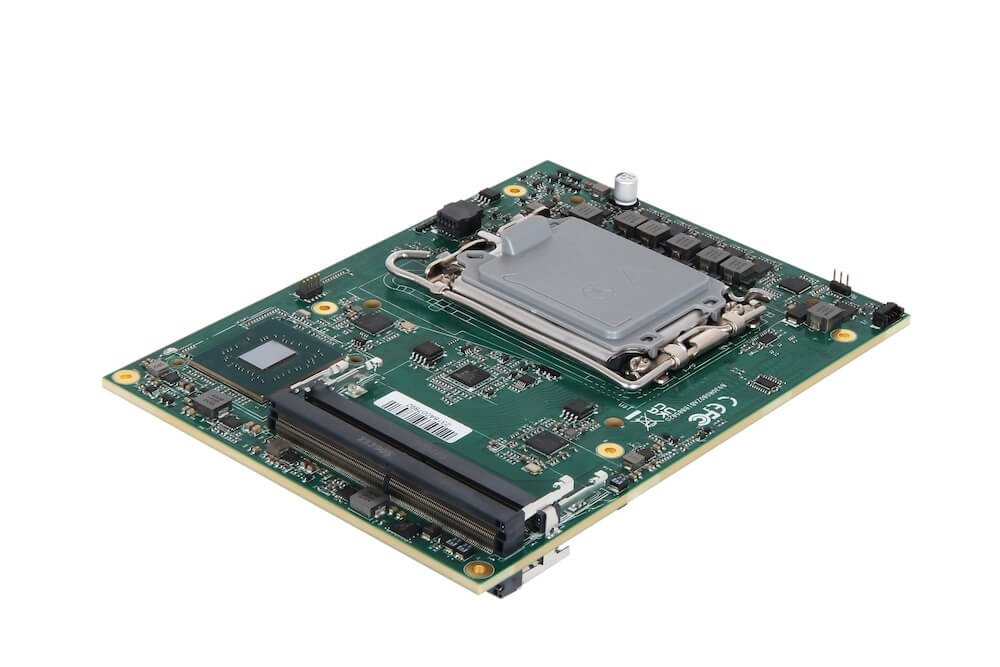

COM-HPC® Client module Size C module with Intel® 13th/14th Gen socket type processor (Code Name: Raptor Lake-S Refresh) DDR5 SO-DIMM, DDI, PCIe Gen 5, USB 3.2 Gen2, 2.5G Ethernet, discrete TPM 2.0, eDP, SATA
Features :
- 13th/14th Gen Intel® Core™, Pentium®, Celeron® series socket type processors in Intel® 7 lithography
- Up to 8x performance core + 16x efficient core, and up to 32x graphic execution units
- 4x DDR5 ECC/non-ECC SO-DIMM up to 192GB capacities
- 1x PCIe Gen5 x16, 2x Gen4 x4, 3x PCIe Gen3 x4, 6x PCIe Gen3 x1, 4x USB3.2 Gen2 x2, 2x SATA, 3x DDI, eDP
Description
PCOM-B885 is COM-HPC module based on Intel® 13th/14th Core™ platform. It is compatible with COM-HPC 1.15 standard. The platform adopts Intel 7 lithography and VNNI instruction set, offers advance computing power with 35~65W thermal and embedded use condition for wide range application. PCOM-B885 supports PCIe Gen5 up to 16x lanes, and 4x ECC/Non-ECC DDR5 SO-DIMM(memory capacity up to 192GB), which is suit for mission critical use conditions and AI edge computing. This module also provides 2x PCIe Gen4 x4 and 18x PCIe Gen3 lanes, 4x USB 3.2 Gen2 x2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of industrial applications.
Specification
| CPU and General | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product | PCOM-B885 | |||||||||
| Form Factor | COM HPC Client, Size C (160 x 120mm) | |||||||||
| CPU SKU | TDP | Core (P+E) | Threads | Cache | Base Freq | Max Turbo Freq | Max Memory MT/s | ECC | vPro | PEG Bifurcation |
| i9-14900 | 65 W | 8 + 16 | 32 | 36 MB | 2.0 Ghz | 5.8 Ghz | ||||
| i9-14900T | 35 W | 8 + 16 | 32 | 36 MB | 1.1 Ghz | 5.5 Ghz | ||||
| i7-14700 | 65 W | 8 + 12 | 28 | 33 MB | 2.1 Ghz | 5.4 Ghz | R680E | Q670E R680E | ||
| i7-14700T | 35 W | 8 + 12 | 28 | 33 MB | 1.3 Ghz | 5.2 Ghz | ||||
| i5-14500 | 65 W | 6 + 8 | 20 | 24 MB | 2.6 Ghz | 5.0 Ghz | ||||
| i5-14500T | 35 W | 6 + 8 | 20 | 24 MB | 1.7 Ghz | 4.8 Ghz | ||||
| i5-14400 | 65 W | 6 + 4 | 16 | 20 MB | 2.5 Ghz | 4.7 Ghz | 3600 (2DPC) | Q670E R680E |
||
| i5-14400T | 35 W | 6 + 4 | 16 | 20 MB | 1.5 Ghz | 4.5 Ghz | ||||
| i3-14100 | 60 W | 4 + 0 | 8 | 12 MB | 3.5 Ghz | 4.7 Ghz | N/A | |||
| i3-14100T | 35 W | 4 + 0 | 8 | 12 MB | 2.7 Ghz | 4.4 Ghz | N/A | |||
| Processor 300 | 46 W | 2 + 0 | 4 | 6 MB | 3.9 Ghz | 3.9 Ghz | R680E | |||
| Processor 300T | 35 W | 2 + 0 | 4 | 6 MB | 3.4 Ghz | 3.4 Ghz | ||||
| I/O Interface | |||
|---|---|---|---|
| USB | 4x USB 3.2 Gen2 x2 8x USB 2.0 | ||
| Ethernet | 2x Intel® I226 series | ||
| Serial I/O | GPIO | 12 bit GPIO (default 6 input/6 output) | |
| I2C | Baud Rate : 400KHz | ||
| SMBus | Baud Rate : 100KHz | ||
| UART | TX/RX signal only | ||
| PCIe lane | 1x PCIe Gen5 x16 (bifurcation 2 x8) 2x PCIe Gen4 x4 3x PCIe Gen3 x4 + 6x PCIe Gen3 x1 | ||
| Display | Module display interface | Carrier output options | Resolution |
| eDP | eDP eDP up to HBR3 | 3840 x 2160@120Hz | |
| DDI 0/1/2 | DP up to HBR3 | 3840 x 2160@120Hz | |
| DP up to HBR3 | 3840 x 2160@120Hz | ||
| DP up to HBR3 | 3840 x 2160@120Hz | ||
| Security | TPM 2.0 | ||
| MECHANICAL & ENVIRONMENT | |
|---|---|
| Dimension | 160 x 120mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 60°C |
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS | Windows 10/11 Ubuntu |

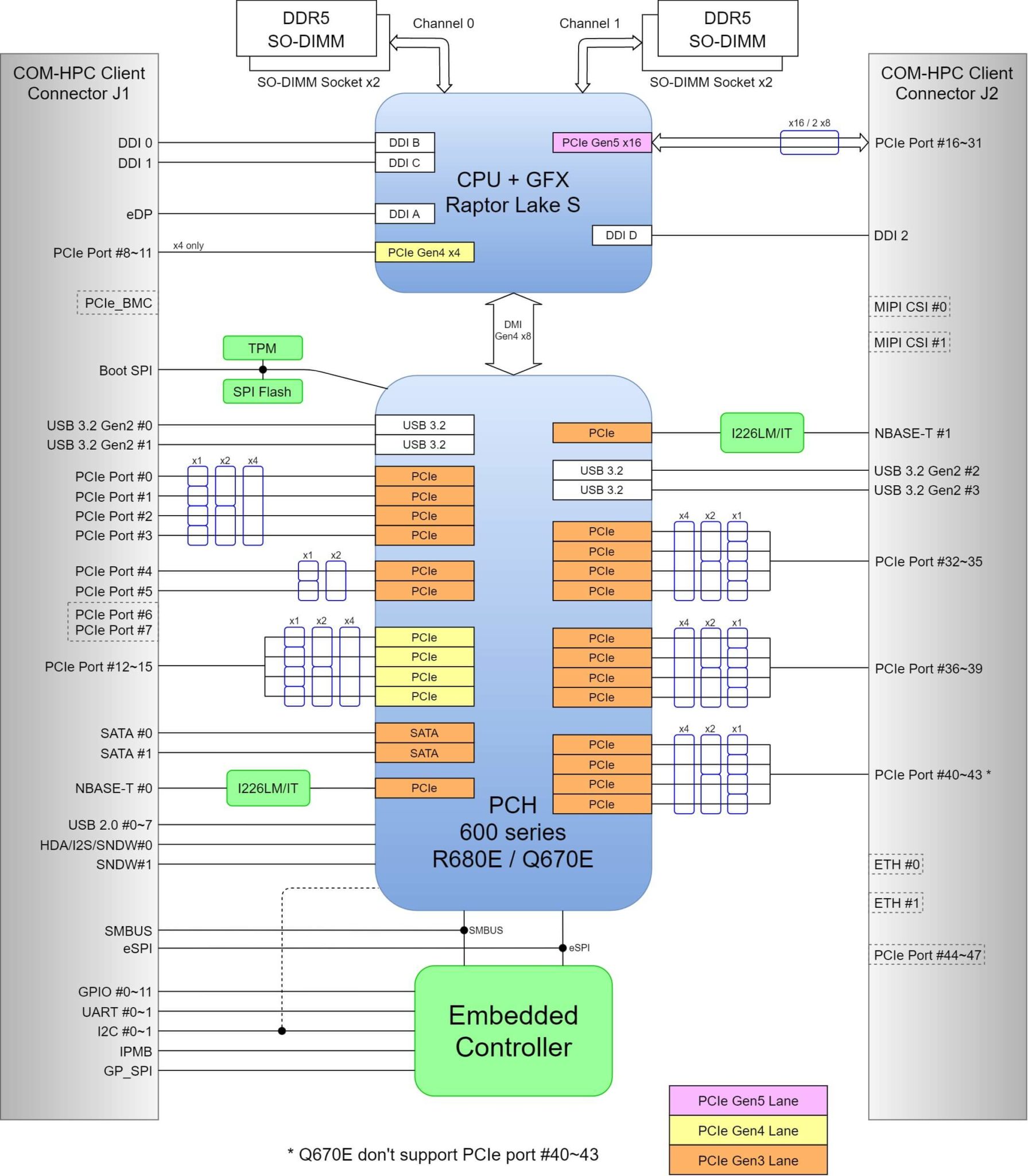

Block Diagram
Ordering Guide
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B885-R680E | TBD | In Development |
| PCOM-B885-Q670E | TBD | In Development |
Accessory
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler | TBD | In Development |
| Heatsink | TBD | In Development |
| Heatspreader | TBD | In Development |
| PCOM-C880 (ATX carrier board) | AB1-3L34Z | In Development |
Support (Documents & Downloads)
Catalog_PCOM-B885 182.57 KB
