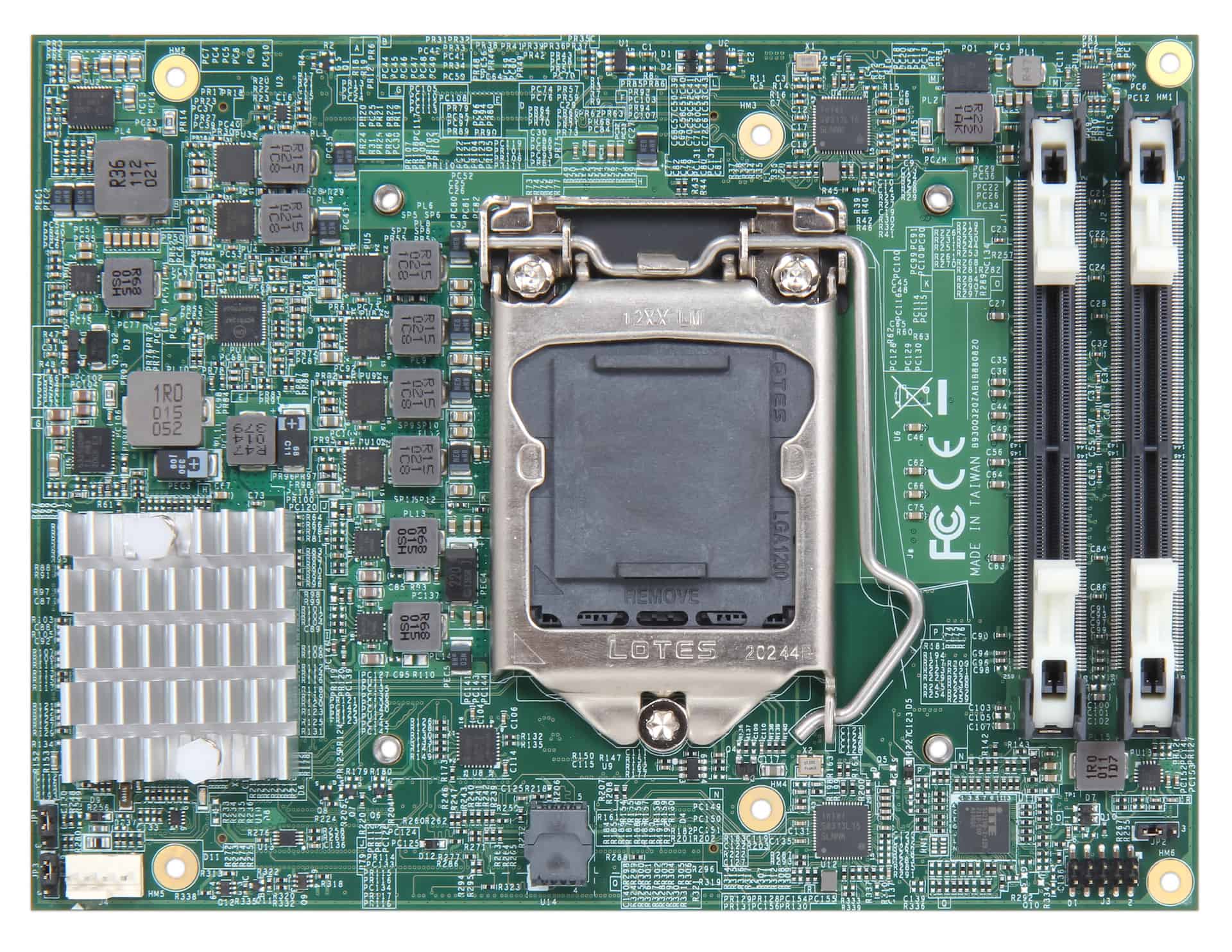

PCOM-B880VG2
PCOM-B880VG2
Intel® Comet Lake-S Core™ Processor based on COM-HPC® Client module Size C with dual DDR4 SO-DIMM, DDI, eDP, Dual 2.5 Gigabit Ethernet, SATA III, and USB 3.2
Features :
- Intel® Xeon, Core™i9/i7/i5/i3, Pentium and Celeron 14nm process(Comet Lake-S)
- Support USB2.0/3.2 Gen1, 2x SATA III 1x PCIe 3.0 x16, and 20x PCIe 3.0 x1
- Support Dual 2.5G Ethernet with TSN Capability
- Support 2x Non-ECC/ECC SO-DIMMs, up to 2933, and 2x 32GB
Description
PCOM-B880VG2 is Intel® Comet Lake-S platform COM-HPC® Client, Size C module. The COM-HPC® Client Formfactor support more I/O interface and power for desktop level CPU for wider computing demand applications. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions. PCOM-B880VG2 supports both ECC and Non-ECC DDR4 by different PCH SKUs (Q470E/W480E), which can be adapted to different applications. This module provides one PCIex16, four USB 3.1 Gen2, two SATA III, PCIe storage and up to 20 PCIe x1 lanes.
| Specification | |
|---|---|
|
Model Name |
PCOM-B880VG2​ |
|
Form Factor (mm) |
COM HPC Client, Size C |
|
OS |
Windows 10,
Ubuntu, CentOS |
|
Dimension |
160mm x 120mm |
|
PCI Express Gen3 |
8x Gen3 x1 (Group 0 Low),
2x Gen3 x4 (Group 0 High),
1x Gen3 x4 (Group 2, #32 ~ #35) |
|
Ethernet |
Intel® I225LM
|
|
Memory |
Support 2x Non-ECC/ECC SO-DIMMs, up to 2933, and 2x 32GB |
|
USB |
4x USB 3.2 Gen2,
8x USB 2.0 |
|
Display |
N/A |
|
Security |
TPM 2.0 |
