PCOM-C615

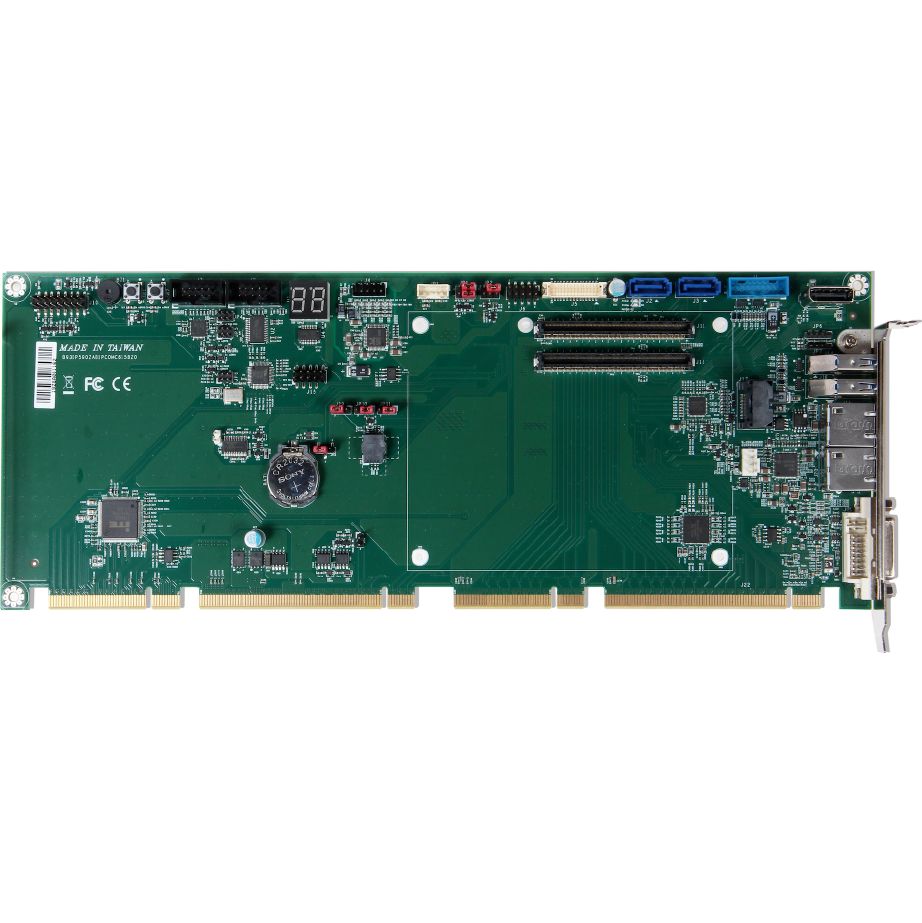

PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express® Revision 2.0 Type VI Module. PCOM-C615 follows standard PICMG 1.3 golden finger pin definition and let customer save system total cost for easily upgrading modules
Features :
- Supports four SATA III ports
- Supports multiple display by LVDS, HDMI, DP on board and DVI-I(DVI-D+VGA) on bracket(Choose either HDMI or VGA by BIOS)
- Rich I/O interfaces such as serial ports, USB, PCI
Description
Portwell PCOM-C615 is designed with PICMG 1.3 form factor with COM Express Type VI row connectors, suitable for evaluation testing of Portwell’s Type VI COM Express modules on PCIe, PEG, VGA/HDMI, DVI, USB and SATA interface.
| Specification | |
|---|---|
|
Model Name |
PCOM-C615
|
|
Form Factor (mm) |
PICMG 1.3 (338.5 x 126.39mm)
|
|
COM Type |
Depends on Module
|
|
CPU/ Clock/ Cache |
Depends on Module
|
|
PCI Express |
4x PCIe x1 or 1x PCIe x4 by different bios support (PCIe Gen3)
|
|
Ethernet |
2x GbE
|
|
Storage |
N/A
|
|
Graphic Controller |
N/A
|
|
Carrier Board |
N/A
|
