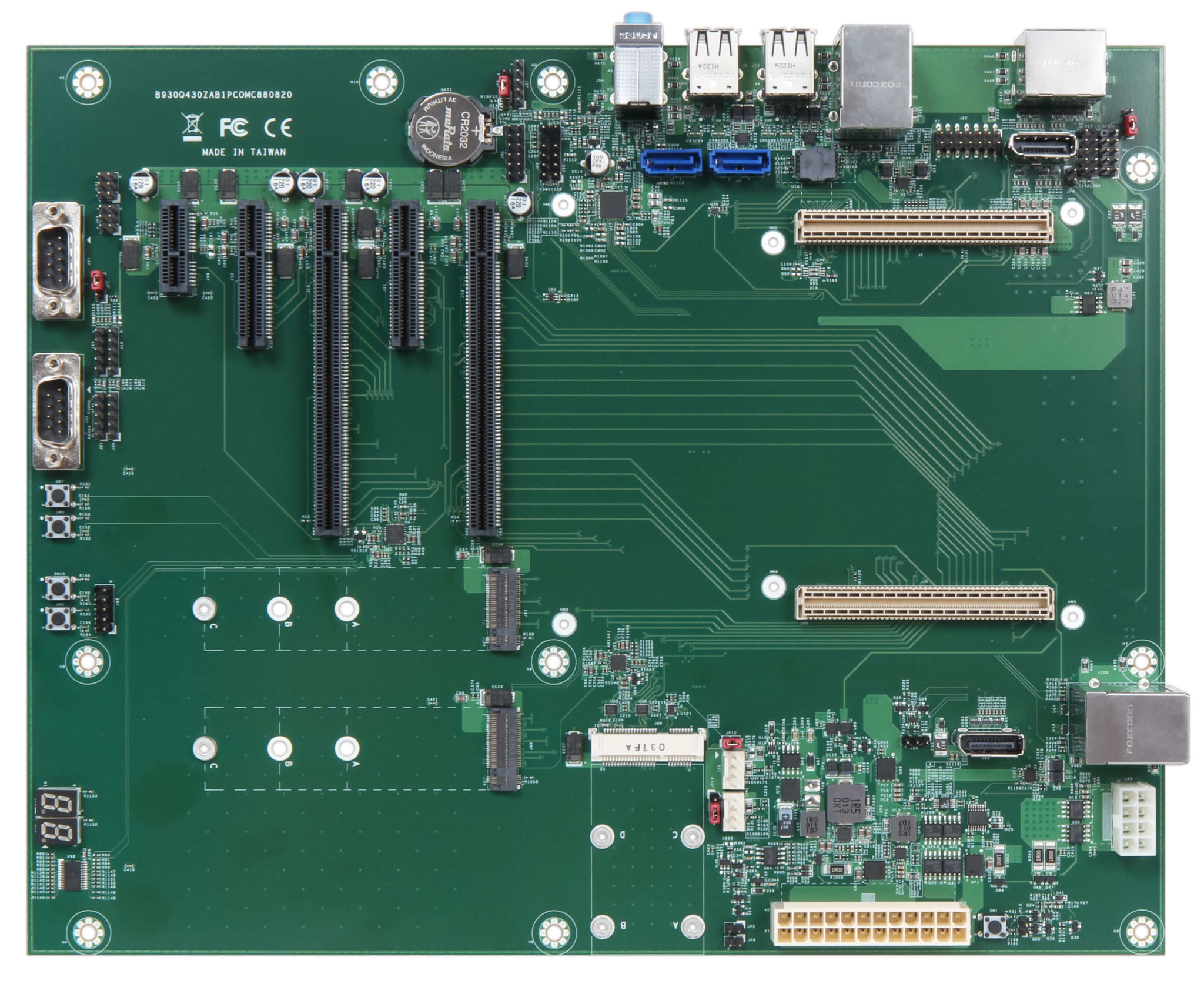

PCOM-C880
PCOM-C880
ATX size form factor evaluation carrier board for COM-HPC client module
Features :
- Standard ATX PSU input
- Support wide temperature -40°C to 85°C
- Supports USB 3.2 Gen2, SATA, PCIe Gen4, 2.5G RJ45, Displayport
- ATX size form factor provides extra expansions slot, and follows the standard space mounting
- COM-HPC carrier board support COM-HPC client size A/B/C modules
Description
Portwell PCOM-C880 support the COM-HPC client type module with ATX size form factor. This carrier board passed the most of Portwell evaluation testing. It supports DP display, and multiple I/O interfaces, including PCIe, RJ45, USB 3.2, SATA, UART. For more product features, please contact your distributor or refer to the datasheet/user manual.
| Specification | |
|---|---|
|
Model Name |
COM-C880 |
|
Form Factor (mm) |
ATX size (305mm x 244mm) |
|
Supported Module |
COM-HPC client , size A / B / C |
|
Dimension |
ATX 305mm x 244mm |
|
PCI Express |
2x PCIe 4.0 x16
2x PCIe 4.0 x4
2x M.2 M key
1x PCIe x1 (Route to BMC lane) |
|
Ethernet |
2x 2.5Gbe RJ45
|
|
General Function |
RTC battery
Postcode display
BIOS SPI Socket Power BTN / Reset BTN
Lid BTN / Sleep BTN
Rapid Shutdown BTN |
|
USB |
4x USB 3.2 Gen2 port + 4x USB 2.0 port |
|
Display |
eDP
DDI |
|
Storage Temperature |
-40°C to 85°C |
