PCOM-B705GT
PCOM-B705GT
COM Express Type 7 Basic Module based on Intel® Xeon® D-1700 Processors with Three Channels and Four SO-DIMM slots
Features :
- Intel New Gen Core Ultra Series Processor (15w-28w)
- Up to 6x performance core + 8x efficient core + 2x low power efficient core, and up to 128x graphic execution units
- 2x DDR5-5600 non-ECC SO-DIMMs up to 96GB, 1x Gen4 x8(H series), 2x Gen4 x4, and 8x PCIe Gen4 x1
- 4x USB3.2 Gen2, 2x SATA, 3x DDI, VGA, eDP/LVDS
- Options for onboard PCIe NVMe SSD
Video
Description
PCOM-B705GT, a COM Express® Type 7, basic size module based on Intel® Xeon® D-1700 Family. It is high-performance SoC with integrated Ethernet and high-capacity I/Os for IoT to deliver server-class computing. PCOM-B705GT provide server-grade performance in small form factor with option from 4 cores up to 10 cores, three channels DDR4, and full COMe Type 7 I/O support. PCOM-B705GT is the best platform for edge AI computing and software defined networking (SDN) applications.
Specification
| Model Name | PCOM-B705GT |
|---|---|
| Form Factor (mm) | Basic Size (125mm x 95mm) |
| COM Type | Type 7 |
| CPU/Clock/Cache | Intel® Xeon® D-1700 Processor |
| D-1746TER, 67W, 10C / 20T, Base Freq, 2.0 GHz / All Core Turbo 2.5 Ghz | |
| D-1732TE, 52W, 8C / 16T, Base Freq, 1.9 GHz / All Core Turbo 2.4 Ghz | |
| D-1735TR, 59W, 8C / 16T, Base Freq, 2.2 GHz / All Core Turbo 2.7 Ghz | |
| D-1715TER, 50W, 4C / 8T, Base Freq, 2.4 GHz / All Core Turbo 2.9 Ghz | |
| D-1712TR, 40W, 4C/ 8T, Base Freq, 2.0 GHz / All Core Turbo 2.5 Ghz | |
| Chipset | SOC, No Chipset |
| Memory | DDR4 2666MT/s* |
| Non-ECC/ECC* | |
| Triple Channel* | |
| USB | 4 x USB 3.2 Gen1 |
| 4 x USB 2.0 | |
| PCI Express | 16x PCIe 3.0 Lanes |
| 16x PCIe 4.0 Lanes | |
| Ethernet | Intel® I210 Family |
| Carrier Board | PCOM-C701-BMC |

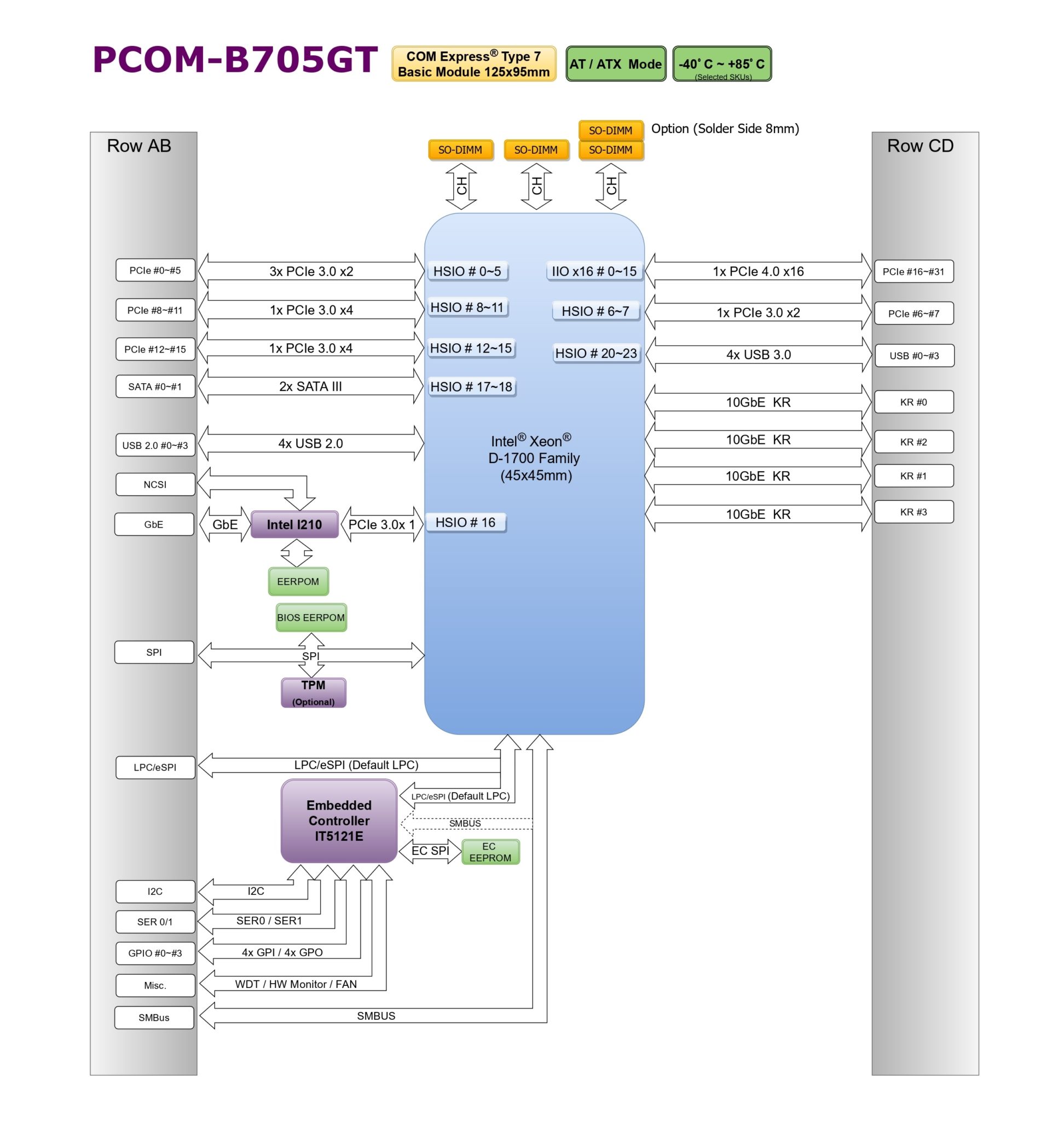

Block Diagram
Ordering Guide
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B705GT-D1746TER | AB1-3P64 | Available |
| PCOM-B705GT-D1735TR | AB1-3P65 | Available |
| PCOM-B705GT-D1732TE | AB1-3P66 | Available |
| PCOM-B705GT-D1715TER | AB1-3P67 | Available |
| PCOM-B705GT-D1712TR | AB1-3P68 | Available |
Accessory
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler | B9972180 | Available |
| Heat Sink | B830C060 | Available |
| Heat Spreader | B830C070 | Available |
Support (Documents & Downloads)
Catalog_PCOM-B705GT_Application-Note 2.46 MB
PCOM-B705GT 352.85 KB
Portwell, Inc. PCOM-B705GT BIOS Rev.: 0.0.13 ( 11282023 ) 16.59 MB
BIOS_PCOM-B705GT_LEK70_50G_0_0_12
PCOM-B705GT for 50G SKUs with CFG7.0 (CEI) 8.15 MB
