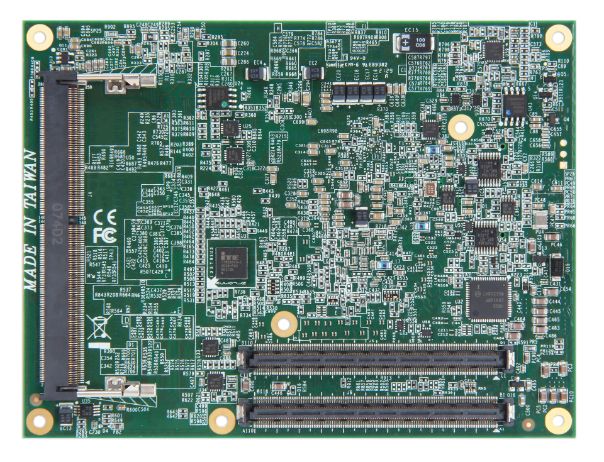

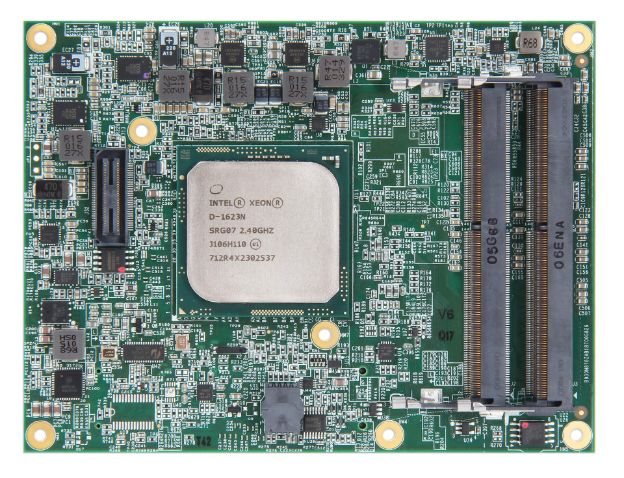

PCOM-B700G
COM Express Type-7 with Intel Pentium and Xeon® processor D-1500 Series with 3-DDR4 ECC up to 96GB 2400 MT/s, with 31 PCIe Lanes, 2x KR to support 10G, NC-SI Interface, SATA III, USB 2.0 and 3.0.
Features :
- Intel® Pentium® and Xeon® Processors D-1500 Series (Broadwell-DE)
- DDR4 1866/2133/2400 MT/s ECC up to 96GB
- 31 PCIe Lanes
- High-speed Ethernet, 2x 10GbE and 1x GbE interfaces
- Wide-Temp (-40°C to 85°C by selected sku) Support
Description
PCOM-B700G, a Type 7 COM Express module, is designed with Intel® Pentium® and Xeon® processor. Based on the COM Express 3.0 Type 7 pinout definition, when compared to the Type 6 pinout, trades all the graphic interfaces for 10 GbE ports and more PCIe lanes, makes PCOM-B700G ideal for applications in networking , micro server and the like, requiring low power consumption while supporting high computing performance and communication throughput. PCOM-B700G features two 10GbE LAN interfaces, 31 PCIe Lanes and three DDR4 ECC SO-DIMM up to 96GB in total. It is compatible with Type 7 carrier board.
| Specification | |
|---|---|
|
Model Name |
PCOM-B700G
|
|
Form Factor (mm) |
COM Express® Basic (125 x 95mm)
|
|
COM Type |
Type 7
|
|
CPU/ Clock/ Cache |
Intel® Pentium® and Xeon® Processors* Intel®D1508 Intel®D1517 Intel®D1539 Intel®D1548 Intel®D1559 Intel®D1577 Up to 16 CPU cores* 3MB to 24MB cache* |
|
Chipset |
SoC |
|
Memory |
DDR4 1866/2133/2400 MT/s* Non-ECC/ECC* Dual Channel* |
|
USB |
4x USB 3.0
4x USB 2.0 |
|
PCI Express |
1x PCIe Gen3 x16 (PEG) 1x PCIe Gen3 x4 (PE2) 8x PCIe Gen2 x1 |
|
Ethernet |
Intel® I210AT 2x KR (10GbE)
|
|
Sound |
N/A
|
|
Graphic Controller |
N/A
|
|
Carrier Board |
PCOM-C701(Type 7) PCOM-C702 (Type 7) |
