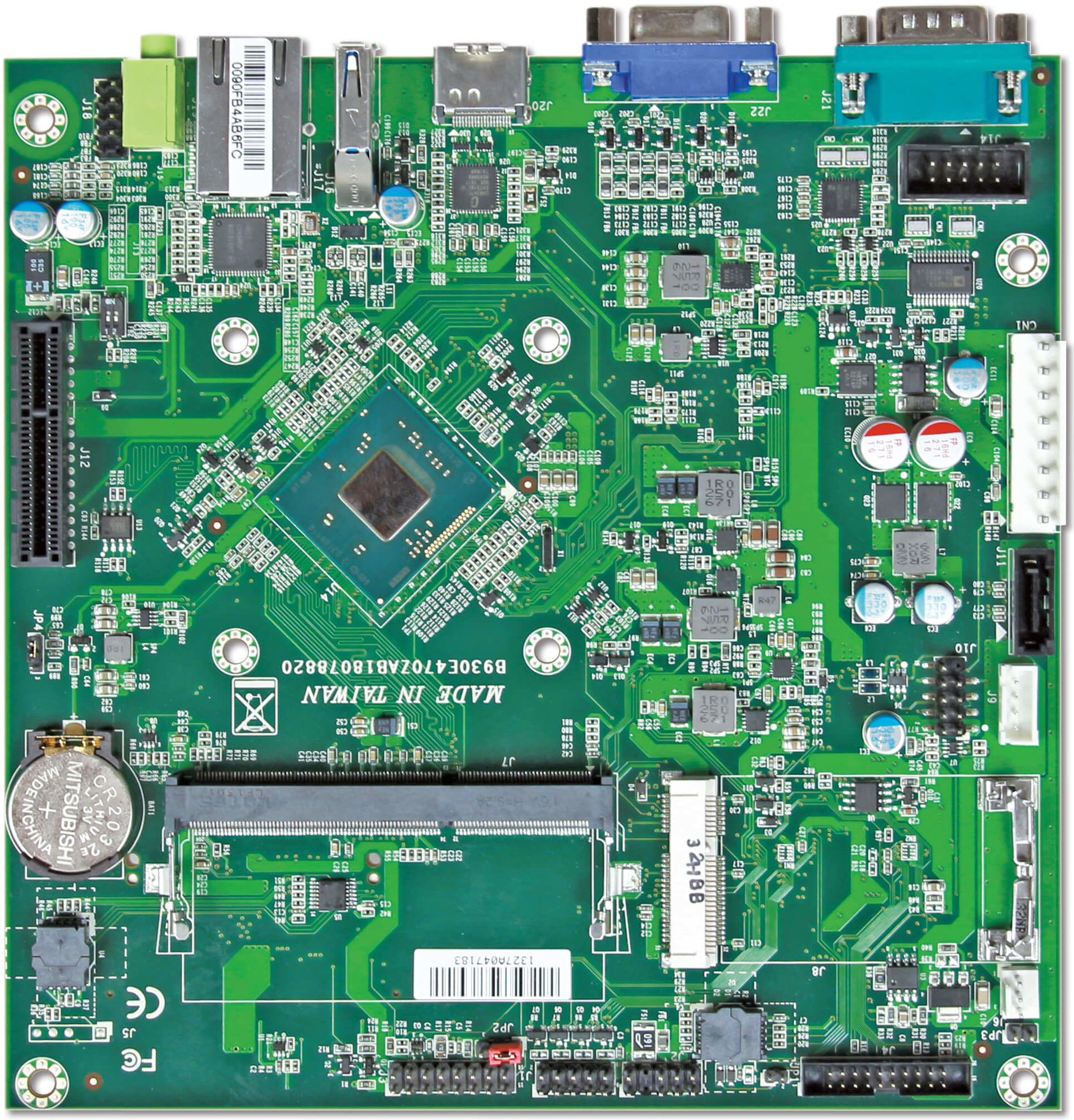

WADE-8078
Intel® Atom® E3800 SoC based Industrial Mini-ITX Motherboard with VGA, HDMI, Gigabit Ethernet, Audio, USB 3.0, SATA and CFEX
Features :
- Latest Intel® Atom® embedded processor provides cost effective solutions with low power and quad core processor technology
- Supports PCIe x4 Slot (with PCIe x2 Lanes)
- Supports 1x DDR3L ECC 1066/1333 MT/s SDRAM, up to 4GB
- Supports 1x USB 3.0 port
Description
WADE-8078 is the first Portwell off-the-shelf Mini-ITX embedded board product based on the Intel® Atom™ processor E3800 product family with memory and PCI Express controller integrated to support one-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a series of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.
Specification
|
CPU |
Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W) |
|
Format |
Mini-ITX |
|
Chipset |
SoC (System-On-Chip) |
|
DRAM |
Up to 4GB DDR3L ECC 1066/1333 SDRAM on one 204pin SODIMM |
|
Graphic Controller |
Intel® HD Graphics 4600 supports DirectX11, OpenGL 4.0, OpenGL 3.2, Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats |
|
Display Interface |
VGA resolution up to 2560×1536@24bpp, HDMI resolution up to 1920×1080@24bpp |
|
Storage |
1x SATA II, 1x CFEX, 1x Mini-PCIe |
|
Network |
On board Intel I210AT |
|
Expansion |
PCIe x4 slot (with PCIe x2 Lanes) |
|
Serial Interface |
1x RS232/424/485 Selectable port on rear I/O |
|
USB |
2x USB2.0 ports on board, 1x USB3.0 ports on rear I/O |
|
Audio |
Realtek ALC892 supports 5.1 Channels, Audio Jack Line out on board |
|
Miscellaneous |
8bit congfigurable GPIO, controlled by embedded controller |
|
Power from W |
ATX (support non-5V satdby)
|
|
Operating Temperature |
0°C – 60°C |
|
Storage Temperature |
-20~80ËšC |
|
Dimensions |
170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W) |
|
Ordering Guide |
|
|
AB1-3A41 |
(R).WADE-8078- E3845
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I QC 1.9GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI/GbE Lan/COM/Audio/USB |
|
AB1-3A42 |
(R).WADE-8078- E3827
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I DC 1.75GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI/GbE Lan/COM/Audio/USB |
|
AB1-3A43 |
(R).WADE-8078- E3815
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I SC 1.46GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI/GbE Lan/COM/Audio/USB |
|
Packing List |
|
|
One WADE-8078 Mini-ITX Main Board |
|
|
One Passive Heat Spreader |
|
|
One Installation CD |
|
