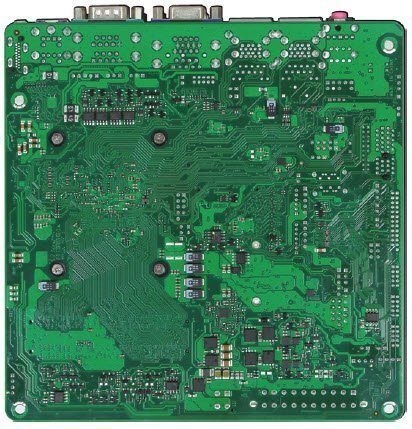

8172_Back-1

WADE-8171

Intel® Celeron® Processor N3150/N3160 Based Mini-ITX Industrial Motherboard with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, mini-PCIe, and mSATA

Features :

Description

WADE-8171 is based on Intel® Celeron® processor N3160. With dual-channel DDR3L memory and rich I/O sets, WADE-8171 empowers energy-efficient solutions for pointof-sale (POS) and industrial automation applications.

Specification

MODEL
WADE-8171
Form Factor
Mini-ITX
CPU
Intel® Atom® N3000 Family
Chipset
N/A
BIOS
AMI UEFI
Memory
2x DDR3L SO-DIMM up to 8GB
Expansion
1x PCIe x1 slot
2x mini-PCIe socket
Display
VGA/HDMI/LVDS
Audio
Realtek ALC887 HDA codec
LAN
2x GbE
Serial Port
2x RS-232/422/485
4x RS-232
USB
4x USB3.0
4x USB2.0
Storage Device
2x SATA
GPIO
8 bit
Others
N/A
Dimension
170 x 170mm
Ordering Guide
AB1-3D63
(R).WADE-8171-N3150
Mini-ITX ESB.Intel® Braswell Quad Core Celeron® 2.08GHz (6W). w/DDR3L/VGA/LVDS/ HDMI/dual GbE LAN/SATA
Packing List
1x WADE-8171 motherboard
1x I/O shield
1x SATA cable
1x Driver CD
