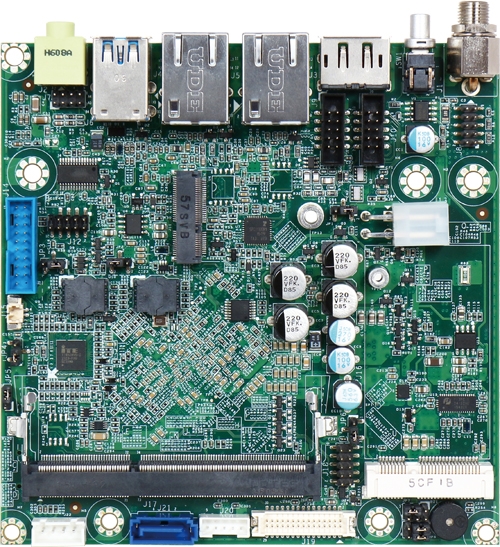

NANO-6062

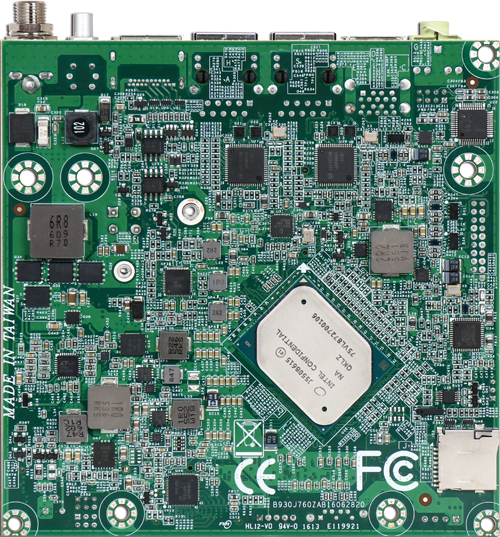

NANO-6062_back_500pix

NANO-6062

Intel® Apollo Lake Atom® Dual/Quad Core E3900 series SoC based on NANO-ITX. Board with Triple Displays, GbE LAN, USB 3.0, M.2, SATA III, Mini- PCIe, and mSATA

Features :

Description

NANO-6062 build with Intel® Atom® processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.

Support four USB 3.0 ports ensures fast data transmission with low-power consumption. Two SATA III interfaces with up to 6 Gb/s (one of them available as mSATA and the other for SATA) allow quick and flexible system expansions. Two Intel® I210IT Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the two RJ45 ports. NANO-6062 can design their own unique systems for Medical, Networking, Panel PC, Kiosk and Digital Signage applications.

Specification

MODEL
NANO-6062
Form Factor
NANO-ITX
CPU
Intel® Atom® E3900 Family
Chipset
N/A
BIOS
AMI UEFI
Memory
1x DDR3L SO-DIMM up to 8GB
Expansion
1x M.2 socket (E key)
1x mini-PCIe socket
Display
VGA/LVDS/DP
Audio
Realtek ALC892 HDA codec
LAN
2x GbE/1 x GbE
Serial Port
1x RS-232/422/485
1x RS-232/422/485
USB
4x USB 3.0
Storage Device
1x SATA III
1x mSATA
1x Micro-SD socket
GPIO
8 bit
Others
N/A
Dimension
120 x 120 mm
Ordering Guide
AB1-3E89Z
(R).NANO-6062-E3950 Nano-ITX ESB. Intel® Atom® Quad Core 1.6GHz (12W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III
AB1-3G40Z
(R).NANO-6062-E3940 Nano-ITX ESB. Intel® Atom® Quad Core 1.6GHz (9W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III
AB1-3G41Z
(R).NANO-6062-E3930 Nano-ITX ESB. Intel® Atom® Dual Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III
Packing List
One NANO-6062 NANO-ITX Main Board
One Passive Hear Spreader
One Installation CD
