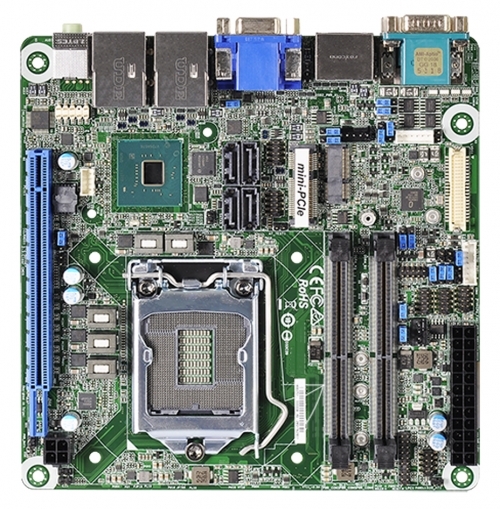

WADE-8211-Q370
Leading Desktop Intel® 8th Gen Core™ Processors, Industrial Mini-ITX motherboard with DDR4 SO-DIMM up to 64G, VGA ,Dual DP ports ,Two GbE LAN ports, Five COM Ports.
Features :
- Intel® 8th/9th Gen Core™ Processors support
- Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 64GB
- Supports dual Ethernet, five COM Ports, eight USB Ports, four SATA III Ports and Audio
- Supports one PCIe x16 (Gen3), one M.2 Type E stocke(2230) for Wireless,one M.2 Type M socket(2242/2260/2280) for SSD, and one mini-PCIe slot
Description
WADE-8211-Q370 is based on Intel® Q370 chipset and Desktop processors including Intel® 8th/9th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stabile system.
Specification
|
MODEL |
WADE-8211-Q370 |
|
Form Factor |
Mini-ITX |
|
CPU |
Intel® CoreTM i3/i5/i7/ i9/Pentium®/ Celeron® |
|
Chipset |
Intel®Q370
|
|
BIOS |
AMI UEFI |
|
Memory |
2x DDR4 SO-DIMM up to 64G |
|
Expansion |
1x PCIe x16 1x M.2(Key E, 2230) socket |
|
Display |
VGA/Dual DP/LVDS |
|
Audio |
Realtek ALC887 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
3x RS-232 2x RS-232/422/485 |
|
USB |
4x USB3.2 Gen1 4x USB2.0 |
|
Storage Device |
4x SATA III 1.M.2 (Key M, 2242/2260/2280) socket |
|
GPIO |
8 bit |
|
Others |
N/A
|
|
Dimension |
170 x 170mm |
| Ordering Guide | |
|---|---|
|
AB1-3D63 |
Mini-ITX ESB.Q370 w/o ECC LGA1151.w/DDR4SO-DIMM /VGA/Dual DP/Dual GbE/COM/Audio/USB |
| Packing List |
|---|
|
One WADE-8211-Q370 Main board |
|
One I/O shield |
|
One Installation CD |
|
One SATA cable |
|
One CPU cooler bracket |
