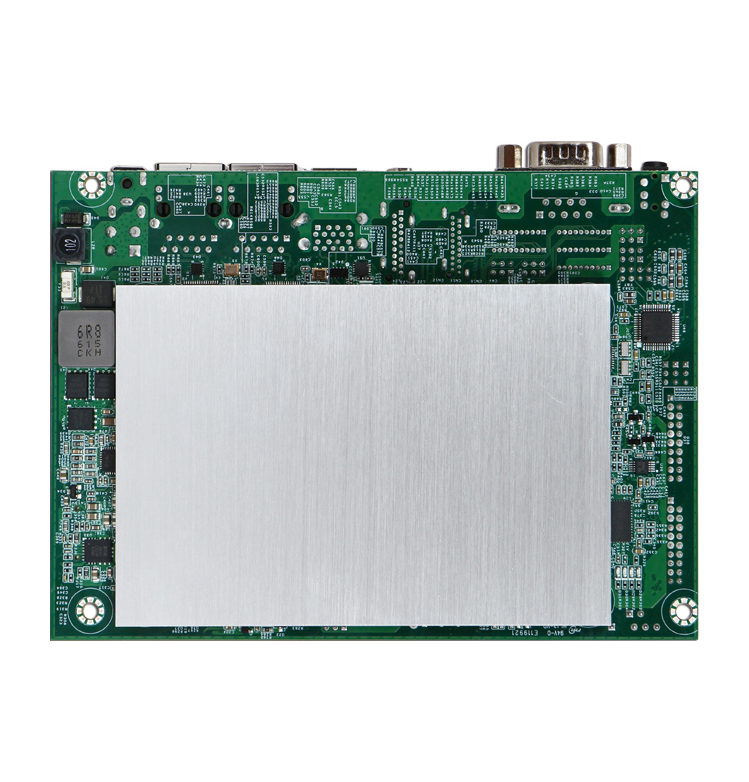

PEB-2773
3.5inch SBC with Intel Apollo Lake Atom® Processor based embedded board with DDR3L SDRAM, Gigabit Ethernet, 2x mini-PCIe sockets, 6x COM ports and 12~24V DC input
Features :
- Supports Intel® Apollo Lake series processor
- Supports DD3L-1866/1600 MT/s non-ECC SDRAM on one SO-DIMM slot, up to 8GB
- Supports Triple displays including DP, HDMI, and Dual channel 24bit LVDS
- Supports mini-PCIe / mSATA (2x mini- PCIe slots)
- Supports 6x COM ports(REAR IO support RS-232/422/485)
Description
PEB-2773 build with Intel® Atom® processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.
Specification
|
MODEL |
PEB-2773 |
|
Form Factor |
3.5″ Embedded |
|
CPU |
Intel® Atom® E3900 Family |
|
Chipset |
N/A |
|
BIOS |
AMI UEFI |
|
Memory |
1x DDR3L SO-DIMM up to 8GB |
|
Expansion |
2x mini-PCIe sockets |
|
Display |
DP/HDMI/LVDS |
|
Audio |
Realtek ALC892 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
1x RS-232/422/485 5x RS-232 |
|
USB |
6x USB 3.0 |
|
Storage Devices |
1x SATA |
|
GPIO |
8 bit |
|
Others |
N/A |
|
Dimensions |
146 x 102mm |
| Ordering Guide | |
|---|---|
|
AB1-3E83 |
(R).PEB-2773. Intel® Apollo Lake SoC on Board.EBC. w/DDR3L/DP/HDMI/GbE/COM/Audio/USB |
| Packing List |
|---|
|
One PEB-2773 Main board |
|
One Installation CD |
|
One SATA cable |
