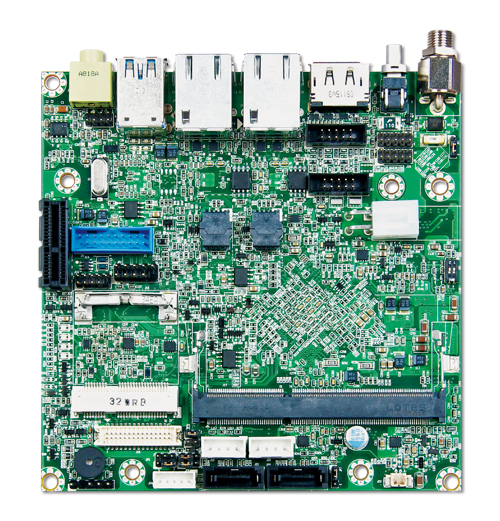

NANO-6060
Nano-ITX board with Intel® Atom® E3800 family SoC based, Dual displays, Gigabit Ethernet, Audio, USB 3.0, micro SD and SATA
Features :
- Intel® Bay Trial-I SoC based platform
- 1x 204-pin SO-DIMM supports DDR3L up to 4GB
- Multiple displays by VGA, DP, dual channel 24 bit LVDS
- Supports 2x SATA II ports, 1x micro SD socket, and 4x USB 3.0 ports
- 1x half size mini-PCIe socket and PCIe x1 slot for expansion
- Supports DC 12V input
Description
NANO-6060 build with Intel® Atom® processor E3800 family that not only outputs under 10W for fan-less applications, but also supports a wide industrial temperature from -40ºC to 85ºC. With its superior up to Quad Core processing power and high capability. Portwell have taken advantage of such technology to furnish a series of products that can meet multiple industrial requirements such as fanless, cost-effective of CPU performance or compact systems.
Specification
|
MODEL |
NANO-6060 |
|
Form Factor |
NANO-ITX |
|
CPU |
Intel® Atom® E3800 Family |
|
Chipset |
N/A |
|
BIOS |
Phoenix UEFI |
|
Memory |
1x DDR3L SO-DIMM up to 4GB |
|
Expansion |
1x PCIe x1 slot 1x Half Size mini-PCIe socket |
|
Display |
VGA/LVDS/DP |
|
Audio |
Realtek ALC892-GR HDA codec |
|
LAN |
2x GbE/1 x GbE |
|
Serial Port |
1x RS-232/422/485 |
|
USB |
2x USB 2.0 4x USB 3.0 |
|
Storage Device |
2x SATA II 1x Micro-SD socket |
|
GPIO |
8 bit |
|
Others |
N/A
|
|
Dimension |
120 x 120 mm |
|
Ordering Guide |
|
|
AB1-3A45 |
(R).NANO-6060- E3815
Nano-ITX ESB. Intel® Atom® E3815 1.46GHz Single Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/single GbE LAN/micro SD |
|
AB1-3A45 |
(R).NANO-6060- E3827
Nano-ITX ESB. Intel® Atom® E3827 1.75GHz Dual Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/ dual GbE LAN/micro SD |
|
AB1-3A47 |
(R).NANO-6060- E3845
Nano-ITX ESB. Intel® Atom® E3845 1.91GHz Quad Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/ DP/dual GbE LAN/micro SD |
|
Packing List |
|
|
One NANO-6060 NANO-ITX Main Board |
|
|
One Passive Heat Spreader |
|
|
One Installation CD |
|
