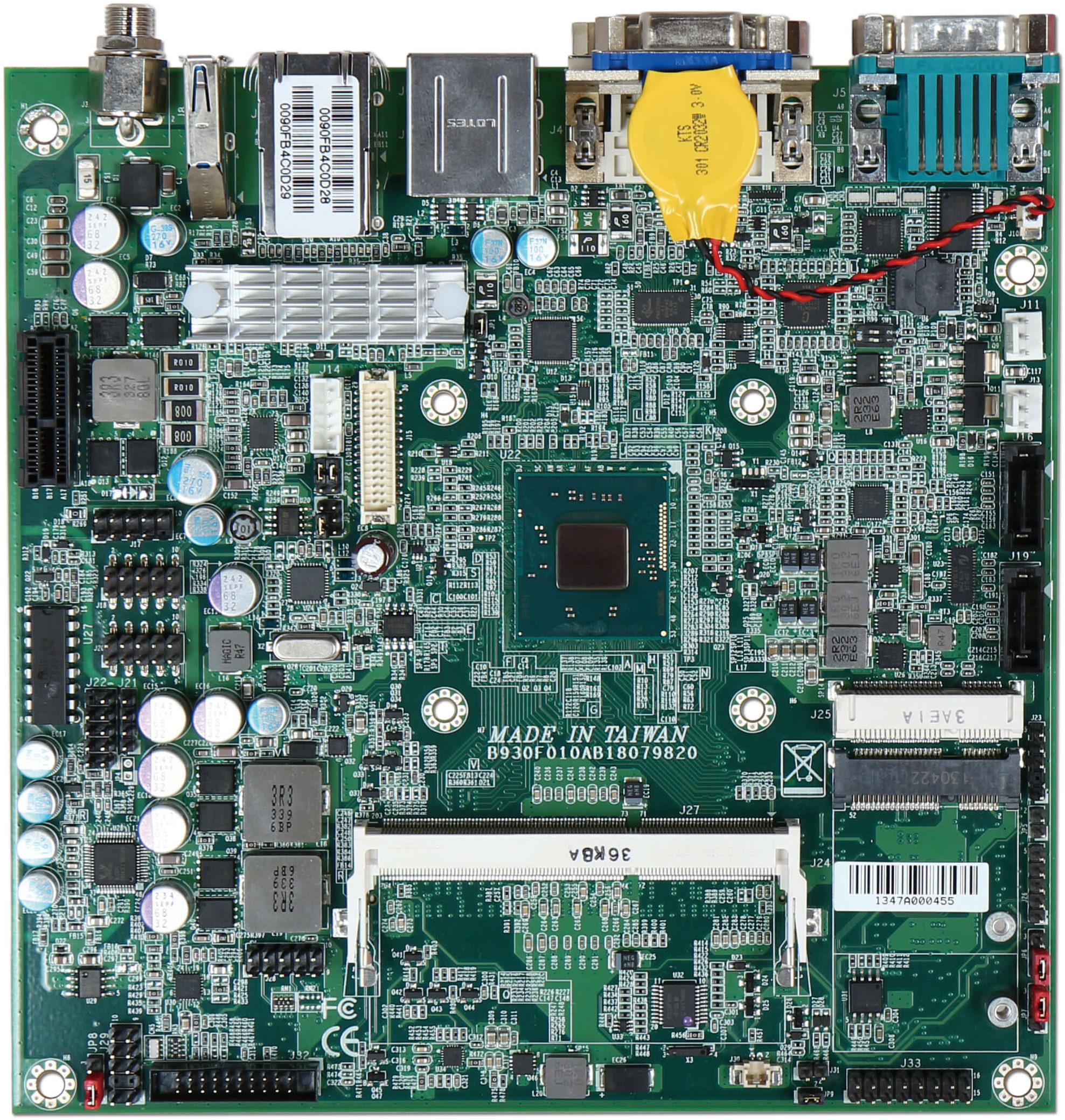

WADE-8079
Intel® Atom® E3800 SoC based Industrial Mini-ITX Motherboard with VGA, DP, DVI, LVDS, Gigabit Ethernet, Audio, USB 3.0, SATA and 2x mini-PCIe slot with mSATA interface
Features :
- Latest Intel® Atom™ embedded processor Expansion Interface provides cost effective solutions with low power and quad core processor technology
-  Support two DDR3L 1066/1333MT/s SDRAM, up to 8GB (E3845/ E3826)
- Support one DDR3L 1066/1333MT/s SDRAM, up to 4GB (E3815)
- Supports VGA/DVI/DP&LVDS (Via switch)
- 2x SATA II Ports (1x Switch Mini-PCIe)
-  Total 5 USB ports (1x USB 3.0 Ports & 4x USB 2.0 Ports)
Description
WADE-8079 is based on Intel® Atom® pro-cessor E3800 product family with memory and PCI Express controller integrated to support two-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a se-ries of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.
Specification
|
CPU |
Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3825 (2 x 1.33 GHz, 1 MB L2, 6 W) Intel Atom® Processor E3826 (2 x 1.46 GHz, 1 MB L2, 7 W) Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W) |
|
Form Factor |
Mini-ITX |
|
Chipset |
SoC (System-On-Chip) |
|
DRAM |
Up to 8 GB DDR3L SO-DIMM |
|
Graphic Controller |
Intel® HD Graphics 4600 (CPU) |
|
Display Interface |
DVI (1920×1200), DP (2560×1600), VGA (1920×1200), LVDS (1600×1200) |
|
Storage |
2x SATA II (3.0Gb/s) |
|
Network |
2x GbE Intel® I210IT |
|
Expansion |
1x Half-Size mini PCIe(USB, PCIe) |
|
Bus Interface |
one PCIe x1 slot TPM Module |
|
Serial Interface |
3x RS232 1x RS232/422/485 |
|
USB |
1x USB 3.0 4x USB 2.0 |
|
Audio |
Intel® HD Audio, Realtek ALC892 |
|
Security |
TPM Module
|
|
Miscellaneous |
2x PS/2 via pin header, GPIO 8bit,Watchdog Timer,HW monitoring temperature & voltage |
|
Firmware |
Phoenix® SPI |
|
Power Requirement |
ACPI 3.0 / APM 1.2 |
|
Power from W |
12V – 24V DC-In |
|
Operating Temperature |
0°C – 60°C |
|
Extended Temperature |
-40°C to -85°C |
|
Dimensions |
170×170 mm |
| Ordering Guide | |
|---|---|
|
AB1-3B39 |
(R).WADE-8079-E3845
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I E3845 QC 1.9GHz processor) on Board .w/DDR3L SO-DIMM/VGA/DVI/DP/Dual GbE Lan/COM/USB |
| Packing List |
|---|
|
One WADE-8079 motherboard |
|
One Driver CD |
|
One SATA cable |
