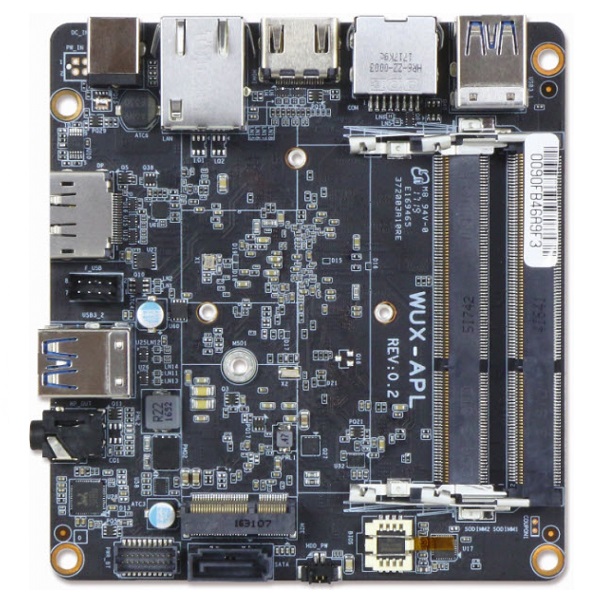

WUX-3350
4×4-inch Mini PC Board based on Intel Pentium and Celeron Processors (Apollo Lake)
Features :
- Intel® Pentium® processor N4200, Intel® Celeron® processor N3350/J3455
- Up to 8GB DDR3L 1866/1600 MHz SDRAM
- Dual displays via HDMI and DisplayPort
- 1x M.2 (E+A key), 1x SATA III, 1x microSD 3.0
- eMMC 5.0 flash, 32GB (64GB, option)
- Support Gigabit Ethernet
- Support 4x USB 3.0 or 2x USB 2.0
- Support wide input voltage range from 12V to 19V
Introduction
The WUX-3350 series (WUX-3350, WUX-3455, WUX-4200) of 4×4-inch mini PC board (Intel® NUC board form factor) is designed with Intel® Pentium® processor N4200, and Intel® Celeron® processor N3350/J3455 (codenamed Apollo Lake), and features dual-channel DDR3L up to 8GB, Gigabit Ethernet, M.2 expansion interface, and support for wide input voltage range from 12V to 19V. The WUX-3350 4×4-inch mini PC board series can be an ideal building block for designing ultra-compact embedded computing systems with configurability for an extensive array of applications.
Specification
|
CPU |
,Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor J3455 (4 x 1.50 GHz, 2 MB, 10W) |
|
Format |
NUC |
|
Chipset |
SoC (System-On-Chip) |
|
DRAM |
Up to 32GB DDR4 2133 MHz SDRAM on two 204, pin SODIMM socket |
|
Storage |
1x SATA III port, 1x Micro-SD 3.0 socket, Support Onboard eMMC 5.0 (32G/64G) |
|
USB |
4x USB 3.0 ports on REAR I/O, 2x USB 2.0 ports on board with pitch 2.0 header |
|
Expansion |
1x M.2 socket (Key E) support WiFi, BT, 3G & 4G |
|
Network |
One Realtek RTL8111H W/ RJ45 connector on REAR I/O |
|
Firmware |
AMI UEFI BIOS |
|
Serial Interface |
1x RS-232 with RJ45 connector on REAR I/O |
|
Audio |
High Definition Audio integrated in Intel SoC Realtek ALC233 HDA codec Audio jack with Line-out or Mic -in function on REAR I/O |
|
Display Interface |
HDMI(1.4b) on board connector, resolution up to 3840 x2160, DP(1.2) on board connector, resolution up to 4096x2160 |
|
Graphic Controller |
Intel® Gen 9 Graphics supports DirectX 12, OpenGL 4.2 / OpenCL 2.0, Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
|
Operating Temperature |
0°C to 60°C |
|
Storage Temperature |
-40°C to 80°C
|
|
Power Requirement |
Wide DC in 12-19V |
|
Miscellaneous |
Temperature (CPU & System), Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V) |
|
Dimensions |
101.6 x 101.6 mm |
| Ordering Guide | |
|---|---|
|
WUX-4200 |
4x4-inch mini PC board. Intel Pentium N4200. USB. HDMI. GbE. Audio. 32GB eMMC |
|
WUX-3350 |
4x4-inch mini PC board. Intel Celeron N3350. USB. HDMI. GbE. Audio. 32GB eMMC |
|
WUX-3455 |
4x4-inch mini PC board. Intel Celeron J3455. USB. HDMI. GbE. Audio. 32GB eMMC |
