NANO-6063

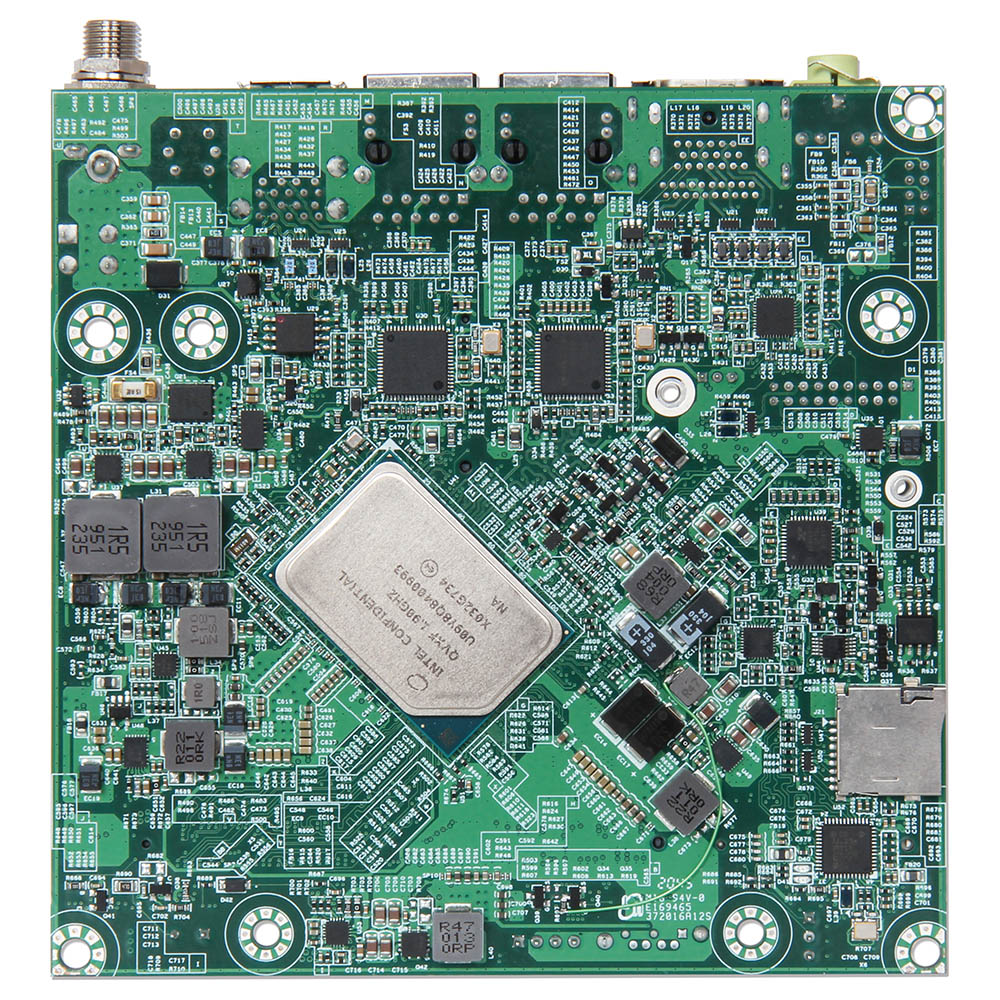

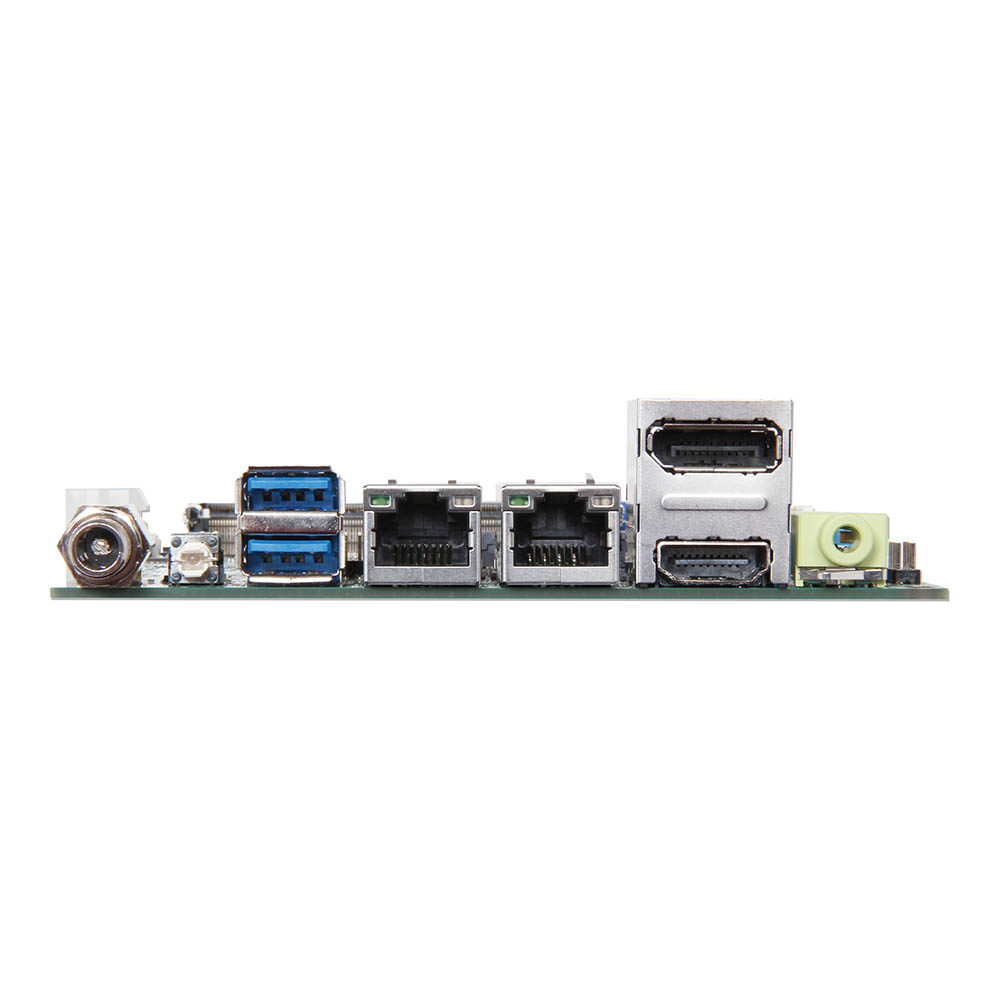

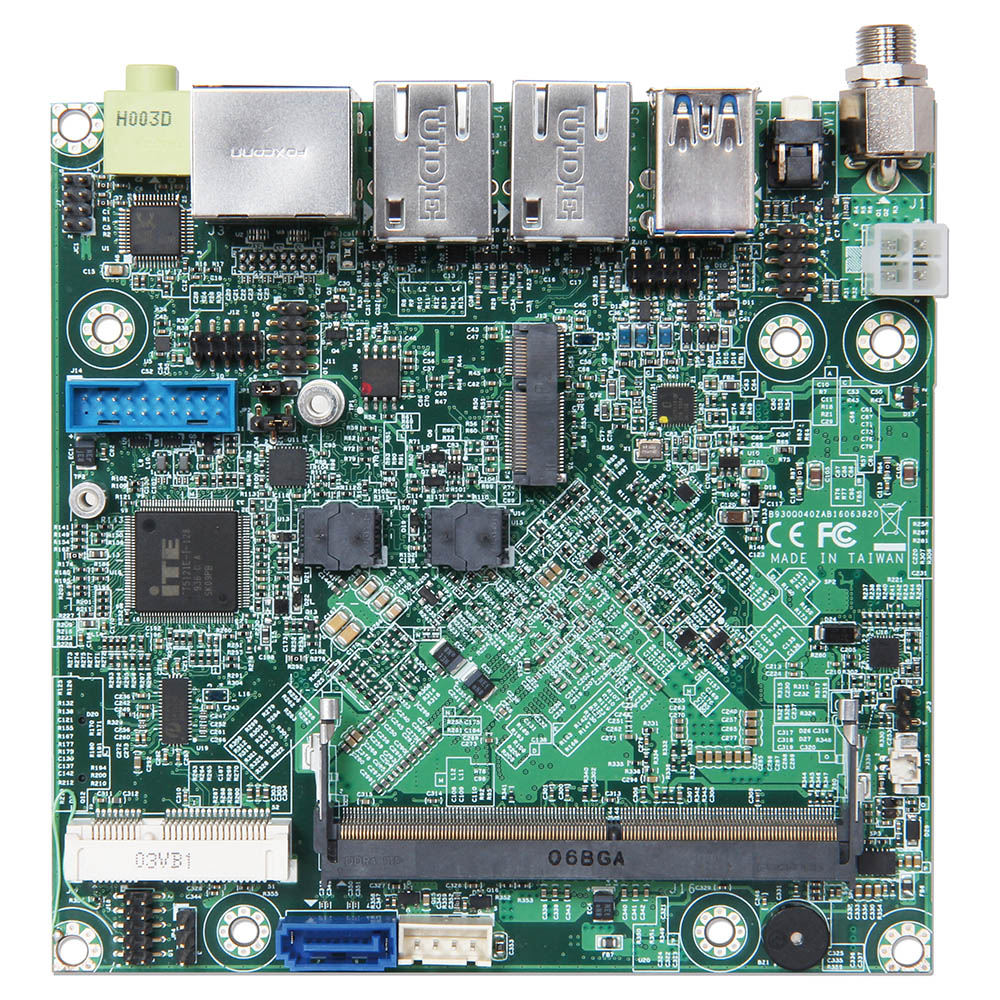

Nano-ITX motherboard with Intel Atom® x6000E Series SoC, Triple Display, GbE LAN, USB 3.2 Gen 2, M.2, SATA III, Mini-PCIe, and mSATA
Features :
- Supports Intel® Atom® Dual/Quad Elkhart Lake Family SoC
- Delivers up to 32 GB maximum DDR4 3200 non-ECC SO-DIMM
- Supports multiple display by VGA, DP and HDMI
- High speed dual Gigabit Ethernet based on PCIe x1, high bandwidth I/O interface
- Supports Real-Time Performance: TSN, TCC
- Supports on board TPM2.0
Video
Description
NANO-6063 is based on Intel® Atom® Elkhart Lake family processor. This processor not only supports the range of industrial temperature standard which is from -40°C to 85°C but operates in certain 12W with low-power consumption. Succeeding previous version, NANO-6062, the flexibility of systematic expansions is suitable for Medical, Panel PC and Kiosk. To support Intel® I225 Gigabit Ethernet is fit in Industrial Automation, and Digital Signage application.
Specification
|
MODEL |
NANO-6063 |
|
Form Factor |
NANO-ITX 120mm*120mm |
|
Processor |
Intel® Atom™ Dual/Quad Elkhart Lake x6000 series SoC |
|
Chipset |
N/A |
|
BIOS |
AMI UEFI |
|
Memory |
1* DDR4 3200 SO-DIMM up to 32GB |
|
Expansion |
1x M.2 socket (E key) 1x mini-PCIe socket |
|
Display |
HDMI, DP |
|
Serial IO |
1* RS-232/422/485 ports selectable |
|
USB |
4*USB 3.1 (Gen2) ports (2 ports on board/ 2 ports in rear I/O) 10Gbps bus capable of high-speed/ full-speed/low-speed data ranges |
|
Storage |
1*SATA III port 1*mSATA socket |
|
Operating System |
Windows 10 Linux OS |
|
Mini-PCIe |
1* full size mini-PCIe socket
|
|
Power |
DC 12V input |
|
Certification |
CE FCC |
|
Ordering Guide |
|
|
AB1-3K29Z |
(R).NANO-6063
Nano-ITX ESB. Intel® Elkhart Lake SoC.w/DDR4 SO-DIMM/VGA/HDMI/DP/Dual GbE LAN/micro SD |
