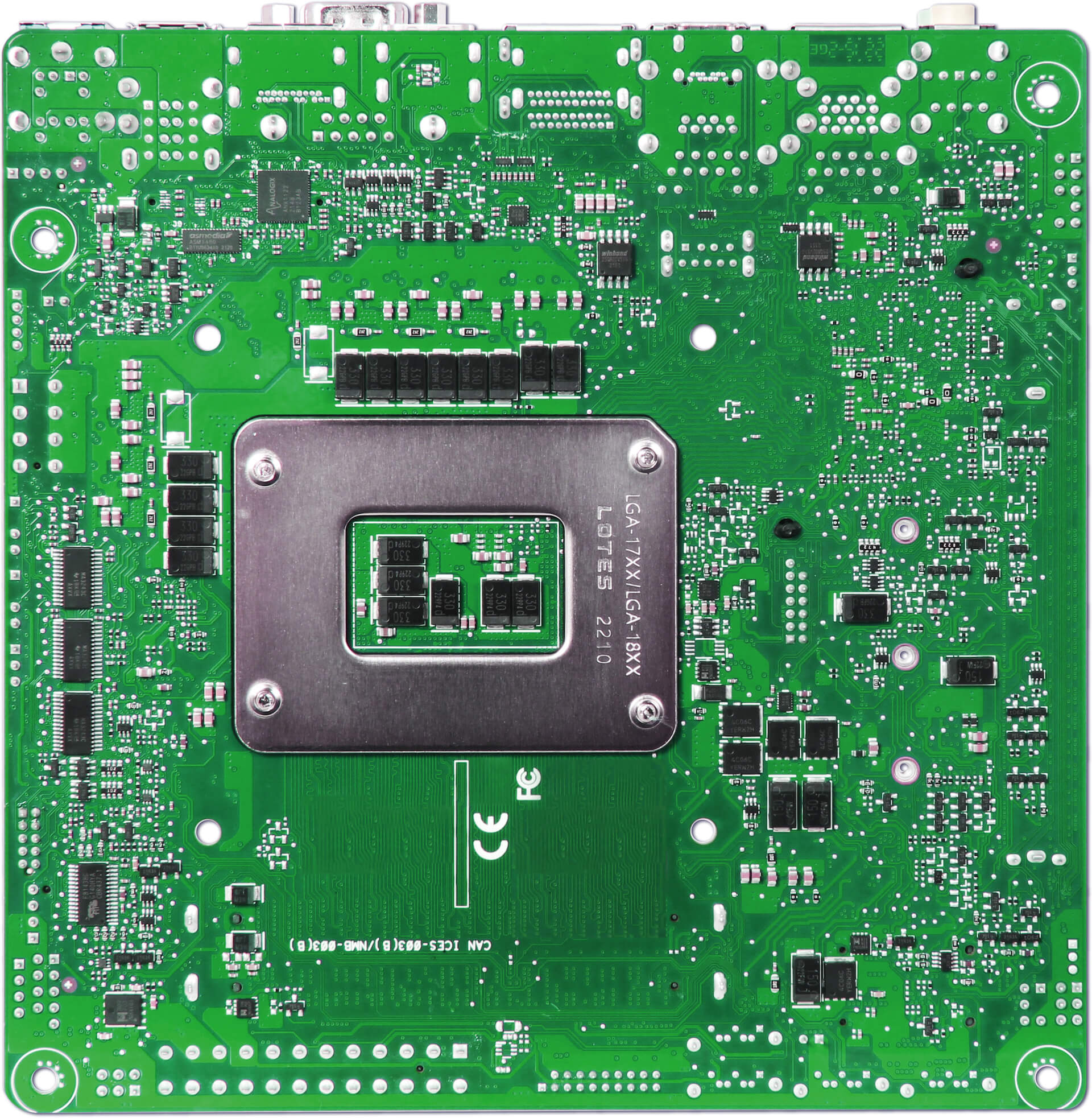

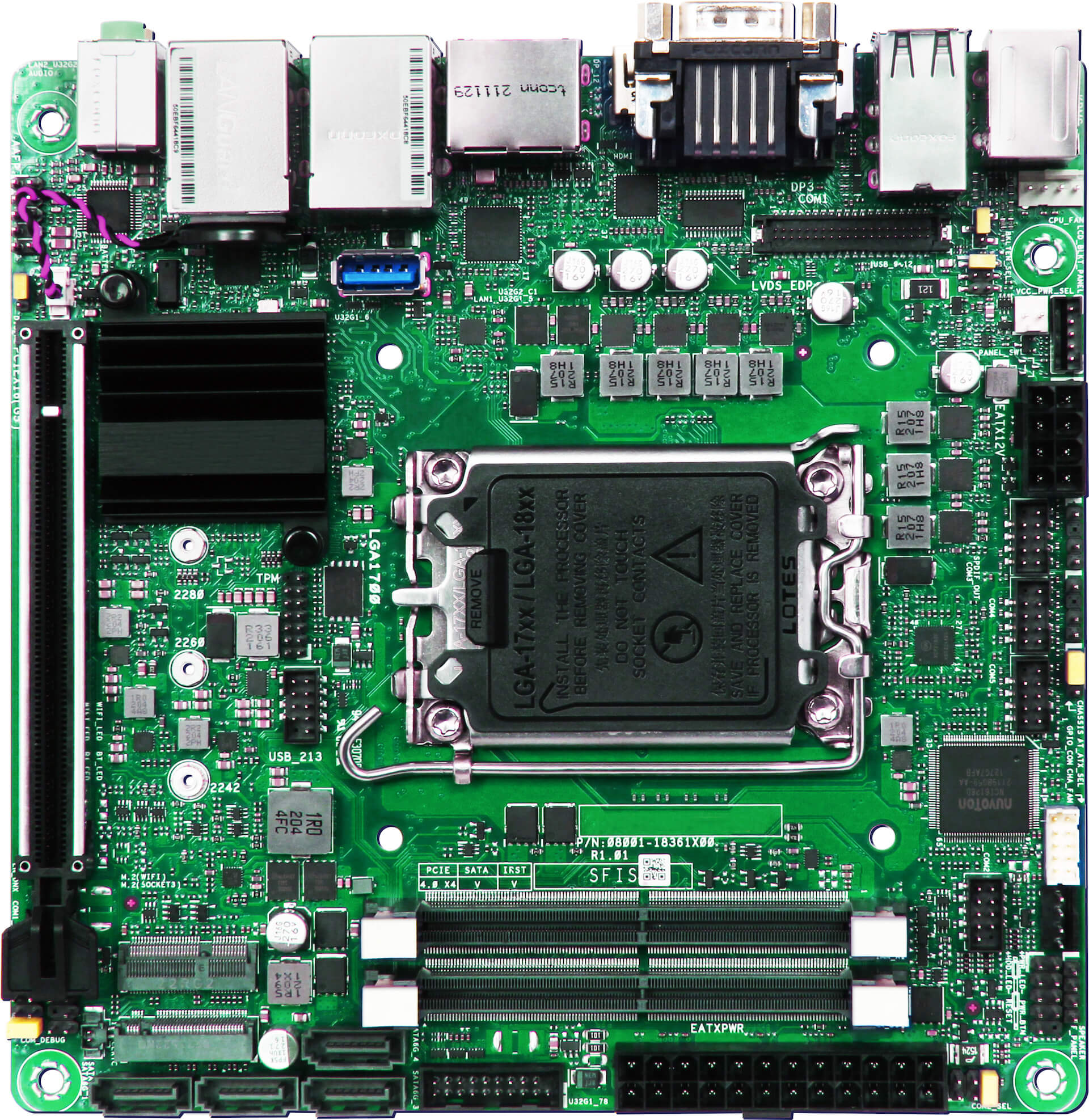

WADE- 8213-Q670E
Leading Desktop Intel® 12th Gen Core™ Processors Mini-ITX Industrial Motherboard with DDR4 SO-DIMM up to 64GB, VGA , DP port, HDMI, LVDS, Two GbE LAN ports, Five COM Ports
Features :
- Intel® 12th Gen Intel i9/i7/i5/i3 Core™ Processors support
- Supports two SO-DIMMs support DDR5 DRAM up to 64GB
- Supports dual Ethernet, 5-COM Ports, 3x USB 3.2 Gen2 ports, 4x SATA III ports and Audio
- Support one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe x1 and CNVI for Wireless and one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
Description
WADE-8212-Q470E is based on Intel® Q470E chipset and Desktop processors including Intel® 10th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those features help you to build high performance and stabile system.
Specification
|
MODEL |
WADE- 8213-Q670E |
|
Form Factor |
Mini-ITX |
|
CPU |
Intel® 12th gen Core i3/i5/i7/i9/ processor |
|
Chipset |
Intel® Q670E |
|
BIOS |
AMI UEFI BIOS |
|
Memory |
2- DDR5 4800 Mhz SO-DIMM up to 64G |
|
Expansion |
1- PCIe x16 Gen 5 1- M.2 Key E 2230 with PCIe x1 and CNVI for Wireless |
|

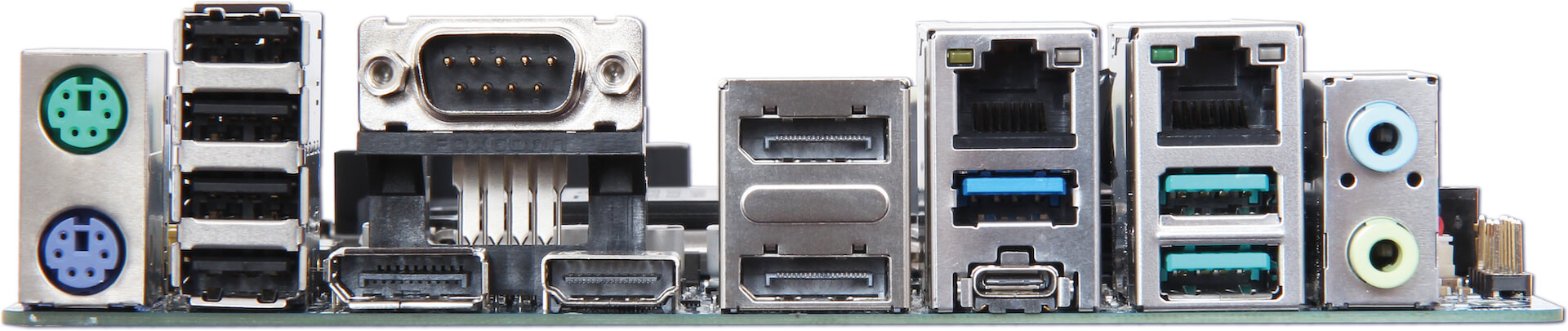

Display |
Intel® UHD Graphics 770 supports DirectX 12, OpenGL 4.6
DP, eDP/LVDS, HMDI |
|
Audio |
Realtek ALC897, Line-out / Line-in |
|
LAN |
2- GbE
Intel® I210AT (1GbE) and Intel® I225LM (2.5GbE) |
|
Serial Port |
3- RS232 2- RS232/422/485 |
|
USB |
3-USB3.2 (Gen2) 4-USB 3.2 (Gen1) 6-USB 2.0 |
|
Storage Device |
4- SATA III 1- M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD |
|
GPIO |
8-bit configurable controlled by embedded controller |
|
Watchdog Timer |
Programmable watchdog timer |
|
Dimension |
170mm(L) x 170mm(W) |
| Ordering Guide | |
|---|---|
|
AB1-3P58 |
(R).WADE-8213-Q670E ATX ESB.Q670E w/o ECC LGA1700.w/DDR5 /eDP/LVDS/Thripal DP/HDMI/Dual GbE/COM/Audio/USB |
| Packing List |
|---|
|
One WADE-8213-Q670E Main board |
|
One I/O shield
|
|
One SATA cable |
|
One CPU coolor bracket |
