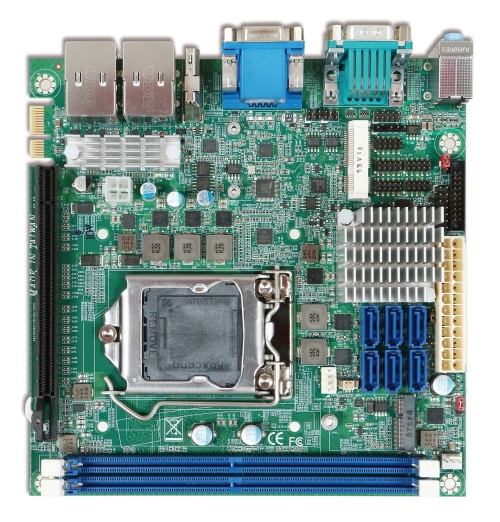

WADE-8017
Leading Desktop Intel® 7th & 6th Gen Core™ Processors (Kaby Lake/Skylake) Industrial Mini-ITX Motherboard with DDR4 SDRAM, 3-Displays, 2x GbE LAN ports, 6x COM Ports
Features :
- Intel® 7th and 6th Gen Core™ Processors support
- 2x long-DIMM support DDR4 ECC/Non- ECC SDRAM up to 32GB
- Display : VGA/DP/HDMI
- 1x PCIe x1 Golden finger support SEB 6x SATA III ports support RAID 0/1/5/10 H110 just support 4x SATA port and not support RAID Function
- 1x PCIe x16 (Gen3), one M.2 type E socket (H110 not support)
Description
WADE-8017 is based on Intel® Q170/C236/ H110 chipset and desktop processors including Intel® 7th and 6th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stability system
Specification
|
MODEL |
WADE-8017 |
|
Form Factor |
Mini-ITX |
|
CPU |
Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package |
|
Chipset |
Intel® Q170/H110/ C236 PCH |
|
BIOS |
AMI UEFI |
|
Memory |
2x DDR4 DIMM up to 32GB |
|
Expansion |
1x PCIe x16 slot 1x PCIe x1 Golden finger 1x M.2 type E socket 1x mini-PCIe socket |
|
Display |
DP/HDMI/VGA |
|
Audio |
Realtek ALC892 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
2x RS-232/422/485 4x RS-232 |
|
USB |
4x USB3.0 2x USB2.0 |
|
Storage Device |
6x SATA (H110 just 4x SATA) |
|
GPIO |
8 bit |
|
Others |
N/A
|
|
Dimension |
170 x 170mm |
| Ordering Guide | |
|---|---|
|
AB1-3D16 |
(R).WADE-8017
Mini-ITX ESB.Q170 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
|
AB1-3D75 |
(R).WADE-8017-H110
Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
|
AB1-3D76 |
(R).WADE-8017-C236.
Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
|
AB1-3G16 |
(R).WADE-8017-kBL
Mini-ITX ESB.Q170 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
|
AB1-3G13 |
(R).WADE-8017-C236-kBL
Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
|
AB1-3G12 |
(R).WADE-8017-H110-kBL
Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI/Dual GbE/COM/Audio/USB |
| Packing List |
|---|
|
One WADE-8017 motherboard |
|
One Driver CD |
|
One SATA cable |
