WADE-8173-J6412
Intel® Celeron Elkhart Lake J612 Processor, 1-HDMI, 1-DP, LVDS/eDP, Dual LAN, Memory Max DDR4 3200MHz 32GB, USB 3.2 Gen2, SATA III, Mini PCIe, M.2
Features :
- Intel latest Celeron Elkhart lake J6412 processor
- Support Dual Channel SO-DIMM Max 32GB 3200MHz
- Support 6-COM, 8-USB, 1-8 bit GPIO

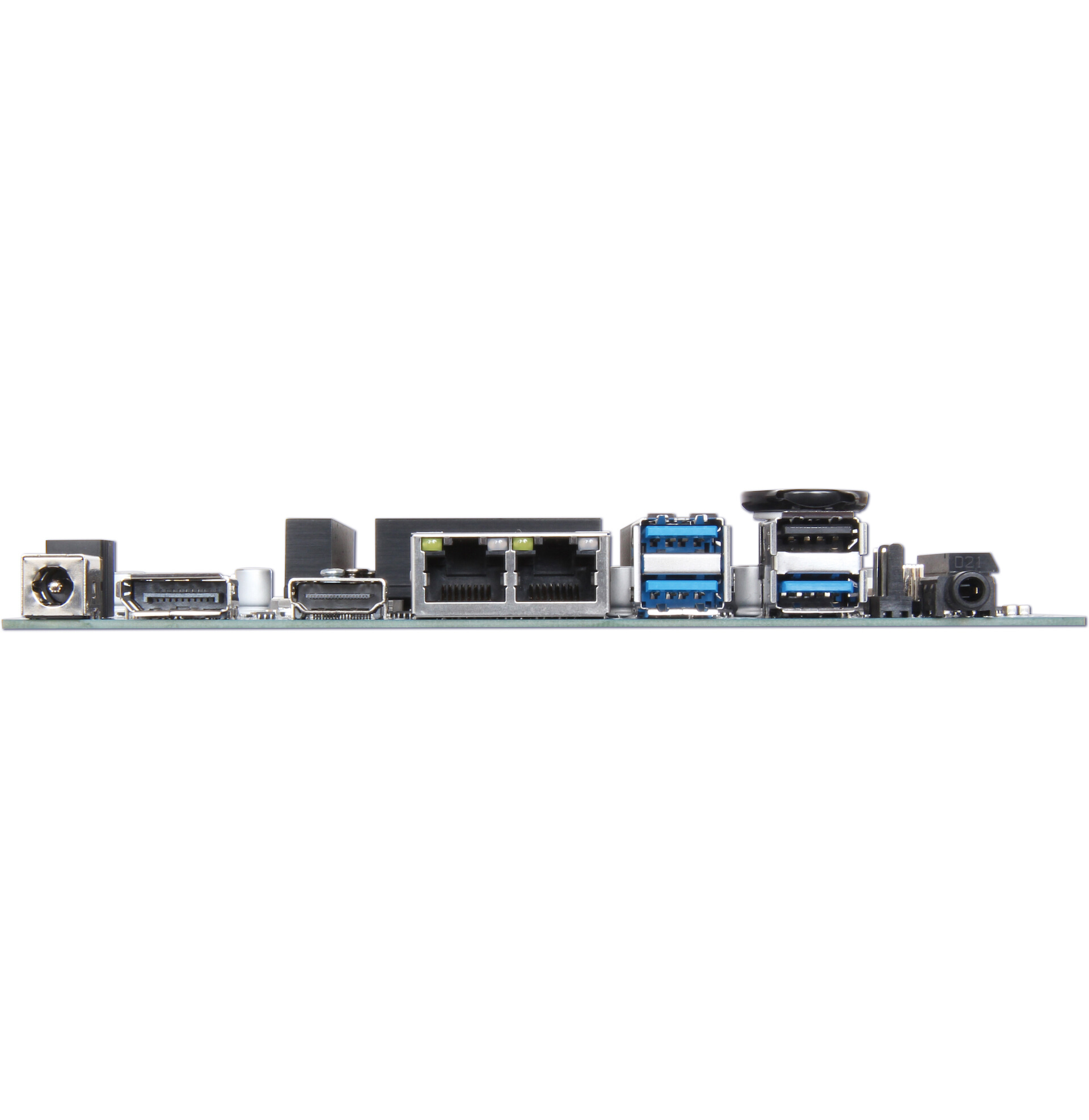

- Supports Dual Ethernet, 1-HDMI, 1-DP, 1-LVDS/eDP, support triple display
- Support 1-PCIe x1 Gen 3, 2-M.2, 1-Mini PCIe, 1-Full size SD Card slot
- 1-SATA III, Line-out/Line-in, 12-V DC Jack and internal 4 pin power connector
Description

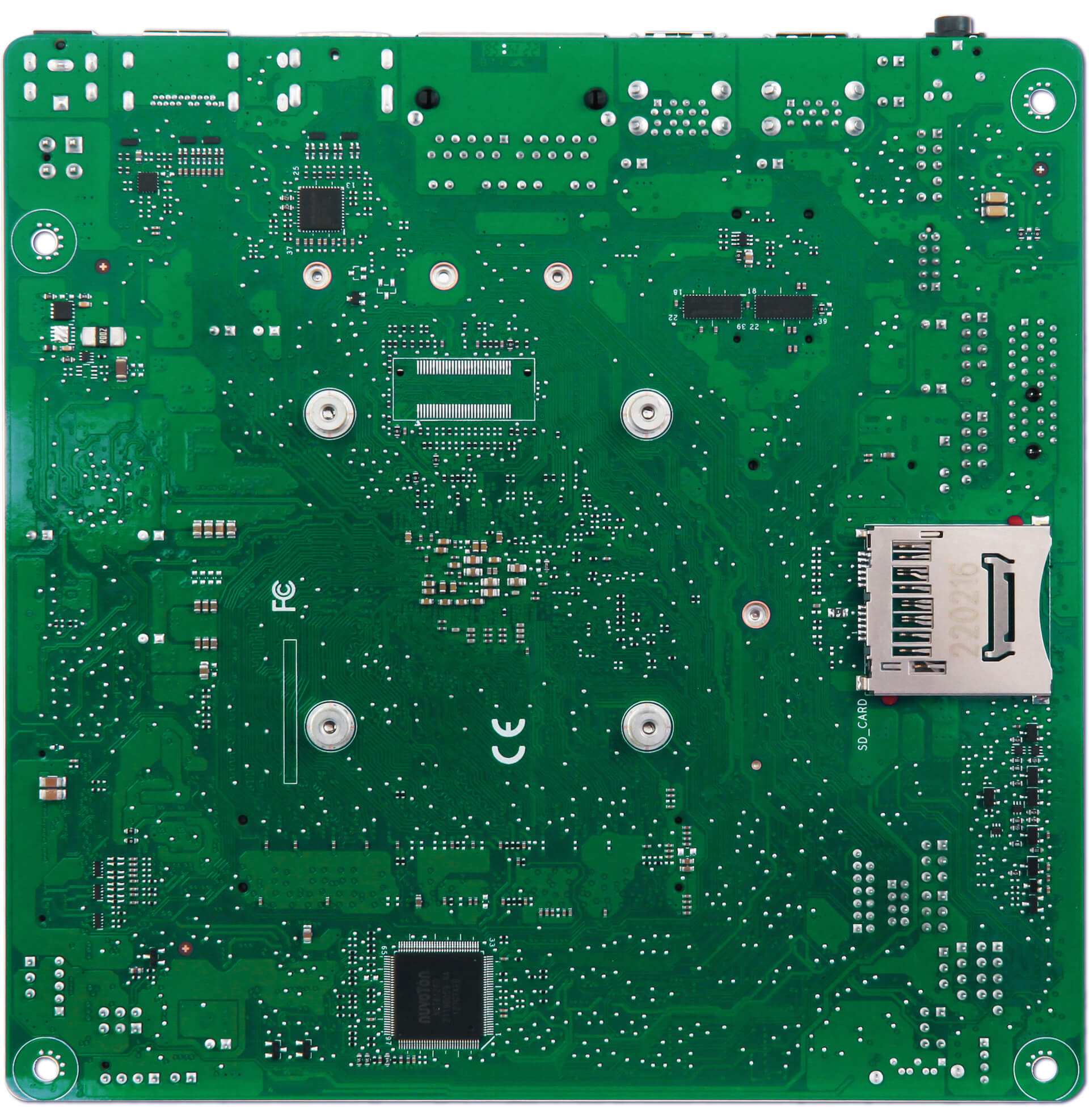

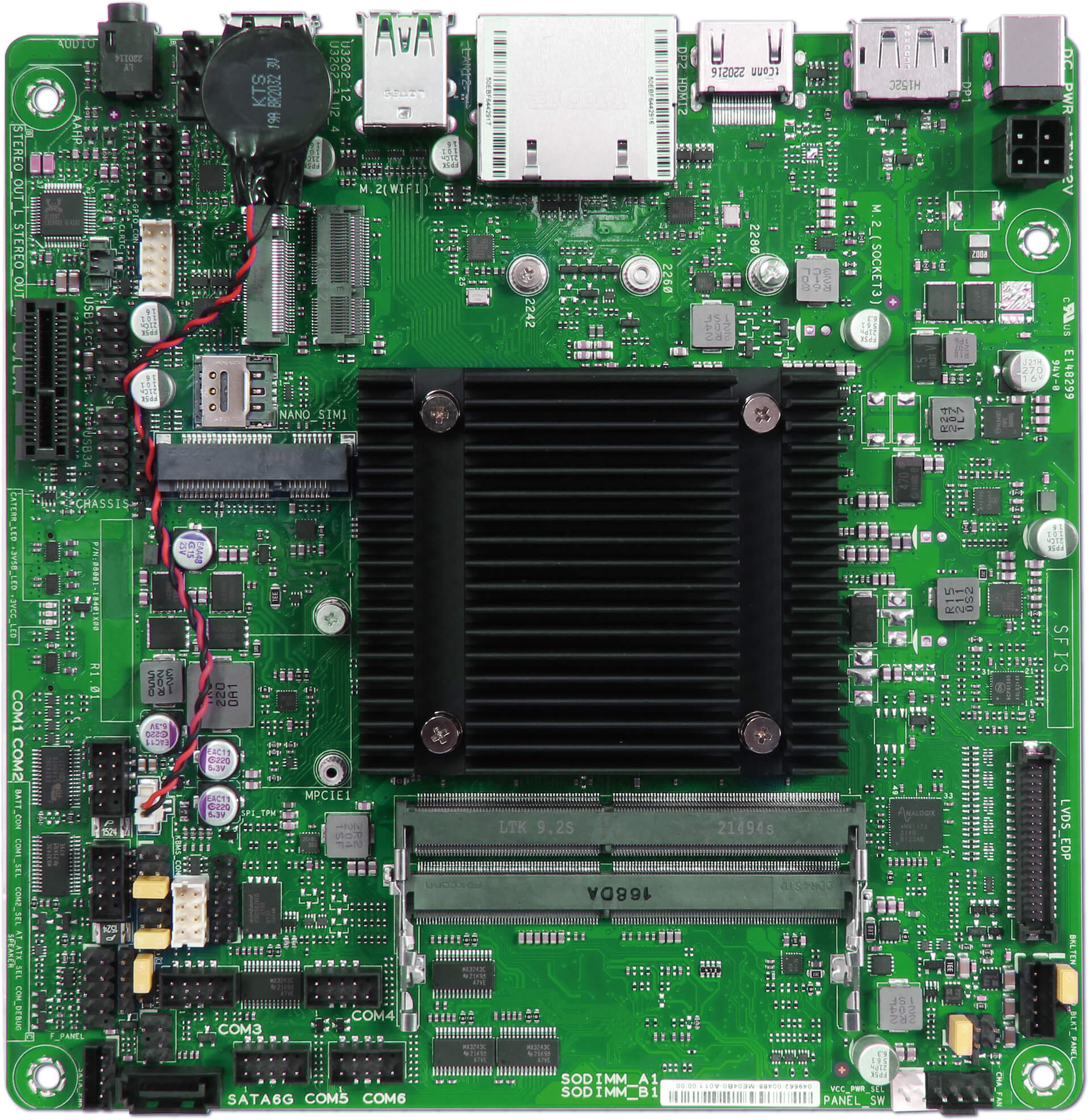

The Portwell WADE-8173-J6412 Mini-ITX embedded board is based on Intel® Elkhart lake Celeron J6412 processor. It is with dual channel DDR4 SO-DIMM max 32GB memory and rich I/O sets, it empowers energy efficient solutions for point-of-sale (POS) and industrial automation applications.
Specification
|
MODEL |
WADE-8173-J6412 |
|
Form Factor |
Mini-ITX |
|
CPU |
Intel® Elkhart-Lake Celeron® J6412 SoC, 2.00GHz (up to 2.6GHz) |
|
Chipset |
NA |
|
BIOS |
AMI uEFI BIOS |
|
Memory |
2-DDR4 3200 MHz SO-DIMM up to 32GB |
|
Expansion |
1- PCIe x1 Gen 3 1- M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless 1- full/half size Mini PCIe socket with PCIe x1(with SIM holder) |
|
Display |
Integrated Intel® UHD Graphics DirectX 12, OpenGL 4.5, OpenCL 1.2
Support Triple Display
HDMI, DP, LVDS/eDP
OR
2-DP, LVDS/eDP |
|
Audio |
Realtek® ALC897
1-Jack support Line-out /Line-in |
|
LAN |
Realtek® RTL8111H
2- GbE |
|
Serial Port |
5- RS232 1x RS232/422/485 on Pin header |
|
USB |
3-USB 3.2 (Gen2) 5-USB 2.0 |
|
Storage Device |
1-SATAIII 1- Full size SD card slot 1- M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD |
|
GPIO |
8-bit GPIO |
|
Watchdog Timer |
Programmable watchdog timer |
|
Dimension |
170mm(L) x 170mm(W) |
| Ordering Guide | |
|---|---|
|
AB1-3P5 |
(R).WADE-8173-J6412 Mini-ITX ESB.Intel Elkhart lake SoC Processor J6412 w/DDR4/DP/LVDS/HDMI/dual GbE LAN/ SATA |
| Packing List |
|---|
|
One WADE-8173-J6412 Main board |
|
Two I/O shield
|
|
Two SATA cable |
|
One SATA power cable |
