WUX-7300U-v

WUX-7300U

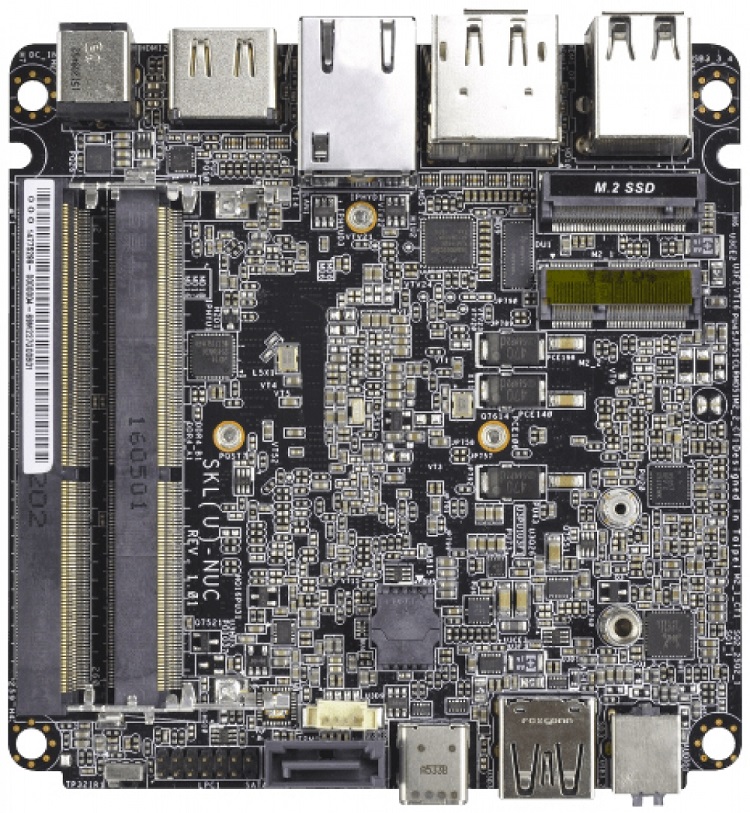

Intel 7th Kaby Lake-U Core-i5 processor based 4×4-inch mini PC board (Intel NUC board form factor

Features :

Introduction

The WUX-7300 of 4×4-inch mini PC board (Intel® NUC board form factor) is designed with Intel Kaby Lake Core-i processor i5-7300U/i3-7100U and features DDR4 up to 32GB, Gigabit Ethernet, M.2 expansion interface, and support for wide input voltage range from 12V to 19V. The WUX-7X00 4×4-inch mini PC board series can be an ideal building block for designing ultra-compact embedded computing systems with configurability for an extensive array of applications like: medical, industrial automation, IoT application, digital signage, retail, etc.

Specification

CPU
Intel® Core™ i5-7300U Processor (2 x 2.60 GHz / 3.50 GHz, 3 MB SmartCache, 15 W)
Format
NUC
Chipset
SoC (System-On-Chip)
DRAM
Up to 32GB DDR4 2133 MHz SDRAM on two 204, pin SODIMM socket
Storage
1x SATA III port 1x M.2 Key M for SSD
USB
3x USB 3.0 ports on REAR I/O 1x USB 3.0 Type-C port on REAR I/O
Expansion
1x M.2 socket (Key E) support WiFi, BT, 3G & 4G
Network
1x Intel® I219LM LAN controller W/ RJ45 connector on REAR I/O
Firmware
AMI UEFI BIOS
Audio
High Definition Audio integrated in Intel SoC Realtek ALC233 HDA codec Audio jack with Line-out or Mic -in function on REAR I/O
Display Interface
HDMI(1.4b) Two HDMI port on board connector, resolution up to 4096x2304 DP(1.2) on board connector, resolution up to 4096x2160
Graphic Controller
Intel® HD 620 Graphics supports DirectX 12, OpenGL 4.5
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 80°C
Power Requirement
DC 12 or 19V input
Miscellaneous
Super I/O (Embedded Controller) - NCT5567D Hardware Monitoring - Temperature (CPU & System) Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V)
Dimensions
101.6 x 101.6 mm
MTBF
over 100,000 hours at 40oC
Ordering Guide
WUX-7300
Intel Core i5-7300U Processor w/ DDR4/USB3.0/Dual HDMI/DP/LAN/Audio
