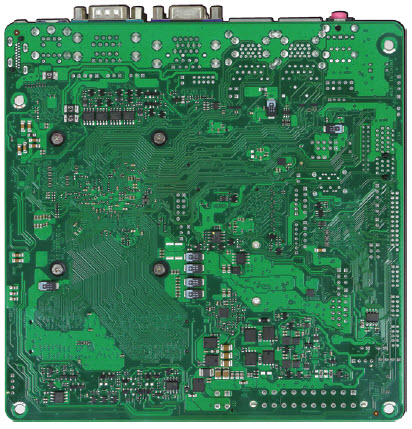

8172_Back

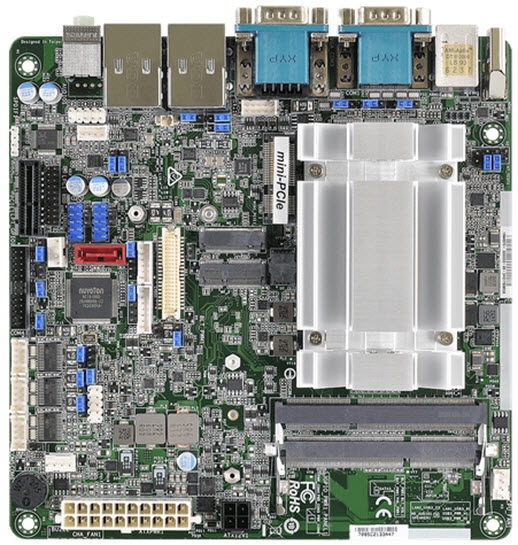

WADE-8172

Intel® Celeron® Processor N3350 Based Industrial Mini-ITX Motherboard with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, Mini PCIe, M.2.

Features :

Description

WADE-8172 is based on Intel® Celeron® processor N3350. With dual-channel DDR3L memory and rich I/O sets, WADE-8172 empowers energy-efficient solutions for point-of-sale (POS) and industrial automation applications.

Specification

MODEL
WADE- 8172
Form Factor
Mini-ITX
CPU
Intel® Celeron® processor N3350 in FCBGA1296 package
Chipset
N/A
BIOS
AMI UEFI
Memory
upto 8 GB DDR3L 1600/1333 MHz memory (non-ECC) on 2x 204-pin SO-DIMM socket
Expansion
1x PCIe x1 slot
1x M.2 socket
1x full/half size Mini PCIe socket with PCIe
x1 and USB(shared)
Display
LVDS/HDMI/VGA
Audio
Realtek ALC887 HDA codec
LAN
2x GbE
Serial Port
2x RS-232/422/485
4x RS-232
USB
4x USB3.0
4x USB2.0
Storage Device
1x SATA III 1x M.2 socket
GPIO
8 bit
Others
N/A
Dimension
170 x 170mm
Ordering Guide
AB1-3F78
(R).WADE-8172-N3350 Mini-ITX ESB.Intel® Apollo lake SoC Processor N3350 w/DDR3L/ VGA/LVDS/HDMI/dual GbE LAN/SATA
Packing List
One Driver CD
One I/O shield
One SATA cable
One WADE-8172 motherboard
