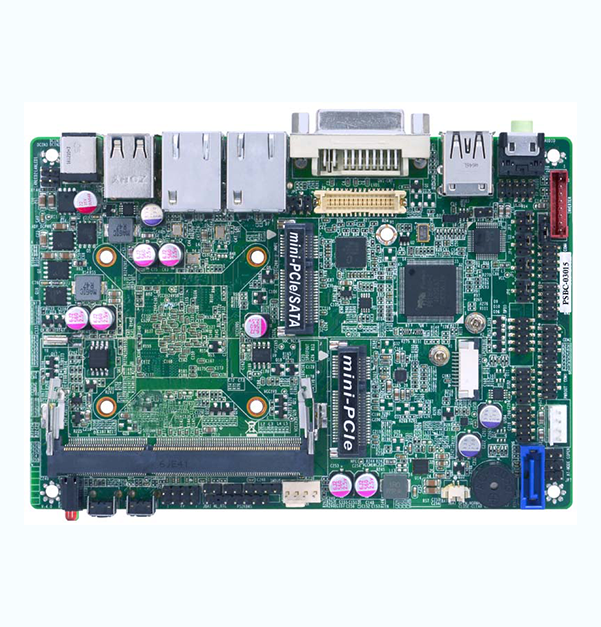

PSBC-03015
Industrial 3.5″ SBC with Intel® Bay trial SoC processor, DDR3L up to 4GB / 8GB, Dual LAN, DVI-I output, SATA 2.0, 8-USB, 4-Serial, 1-Audio 9~24V DC-In
Features :
- Intel ® Bay Trail Series SoC N2930/ N2807 Processor
- Support 1-DDR 3L 1333/1066M Hz Single /Dual CH up to 4 GB /8GB
- Supports Dual displays with LVDS and DVI-I
- Support 1 - Serial ATA II (3Gb/s) Device
- Supports 4-COM ports, 8-USB, 1-Line-out, 2-LAN
Description
PSBC-03015 build with Intel® Bay Trail Series SoC Processor. Featuring the integrated Gigabit Ethernet controller offers two 10/100/1000Base-TX Ethernet device for network transmission. It also offers Mini-PCIe(shared with mSATA). And provides eight USB ports and Four COM ports. The PSBC-03015 offers one DVI and one LVDS. because of above features, PSBC-03015 suitable for Panel PC, IoT Solution and other applications
Specification
|
MODEL |
PSBC-03015 |
|
Form Factor |
3.5″ Embedded |
|
CPU |
Intel® Bay Trail Series SoC Processor Default: N2930* |
|
Chipset |
N/A |
|
BIOS |
AMI Flash ROM BIOS |
|
Memory |
1-Single/Dual Channel SO-DIMM DDR3L 1333MHz SDRAM up to 4GB/8GB |
|
Expansion |
1-mSATA (shared with mPCIe)
1-Full size (shared with mSATA) + 1-Half size |
|
Display |
DVI-I and LVDS |
|
Audio |
Realtek ALC888S HD Audio CODEC |
|
LAN |
2x GbE |
|
Serial Port |
4 (3-RS232 + 1-RS232/422/485 with 5V/12V selectable header) |
|
USB |
7-USB 2.0
1-USB 3.0 |
|
Storage Devices |
1-SATAII (3.0Gb/s) |
|
GPIO |
4-in / 4-out |
|
AT/ATX |
Supported |
|
Dimensions |
148 x 102 mm |
| Ordering Guide | |
|---|---|
|
PSBC-03015-1 |
3.5” SBC with Intel® N2930, 4 Core, up to 8GB RAM, 2-LAN, 8-USB, 1-DVI, 4-Serial, 1-SATA, 1-LVDS, 8-GPIO, 9~24V DC-in,
-20°C ~ 70°C |
|
PSBC-03015-2 |
3.5” SBC with Intel® N2807, 2 Core, up to 4GB RAM, 2-LAN, 8-USB, 1-DVI, 4-Serial, 1-SATA, 1-LVDS, 8-GPIO, 9~24V DC-in,
-20°C ~ 70°C |
| Packing List |
|---|
|
PSBC-03015 board |
