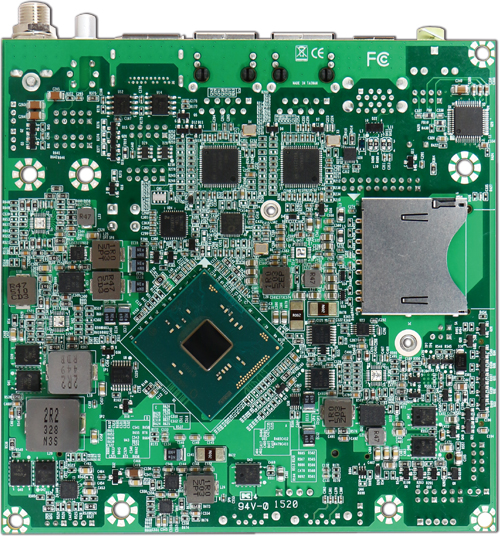

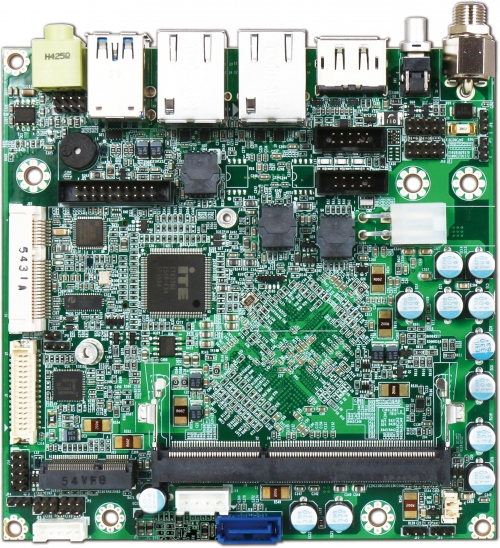

NANO-6061
Nano-ITX board with Intel® Braswell Pentium®/Celeron® Dual/Quad Core N3000 series SoC, Triple Displays, GbE LAN, USB 3.0, M.2, SD,SATA III, and mSATA
Features :
- Intel® Pentium®/Celeron® Dual/Quad Core N3000 series SoC based platform
- Supports one DDR3L 1600/1333 SODIMM up to 8GB
- Supports Triple display by VGA, DP, and dual channel 24 bit LVDS
- Supports One M.2 socket, SATA III port, and mSATA socket
- Supports One SD socket
- Supports DC 12V input
Description
NANO-6061 build with Intel® Celeron® and Pentium® processor N3000 series that not only is it suitable for under 6W fan-less application but also powerful graphic display demand. With its superior up to Quad core processing power and high capability, the new architecture integrates more powerful 3D graphics engine and memory controller making it suitable for critical environments.
Specification
|
MODEL |
NANO-6061 |
|
Form Factor |
NANO-ITX |
|
CPU |
Intel® Pentium®/Celeron® N3000 Family Intel |
|
Chipset |
N/A |
|
BIOS |
Phoenix UEFI |
|
Memory |
1x DDR3L SO-DIMM up to 8GB |
|
Expansion |
1x M.2 socket (E key) |
|
Display |
VGA/LVDS/DP |
|
Audio |
Realtek ALC892 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
1x RS-232/422/485 |
|
USB |
1x USB 2.0 2x USB 3.0 |
|
Storage Device |
1x SATA III 1x mSATA 1x SD socket |
|
GPIO |
8 bit |
|
Dimension |
120 x 120 mm |
|
Ordering Guide |
|
|
AB1-3D89 |
(R).NANO-6061-N3710.
Nano-ITX ESB. Intel® Pentium® Quad Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA III |
|
AB1-3D88 |
(R).NANO-6061-N3160.
Nano-ITX ESB. Intel® Celeron® Quad Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA III |
|
AB1-3D88 |
(R).NANO-6061-N3060.
Nano-ITX ESB. Intel® Celeron® Dual Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA |
|
Packing List |
|
|
One NANO-6061 NANO-ITX Main Board |
|
|
One Passive Heat Spreader |
|
|
One Installation CD |
|
