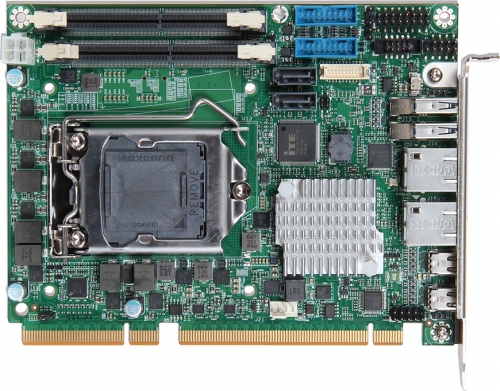

ROBO-6912VG2AR

PICMG Half Size SBC - ROBO-6911VG2AR

Intel® Xeon® E3/Core™ i3/i5/i7/ Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB

Features :

Description

PICMG Half Size SBC ROBO-6911VG2AR is based on Intel® C236/ Q170 chipset to support both Intel® Xeon® and Core™ i3 processors. Built with flexible PCI express expansions, ROBO-6911VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

MODEL
ROBO-6911VG2AR
Form Factor
PICMG1.3
CPU
Intel® Xeon® E3/ Core™ i3/ i5/i7/Pentium®/Celeron®
Chipset
Intel® C236
BIOS
AMI UEFI
Memory
2 x DDR4 ECC DIMM up to 32GB
Expansion
4x PCI slots
1x PCIe x16 slot or
2x PCIe x8 slot or
1x PCIe x8 + 2x PCIe x4 slots
1x PCIe x4 slot
Display
VGA/DVI-D/HDMI
Audio
Realtek ALC886 HDA codec
LAN
2x GbE
Serial Port
2x RS-232
2x RS-232/422/485
USB
10x USB 3.0 2x USB 2.0
Storage Devices
6x SATA III
GPIO
8 bit
Others
PS/2 KB & MS
Dimension
338.5×126.39mm
Ordering Guide
AB1-3D38
(R).ROBO-6912VG2AR
PICMG 1.3 half size (PCI-E) .LGA1151. Intel® Xeon®/Core™ i3 processors.SHB.w/ DP/DVI-I/Dual GbE/Audio/mSATA
AB1-3G66
(R).ROBO-6911VG2AR-KBL
PICMG 1.3 half size (PCI-E) .LGA1151. Intel® Xeon®/Core™ i3 processors.SHB.w/ DP/DVI-I/Dual GbE/Audio/mSATA
Packing List
Standard
B8983660 Installation CD
B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
Optional
B6902230 USB port cable with bracket
B6903090 USB 3.0 cable with bracket
