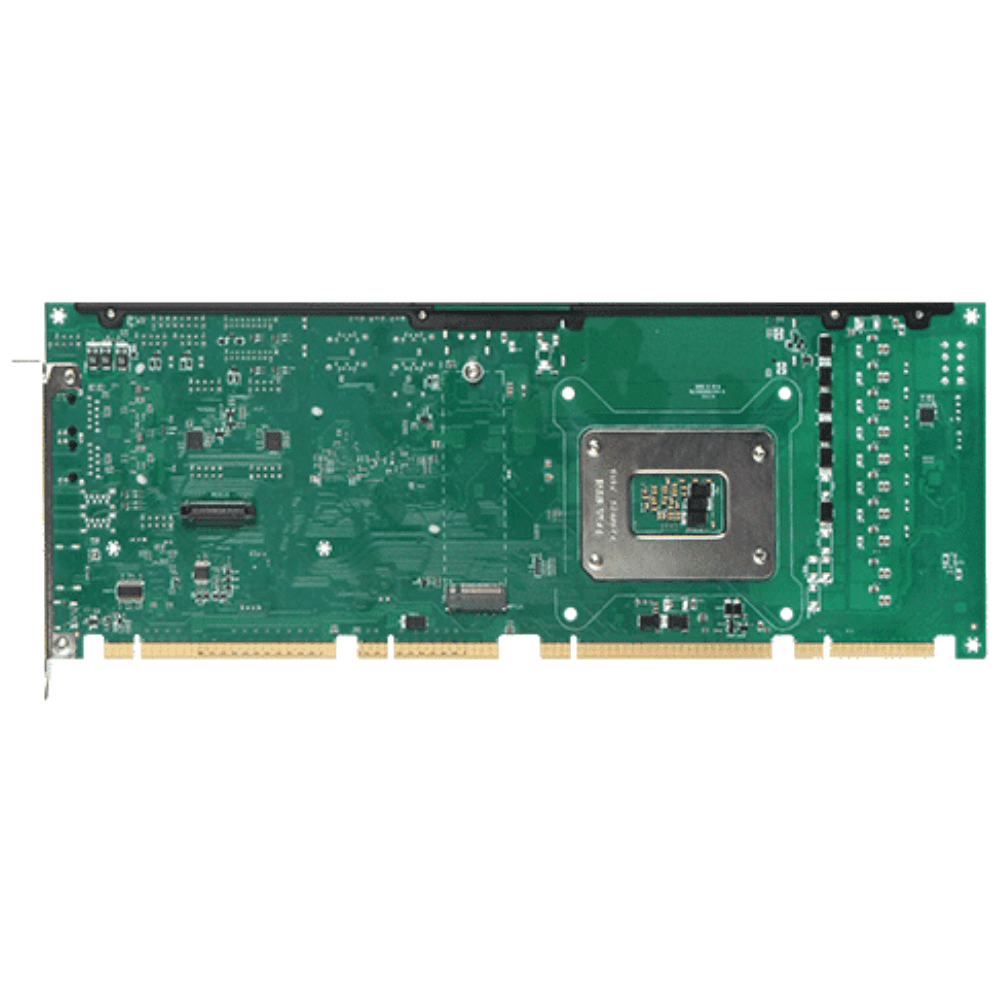

ROBO-8117G2AR
Intel® Core™ Processor Series 2 and 12th/13th/14th Generation chipset 600 series with processor based on PICMG 1.3 SHB with DDR5 SDRAM, HDMI®, DVI-D, DP, Dual 2.5Gigabit Ethernet, Audio and USB
Features :
- Supports Intel® Core™ Processors (Series 2), Intel® Core™ Processors (Series 2) with P-cores and 12th/13th/14th Generation Core processors family in LGA 1700 package
- Delivers up to 64GB maximum DDR5 4800 Non-ECC SO-DIMM on two sockets
-
Supports mutiple display by DVI-D, DP and HDMI®
High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
Support one UBS 3.2 Gen2x2 and two USB 3.2 Gen2 on REAR I/O
Support on board TPM2.0
ROBO-8116G2AR-Q670E-R is based on Intel® 600 series chipset and workstation processors.
Built with flexible PCI express expansions, ROBO-8116G2AR-Q670E is suitable for Medical, Industrial automation, and Digital Signage application.
| Model | ROBO-8116G2AR-Q670E-R |
|---|---|
| Form Factor | PICMG 1.3 Full-Size |
| General | ||
|---|---|---|
| Processor |
| |
| Chipset | Intel® Q670E | |
| BIOS | AMI UEFI BIOS | |
| Memory | Supports up to 64GB DDR5 4800 MT/s on 2 × Non-ECC SO-DIMM Slots | |
| Storage |
| |
| Watchdog Timer | Programmable Watchdog Timer, Timeout Period from 0.5 Seconds to 254.5 Seconds | |
| Graphic Controller | Intel® Graphics, DirectX 12.0 and OpenGL 4.5 Support | |
| Rear I/O | ||
|---|---|---|
| Ethernet | 2 × Intel® I226LM 2.5GbE LAN Supports 10/100/1000/2500 Mbps | |
| USB | USB 3.2 Gen2x2 Type-C | 1 × Port on Bracket |
| USB 3.2 Gen2 Type-A | 2 × Ports on Bracket | |
| Display | DisplayPort 1.2 | 4096 × 2160 @ 60Hz |
| DVI-I | 1920 × 1200 @ 60Hz | |
| HDMI® 2.0 | 4096 × 2160 @ 30Hz | |
| Expansion I/O | ||
|---|---|---|
| PCIe | PCIe Gen5 x16 | 1 × PCIe Gen5 x16 (x16 Mode / 2 × x8 Mode) |
| PCIe Gen4 x4 | 1 × PCIe Gen4 x4 (x4 Mode / 4 × x1 Mode) | |
| Backplane PCIe Gen4 | 2 × PCIe Gen4 x4 via B2B Card Connection with Backplane | |
| Backplane PCIe Gen3 | 1 × PCIe Gen3 x4 via B2B Card Connection with Backplane | |
| PCI | 4 × PCI 33MHz | |
| Audio | 1 × Pin Header supporting Line-In, Line-Out, and Mic-In with Realtek ALC888S Audio Codec | |
| Serial Port | RS-232 | 2 × Pin Header Support |
| RS-232/422/485 | 2 × Pin Header Support | |
| USB | USB 3.2 Gen1 | 2 × Ports Through 1 Pin Header |
| USB 2.0 Header | 4 × USB 2.0 via Pin Header | |
| USB 2.0 Backplane | 4 × USB 2.0 via Backplane | |
| M.2 | 1 × M.2 M-Key 2280 Slot, Supports SATA and PCIe x4 (Bottom Side) | |
| Security | TPM 2.0 (On-Board IC) | |
| GPIO | 1 × 8-bit Digital I/O | |
| Mechanical & Environment | |
|---|---|
| Dimension | 339 × 126 mm (13.33″ × 4.98″) |
| Power Supply | Supports AT Mode / ATX Mode |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Relative Humidity | 5% to 95%, Non-Condensing |
| Certification | CE / FCC Class A |
| Operating System |
|
Ordering Guide
| Ordering Guide | |||
|---|---|---|---|
| Category | Product | P/N | Description |
| PICMG 1.3 Full-Size | ROBO-8116G2AR-Q670E-R | AB1-3S33 | Intel® Q670E PICMG 1.3 Single Host Board with LGA1700 Socket, supporting Intel® Core™ i3/i5/i7/i9 Processors (Raptor Lake-S Refresh), featuring DisplayPort, HDMI®, DVI, Dual GbE LAN, Audio, and Four COM Ports. |
| Packing List | |
|---|---|
| Standard | B6902932 – SATA III Cable |
| B8981980 – PICMG SBC Handling and Installation Guide | |
| B6902352 – DB9 × 2 to HSG (5 × 2) × 2 Cable, Length: 300mm, with Bracket for Ruby-9717 / Ruby-9718 (Chuan Yang CY-8A08006R) | |
| Optional |
|
