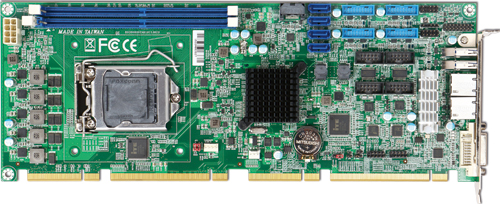

ROBO-8113VG2AR

PICMG SBC - ROBO-8113VG2AR

Intel® Xeon® E3/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

Features :

Description

PICMG SBC ROBO-8113VG2AR is based on Intel® C236 chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8113VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

MODEL
ROBO-8113VG2AR
Form Factor
PICMG1.3
CPU
Intel® Xeon® E3/ Core™ i3/i5/i7/Pentium®/ Celeron®
Chipset
Intel® C236
BIOS
AMI UEFI
Memory
2 x DDR4 ECC DIMM up to 32GB
Expansion
4x PCI slots
1x PCIe x16 slot or
2x PCIe x8 slot or 1x PCIe x8 + 2x PCIe x4 slots
1x PCIe x4 slot
Display
VGA / DVI-D / HDMI
Audio
Realtek ALC886 HDA codec
LAN
2x GbE
Serial Port
2x RS-232 2x RS-232/422/485
USB
10x USB 3.0 2x USB 2.0
Storage Devices
6x SATA III
GPIO
8 bit
Others
PS/2 KB & MS
Dimension
338.5×126.39mm
Ordering Guide
AB1-3D41
(R).ROBO-8113VG2AR ,
PICMG 1.3(PCI-E+PCI).LGA1151. Intel® Xeon®/CoreTM i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports
AB1-3G67
(R).ROBO-8113VG2AR-KBL PICMG 1.3(PCI-E+PCI).LGA1151. Intel®Xeon®/CoreTM i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports
Packing List
Standard
B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B6903351 DVI-D + VGA cable
B6902352 dual head COM port cable with bracket
B8983660 Installation CD
Optional
B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket
B6903090 USB 3.0 cable with bracket
