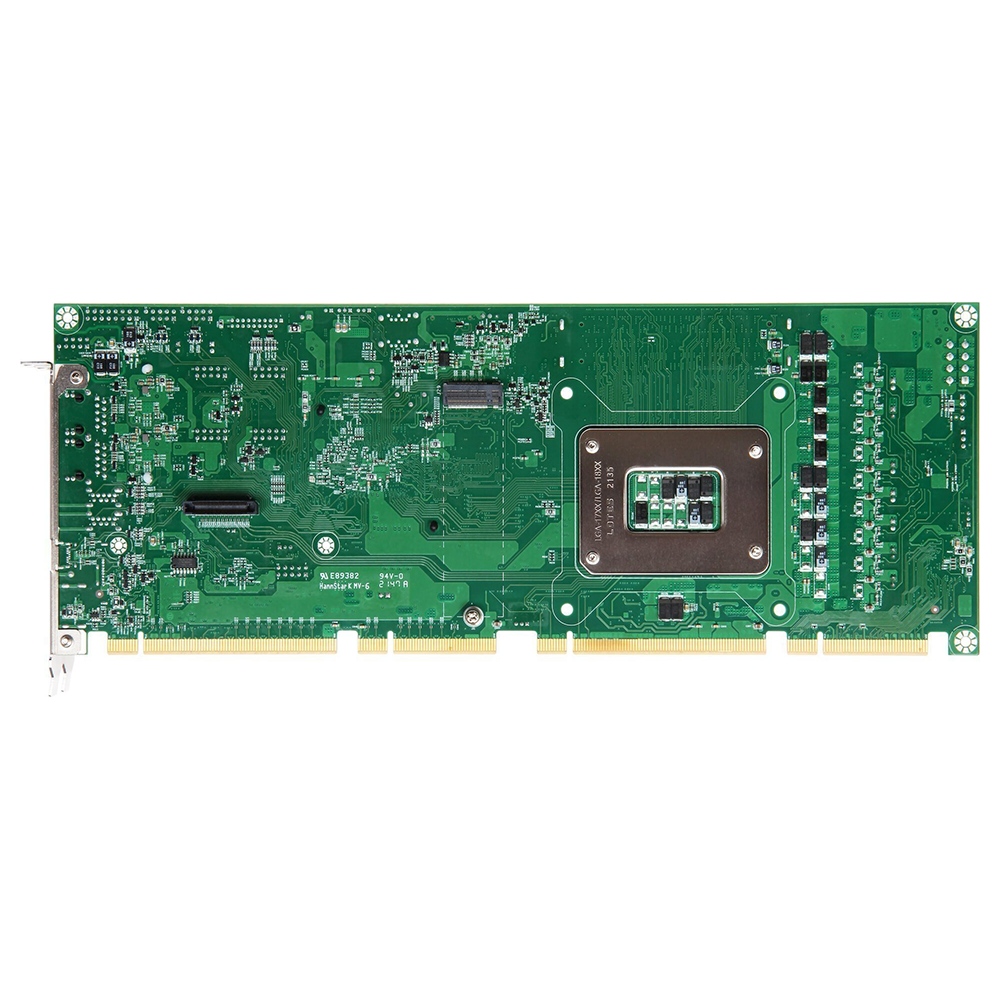

PICMG 1.3 SBC - ROBO-8116G2AR​
Intel® R680E / Q670E chipset based, Xeon® W/ Core i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB
Features :
- Supports Intel® 12th Generation Core processors Family in LGA 1700 package.
- Supports up to Max. 64GB DDR5 4800 ECC/Non-ECC SODIMM on two sockets
- Supports DVI, DP and HDMI
- Supports High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports, USB3.2(Gen2), SATA III ports
- Support on board TPM2.0
Description
The ROBO-8116G2AR is based on the 12th gen processor, Intel® 600 series chipset and workstation processor. ROBO-8116G2AR is equipped with flexible PCI Express expansion and is suitable for medical, industrial automation, and digital signage applications.
Specification
|
MODEL |
ROBO-8116G2AR |
|
Form Factor |
PICMG1.3 |
|
CPU |
Intel® W/Core™ i3/i5/i7/ i9 /Pentium® /Celeron® processors in LGA 1200 package
|
|
Chipset |
Intel® R680E / Q670E |
|
BIOS |
AMI UEFI |
|
Memory |
2-DDR5 ECC/Non-ECC DIMM up to 64GB |
|
Expansion |
From CPU- 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4)
From PCH- 1x PCIe x4 or 4x PCIe x1 by different bios support |
|
Display |
DVI-D / HDMI / DP |
|
Audio |
Realtek ALC888S HDA codec |
|
LAN |
2- GbE(2.5G) |
|
Serial Port |
2- RS-232 ports
2- RS-232/422/485 |
|
USB |
4- USB 2.0 ports (through backplane)
2- USB 3.2(Gen1) ports on board
2- USB 3.2(Gen2) ports on bracket
1- USB 3.2(Gen2 x2) type-C port on bracket |
|
Storage Devices |
4- SATA III
1-M.2 Type M 2280 |
|
GPIO |
8 bit |
|
Others |
NA |
|
Dimension |
338.5 x 126.39mm |
|
Ordering Guide |
|
|
AB1-3K67Z |
(R).ROBO-8116G2AR
PICMG 1.3(PCI-E+PCI).LGA1700. R680E PCH. Intel 12th gen processors. SHB. w/HDMI/Dual GbE/Audio/four COM ports |
|
AB1-3K68Z |
(R).ROBO-8116G2AR-Q670E
PICMG 1.3(PCI-E+PCI).LGA1700. Q670E PCH. Intel 12th gen processors.SHB. w/HDMI/Dual GbE/Audio/four COM ports |
|
Packing List |
||
|
Standard |
B6902932 SATA III cable |
|
|
B8981980 PICMG SBC Handling and Installation Notice |
||
|
B6903351 (GP).Cable.Video DVI-I to DVID+VGA Y cable L=150mm.0130-069-00-0263. E-CALL |
||
|
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2L=300mm W/Bracket for Ruby-9717/Ruby-9718.CY-8A08006R.CHUAN YANG TBD Installa |
||
|
Optional |
B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket |
|
