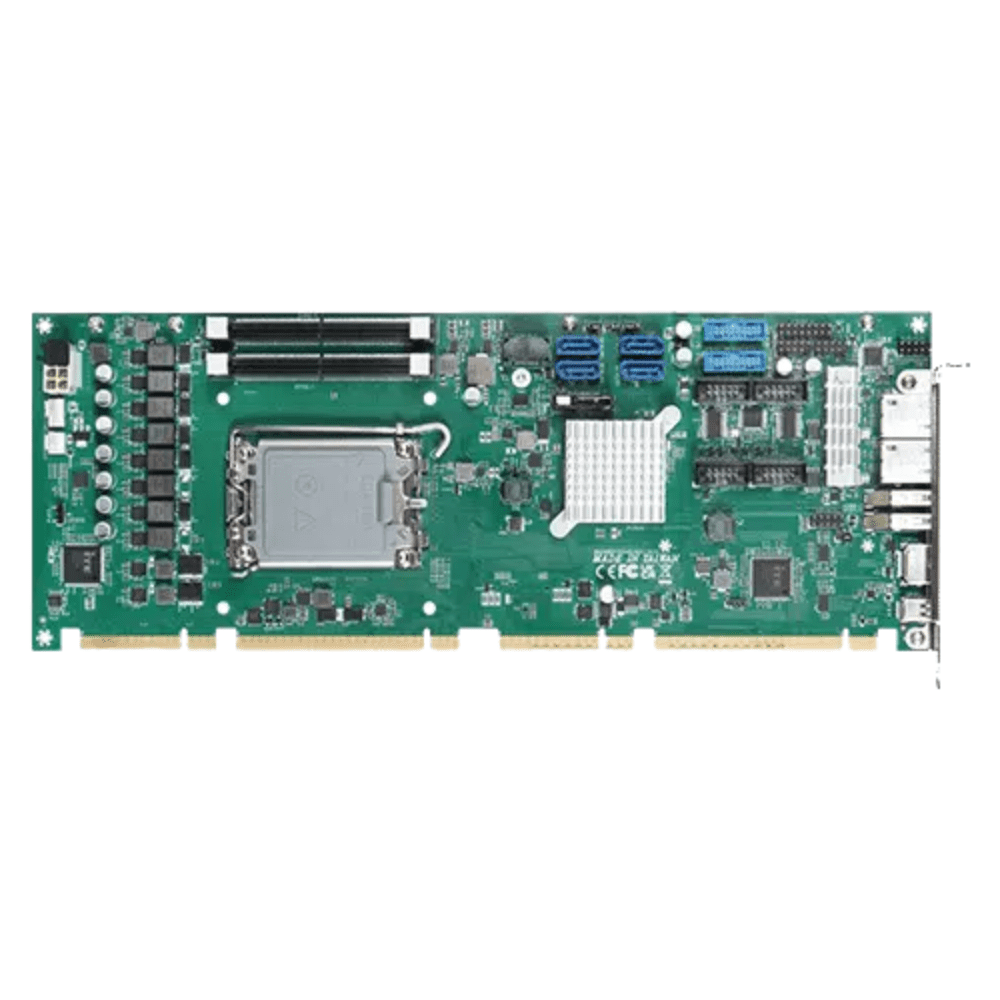

      ROBO-8117G2AR-01

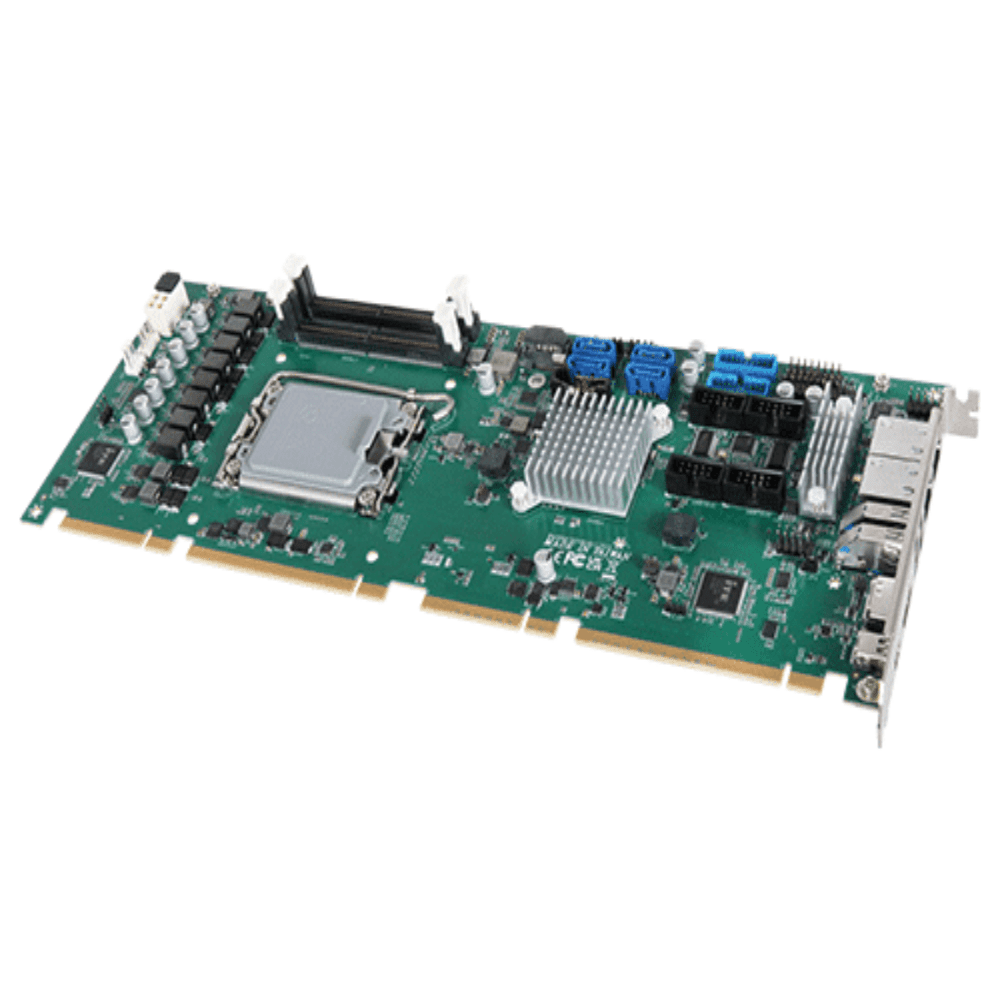

      ROBO-8117_4-002
      ROBO-8117-001

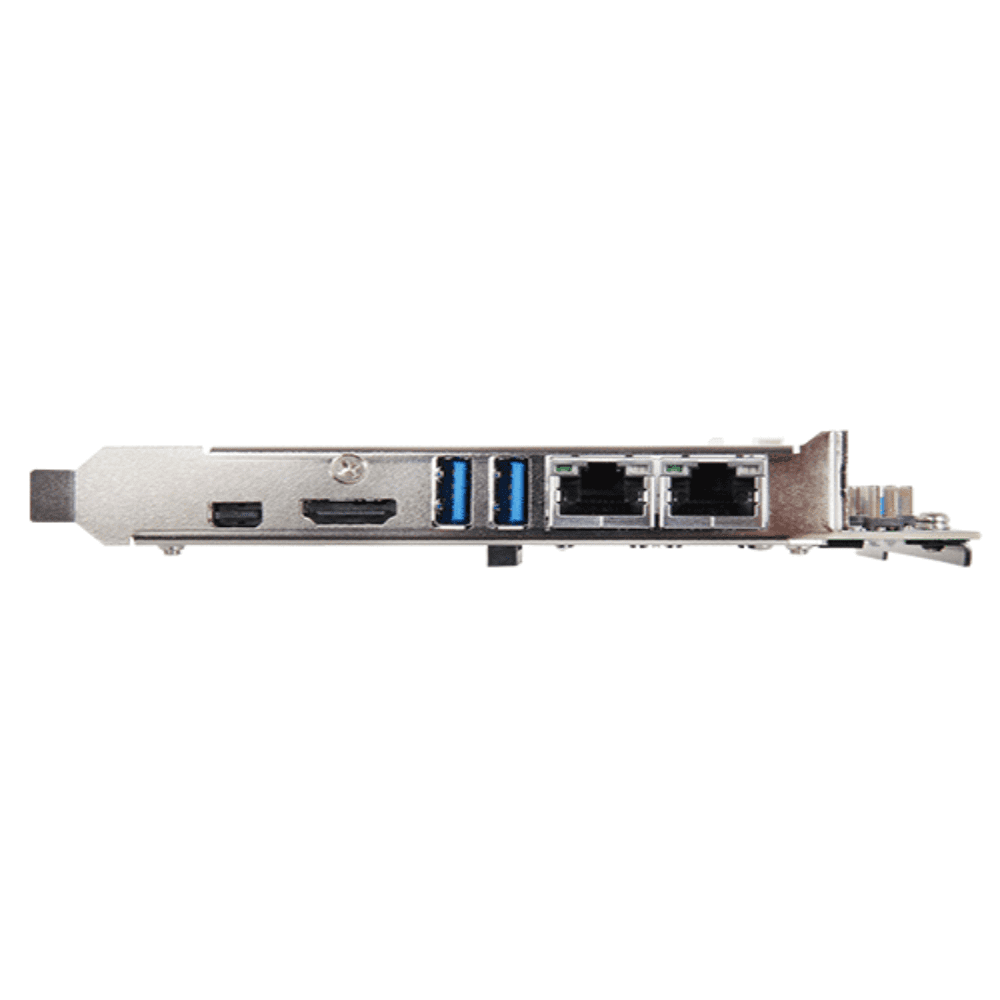

      ROBO-8117G2AR-03

      ROBO-8117G2AR

      Intel® Core™™ Ultra Series Processors and 800 Series Chipset based PICMG 1.3 SBC/SHB with DDR5 SDRAM, HDMI®, MiniDP, Dual 2.5GbE Ethernet, Audio and USB

      Features :

      • Supports Intel® 15th Generation Core processors Family in LGA1851 package
      • Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
      • Supports mutiple display by mini-DP and dual HDMI®
      • High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
      • Support two USB 3.2 Gen2 on REAR I/O
      • Support on board TPM2.0
      Datasheet
      Sales Request

      ROBO-8117G2AR is based on Intel® 800 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8117G2AR is suitable for Medical, Industrial automation, and Digital Signage application.

      General
      Processor
      • Intel® 15th Gen Coreâ„¢ Processors in LGA1851 Package
      • Supports Intel® Turbo Boost Technology
      • Supports Hyper-Threading Technology
      • Supports Intel® Virtualization Technology
      • Supports Thermal Monitoring, Trusted Execution, and SpeedStep Technology (depending on CPU SKU)
      ChipsetIntel® W880
      BIOSAMI UEFI BIOS
      MemoryUp to 96GB DDR5 6400 SDRAM on
      2 × 262-pin SO-DIMM sockets with ECC support
      Storage Devices
      • 6 × SATA III Ports (Dual Ports via Backplane)
      • Supports RAID 0, 1, 5, and 10
      • 1 × M.2 Type-M 2280 Slot (Bottom Side)
      Watchdog TimerProgrammable Watchdog Timer,
      Timeout Period from 0.5 Seconds to 254.5 Seconds
      Hardware MonitoringSystem Monitoring for Voltage, Fan Speed, and Temperature
      Expansion Interface
      • From CPU:
        1 × PCIe x16 (Gen5) or 2 × PCIe x8 (Gen5),
        plus 1 × PCIe x4 (Gen4)
        (Gen5 up to 32 GT/s)
      • From PCH:
        1 × PCIe x4 or 4 × PCIe x1
        (Gen4 up to 16 GT/s),
        plus 4 × PCI devices at 32-bit / 33MHz
      I/O Interface
      Super I/OITE IT5121E-I
      Audio
      • Intel® PCH Built-in High Definition Audio up to 192 kHz / 32-bit
      • Realtek ALC888S HDA Codec
      • 7.1-Channel Audio via On-board Audio Pin Header
      Ethernet
      • Dual Intel® WGI226LM Gigabit Ethernet Controllers
      • Supports 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet
      • PCI Express x1 Interface Based Gigabit Ethernet
      • Dual RJ-45 Connectors with LED Indicators
      Serial Port
      • 2 × RS-232 Ports
      • 2 × RS-232/422/485 Selectable Ports
      • LPC-to-COM Port IC: Fintek F81216E
      USB
      • 4 × USB 2.0 Ports On-board
      • 4 × USB 2.0 Ports Through Backplane
      • 2 × USB 3.2 Gen2 Ports on Bracket
      • 4 × USB 3.2 Gen2 Ports On-board
      Keyboard & MouseTBD
      GPIOOn-board Programmable 8-bit Digital I/O
      Display
      Graphic Controller Integrated Graphics with Intel® Xe LPG Architecture, supporting up to 4 Xe Graphics Engines
      Display Interface
      • Mini DisplayPort (Bracket): Supports Independent Triple Display, Resolution up to 7680 × 4320 @ 60Hz
      • HDMI® (Bracket): Resolution up to 7680 × 4320 @ 60Hz
      • HDMI® (On-board): Resolution up to 7680 × 4320 @ 60Hz
      Mechanical & Environment
      Dimension338.5 mm (L) × 126.39 mm (W) / 13.33″ (L) × 4.98″ (W)
      Power SupplyTypical: +12V, +5V, Supports ATX Mode
      Environment
      • Operating Temperature: 0°C to 60°C
      • Storage Temperature: -20°C to 80°C
      • Relative Humidity: 5% to 95%, Non-Condensing
      CertificationCE, FCC Class A
      MTBFOver 100,000 Hours at 40°C

      Ordering Guide

      Ordering Guide
      Ordering P/N Description
      AB1-3T07 ROBO-8117G2AR
      PICMG 1.3 (PCIe + PCI) Single Host Board, LGA1851 Socket, Intel® W880 PCH, Supports Intel® Core™ Ultra Processors, with Mini DisplayPort, HDMI®, Dual Gigabit Ethernet, Audio, and Four COM Ports.
      Packing List
      Standard
      • B6902932 – SATA III Cable
      • TBD – Installation Guide
      • B6902352 – DB9 × 2 to HSG (5 × 2) × 2 Cable,
        Length: 300mm, with Bracket for Ruby-9717 / Ruby-9718
        (Chuan Yang CY-8A08006R)
      Optional
      • B6903090 – USB 3.0 Cable with Bracket
      • B6902230 – USB Port Cable with Bracket
