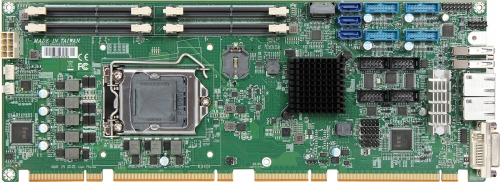

PICMG 1.3 SBC - ROBO-8114VG2AR-Q370
Intel® Core™ i3/i5/i7 Pentium /Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB
Features :
- Supports Intel® Core™ i3/i5/i7/Pentium®/ Celeron® processors in LGA 1151 package
- Delivers up to 128GB maximum DDR4 2133 Non-ECC SO-DIMM on four sockets
- Supports multiple display by DVI-I(DVI-D+VGA)and HDMI
- High speed dual Gigabit Ethernet based on PCIe x press x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
- Support on board TPM2.0
Description
PICMG 1.3 SBC ROBO-8114VG2AR-Q370 is based on Intel® Q370 chipset and desktop processors. Built with flexible PCI express expansions, ROBO- 8114VG2AR-Q370 is suitable for Medical, Industrial automation.
Specification
|
MODEL |
ROBO-8114VG2AR-Q370 |
|
Form Factor |
PICMG1.3 |
|
CPU |
Intel® Core™ i3/i5/i7/i9/ Pentium®/Celeron® |
|
Chipset |
Intel® Q370 |
|
BIOS |
AMI UEFI |
|
Memory |
4 x DDR4 ECC SO-DIMM up to 128GB |
|
Expansion |
4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot |
|
Display |
DVI-I / HDMI |
|
Audio |
Realtek ALC886 HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
2x RS-232 2x RS-232/422/485 |
|
USB |
8x USB3.2 Gen1 2x USB3.2 Gen2 4x USB2.0 |
|
Storage Devices |
5x SATA III 1x M.2 Type M 2280 |
|
GPIO |
8 bit |
|
Others |
PS/2 KB & MS |
|
Dimension |
338.5×126.39mm |
|
Ordering Guide |
|
|
AB1-3J29 |
ROBO-8114VG2AR PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel Core i5/i7 processors.SHB.w/ VGA/Dual GbE/Audio/four COM ports |
|
Packing List |
||
|
Standard |
TBD Installation CD |
|
|
B6902352 dual head COM port cable with bracket |
||
|
B6903351 DVI-D + VGA cable |
||
|
B8981980 PICMG SBC Handling and Installation Notice |
||
|
B6902932 SATA III cable |
||
|
Optional |
B6903090 USB 3.0 cable with bracket |
|
|
B6902980 PS/2 Keyboard / Mouse Cable with bracket |
||
|
B6902230 USB port cable with bracket |
||
