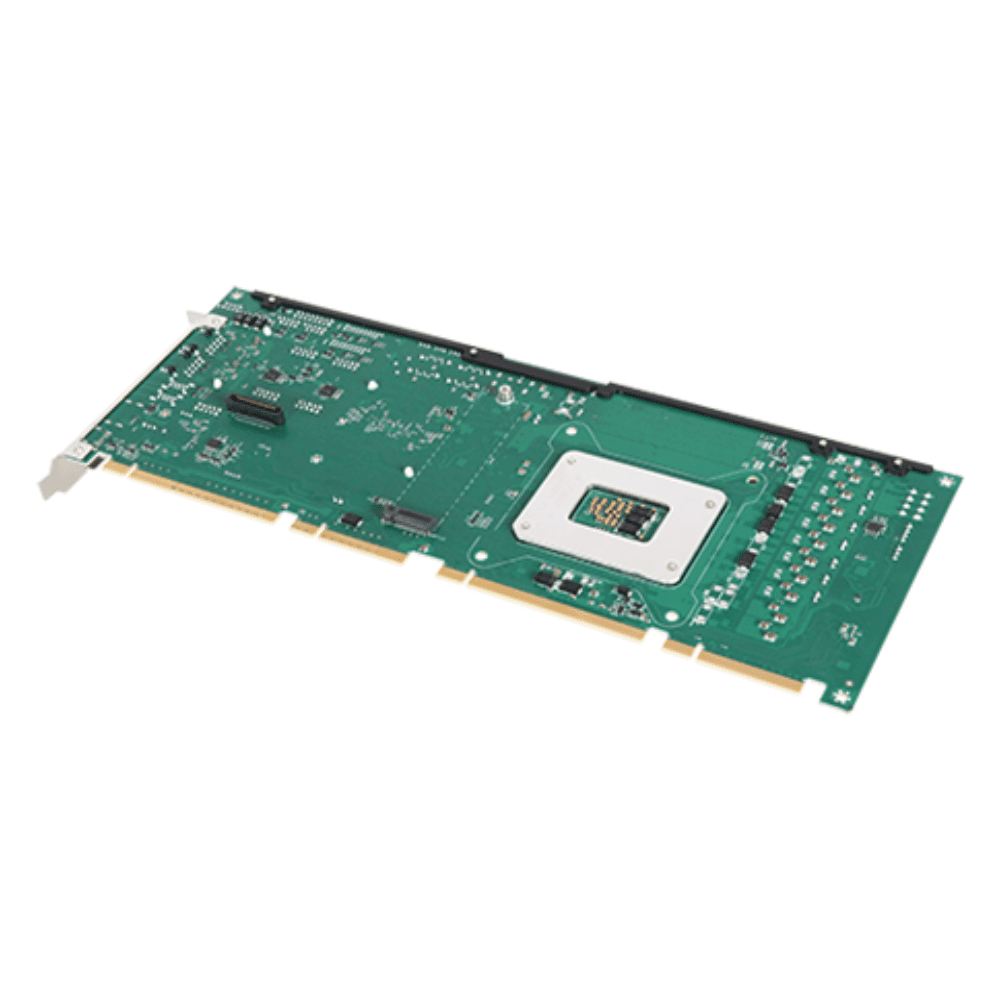

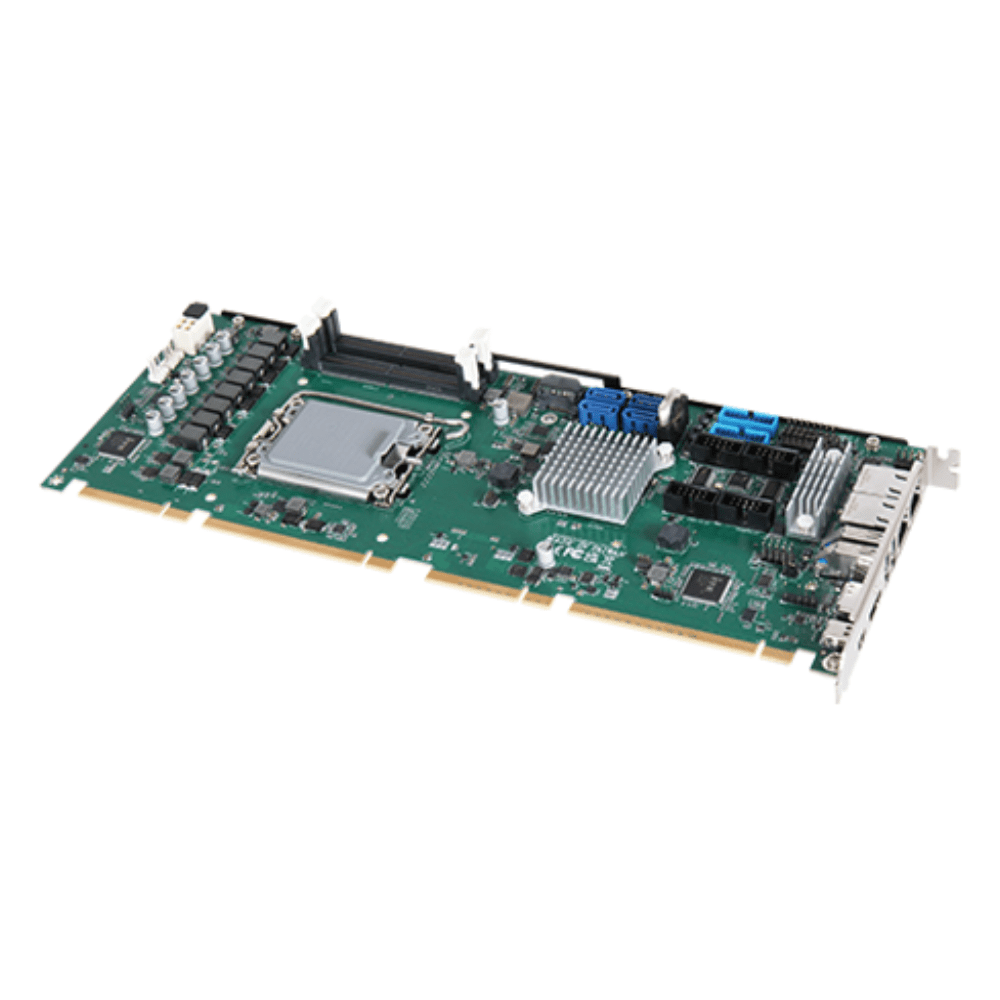

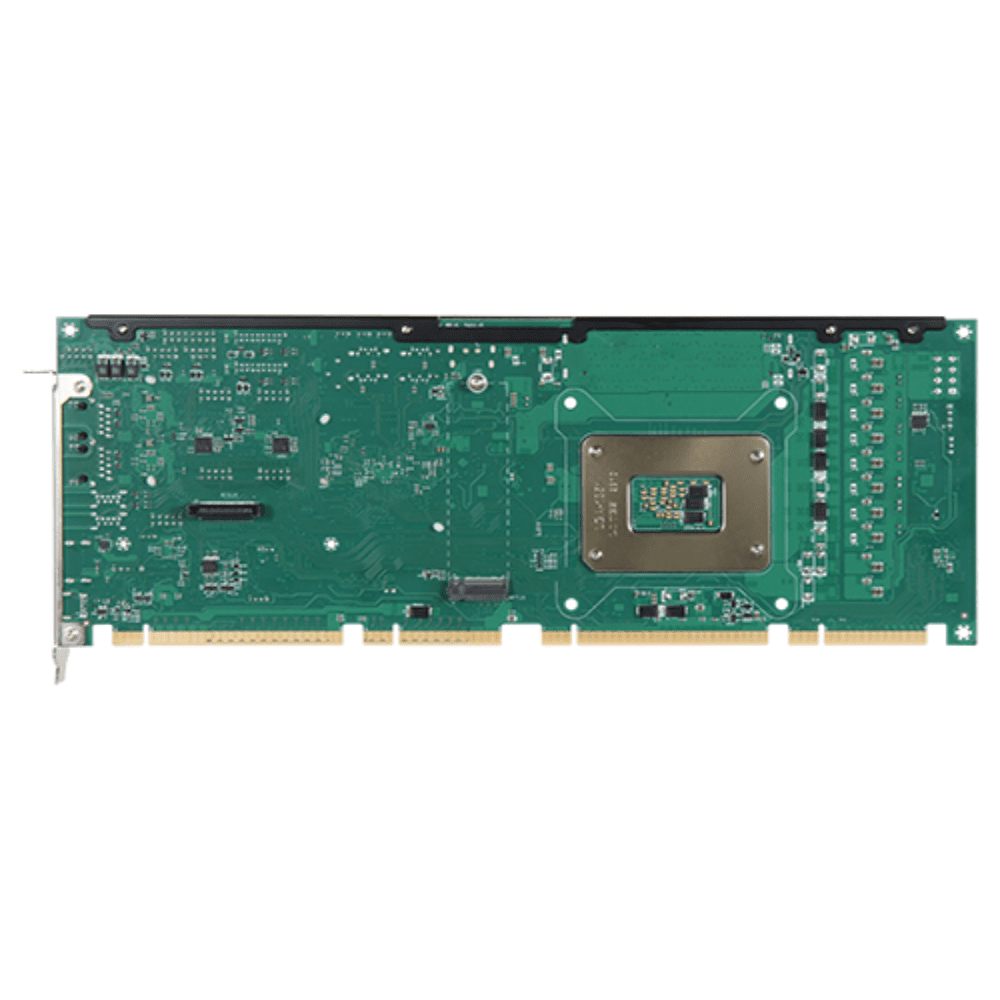

ROBO-8117G2AR-Q870
Intel® Core™ Ultra Series; 2x DDR5 6400 ECC SO-DIMM to 96GB; 2.5GbE; 6x USB 3.2 Gen2; mini-DP, 2x HDMI®
Features :
- Support Intel® Core™ Ultra Series processors in LGA1851 packag
- Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
-
Supports multiple display by mini-DP and dual HDMI®
High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O
interface
Support two USB 3.2 Gen2 on REAR I/O
| General | ||
|---|---|---|
| Processor | Intel® Core™ Ultra Processors (Series 2), LGA 1851 Socket, 65W TDP | |
| Chipset | Intel® Q870 | |
| BIOS | AMI UEFI BIOS | |
| Memory | Up to 96GB DDR5 6400 MT/s, 2 × SO-DIMM Slots | |
| Storage | 6 × SATA Ports with RAID 0, 1, 5, and 10 Support | |
| Watchdog Timer | Programmable, Timeout Period from 1 Second to 255 Seconds | |
| Graphic Controller | Intel® Xe LPG Graphics, OpenGL 4.5 Support | |

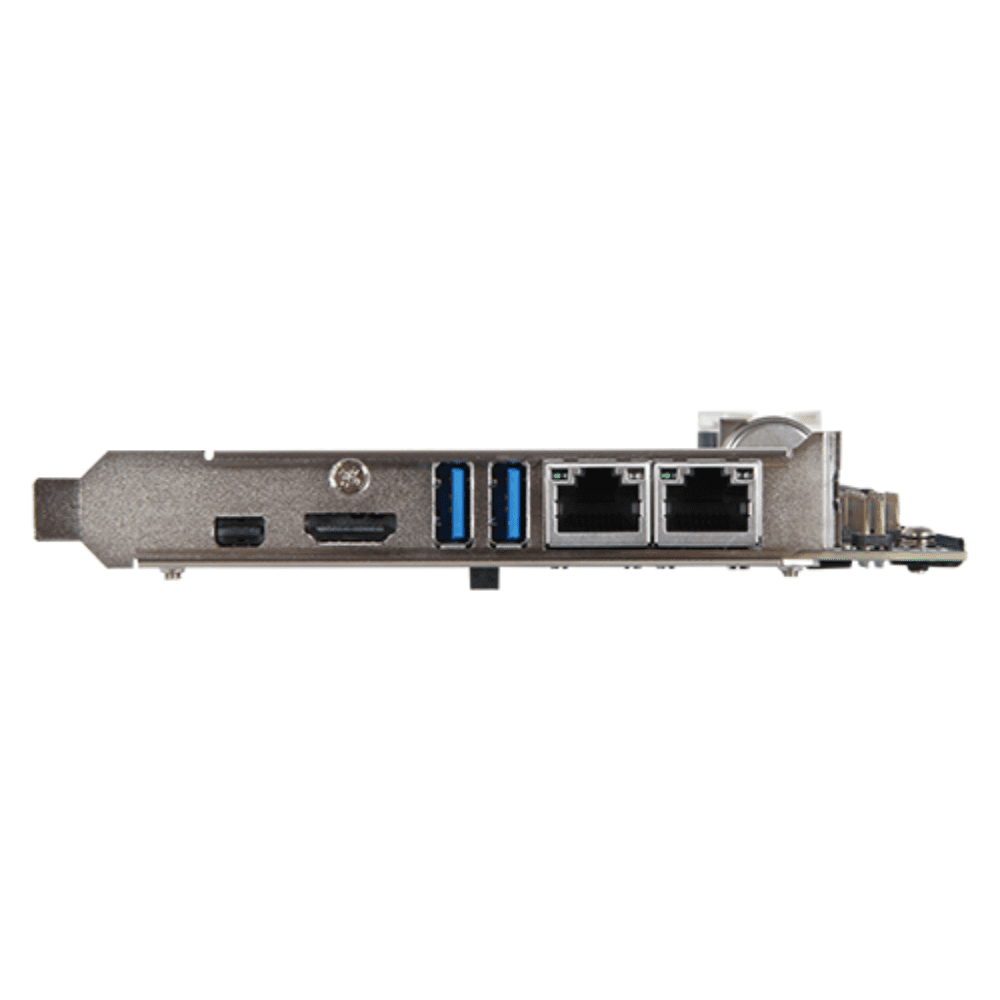

| Rear I/O | ||
|---|---|---|
| Ethernet | 2 × Intel® I226LM 2.5GbE LAN Supports 10/100/1000/2500 Mbps | |
| USB | 2 × USB 3.2 Gen2 Type-A | |
| Display | Mini DisplayPort | 7680 × 4320 @ 60Hz |
| HDMI® 2.1 | 4096 × 2160 @ 60Hz | |
| HDMI® 2.1 | 4096 × 2160 @ 60Hz | |
| Expansion I/O | ||
|---|---|---|
| PCIe | PCIe Gen5 x16 | 1 × PCIe Gen5 x16 (x16 Mode / 2 × x8 Mode) |
| PCIe Gen4 x4 | 1 × PCIe Gen4 x4 | |
| PCIe Gen4 x4 | 1 × PCIe Gen4 x4 | |
| PCI | 4 × PCI 33MHz | |
| Audio | 1 × Pin Header supporting Line-In, Line-Out, and Mic-In with Realtek ALC888 Audio Codec | |
| Serial Port | RS-232 | 2 × Pin Header Support |
| RS-232/422/485 | 2 × Pin Header Support | |
| USB | USB 2.0 | 8 × USB 2.0 Pin Header |
| USB 3.2 Gen2 | 2 × USB 3.2 Gen2 Pin Header | |
| USB 3.2 Gen2 Type-A | 2 × USB 3.2 Gen2 Vertical Type-A | |
| M.2 | 1 × M.2 M-Key 2280 Slot | |
| Security | TPM 2.0 (On-Board IC) | |
| GPIO | 1 × 8-bit Digital I/O | |
| Mechanical & Environment | ||
|---|---|---|
| Dimension | 339 × 126 mm (13.33″ × 4.98″) | |
| Power Supply | 12V DC, AT Mode / ATX Mode | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Relative Humidity | 5% to 95%, Non-Condensing | |
| Certification | CE / FCC / UKCA | |
| Operating System |
| |
| Portwell Special Feature | PET | |
Ordering Guide
| Ordering Guide | |||
|---|---|---|---|
| Category | Product | P/N | Description |
| PICMG 1.3 Full-Size | ROBO-8117G2AR-Q870 | AB1-3T08 | Intel® Q870 PICMG 1.3 Full-Size CPU Card |
