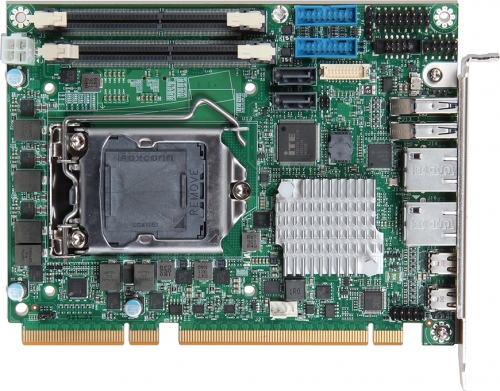

PICMG Half Size SBC-ROBO-6912VG2AR-Q370
Intel® Core™ i3/i5/i7/Pentium® Celeron® processor based on PICMG 1.3 halfsize SHB with DDR4 SO-DIMM, mini DP, DVI-D,Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB
Features :
- Support Intel® 8th Gen Coffee Lake-S processor in LGA1151
- Delivers up tp 32GB maximum DDR4 2400 MT/s non-ECC SO-DIMM on two sockets
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- On-board two SATAIII ports, support RAID 0, 1
Description
PICMG Half Size SBC ROBO-6912VG2AR-Q370 is based on Intel ® Q370 chipset to support Intel ® Core™ i3/i5/i7 processors. Built with flexible PCI express expansions, ROBO-6912VG2AR-Q370 is suitable for Medical, Industrial automation, and Digital Signage application
Specification
|
MODEL |
ROBO-6912VG2AR-Q370 |
|
Form Factor |
PICMG1.3 |
|
CPU |
Intel® Core™ i3/i5/i7/i9/ Pentium®/ Celeron® |
|
Chipset |
Intel® Q370 |
|
BIOS |
AMI UEFI |
|
Memory |
2 x DDR4 ECC SO-DIMM up to 32GB |
|
Expansion |
1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot |
|
Display |
2x mini DP / DVI-D |
|
Audio |
Realtek ALC888S HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
1x RS-232/422/485 |
|
USB |
4x USB3.2 Gen1 2x USB3.2 Gen2 |
|
Storage Devices |
2x SATA III 1x mSATA |
|
GPIO |
8 bit |
|
Others |
N/A |
|
Dimension |
167.64 x 126.39mm |
|
Ordering Guide |
|
|
AB1-3J42Z |
(R).ROBO-6912VG2AR-Q370 PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel Core i5/i7 processors.SHB. w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM |
|
Packing List |
||
|
Standard |
B8983660 Installation CD |
|
|
B8981980 PICMG SBC Handling and Installation Notice |
||
|
B6902932 SATA III cable |
||
|
Optional |
B6902230 USB port cable with bracket |
|
|
B6903090 USB 3.0 cable with bracket |
||
