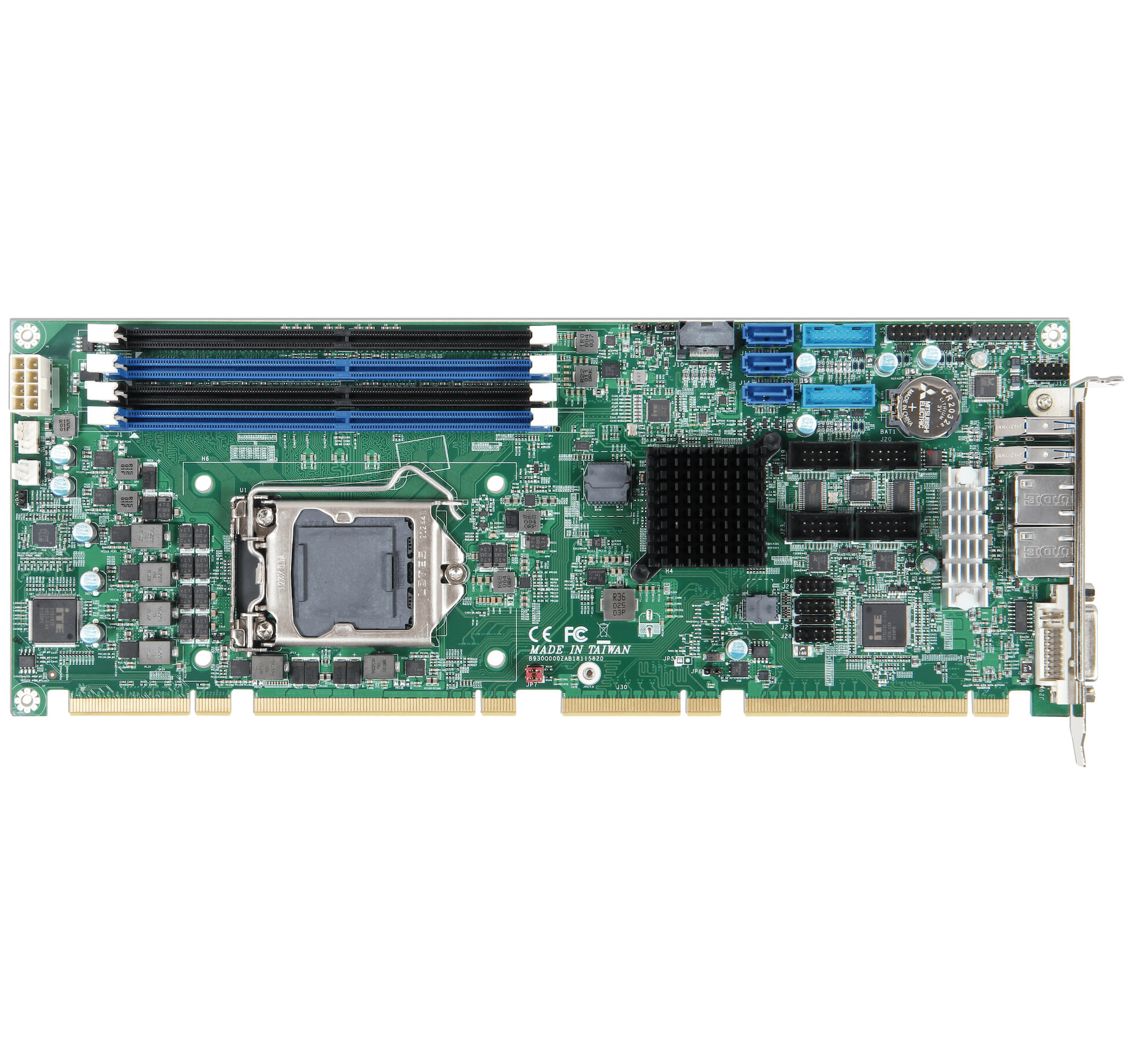

PICMG 1.3 SBC - ROBO-8115VG2AR-Q470E
Intel® Core™ i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB
Features :
- Supports Intel® Core™ i3/i5/i7/i9 /Pentium®/ Celeron® processors in LGA 1200 package
- Delivers up to 128GB maximum DDR4 2666 non-ECC Long-DIMM on four sockets
- Supports multiple display by DVI-I(DVI-D+VGA) and HDMI
- High speed dual Gigabit Ethernet based on PCIe x press x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports,USB3.2(Gen2), SATA III ports
- Support on board TPM2.0
Description
PICMG 1.3 SBC ROBO-8115VG2AR-Q470E is based on Intel® Q470E chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8115VG2AR-Q470E is suitable for Medical, Industrial automation, and Digital Signage application.
Specification
|
MODEL |
ROBO-8115VG2AR-Q470E |
|
Form Factor |
PICMG1.3 |
|
CPU |
Intel® Core™ i3/i5/i7/i9/ Pentium®/Celeron® |
|
Chipset |
Intel® Q470E |
|
BIOS |
AMI UEFI |
|
Memory |
4 x DDR4 ECC SO-DIMM up to 128GB |
|
Expansion |
4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot |
|
Display |
DVI-I / HDMI |
|
Audio |
Realtek ALC888S HDA codec |
|
LAN |
2x GbE |
|
Serial Port |
2x RS-232 2x RS-232/422/485 |
|
USB |
6x USB3.2 Gen2 8x USB2.0 |
|
Storage Devices |
5x SATA III 1x M.2 Type M 2280 |
|
GPIO |
8 bit |
|
Others |
PS/2 KB & MS |
|
Dimension |
338.5×126.39mm |
|
Ordering Guide |
|
|
AB1-3K31Z |
(R).ROBO-8115VG2AR-Q470E PICMG 1.3(PCI-E+PCI).LGA1200. Q470E PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/fourCOM ports |
|
Packing List |
||
|
Standard |
B6902932 SATA III cable |
|
|
B8981980 PICMG SBC Handling and Installation Notice |
||
|
B6903351 (GP).Cable.Video DVI-I to DVID+VGA Y cable L=150mm.0130-069-00-0263. E-CALL |
||
|
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG |
||
|
TBD Installation CD |
||
|
Optional |
B6903090 USB 3.0 cable with bracket |
|
|
B6902980 PS/2 Keyboard / Mouse Cable with bracket |
||
|
B6902230 USB port cable with bracket |
||
