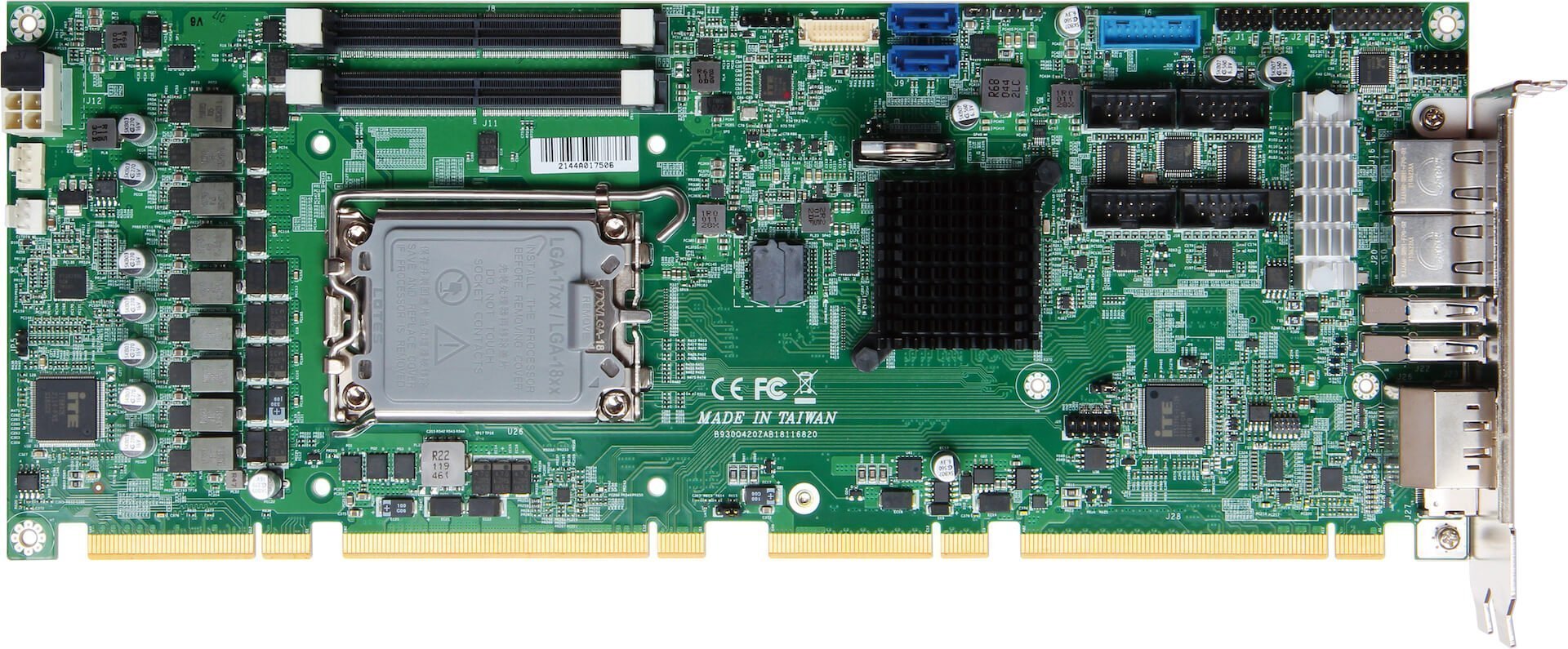

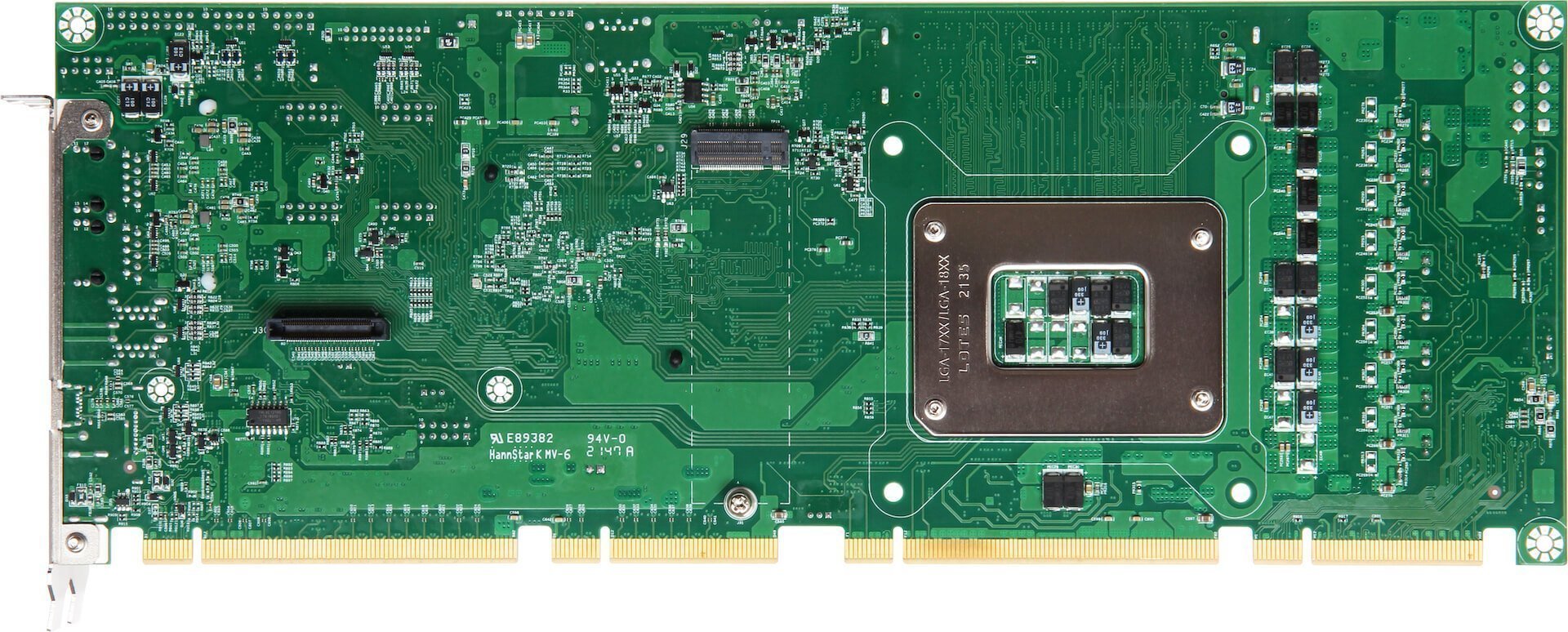

ROBO-8116G2AR-R
Intel® 12th/13th/14th Generation chipset 600 series with processor based on PICMG 1.3 SHB with DDR5 SDRAM,HDMI, DVI-D, DP, Dual Gigabit Ethernet, Audio and USB
Features :
- Supports Intel® 12th/13th/14th Generation Core processors Family in LGA 1700 package
- Two SO-DIMM support DDR5 DRAM up to 96GB
- Supports mutiple display by DVI-D ,DP and HDMI
- High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- Support two USB 3.2 Gen2 and USB 3.2 Gen2x2 on REAR I/O
- Support on board TPM2.0
Description
ROBO-8116G2AR-R is based on Intel® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR is suitable for Medical, Industrial automation, and Digital Signage application.
Specification
| General | |
|---|---|
| MODEL | ROBO-8116G2AR-R |
| Processor | Intel® 12th/13th/14th Generation Core processors family in LGA1700 package DMI x4 Link : 16GT/s Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) |
| Chipset | Intel® R680E |
| BIOS | AMI uEFI BIOS |
| Memory | Supports two DDR5 dual channel up to 96GB SO-DIMM sockets Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs |
| Storage Devices | 4x SATAIII drives (Dual ports via Backplane) Supports RAID 0, 1, 5, 10 1x M.2 Type M 2280 (on bottom side) |
| Watchdog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Hardware Monitoring | System monitor(Voltage,Fan Speed and Temperature) |
| Expansion Interface | From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4) setting (Gen5 up to 32 GT/s) From PCH: 1x PCIe x4 or 4x PCIe x1 by different bios support (Gen 3 up to 8.0 GT/s), 4x PCI devices at 32bit 33MHz |
| I/O INTERFACE | |
| Super | I/O ITE IT5121E-I |
| Audio | Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit Realtek ALC888S HDA codec, 7.1 channels one on board audio pin header |
| Ethernet | Dual Intel® WGI225LM Gigabit Ethernet controller Dual 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connectors with two LED indicators |
| Serial Port | 2x RS-232 ports 2x RS-232/422/485 ports selectable LPC to COM port IC: Fintek F81216DG |
| USB | 4x USB 2.0 ports (through backplane) 2x USB 3.2(Gen1) ports on board 2x USB 3.2(Gen2) ports on bracket 1x USB 3.2(Gen2 x2) type-C port on bracket |
| Keyboard & Mouse | TDB |
| GPIO | On board programmable 8-bit Digital I/Os |
| DISPLAY | |
| Graphic Controller | Intel® Core™ i3/i5/i7/i9 processors integrated graphics engine Provides improved 3D multimedia capabilities including Microsoft DirectX 12, OpenGL 4.5 |
| Display Interface | Support independent triple display by DP on bracket: Resolution up to 4096×2160 @ 60Hz DVI-D on bracket: up to 1920×1200 @ 60Hz HDMI on board: up to 4096×2160 @ 30Hz |
| Mechanical & Environment | |
| Dimension | 338.5mm(L) x 126.39mm(W),13.33”(L) x 4.98”(W) PCB: 12 layers |
| Power Supply | Typical: +12V, +5V Support ATX mode |
| Environment | Operation Temperature: 0°C to 60°C Storage Temperature: -20°C to 80°C Relative Humidity: 5~95%, non-condensing |
| Certification | CE,FCC Class A |
| MTBF | Over 100,000 hours at 40°C |
Ordering Guide
| AB1-3S31 | (R).ROBO-8116G2AR-R. PICMG 1.3(PCI-E+PCI).LGA1700.R680E PCH. Intel Xeon/Core i3 processors. SHB. w/DP/HDMI/DVI/Dual GbE/Audio/four COM ports(Raptor lake-s refresh) |
Packing List
| Packing List Standard | B6902932 SATA III cable B8981980 PICMG SBC Handling and Installa B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG |
|---|---|
| Optional | B6903090 USB 3.0 cable with bracket B6902230 USB port cable with bracket |
