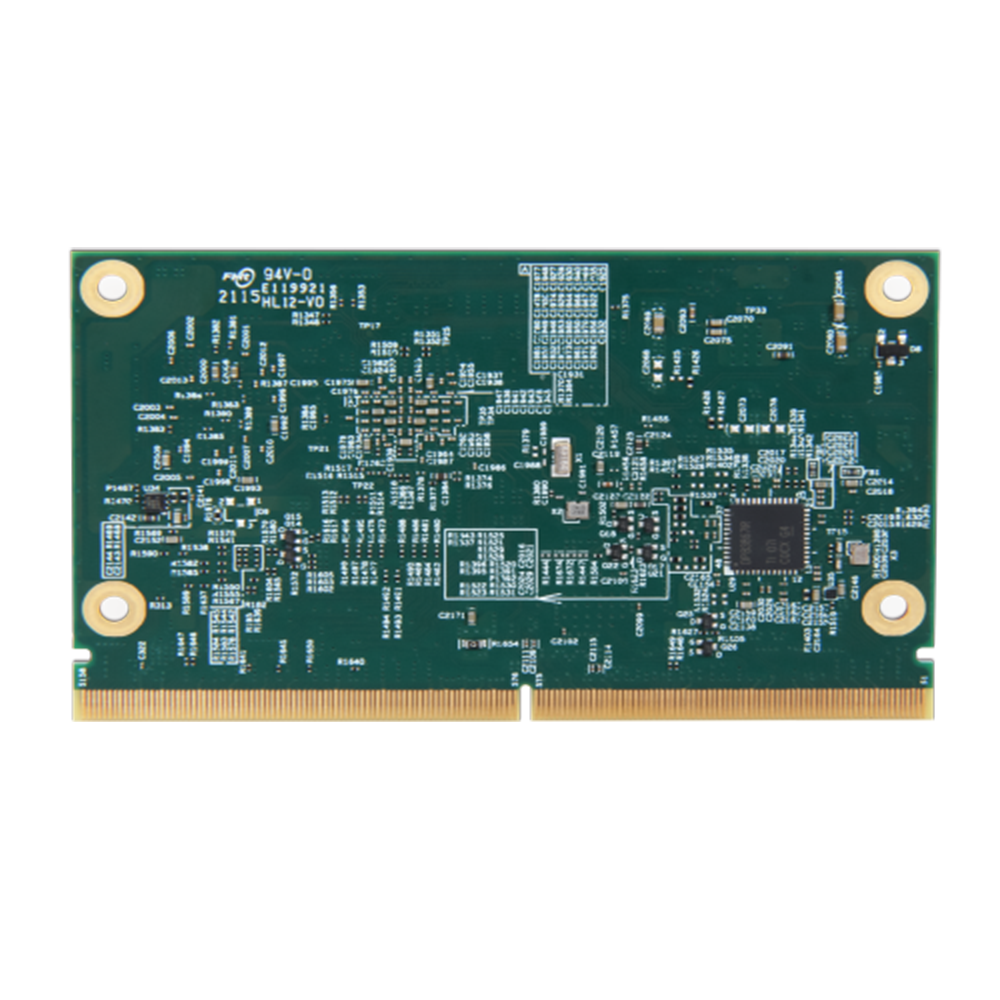

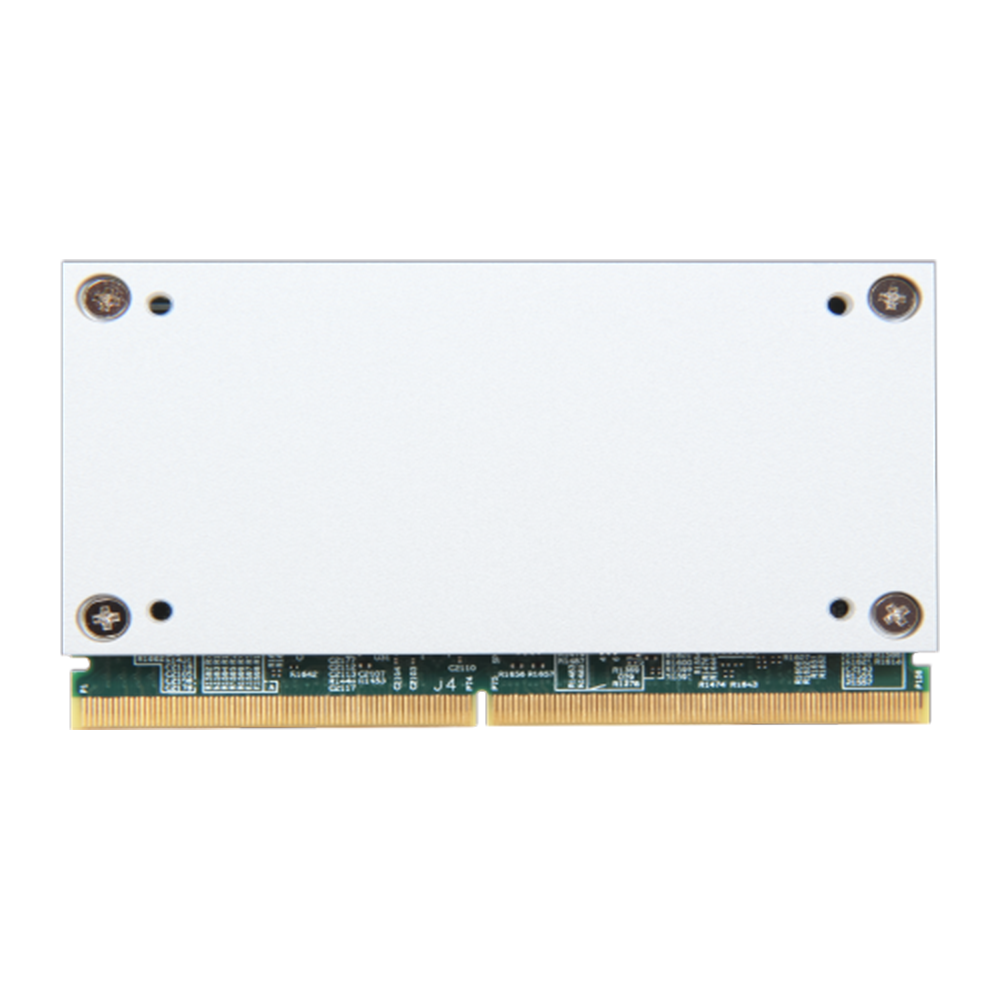

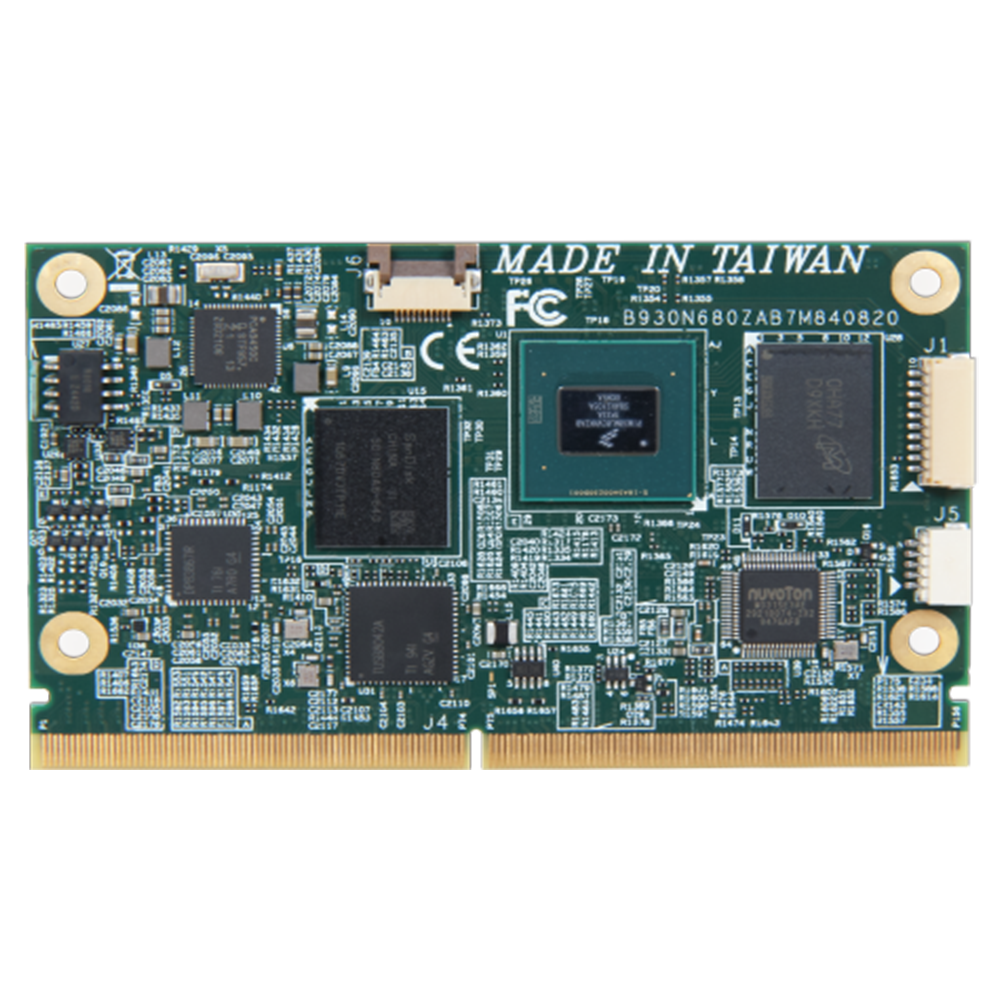

PSMC-M840
SMARC Module with NXP i.MX 8MPlus family, ARM Cortex-A53 processor, LVDS, HDMI, DSI graphic output, 2-USB 3.0, 2-USB 2.0, Wide Operating Temperature
Features :
- NXP i.MX 8M Plus ARM Cortex-A53 Quad LITE/ Quad processors
- Support LVDS, HDMI, DSI graphic output
- Options for eMMC 5.1 storage
- Support one PCI Express Gen3 single lane, two GbE
- Support 2-USB 3.0, 2-USB 2.0
- Wide Operating Temperature (optional)
Description
The Portwell’s PSMC-M840 SMARC module with the NXP i.MX8M Plus family processor which has strong Graphic performance and tremendous memory bandwidth, is used in this SMARC 2.1 module. Additionally PSMC-M840 has wider operating temperature range of -40°C to 85°C option, which makes this module is perfect building block for application in Automation, security, transportation and range of hostile environments because it is constructed with certified industrial grade components.
| Specification | |
|---|---|
|
CPU |
i.MX 8M Plus Quad, 4 cores, 800 MHz, 512 KB L2 cache, 1.6GHz
i.MX 8M Plus Quad LITE, 4 cores, 800 MHz, 512 KB L2 cache, 1.8GHz
|
|
Memory |
Onboard 2G| 4G| 6G LPDDR4 with 4000 MT/s Dual memory channel, 32bit |
|
Storage |
Support onboard eMMC 5.1 flash up to 256GB
|
|
Boot Loader |
u-Boot boot loader |
|
Display Output |
LVDS Dual-channel up to 1080p60 HDMI 2.0a up to 1080p60 MIPI-DSI 4-Lane up to 1080p60 |
|
Camera |
1- MIPI-CSI 4-lanes
1- MIPI-CSI 2-lanes
|
|
Audio |
2- I2S
|
|
Ethernet |
2-10/100/1000 GbE |
|
PCIe Express |
1- PCIe Gen3 single lane |
|
USB |
2- USB3.0, 2- USB 2.0, 1- USB2.0 OTG |
|
SDIO |
1- SDIO |
|
Serial |
2- SPI, 4- I2C, 4- UART (2- 2 wires, 2- 4 wires), 2- CAN-FD, 14- GPIO |
|
Video |
GPU Feature Support
GC7000UL (2 shaders) | GC520 2D acceleration
OpenVG 1.1OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2 | HW video decoding HEVC/H.265/ AVC/H.265/ VP9/ VP8 | Encoding HEVC/H.264/ AVC/H.265 |
|
Form Factor |
SMARCTM 2.1 |
|
Dimension |
SMARC module, 82 mm x 50 mm (3.23” x 1.97”) |
|
Operating Temperature |
Commercial: 0°C to +70°C, w/ 0.5m/s airflow
Industrial: -40°C to +85°C, w/ 0.5m/s airflow |
|
Humidity |
0-95% RH, non-condensing |
|
Power |
Standard Input 5V DC ±5% |
|
Board Support Package |
Linux Yocto (5.4.70-2.3)
By project request: Android, Vxworks |
