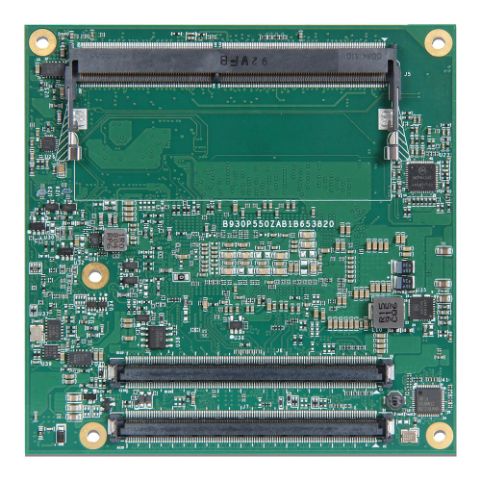

PCOM-B653VGL_back_正方比 (1)

PCOM-B653VGL

Intel® Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SO-DIMM Socket

Features :

Description

PCOM-B653VGL, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Whiskey Lake-U® i7/i5/i3 and Celeron® processors. In this architecture, PCOM-B653VGL could support VGA, LVDS, HDMI, eDP and DP displays, and turbo mode up to 4.4GHz. And its expandability I/O interfaces will include 5x PCIe 3.0 x 1, 4x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III devices. With this ultra low power consumption design (15W), PCOM-B638VG could provide a very energy saving solution to the different vertical market, seems like automation, healthcare, transportation and retails

Specification
Model Name
PCOM-B653VGL
Form Factor (mm)
Compact (95 x 95mm)
COM Type
Type 6
CPU/ Clock/ Cache
Intel® Core™ i7-8665U

Intel® Core™ i5-8365U

Intel® Core™ i3-8145U

Intel® Celeron® Processor

4305U 3.90 GHz to 4.40 GHz (Turbo)

2MB to 8MB cache
Chipset
SoC
Graphic Controller
Intel® HD Graphics 610

Intel® HD Graphics 620
Memory
DDR4 SO-DIMM up to 32GB 2400 MT/s

Non-ECC

Dual Channel
Storage
2x SATA III
USB
4x USB 3.2 Gen2

8x USB 2.0(Option 1x OTG)
PEG
4x PCIe 3.0 x 1
PCI Express
5x PCIe 3.0 x 1

1x PCIe 3.0 x 1(Option)
Ethernet
1x Gigabit Ethernet Intel® I219LM
Audio
Intel® High Definition Audio
Operating Temperature
0C° to 60°C
Carrier Board
PCOM-C605 (Mini-ITX)

PCOM-C60B (ATX)
