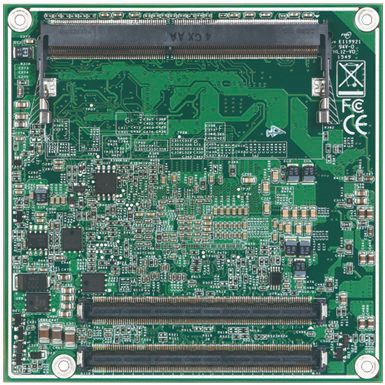

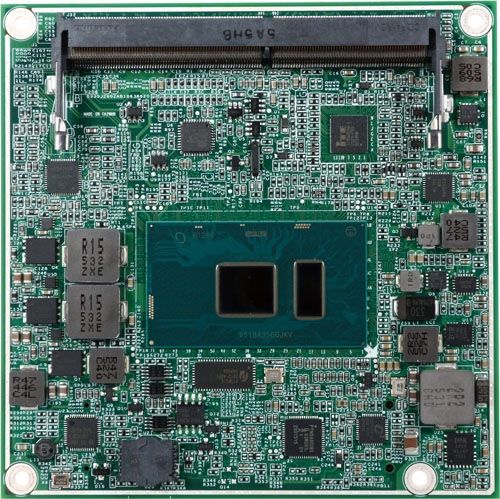

PCOM-B638VG
Intel® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket
Features :
- Intel® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 7000, 6000 series processors
- DDR4 SDRAM up to 32GB 2133 MT/s
- Multiple Displays VGA, LVDS/eDP, DP, HDMI
- Widely voltage support 6V to 18V
Description
PCOM-B638VGL, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Kaby Lake-U/Skylake-U® i7/i5/i3 and Celeron® processors. In this architecture, PCOM-B638VG could provide VGA, LVDS, and high quantity HDMI, eDP, DP displays, also included turbo mode up to 3.4GHz, and expandability I/O interfaces such as 5x PCIe 3.0 x 1, 4x USB 3.0, 8x USB 2.0, and 3x SATA III devices. With this ultra low power consumption required (15W), PCOM-B638VG could provide a very energy saving solution to different vertical market, such as automation, healthcare, transportation and retails.
| Specification | |
|---|---|
|
Model Name |
PCOM-B638VG
|
|
Form Factor (mm) |
Compact (95 x 95mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Intel® Core™ i7-7600U Intel® Core™ i5-7300U Intel® Core™ i3-7100U Intel® Core™ i7-6600U Intel® Core™ i5-6300U Intel® Core™ i3-6100U Intel® Celeron® Processor 3965U Intel® Celeron® Processor 3955U 3.00 GHz to 3.90 GHz (Turbo) 2MB to 4MB cache |
|
Chipset |
SoC
|
|
Graphic Controller |
Intel® HD Gen9 Graphics 520
|
|
Memory |
DDR4 SO-DIMM up to 32GB 2133 MT/s Non-ECC Dual Channel |
|
Storage |
2x SATA III 1x SATA III(Option)
|
|
USB |
4x USB 3.0 8x USB 2.0
|
|
PEG |
4x PCIe 3.0 x 1
|
|
PCI Express |
5x PCIe 3.0 x 1
|
|
Ethernet |
I219LM
|
|
Audio |
HD Audio
|
|
Operating Temperature |
0C° to 60°C
|
|
Carrier Board |
COM-C605 (Mini-ITX) PCOM-C60B (ATX) |
