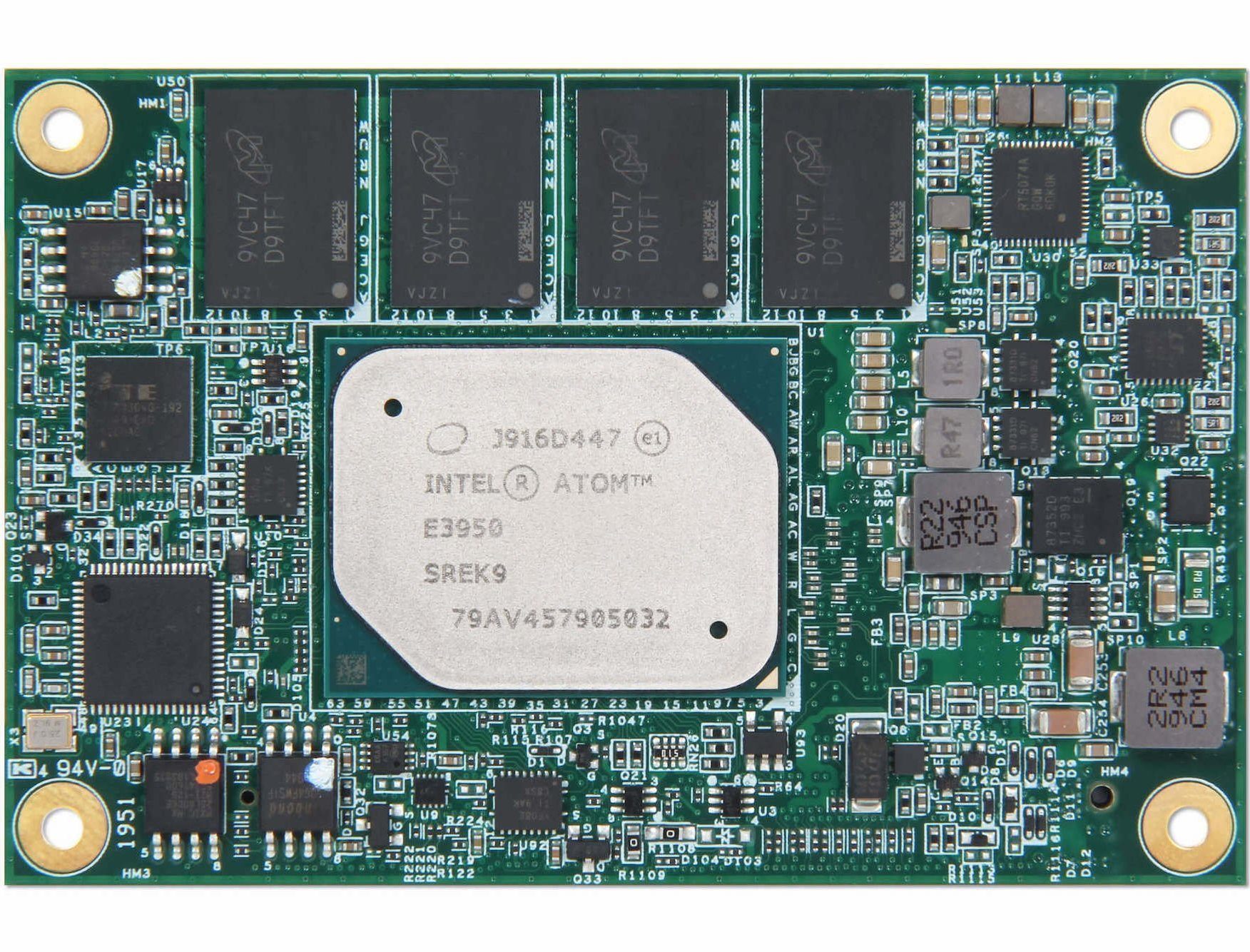

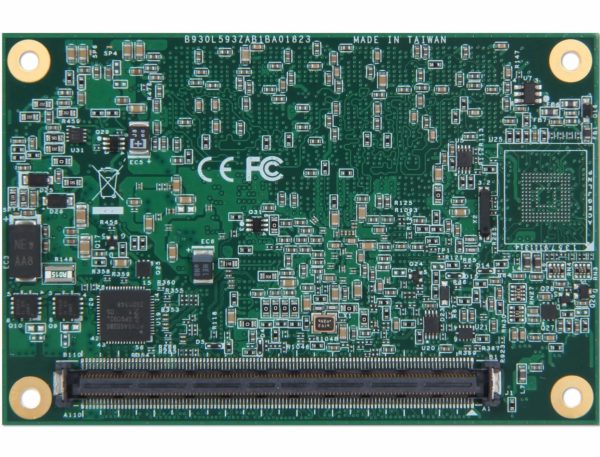

PCOM-BA01

Intel® Atom® E3900 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM, eMMC and USB 3.0

Features :

Description

PCOM-BA01, a Type 10 Mini COM Express® (84 x 55 mm) module which based on Intel® Apollo Lake Atom® E3900 series SoC. In this architecture, it could provide VGA, LVDS, and high quantity HDMI, eDP, DP with 4K resolution. And it also provide turbo mode up to 2.5GHz, with extending 4 x PCIe 2.0 x 1, 2 x USB 3.0, 8 x USB 2.0, and 2 x SATA III devices. With ultra low power consumption(6 to 12W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA01 as vertical solution to aim in the different versatile applications, such as Automation.

Specification
Model Name
PCOM-BA01
Form Factor (mm)
COM Express®Mini (84 x 55mm)
COM Type
Type 10
CPU/ Clock/ Cache
Intel® E3950

Intel® E3940

Intel® E3930

Intel® N4200

Intel® N3350

1.80 GHz to 2.50 GHz (Turbo)

2MB cache
Chipset
SoC
Memory
LPDD4 2133 MT/s

Non-ECC

Dual Channel

USB
2x USB 3.0

8 x USB 2.0,

(Option 1 x OTG)
PCI Express
4 x PCIe 2.0 x 1
Ethernet
Intel® I210IT
Sound
Intel® High Definition Audio
Graphic Controller
Intel® HD Graphics 505

Intel® HD Graphics 500
Carrier Board
PCOM-CA00 (Type 10)
