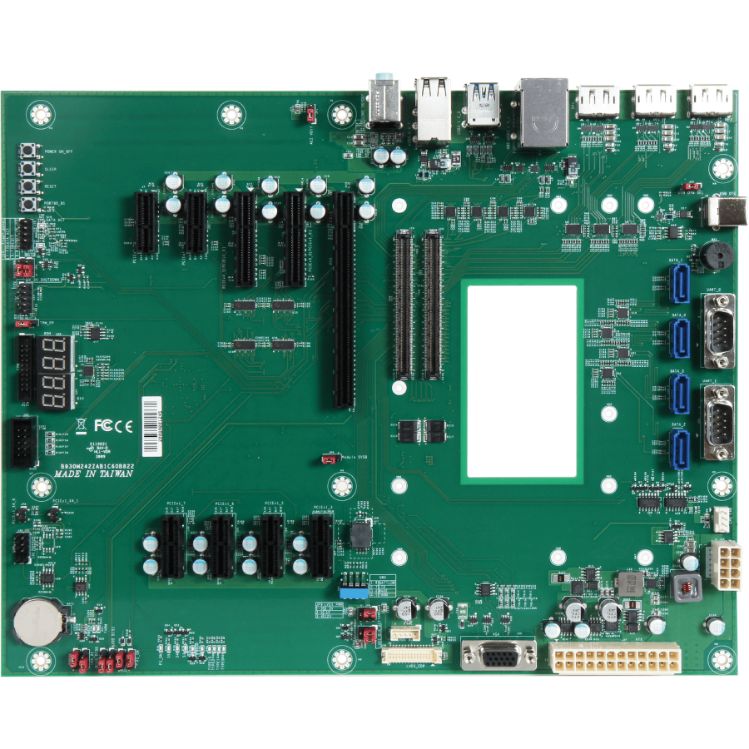

PCOM-C60B
ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 3.0 Module
Features :
- COM Express® carrier board is compatible with the Portwell Type 6 COM Express® modules
- Support 4x USB 3.2, 8x USB 2.0, 4x SATA III Ports
- Support multiple displays(eDP, DP, VGA, LVDS)
- Support 1x PEG(Gen4), 2x PCIex 4, 6x PCIe x1, 2.5G Ethernet
Description
Portwell PCOM-C60B is designed to as a validation board for most of the Portwell COM-Express 3.0 type 6 modules, this carrier will support VGA, eDP/LVDS, DP displays, and included multiple I/O expansions, for example PEG, PCIe, USB3.2, SATAIII and 2.5G ethernet.
| Specification | |
|---|---|
|
Model Name |
PCOM-C60B
|
|
Form Factor (mm) |
ATX (305 X 244mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Depends on Module
|
|
Chipset |
N/A
|
|
Graphic Controller |
N/A
|
|
Memory |
N/A
|
|
Storage |
4x SATA III
|
|
USB |
4x USB 3.2 Gen2 8x USB 2.0 |
|
PEG |
1x PCIe 4.0 x 16
|
|
PCI Express |
2x PCIe 3.0 x 4 6x PCIe 3.0 x 6 |
|
Ethernet |
1x GbE
|
|
UART |
2x Serial Port(Tx/Rx)
|
|
Display |
VGA LVDS/eDP Display port x 3 |
|
Audio |
N/A
|
|
Operating Temperature |
-40C° to 80°C
|
|
Module |
COM-Express 2.1 COM-Express 3.0 |
