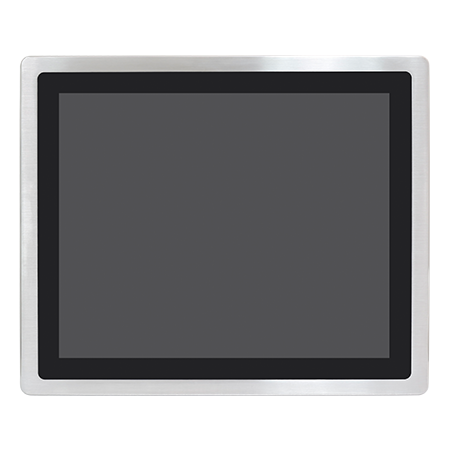

ViTAM-921BP/R/H
21.5” IP66 / IP69K Stainless Steel Panel PC IP66 / IP69K Stainless Steel Panel PC, Industrial Panel PC, HMI Controller, Industrial Display Monitor, Box PC
Features :
- 21.5” New Generation Stainless Steel Panel PC
- 8th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Support Resistive Touch, Projected Capacitive
- Touch Touch on/off Button on the Side Edge for Hygienic Cleaning
- Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 100 x 100 mm Mounting
Description
PCOM-B659 is COM Express module based on Intel® 13th Gen P/U platform. It is compatible with COM Express Rev3.1 standard. The platform adopt Intel 7 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. PCOM-B659 supports PCIe Gen4 lanes, and 2x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 8x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2, and 2x SATA . The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.
Specification
| LCD | |
|---|---|
| LCD Size | 19" TFT-LCD |
| Touch Type | P: Projected Capacitive/ R: Resistive |
| Luminance(cd/m²) | Standard: 350 High Brightness: 1000 |
| System | |
| CPU | 8th Gen. Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz) 8th Gen. Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
| Power Consumption | ViTAM-919BP: 39W |
| System Chipset | SoC |
| System Memory | 2 x 260-pin SO-DIMM up to 64GB DDR4 2400MHz |
| TPM | Firmware TPM (TPM 2.0 compliance) |
| I/O Port | |
| LAN | 1 x M12 8-pin for LAN with waterproof cover and chain |
| Power | 1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear 1 x Touch on/off button at the side |
| Serial / Parallel | 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
| USB | 1 x M12 8-pin for USB 2.0 with waterproof cover and chain |
| Storage Space | |
| HDD/SSD | 1 x 2.5" SATA3 HDD (for option) 1 x B-key 2280 (SATA as default, PCI-e select by BIOS) for SSD |
| Expansion | |
| Expansion Module | RFID module design on the front side (for option) |
| Expansion slot | 1 x Full size mSATA/mPCIe (mSATA as default, select by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
| Display | |
| Backlight lifetime(hrs) | 50,000 |
| Contrast | 1000:1 |
| LCD Size | 19" TFT-LCD |
| Luminance(cd/m²) | Standard: 350 High Brightness: 1000 |
| Max. color | 16.7M |
| Max. resolution | 1280 x 1024 |
| Viewangle(H°/V°) | 170 / 160 |
| Touch Screen(Option) | |
| Interface | USB |
| Light transmission(%) | Projected Capacitive Touch: Over 90% Resistive Touch: 80% |
| Touch Type | P: Projected Capacitive/ R: Resistive |
| Power | |
| Power input | DC 9~36V |
| Mechanical | |
| Construction | 304 Stainless steel chassis(default) 316 Stainless steel chassis(optional) |
| Dimension(mm) | 470 x 388.6 x 60 mm |
| IP rating | Total IP66/IP69K |
| Mounting | VESA mount 75 x 75, Yoke mount for optional |
| Net weight(Kgs) | 9.5 kg |
| Environment | |
| Certification | CE/FCC Class A |
| Operating temperature(°C) | 0~50°C / -20~60°C for option |
| Storage humidity | 10 to 95% @ 40°C, non-condensing |
| Storage temperature(°C) | -30~70°C |
| Operating System | |
| Operating System | Windows 10 IoT ENT LTSB, Windows 11 |
| Ordering Information | |
| Barebone | - |
| Option | 2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: ●2 x USB 2.0 ●1 x USB 3.2 Gen.1 ●1 x LAN ●1 x COM ●1 x CAN |
