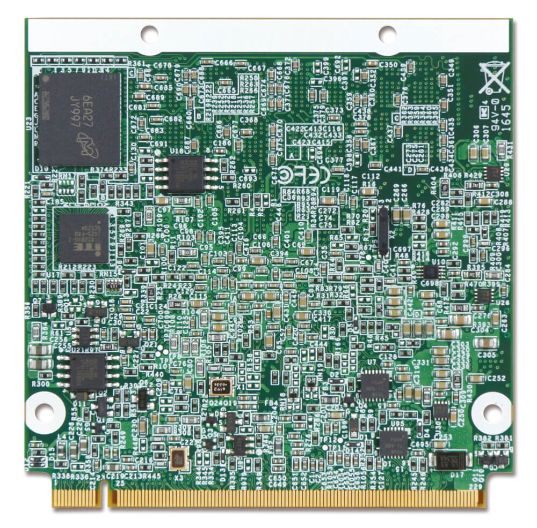

PQ7-M108_back (1)

PQ7-M108

Qseven module by Qseven 2.1 based on Intel® Atom® / Pentium® / Celeron® processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP/HDMI

Features :

Description

PQ7-M108 is designed with Intel® Atom®/ Pentium®/ Celeron® processors (Apollo Lake) which featured with higher graphic performance and wider memory bandwidth than the previous platform.
Benefit from Intel Apollo Lake industrial grade processor design, the operating temperature supports -40°C to 85°C. With qualified industrial-grade components selecting, PQ7-M108 is aimed to be widely applied on automation, security, transportations and so to different kinds of harsh environment applications.

Specification
CPU
Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W)

Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W)

Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W)

Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W)

Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Format
Qseven® 2.1, 70 x 70 mm
Chipset
SoC (System-On-Chip)
DRAM
Up to 8GB LPDDR4 – 2133/2400, Dual Memory Channel
Display Interface
LVDS/eDP, DP/HDMI
Storage
Up to 64 GB onboard eMMC 5.0 flash
2-SATA 3.0 (6 Gbit/s)
Network
1x 10/100/1000 GbE (Intel® i210)
Bus Interface
1x SDIO, 2x SPI, 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, 1x WDT, 1x JTAG
PCIe Express
4x PCIe x1 Gen 2
USB
3x USB 3.0

4x USB 2.0
Dimensions
70×70 mm
