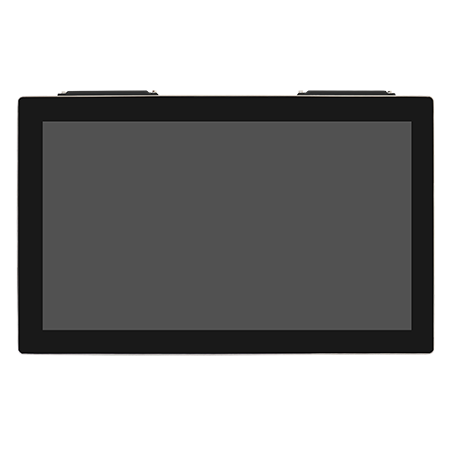

PhanTAM-921CP/H
21.5” IP66 / IP69K True Flat and Slim Design Stainless Steel Panel PC, Industrial Panel PC , HMI Controller, Industrial Display Monitor, Box PC
Features :
- 21.5" New Generation Stainless Steel Panel PC
- 11th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
- Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM
Description
PCOM-B659 is COM Express module based on Intel® 13th Gen P/U platform. It is compatible with COM Express Rev3.1 standard. The platform adopt Intel 7 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. PCOM-B659 supports PCIe Gen4 lanes, and 2x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 8x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2, and 2x SATA . The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.
Specification
| LCD | |
|---|---|
| LCD Size | 21.5" TFT-LCD |
| Touch Type | Projected Capacitive Touch |
| Luminance(cd/m²) | Standard: 250 High Brightness: 1000 |
| System | |
| CPU | Onboard Intel 11th Gen. Core i3/i5 Processor |
| Power Consumption | PhanTAM-921CP: 36W |
| System Chipset | SoC |
| System Memory | 2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz |
| TPM | TPM 2.0 |
| I/O Port | |
| LAN | 1 x M12 8-pin for LAN with waterproof cover |
| Power | 1 x M12 3-pin for DC power with waterproof cover |
| Serial / Parallel | 1 x Power switch on the rear 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
| USB | 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover |
| Storage Space | |
| HDD/SSD | 1 x M-Key 2280 (PCIe) for SSD |
| Expansion | |
| Expansion Module | RFID module design on the front side (for option) |
| Expansion slot | 1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
| Display | |
| Backlight lifetime(hrs) | 50,000 |
| Contrast | Standard: 1000:1 High Brightness: 3000:1 |
| LCD Size | 21.5" TFT-LCD |
| Luminance(cd/m²) | Standard: 250 High Brightness: 1000 |
| Max. color | 16.7M |
| Max. resolution | 1920 x 1080 |
| Viewangle(H°/V°) | 178 / 178 |
| Touch Screen(Option) | |
| Interface | USB |
| Light transmission(%) | Projected Capacitive Touch: Over 90% |
| Touch Type | Projected Capacitive Touch |
| Power | |
| Power input | DC 9~36V |
| Mechanical | |
| Construction | 304 Stainless Steel Chassis (default) 316 Stainless Steel Chassis (optional) |
| Dimension(mm) | 540.4 x 332.4 x 61.9 mm |
| IP rating | Total IP66/IP69K |
| Mounting | VESA Mount 100 x 100, Floor Stand / Swing ARM (optional) |
| Net weight(Kgs) | 7.9 kg |
| Environment | |
| Certification | CE/FCC Class A |
| Operating temperature(°C) | 0~50°C |
| Storage humidity | 10 to 90% @ 40°C, non-condensing |
| Storage temperature(°C) | -30~70°C |
| Operating System | |
| Operating System | Windows 10 IoT ENT LTSB, Windows 11 |
| Ordering Information | |
| Barebone | PhanTAM921CP: 21.5" FHD IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter PhanTAM921CPH: 21.5" FHD IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits |
| Option | 2 x optional blank M12 connector with waterproof cover for selecting two from the following options: ●2 x USB 2.0 ●1 x USB 3.2 Gen.1 ●1 x LAN ●1 x COM |
